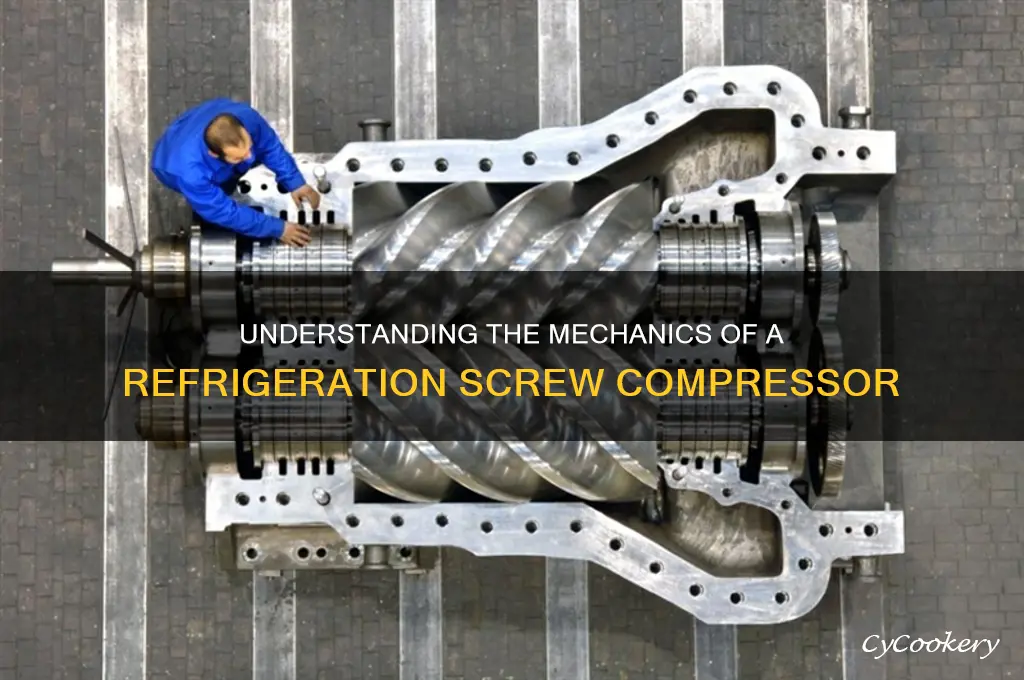

A refrigeration screw compressor operates by utilizing two intermeshing helical rotors, typically a male rotor with four or six lobes and a female rotor with corresponding grooves, which rotate within a cylindrical housing. As the rotors turn, they create a series of progressively shrinking pockets of refrigerant gas between their lobes and the housing. This process draws in low-pressure, low-temperature vapor from the evaporator, compresses it as the pockets decrease in volume, and discharges it as high-pressure, high-temperature gas into the condenser. The precise alignment and synchronization of the rotors, along with minimal clearance between them, ensure efficient compression with minimal leakage, making screw compressors highly reliable and widely used in industrial and commercial refrigeration systems.
| Characteristics | Values |
|---|---|
| Type | Positive Displacement Compressor |
| Working Principle | Utilizes two meshing helical rotors (male and female) to trap and compress refrigerant gas |
| Compression Process | Continuous, rotary motion; gas is drawn in axially, compressed along the rotor length, and discharged radially |
| Efficiency | High (typically 60–70% isentropic efficiency) due to continuous flow and minimal clearance volumes |
| Capacity Control | Achieved via slide valve adjustment, inlet throttling, or variable speed drives (VSD) |
| Refrigerants | Compatible with ammonia (NH₃), CO₂, HFCs, and HFOs; suitable for low and medium temperature applications |
| Power Range | 50 kW to 1,500 kW (typical for industrial refrigeration) |
| Discharge Pressure | Up to 30 bar (435 psi), depending on model and application |
| Suction Pressure | Typically 2–10 bar (29–145 psi) |
| Speed | 3,000–6,000 RPM (depending on drive system and design) |
| Lubrication | Oil-injected (pressure lubrication system) for rotor cooling and sealing |
| Noise Level | Moderate to high (requires sound insulation in some installations) |
| Maintenance | Regular oil changes, filter replacements, and rotor wear checks |
| Applications | Industrial refrigeration, HVAC systems, cold storage, food processing, and chemical plants |
| Advantages | High reliability, large capacity range, compact design, and ability to handle two-phase flow |
| Disadvantages | Higher initial cost, complexity in maintenance, and sensitivity to oil quality |
| Latest Innovations | Magnetic bearings, integrated VSDs, and IoT-enabled monitoring for predictive maintenance |
Explore related products
What You'll Learn
- Rotor and Gate Interaction: Explains how the male and female rotors mesh to compress refrigerant gas
- Suction and Discharge Process: Details how gas is drawn in and compressed through the screw compressor mechanism
- Oil Injection System: Describes the role of oil in cooling, sealing, and lubricating the compressor components
- Capacity Control Methods: Covers techniques like slide valve adjustment to regulate compressor output efficiently
- Thermodynamic Cycle: Illustrates the compression, condensation, expansion, and evaporation phases in refrigeration systems
Rotor and Gate Interaction: Explains how the male and female rotors mesh to compress refrigerant gas
The heart of a refrigeration screw compressor lies in the intricate dance between its male and female rotors. These precision-engineered components, often crafted from high-strength alloys, interlock in a continuous, rolling motion that forms the basis of gas compression. The male rotor, typically featuring a lobed profile, meshes seamlessly with the corresponding grooves of the female rotor, creating a series of sealed chambers as they rotate. This meshing action is not merely mechanical but a carefully calibrated process that ensures minimal leakage and maximum efficiency. Each revolution of the rotors reduces the volume of refrigerant gas, increasing its pressure in a smooth, continuous flow.
To visualize this interaction, imagine two gears rotating in opposite directions, but instead of teeth, they have lobes and grooves that fit together perfectly. As the male rotor’s lobes enter the female rotor’s grooves, they trap pockets of refrigerant gas between them. These pockets are progressively reduced in volume as the rotors turn, forcing the gas toward the compressor’s discharge port. The precision of this interaction is critical; even a slight misalignment or wear can lead to inefficiencies or failure. Modern screw compressors often incorporate advanced coatings and tolerances measured in micrometers to ensure optimal performance.
One practical aspect of this interaction is the importance of lubrication. The rotors operate in close proximity, with clearances as small as 0.05 to 0.1 millimeters, making lubrication essential to reduce friction and wear. Oil is injected into the compression chamber, forming a thin film between the rotors and acting as a sealant to minimize gas leakage. The oil also carries away heat generated during compression, helping to maintain the compressor’s thermal efficiency. Regular monitoring of oil levels and quality is crucial, as contaminants or insufficient lubrication can lead to premature rotor damage.
A comparative analysis of screw compressors versus other types, such as reciprocating or centrifugal compressors, highlights the unique advantages of rotor interaction. Unlike reciprocating compressors, which rely on pistons and cylinders, screw compressors provide a pulsation-free flow of refrigerant, reducing stress on the system. Compared to centrifugal compressors, screw compressors handle higher pressure ratios with greater flexibility, making them ideal for medium to large-scale refrigeration applications. However, the complexity of rotor design and manufacturing means screw compressors are generally more expensive upfront, though their reliability and efficiency often justify the investment.
In conclusion, the rotor and gate interaction in a refrigeration screw compressor is a marvel of engineering, combining precision, durability, and efficiency. Understanding this mechanism not only sheds light on how these compressors work but also emphasizes the importance of maintenance and proper operation. For technicians and engineers, mastering this interaction is key to optimizing performance and extending the lifespan of the equipment. Whether in industrial refrigeration, HVAC systems, or process cooling, the screw compressor’s rotors remain at the core of its functionality, turning the principles of gas compression into practical, reliable solutions.
Refrigerator Freon Leaks: Potential Health Risks and Safety Measures
You may want to see also
Explore related products
Suction and Discharge Process: Details how gas is drawn in and compressed through the screw compressor mechanism
The suction and discharge process in a refrigeration screw compressor is a symphony of precision engineering, where gas transformation occurs through the intricate dance of rotating screws. Imagine two intermeshing helical rotors, male and female, encased within a cylindrical housing. As these rotors turn, they create a series of progressively shrinking pockets between their lobes and the compressor casing. This is where the magic begins.
At the suction inlet, low-pressure refrigerant gas is drawn into these expanding pockets, much like a vacuum pulling air through a straw. The rotors continue their rotation, trapping the gas within these pockets and carrying it along the compressor's length.
Here's the crucial part: as the rotors turn, the pockets decrease in volume, compressing the gas within. This compression process follows the principles of positive displacement, meaning the gas is physically forced into a smaller space, increasing its pressure and temperature. Think of it like squeezing a balloon – the air inside becomes denser and hotter.
The compression ratio, a key parameter, dictates the final discharge pressure. It's calculated by dividing the absolute discharge pressure by the absolute suction pressure. For refrigeration applications, typical compression ratios range from 3:1 to 10:1, depending on the system's requirements.
The discharge process is just as critical. As the compressed gas reaches the end of the rotors, it encounters the discharge port. The high-pressure gas is then expelled from the compressor, ready to be condensed and continue its journey through the refrigeration cycle. The efficiency of this process relies on tight clearances between the rotors and the housing, minimizing leakage and ensuring maximum compression.
How Long Can Jelly Sit Out Unrefrigerated? Safe Storage Tips
You may want to see also
Explore related products
Oil Injection System: Describes the role of oil in cooling, sealing, and lubricating the compressor components
Oil is the lifeblood of a refrigeration screw compressor, playing a critical, multi-faceted role in its operation. Firstly, it acts as a coolant, absorbing heat generated by the compression process. As the screw rotors intermesh and compress refrigerant gas, friction creates significant heat. Oil, injected directly into the compression chamber, circulates through the system, carrying away this heat and preventing overheating. This cooling effect is essential for maintaining efficiency and prolonging the compressor’s lifespan. Without adequate oil cooling, temperatures can rise to levels that damage components or degrade performance.
Beyond cooling, oil serves as a sealant, ensuring the compressor operates efficiently by minimizing internal leakage. In a screw compressor, the male and female rotors must maintain precise clearances to compress gas effectively. Oil fills these microscopic gaps, creating a dynamic seal that prevents refrigerant from escaping between the rotors or into the motor chamber. This sealing action directly impacts the compressor’s volumetric efficiency, ensuring it delivers the intended capacity. For example, in high-capacity industrial systems, even minor leaks can result in significant energy losses, making the oil’s sealing role indispensable.
Lubrication is perhaps the most intuitive function of oil in a screw compressor, yet it’s no less vital. The lubricating properties of oil reduce friction between moving parts, such as the rotors, bearings, and timing gears. This minimizes wear and tear, ensuring smooth operation and reducing the risk of mechanical failure. High-quality compressor oils are formulated with additives that enhance their lubricating capabilities, even under extreme pressures and temperatures. Regular oil analysis and replacement are critical to maintaining this function, as degraded oil can lead to increased friction, energy consumption, and premature component failure.
The injection system itself is a marvel of engineering, designed to deliver oil precisely where it’s needed. Oil is typically injected at a controlled rate, often 2–5% of the refrigerant flow, depending on the compressor size and load. This ratio ensures sufficient oil for cooling, sealing, and lubrication without flooding the system. The oil is pressurized and injected directly into the compression chamber, where it mixes with the refrigerant. After passing through the compressor, the oil-refrigerant mixture travels to an oil separator, which removes the oil for recirculation. This closed-loop system ensures continuous oil supply while preventing oil carryover into the refrigeration cycle.
In practice, maintaining the oil injection system requires vigilance. Operators must monitor oil levels, pressure differentials, and quality regularly. Oil filters should be replaced at manufacturer-recommended intervals (typically every 3,000–6,000 hours) to prevent contamination. Additionally, oil viscosity and acidity levels should be checked periodically, as these parameters directly affect performance. For instance, oil with excessive acidity can corrode internal components, while oil that’s too viscous may not flow properly, leading to inadequate lubrication. By understanding and maintaining the oil injection system, operators can ensure their screw compressors operate reliably, efficiently, and with minimal downtime.
Refrigerating Canned Pumpkin: Optimal Storage Time and Freshness Tips
You may want to see also
Explore related products
Capacity Control Methods: Covers techniques like slide valve adjustment to regulate compressor output efficiently
Screw compressors are the workhorses of industrial refrigeration, prized for their reliability and efficiency. But even these robust machines need to adapt to fluctuating cooling demands. That's where capacity control methods come in, acting as the throttle for your compressor's output. Imagine a busy restaurant kitchen: during peak hours, the compressor needs to work at full tilt, but during quieter periods, running at full capacity would be wasteful. Capacity control allows the compressor to adjust its output, ensuring optimal efficiency and energy savings.
One of the most common and effective methods is slide valve adjustment. Think of it as a dimmer switch for your compressor. The slide valve, positioned within the compressor, physically alters the volume of refrigerant being compressed. By moving the valve, you effectively change the length of the compression chamber, allowing for precise control over the compressor's capacity. This adjustment can be done manually or automatically, depending on the system's sophistication.
The beauty of slide valve control lies in its simplicity and effectiveness. Unlike other methods that rely on complex electronics or additional components, the slide valve is a mechanical solution, making it robust and reliable. It allows for a wide range of capacity modulation, typically from 10% to 100% of the compressor's full capacity. This fine-tuned control translates to significant energy savings, as the compressor only works as hard as it needs to, reducing wear and tear and extending its lifespan.
For optimal performance, consider these practical tips: regular maintenance is crucial to ensure smooth operation of the slide valve mechanism. Lubrication is key, as friction can lead to inefficiencies and premature wear. Additionally, monitoring the system's pressure and temperature allows for proactive adjustments, ensuring the slide valve is always positioned for maximum efficiency.
While slide valve adjustment is a tried-and-true method, it's not the only player in the capacity control game. Other techniques, like inlet guide vanes and variable speed drives, offer alternative approaches. Inlet guide vanes, for instance, adjust the angle of refrigerant flow into the compressor, influencing its capacity. Variable speed drives, on the other hand, directly control the compressor's motor speed, providing a more dynamic but potentially more complex solution. The choice of method depends on factors like system size, required precision, and cost considerations.
Why Refrigerating NyQuil Is a Bad Idea: Expert Insights
You may want to see also
Explore related products
Thermodynamic Cycle: Illustrates the compression, condensation, expansion, and evaporation phases in refrigeration systems
The refrigeration screw compressor operates on a thermodynamic cycle that is fundamental to its efficiency and functionality. This cycle, known as the vapor-compression cycle, consists of four distinct phases: compression, condensation, expansion, and evaporation. Each phase plays a critical role in transferring heat and maintaining the desired temperature in refrigeration systems. Understanding this cycle is essential for optimizing performance and troubleshooting issues in screw compressors.
Compression Phase: The cycle begins with the compression of low-pressure, low-temperature refrigerant vapor. Inside the screw compressor, intermeshing rotors rotate to reduce the volume of the vapor, increasing its pressure and temperature significantly. For example, a typical screw compressor might raise the refrigerant pressure from 10 psig (pounds per square inch gauge) to 150 psig, while the temperature increases from 40°F to 160°F. This phase is energy-intensive, requiring robust motor power and precise rotor alignment to minimize energy losses.
Condensation Phase: After compression, the high-pressure, high-temperature vapor moves to the condenser, where it is cooled and condensed into a liquid. Heat is rejected to the surrounding environment, often facilitated by air or water cooling systems. The condensation process is crucial for maintaining system efficiency, as incomplete condensation can lead to inefficiencies in subsequent phases. For instance, ensuring the condenser coils are clean and free of debris can improve heat transfer rates by up to 30%, enhancing overall system performance.
Expansion Phase: The high-pressure liquid refrigerant then passes through an expansion device, such as a thermostatic expansion valve (TXV), which reduces its pressure and temperature abruptly. This phase is isenthalpic, meaning the enthalpy remains constant while the refrigerant undergoes a significant drop in pressure, preparing it for the evaporation phase. Proper calibration of the expansion valve is vital to avoid issues like refrigerant flooding or insufficient cooling capacity.
Evaporation Phase: In the final phase, the low-pressure, low-temperature refrigerant enters the evaporator, where it absorbs heat from the space being cooled, transitioning back into a vapor. This phase completes the cycle, as the vapor returns to the compressor to repeat the process. Efficient evaporator design, such as using finned tubes to maximize surface area, can enhance heat absorption and improve cooling efficiency. For optimal performance, maintain a superheat of 5°F to 15°F at the evaporator outlet to prevent liquid refrigerant from returning to the compressor.
By mastering the thermodynamic cycle of a refrigeration screw compressor, operators can ensure energy efficiency, prolong equipment lifespan, and achieve consistent cooling performance. Regular maintenance, such as monitoring refrigerant levels and inspecting components for wear, is essential to keep the cycle functioning seamlessly. This knowledge empowers technicians to diagnose and resolve issues effectively, making it a cornerstone of refrigeration system management.
Do Viruses Survive in Refrigerators and Freezers? Chilling Facts Revealed
You may want to see also
Frequently asked questions
A refrigeration screw compressor works by using two meshing helical rotors (a male and a female rotor) that rotate in opposite directions. As the rotors turn, the refrigerant gas is drawn into the inlet port, trapped between the rotor lobes, and compressed as the volume decreases along the length of the rotors. The compressed gas is then discharged through the outlet port.
The main components of a screw compressor include the male and female rotors, a housing or casing, bearings, seals, an oil system for lubrication and cooling, an inlet and outlet port, and a drive system (e.g., electric motor) to rotate the rotors.
Screw compressors offer several advantages, including high efficiency, continuous operation, compact design, low vibration and noise levels, and the ability to handle high refrigeration capacities. They are also known for their reliability and long service life due to fewer moving parts compared to other compressor types.
