On architectural plans, a refrigerator is typically represented as a simple, rectangular symbol, often accompanied by dimensions and labels to indicate its placement within the kitchen layout. These symbols are part of a standardized set of annotations used by architects and designers to convey the location and size of appliances in a clear and concise manner. The refrigerator’s representation usually includes its width, depth, and height, ensuring it fits seamlessly into the designated space while adhering to ergonomic and functional design principles. Its placement is carefully considered to optimize workflow, accessibility, and aesthetic integration within the overall kitchen design.
| Characteristics | Values |
|---|---|
| Symbol | Typically represented by a simple rectangle or square with rounded corners. |
| Size | Dimensions vary based on the specific model and scale of the plan, but generally proportional to the actual size of the refrigerator. |
| Location | Placed within the kitchen layout, often adjacent to countertops or near the cooking area. |
| Orientation | Usually depicted with the door facing outward, aligned with the flow of the kitchen. |
| Labeling | Labeled with the word "Refrigerator" or an abbreviation like "Fridge" near the symbol. |
| Details | May include a small line or dot to indicate the handle or door swing direction. |
| Scale | Drawn to scale according to the architectural drawing standards (e.g., 1/4" = 1', 1:50). |
| Material Indication | Not typically detailed; assumed to be a standard appliance. |
| Surrounding Elements | Often shown with nearby cabinets, countertops, or other kitchen appliances for context. |
| Color/Shading | Usually black or dark gray outline; no shading unless specified in the plan style. |
Explore related products
What You'll Learn
Refrigerator size and dimensions
Architects must consider the standard dimensions of refrigerators to ensure seamless integration into kitchen designs. Typical refrigerator sizes range from 24 to 40 inches in width, 62 to 72 inches in height, and 24 to 36 inches in depth. These measurements are critical for cabinet alignment, walkway clearance, and overall spatial harmony. For example, a 36-inch wide French door refrigerator is a popular choice for modern kitchens, requiring at least 39 inches of width to account for door swing and ventilation. Ignoring these dimensions can lead to awkward gaps or cramped spaces, undermining both functionality and aesthetics.
When specifying refrigerator size on plans, architects should prioritize client lifestyle and kitchen layout. A 24-inch wide counter-depth refrigerator suits smaller kitchens or minimalist designs, while a 36-inch wide side-by-side model caters to larger families with greater storage needs. Depth is equally important; counter-depth refrigerators (24–25 inches deep) align with cabinetry for a built-in look, whereas standard-depth models (30–34 inches deep) offer more capacity but protrude further. Always include a minimum clearance of 1 inch on all sides for proper airflow, preventing overheating and extending appliance life.
Persuasive arguments for custom refrigerator dimensions are gaining traction in high-end residential projects. Bespoke refrigerators, tailored to specific height, width, and depth requirements, allow architects to achieve a truly integrated aesthetic. For instance, a 42-inch tall under-counter refrigerator can be paired with matching freezer drawers for a streamlined look in open-concept kitchens. However, custom solutions come at a premium, often costing 20–50% more than standard models. Architects must weigh the benefits of customization against budget constraints and client priorities.
Comparing European and American refrigerator standards highlights the importance of regional considerations. European refrigerators tend to be narrower (typically 24–30 inches wide) and taller (up to 80 inches) to maximize vertical space, reflecting smaller kitchen footprints. In contrast, American models prioritize width and depth for bulk storage, aligning with cultural preferences for large appliances. Architects working on international projects must adapt plans to accommodate these differences, ensuring compatibility with local appliance sizes and installation norms.
Finally, a descriptive approach to refrigerator dimensions on architectural plans reveals their role in spatial storytelling. A well-placed refrigerator can serve as a focal point or blend seamlessly into the background, depending on its size and placement. For instance, a built-in 48-inch wide refrigerator with custom panel-ready doors can mimic surrounding cabinetry, creating a cohesive visual flow. Conversely, a stainless steel 30-inch wide model can stand out as a modern accent in an industrial-style kitchen. By thoughtfully annotating dimensions and materials on plans, architects can communicate not just functionality but also the intended design narrative.
Maximizing Apple Freshness: Refrigerator Storage Tips and Duration Guide
You may want to see also
Explore related products
Placement in kitchen layout
Refrigerators are often placed in one of three primary zones in kitchen layouts: against an exterior wall, within an appliance garage, or as a freestanding unit in an open-plan design. Each placement has implications for energy efficiency, workflow, and aesthetics. Exterior wall placement minimizes heat transfer and reduces the workload on the compressor, but it may limit design flexibility. Appliance garages conceal the refrigerator, maintaining a sleek appearance, but can restrict access and ventilation. Freestanding units offer versatility but require careful consideration of surrounding traffic flow and clearance.
In analytical terms, the refrigerator’s location should align with the kitchen’s work triangle—the imaginary lines connecting the sink, stove, and refrigerator. Placing the refrigerator at one vertex of this triangle ensures efficient movement during meal preparation. For example, in a galley kitchen, positioning the refrigerator at one end keeps it accessible without disrupting the central workflow. In larger kitchens, a secondary refrigerator or beverage center might be placed near dining areas to reduce foot traffic through the primary cooking zone.
From an instructive perspective, architects should consider clearance requirements when placing refrigerators. A minimum of 36 inches of clearance in front of the refrigerator is recommended to allow for door swing and safe passage. Additionally, side clearances of at least 1/8 inch are necessary for proper ventilation, particularly for built-in models. For counter-depth refrigerators, ensure the unit aligns with cabinetry to maintain a seamless look, but verify that the reduced depth meets storage needs.
Persuasively, integrating the refrigerator into the kitchen’s design can elevate both form and function. Panel-ready refrigerators, which can be clad in matching cabinetry material, offer a cohesive aesthetic without sacrificing accessibility. In contemporary designs, placing the refrigerator in a less prominent location, such as a pantry or utility area, can create a minimalist, clutter-free main kitchen. However, this approach requires careful planning to ensure the secondary space is adequately sized and ventilated.
Comparatively, European kitchen designs often prioritize concealed appliances, with refrigerators tucked behind cabinet doors or integrated into tall pantry units. In contrast, American layouts frequently feature freestanding or side-by-side refrigerators as focal points. The choice depends on cultural preferences, spatial constraints, and the desired balance between visibility and integration. For instance, a glass-front refrigerator can serve as a design feature in an open-plan kitchen, showcasing curated contents while maintaining functionality.
Descriptively, the refrigerator’s placement can influence the kitchen’s ambiance. A centrally located refrigerator in an island, for example, creates a hub for family gatherings but may disrupt counter space. Conversely, a refrigerator placed at the kitchen’s perimeter can define zones, separating cooking from dining areas. In small kitchens, under-counter refrigerators or drawer-style units can maximize space, though they may not suit households requiring bulk storage. Ultimately, the ideal placement harmonizes with the kitchen’s layout, user habits, and design vision.
Quick Fixes for Annoying Humming Noise in Your Refrigerator
You may want to see also
Explore related products
Clearance and ventilation requirements
Architects must ensure that refrigerators have adequate clearance for proper functionality and safety. The National Kitchen & Bath Association (NKBA) recommends a minimum of ½ inch clearance on each side, 1 inch at the top, and 1 inch at the back for proper air circulation. These clearances prevent overheating, ensure efficient operation, and allow for maintenance access. Ignoring these guidelines can void warranties and increase energy consumption by up to 15%.
Ventilation requirements are equally critical, particularly for built-in refrigerators. Rear-vented models need unobstructed airflow around the compressor coils, typically located at the bottom or rear. Architects should incorporate vent grilles or louvers in cabinetry designs to facilitate this. For example, a 3/8-inch gap between the refrigerator and cabinet sides, paired with a 1-inch clearance at the top, ensures optimal airflow. In tight spaces, consider specifying a front-vented model, which eliminates the need for rear clearance but requires proper airflow around the unit’s base.
Instructively, architects should coordinate with HVAC engineers to avoid placing refrigerators near heat sources like ovens or direct sunlight. Proximity to such areas can force the appliance to work harder, reducing its lifespan by up to 30%. Additionally, ensure that the refrigerator is installed on a level surface to maintain door seals, which prevent cold air leakage. Use a bubble level during installation and adjust feet accordingly—a tilt of more than 1/8 inch can compromise efficiency.
Comparatively, European refrigerator designs often prioritize slim profiles and integrated ventilation systems, allowing for tighter clearances than American models. Architects working with European appliances can reduce side clearances to ¼ inch in some cases, but must verify manufacturer specifications. This flexibility enables more streamlined kitchen layouts but demands precise planning to avoid airflow obstruction.
Persuasively, investing time in proper clearance and ventilation planning not only enhances appliance performance but also elevates the overall design. A well-ventilated refrigerator operates quietly, efficiently, and seamlessly integrates into the kitchen aesthetic. By adhering to these requirements, architects ensure client satisfaction and long-term functionality, proving that attention to detail is the cornerstone of exceptional design.
Should You Refrigerate Condoms? Storage Tips for Safety and Effectiveness
You may want to see also
Explore related products
Integration with cabinetry design
Refrigerators are no longer standalone appliances but integral elements of kitchen design, often seamlessly integrated into cabinetry to create a cohesive and streamlined aesthetic. This approach, known as "panel-ready" or "integrated" design, involves cladding the refrigerator with custom panels that match the surrounding cabinets, ensuring it blends effortlessly into the kitchen’s architectural plans. Architects achieve this by specifying precise dimensions and clearances in their drawings, typically allowing for a ¼-inch gap around the appliance to ensure proper ventilation while maintaining visual continuity. The result is a kitchen where functionality and elegance coexist without compromise.
To successfully integrate a refrigerator with cabinetry, architects must consider both form and function. Begin by selecting a refrigerator model designed for integration, which often features a shallow profile and front-venting capabilities to fit within standard cabinet depths (typically 24–27 inches). Next, coordinate with cabinetmakers to fabricate panels from the same materials and finishes as the surrounding cabinetry, ensuring consistency in grain patterns and color. Hinges and handles should align with adjacent doors for a unified look, though some designs opt for handle-less systems using push-to-open mechanisms for added minimalism. Always verify that the refrigerator’s weight is supported by the cabinet structure, often requiring reinforced framing or a dedicated base.
A common challenge in this integration is balancing aesthetics with accessibility. While a fully integrated refrigerator can disappear into the cabinetry, it’s crucial to ensure the appliance remains user-friendly. Architects should specify clearances that allow doors to swing open without obstruction, typically requiring a minimum of 36 inches of clearance in front of the appliance for comfortable access. Additionally, consider the placement of the refrigerator within the kitchen workflow—ideally near food preparation areas but away from high-traffic zones to minimize energy loss from frequent opening. Thoughtful planning ensures the refrigerator enhances both the design and functionality of the space.
Comparing integrated refrigerators to traditional models highlights the trade-offs of this design choice. While integrated units offer unparalleled visual harmony, they often come with higher costs due to customization and specialized appliance requirements. Traditional refrigerators, on the other hand, provide more flexibility in terms of size, style, and budget but can disrupt the continuity of cabinetry design. Architects must weigh these factors against the client’s priorities, whether they prioritize a seamless aesthetic or cost-effectiveness. In high-end residential projects, integration is increasingly the standard, reflecting a shift toward kitchens as curated, design-forward spaces rather than purely utilitarian rooms.
For architects drafting plans, clarity in documentation is key to successful refrigerator integration. Include detailed elevations showing the refrigerator’s placement, panel dimensions, and hardware alignment. Annotate technical requirements, such as ventilation needs and electrical connections, to guide contractors during installation. A well-executed integration not only elevates the kitchen’s design but also demonstrates the architect’s attention to detail and commitment to creating cohesive, purposeful spaces. By treating the refrigerator as an opportunity rather than an afterthought, architects can transform it from a mere appliance into a defining element of the cabinetry design.
Easy Steps to Replace Your Kenmore Fridge Light Bracket
You may want to see also
Explore related products

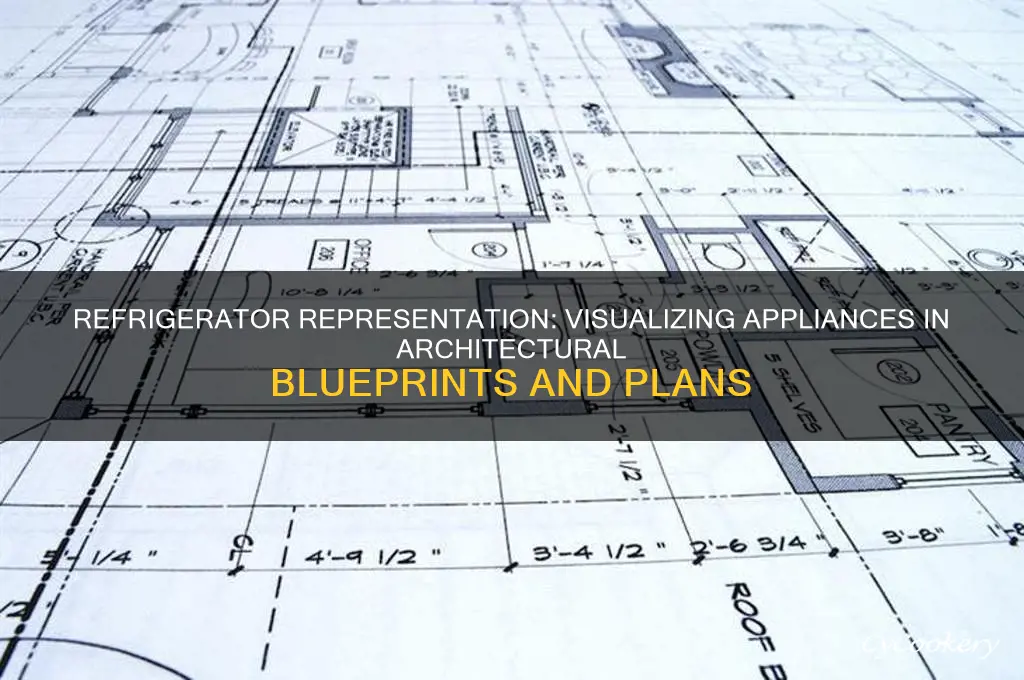

Symbol representation on blueprints
Blueprints, the backbone of architectural design, rely heavily on standardized symbols to convey complex information efficiently. Among these, the refrigerator—a staple in modern kitchens—is represented by a simple yet distinct icon. Typically, it appears as a rectangle with a smaller rectangle or line inside, often accompanied by the letter "R" or a specific notation like "REFRIG." This symbol is not arbitrary; it adheres to industry standards such as those outlined in the American National Standards Institute (ANSI) or the International Organization for Standardization (ISO), ensuring clarity across projects and teams.
Consider the placement of this symbol on a blueprint. It’s not just about marking a spot for the appliance; it’s about integrating it into the spatial flow of the kitchen. The refrigerator symbol is usually positioned adjacent to counters or near electrical outlets, reflecting both functional requirements and ergonomic design. For instance, a side-by-side refrigerator might be denoted with a wider rectangle, while a bottom-freezer model could include a horizontal divider. These nuances allow contractors and designers to visualize the appliance’s footprint and plan accordingly.
One challenge in symbol representation is balancing simplicity with specificity. While a basic rectangle suffices for most plans, high-end or custom kitchens may require more detailed symbols. For example, a built-in refrigerator might be shown with dashed lines to indicate it’s flush with cabinetry, or its dimensions might be explicitly noted (e.g., 36” W x 68” H). Architects must decide how much detail to include based on the project’s scope and the audience interpreting the blueprint.
Practical tip: When reviewing blueprints, always cross-reference symbols with the legend or key provided. If the refrigerator symbol lacks clarity, consult the architect or designer to confirm specifications, such as door swing direction or clearance requirements. This ensures the final installation aligns with the intended design and avoids costly errors during construction.
In essence, the refrigerator’s representation on blueprints is a microcosm of architectural communication—a blend of precision, standardization, and adaptability. By mastering these symbols, professionals can streamline collaboration and bring designs to life with accuracy and efficiency.
Refrigerating Boba: How Long Can You Keep It Fresh?
You may want to see also
Frequently asked questions
A refrigerator is usually depicted as a simple rectangle or square with dimensions labeled, often accompanied by a symbol or notation (e.g., "REF" or a small icon) to indicate its purpose.
Yes, refrigerators are typically shown to scale, with their dimensions accurately reflected to ensure proper fit within the kitchen layout.
Generally, architects focus on the refrigerator’s size and location rather than specific features. Details like brand, model, or type are usually handled in specifications or appliance schedules.
The refrigerator’s placement is shown in relation to cabinets, countertops, and appliances, ensuring clearances for doors and proper workflow in the kitchen design.
