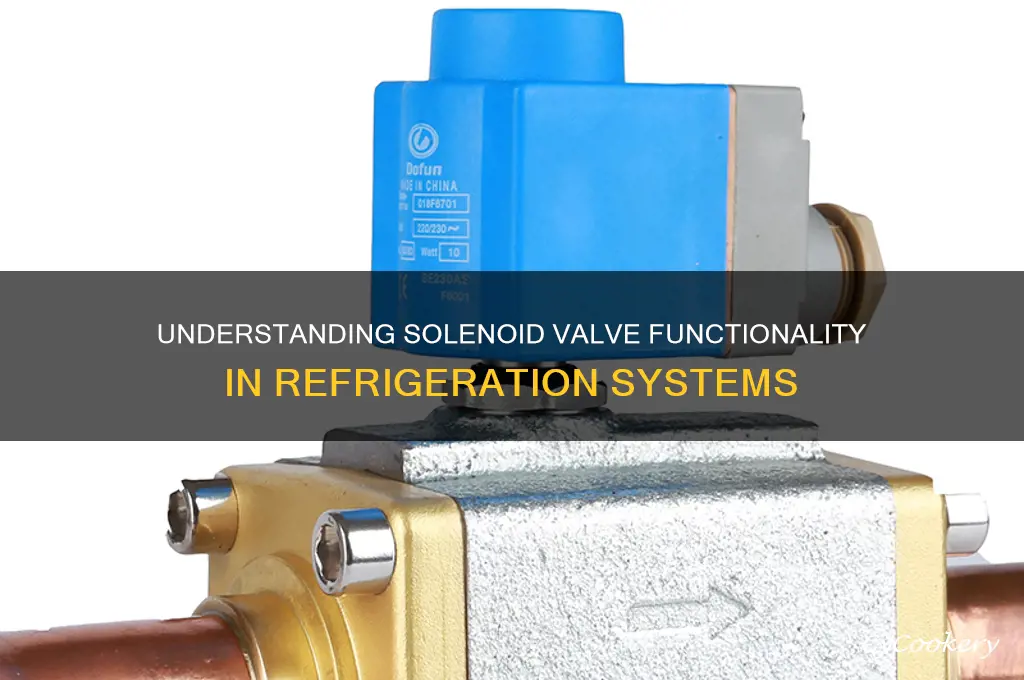

A solenoid valve in refrigeration systems is an electromechanically operated valve that controls the flow of refrigerant by using an electric current to generate a magnetic field. When an electric current passes through the solenoid coil, it creates a magnetic force that either lifts or pushes a plunger or armature, which in turn opens or closes the valve orifice. This mechanism allows for precise control of refrigerant flow, enabling functions such as regulating pressure, directing the refrigerant to specific components, or isolating parts of the system during maintenance. Solenoid valves are critical in refrigeration for their ability to operate quickly, reliably, and with minimal energy consumption, ensuring efficient and responsive system performance.
Explore related products
What You'll Learn
- Electromagnetic Coil Activation: Current energizes the coil, creating a magnetic field to actuate the valve
- Plunger Movement Mechanism: Magnetic force pulls the plunger, opening or closing the valve orifice
- Fluid Flow Control: Regulates refrigerant flow by adjusting the valve’s position precisely
- Pilot-Operated Design: Uses pressure differential to amplify force for high-capacity applications
- Direct-Acting Functionality: Operates independently of system pressure, suitable for low-pressure systems
Electromagnetic Coil Activation: Current energizes the coil, creating a magnetic field to actuate the valve
The heart of a solenoid valve's operation lies in its electromagnetic coil. When an electric current passes through this coil, it transforms into a temporary magnet, generating a magnetic field. This field exerts a force on the valve's plunger, a movable component typically made of ferromagnetic material. The plunger, attracted to the coil, shifts its position, either opening or closing the valve's orifice. This simple yet ingenious mechanism allows for precise control of refrigerant flow, a critical function in refrigeration systems.
Imagine a tiny, powerful magnet being switched on and off, pulling a lever to control the flow of a life-giving fluid – that's essentially how a solenoid valve operates in refrigeration.
The strength of the magnetic field, and consequently the force exerted on the plunger, is directly proportional to the current flowing through the coil. This relationship is described by Ampere's Law, a fundamental principle in electromagnetism. In practical terms, this means that the valve's response time and opening force can be finely tuned by adjusting the current. For example, a higher current will result in a stronger magnetic field, causing the plunger to move more rapidly and with greater force, allowing for faster and more complete valve opening.
This precise control is crucial in refrigeration systems, where even small fluctuations in refrigerant flow can significantly impact cooling efficiency and system performance.
It's important to note that the coil's design and material play a significant role in its efficiency. Coils are typically made from copper wire, known for its excellent electrical conductivity. The number of turns in the coil, its diameter, and the core material all influence the magnetic field strength and, consequently, the valve's performance. For instance, a coil with more turns will produce a stronger magnetic field for a given current, but it will also have higher electrical resistance, leading to increased power consumption. Engineers must carefully balance these factors to optimize the valve's performance for specific refrigeration applications.
Regular maintenance, including cleaning and inspecting the coil for damage, is essential to ensure consistent and reliable operation.
Understanding the principles of electromagnetic coil activation empowers technicians and engineers to troubleshoot and optimize solenoid valve performance in refrigeration systems. By recognizing the relationship between current, magnetic field strength, and plunger movement, they can diagnose issues like weak or inconsistent valve operation, often stemming from coil problems. This knowledge also allows for informed decisions regarding coil selection and system design, ensuring the valve operates efficiently and reliably, contributing to the overall effectiveness of the refrigeration system.
Should You Refrigerate Testosterone? Storage Tips for Optimal Effectiveness
You may want to see also
Explore related products
Plunger Movement Mechanism: Magnetic force pulls the plunger, opening or closing the valve orifice
The plunger movement mechanism in a solenoid valve is a marvel of simplicity and precision, driven by the fundamental principle of electromagnetism. When an electric current passes through the solenoid coil, it generates a magnetic field that exerts a force on the plunger, a movable iron or steel core. This magnetic force pulls the plunger toward the coil, causing it to move linearly within the valve body. The plunger’s displacement directly controls the opening or closing of the valve orifice, regulating the flow of refrigerant in the system. This mechanism is critical in refrigeration, where precise control of fluid flow is essential for maintaining optimal temperatures and system efficiency.
Consider the step-by-step process of how this mechanism operates in practice. When the solenoid valve is energized, the magnetic field created by the coil overcomes the spring force holding the plunger in its resting position. The plunger moves swiftly, either exposing or sealing the valve orifice, depending on the valve type (normally closed or normally open). For example, in a normally closed solenoid valve, the plunger lifts to allow refrigerant flow when energized. The speed and accuracy of this movement are crucial, as delays or inconsistencies can lead to inefficiencies, such as overcooling or inadequate heat exchange. Proper calibration ensures the plunger travels the correct distance—typically a few millimeters—to fully open or close the orifice without causing wear or damage.
One practical tip for maintaining the plunger movement mechanism is to ensure the solenoid coil is free from debris and corrosion, as these can weaken the magnetic force and impair performance. Regularly inspect the plunger for signs of wear or sticking, which can occur due to contaminants in the refrigerant or prolonged use. Lubrication is generally not recommended, as it can attract dust and interfere with the magnetic field. Instead, use a clean, dry environment for installation and periodic cleaning to prevent buildup. For systems operating in extreme temperatures, select a solenoid valve with a plunger material suited to the conditions, such as stainless steel for corrosion resistance or specialized alloys for high-temperature applications.
Comparing the plunger mechanism to other valve actuation methods highlights its advantages. Unlike pneumatic or hydraulic systems, which require additional components like compressors or pumps, the solenoid valve operates directly from an electrical signal, simplifying integration into automated refrigeration systems. Its compact design and fast response time—often less than 10 milliseconds—make it ideal for applications requiring rapid adjustments, such as defrost cycles or load changes. However, it’s important to note that solenoid valves are typically rated for low to moderate pressure differentials (e.g., 0–500 psi), so they may not be suitable for high-pressure refrigeration systems without additional safeguards.
In conclusion, the plunger movement mechanism is a cornerstone of solenoid valve functionality in refrigeration, offering reliability and precision in fluid control. By understanding its operation, maintenance requirements, and limitations, technicians and engineers can optimize its performance in various applications. Whether regulating refrigerant flow in a commercial freezer or controlling coolant in an industrial chiller, the magnetic force-driven plunger ensures efficient and responsive operation, making it an indispensable component in modern refrigeration systems.
Easy Tips for Keeping Cilantro Fresh in Your Fridge
You may want to see also
Explore related products
![[FBA] NEW OEM Produced IMV708 W10408179 4389177 for Whirlpool Kitchenaid Kenmore Regrigerator Water Valve by Robertshaw Replacement Part](https://m.media-amazon.com/images/I/71LE14b-klL._AC_UY218_.jpg)
Fluid Flow Control: Regulates refrigerant flow by adjusting the valve’s position precisely
Solenoid valves are critical in refrigeration systems for their ability to control fluid flow with precision. By adjusting the valve's position, these devices regulate the refrigerant's movement, ensuring optimal performance and efficiency. This process involves a delicate balance: too much refrigerant can lead to inefficiency, while too little can cause system strain. The solenoid valve achieves this balance by responding to electrical signals, which dictate its opening or closing, thereby modulating the flow rate. For instance, in a typical refrigeration cycle, the valve may open partially during low-demand periods to conserve energy, then fully open during peak cooling times to meet demand.
Consider the mechanics behind this precision. When an electric current passes through the solenoid coil, it generates a magnetic field that either lifts or shifts the plunger, altering the valve's position. This movement directly impacts the orifice size, controlling the refrigerant flow. Modern solenoid valves often incorporate proportional control, allowing for fine adjustments rather than simple on/off states. This feature is particularly useful in systems requiring variable cooling capacities, such as commercial refrigerators or air conditioning units. For example, a valve might adjust its position to allow 30% of maximum flow during standby mode, increasing to 80% during active cooling.
Practical implementation of fluid flow control demands attention to system compatibility and calibration. Technicians must ensure the valve’s flow characteristics match the refrigeration unit’s requirements, considering factors like pressure drop and refrigerant type. For instance, R-410A systems operate at higher pressures than R-22 systems, necessitating valves rated for such conditions. Calibration is equally crucial; a miscalibrated valve can lead to overcooling or insufficient cooling, both of which reduce system lifespan. Regular maintenance, including coil cleaning and position sensor checks, ensures the valve operates within its designed parameters.
A comparative analysis highlights the advantages of solenoid valves over manual or pneumatic alternatives. Unlike manual valves, solenoid valves offer remote control capabilities, enabling integration with automated systems. Pneumatic valves, while precise, rely on compressed air, which can introduce inefficiencies and maintenance challenges. Solenoid valves, on the other hand, operate silently and require minimal external infrastructure. Their compact design also makes them ideal for space-constrained applications, such as under-counter refrigerators or vehicle cooling systems.
In conclusion, fluid flow control via solenoid valves is a cornerstone of efficient refrigeration. By precisely adjusting valve positions, these devices optimize refrigerant flow, balancing energy consumption and cooling output. Whether in residential or industrial settings, understanding their operation, mechanics, and maintenance ensures systems perform reliably. For those managing refrigeration units, investing in high-quality solenoid valves and adhering to best practices in calibration and upkeep will yield long-term benefits in both performance and cost savings.
Efficiently Clean Your Whirlpool Fridge Coils: A Step-by-Step Guide
You may want to see also
Explore related products
$29.99
Pilot-Operated Design: Uses pressure differential to amplify force for high-capacity applications
In high-capacity refrigeration systems, solenoid valves often employ a pilot-operated design to handle significant pressure differentials and flow rates efficiently. Unlike direct-acting solenoids, which rely solely on the magnetic force of the coil to open or close the valve, pilot-operated valves use a small pilot orifice to harness the system’s pressure differential, amplifying the force applied to the main valve. This design is particularly effective in applications where the pressure difference across the valve is substantial, such as in large industrial refrigeration units or HVAC systems. By leveraging the system’s own energy, pilot-operated valves reduce the electrical power required to actuate the solenoid, making them both energy-efficient and capable of handling higher capacities.
The operation of a pilot-operated solenoid valve begins with the energizing of the solenoid coil, which lifts a small pilot valve. This action allows pressurized fluid from the inlet side to pass through the pilot orifice and act on a diaphragm or piston connected to the main valve. The pressure differential across the diaphragm or piston generates a force that opens the main valve, allowing the refrigerant to flow. When the coil is de-energized, a spring returns the pilot valve to its closed position, cutting off the pilot flow and allowing the main valve to close under the pressure of the outlet side. This mechanism ensures that the valve operates smoothly even under high-pressure conditions, minimizing wear and extending the valve’s lifespan.
One of the key advantages of pilot-operated solenoid valves is their ability to handle large flow rates with minimal power consumption. For example, in a refrigeration system operating at 300 psi differential pressure, a pilot-operated valve can control a flow rate of up to 1,000 gallons per minute (GPM) using a solenoid coil rated at just 24 watts. In contrast, a direct-acting valve might require a coil with significantly higher power consumption to achieve the same performance. This efficiency makes pilot-operated valves ideal for applications where energy conservation is critical, such as in large-scale commercial refrigeration or industrial cooling systems.
However, the complexity of pilot-operated designs introduces certain considerations for installation and maintenance. The pilot orifice, being a critical component, must be kept free of debris to ensure reliable operation. Regular maintenance, including periodic cleaning and inspection, is essential to prevent clogging, which can cause the valve to malfunction. Additionally, the valve should be installed in a position that minimizes the risk of contamination, such as upstream of filters or strainers. Proper sizing is also crucial; undersized valves can restrict flow, while oversized valves may lead to inefficient operation. Consulting manufacturer guidelines for specific pressure and flow requirements ensures optimal performance.
In conclusion, pilot-operated solenoid valves are a robust solution for high-capacity refrigeration applications, combining efficiency with reliability. By harnessing the system’s pressure differential to amplify force, these valves reduce energy consumption while handling large flow rates effectively. While their design requires careful maintenance and installation, the benefits in terms of performance and longevity make them a valuable component in demanding refrigeration systems. For engineers and technicians, understanding the principles and practicalities of pilot-operated valves is essential to maximizing their potential in real-world applications.
Refrigerator Stuck in Defrost Mode? Troubleshooting Tips and Solutions
You may want to see also
Explore related products
Direct-Acting Functionality: Operates independently of system pressure, suitable for low-pressure systems
Solenoid valves in refrigeration systems often rely on system pressure to function, but direct-acting solenoid valves break this mold. These valves operate independently of system pressure, making them ideal for low-pressure applications where pressure differentials are insufficient to assist valve operation. This independence is achieved through a design that uses the solenoid's magnetic force alone to open or close the valve, ensuring reliable performance even in systems with minimal pressure.
Consider a small-scale refrigeration unit, such as a beverage cooler or medical refrigerator, where pressure levels are typically low. In these systems, a direct-acting solenoid valve can control refrigerant flow without needing additional pressure to overcome internal resistance. For instance, a 2-way direct-acting solenoid valve with a 1/4-inch port size and a 12V DC coil can effectively manage refrigerant flow in a system operating at pressures as low as 50 psi. This makes it a versatile choice for applications where pressure is not a driving factor.
The key to the direct-acting valve's functionality lies in its internal mechanism. When the solenoid coil is energized, the magnetic field lifts the plunger, directly opening the valve orifice. Conversely, de-energizing the coil allows a spring to return the plunger to its closed position. This straightforward operation eliminates the need for pressure differentials, ensuring consistent performance across varying system conditions. For optimal results, ensure the valve's coil voltage matches the system's power supply (e.g., 12V or 24V DC) and select a valve with a flow coefficient (Cv) suitable for the desired flow rate.
While direct-acting valves excel in low-pressure systems, they are not without limitations. Their reliance on magnetic force alone means they may require more power to operate compared to pilot-operated valves. Additionally, they are typically smaller in size and may have lower flow capacities, making them less suitable for high-volume refrigeration systems. However, for applications like ice machines, water coolers, or small HVAC units, their simplicity and reliability make them a practical choice. Always verify compatibility with the refrigerant type (e.g., R-134a, R-410A) and ensure the valve material (brass, stainless steel) is resistant to corrosion.
In summary, direct-acting solenoid valves offer a pressure-independent solution for low-pressure refrigeration systems, combining simplicity with reliability. By understanding their operation, selecting the appropriate specifications, and acknowledging their limitations, engineers and technicians can effectively integrate these valves into diverse applications. Whether controlling refrigerant flow in a compact cooler or managing a small HVAC system, direct-acting valves provide a dependable option where system pressure is not a driving factor.
Refrigerating Royal Icing Decorations: Tips for Storage and Preservation
You may want to see also
Frequently asked questions
A solenoid valve is an electromechanically operated valve that controls the flow of refrigerant in a refrigeration system. It uses an electric current to generate a magnetic field, which moves a plunger or armature to open or close the valve, allowing or restricting refrigerant flow as needed.
When an electric current passes through the solenoid coil, it creates a magnetic field that pulls the plunger or armature, opening the valve and allowing refrigerant to flow. When the current is removed, a spring returns the plunger to its original position, closing the valve and stopping the flow.
The two main types are normally closed (NC) solenoid valves, which remain closed until energized, and normally open (NO) solenoid valves, which remain open until energized. NC valves are more common in refrigeration to prevent refrigerant flow when the system is off.
Solenoid valves are used to control refrigerant flow in various applications, such as regulating liquid refrigerant to the evaporator, managing hot gas bypass, controlling defrost cycles, and isolating components during maintenance or shutdowns. They ensure efficient and precise operation of the refrigeration cycle.
