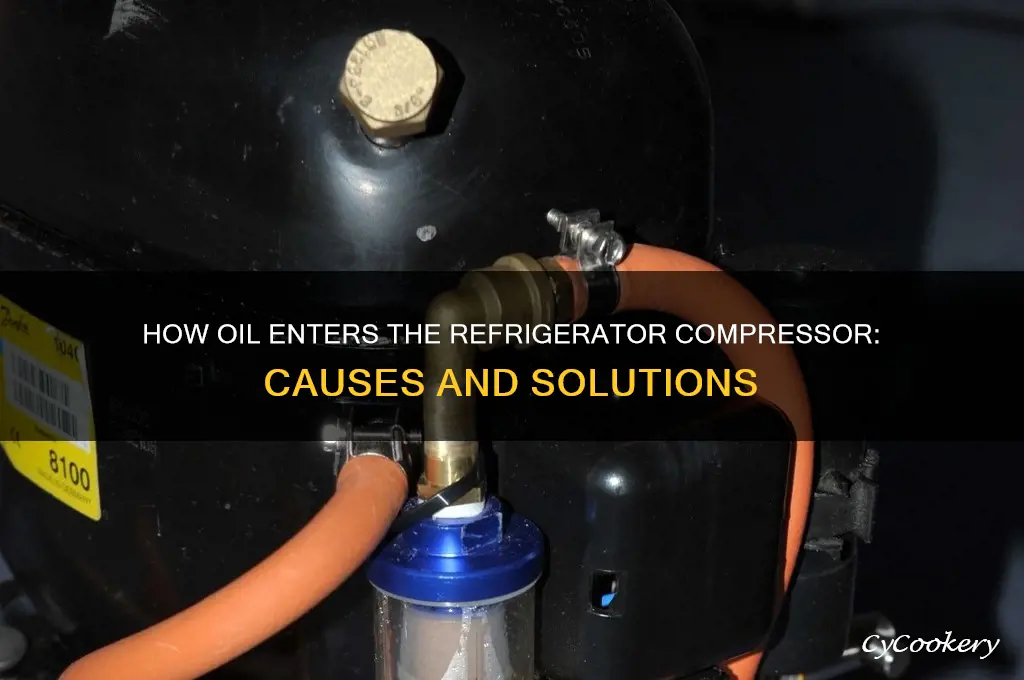

Emilie Meyer
Oil enters the compressor of a refrigerator as part of its lubrication and cooling system. During operation, the compressor's moving parts generate heat and friction, requiring oil to reduce wear and maintain efficiency. This oil is typically stored in the compressor's crankcase and is drawn into the compression chamber along with the refrigerant gas. As the refrigerant cycles through the system, the oil circulates with it, ensuring proper lubrication of internal components like the pistons, cylinders, and valves. Over time, oil can also migrate through the refrigerant lines due to pressure differentials or improper system design, leading to oil logging in other parts of the refrigeration cycle. Understanding how oil enters and circulates within the compressor is crucial for maintaining optimal performance and preventing issues such as oil starvation or system inefficiency.
| Characteristics | Values |
|---|---|
| Oil Entry Mechanism | Oil is drawn into the compressor through the suction line along with refrigerant vapor. |
| Oil Circulation | Oil is mixed with refrigerant and circulated throughout the system. |
| Oil Separation | Oil is separated from refrigerant in the compressor crankcase or via an oil separator. |
| Oil Return | Oil returns to the compressor crankcase via gravity or oil return lines. |
| Oil Viscosity | Typically uses mineral oil or synthetic oil with specific viscosity for efficient lubrication. |
| Oil Level | Maintained at a specific level in the compressor crankcase for proper lubrication. |
| Oil Contamination | Oil can become contaminated with moisture, acid, or debris, affecting performance. |
| Oil Pressure Differential | Pressure differences between the suction and discharge sides aid oil circulation. |
| Oil Management System | Some systems use oil pumps or oil management devices to ensure proper oil distribution. |
| Oil Foaming | Excessive foaming can reduce oil lubrication efficiency, often caused by moisture or agitation. |
| Oil Compatibility | Oil must be compatible with the refrigerant type (e.g., R-134a, R-410A) to prevent degradation. |
| Oil Maintenance | Regular maintenance includes checking oil levels, cleaning filters, and replacing contaminated oil. |
Explore related products
What You'll Learn
- Oil Mist Carryover: Oil vaporizes and mixes with refrigerant, carried into compressor during suction
- Leaking Seals/Gaskets: Worn seals allow oil to seep into compressor from other components
- Excessive Oil Charge: Overfilling oil reservoir leads to oil being drawn into compressor with refrigerant
- Improper Installation: Incorrect system setup causes oil to migrate into compressor during operation
- Compressor Wear: Internal wear increases oil circulation, pushing excess oil into compressor
Oil Mist Carryover: Oil vaporizes and mixes with refrigerant, carried into compressor during suction
Oil mist carryover occurs when lubricating oil in a refrigerator's system vaporizes, mixes with the refrigerant, and is drawn into the compressor during the suction phase. This phenomenon is particularly common in hermetic and semi-hermetic compressors, where the oil and refrigerant share the same sealed environment. As the refrigerant cycles through the system, it passes over the oil surface in the compressor's crankcase, causing a small amount of oil to vaporize and form a fine mist. This mist is then carried along with the refrigerant into the compressor, where it can accumulate and lead to operational issues if not managed properly.
To understand the mechanics, consider the compressor's operation: during suction, low-pressure refrigerant enters the compressor, creating a partial vacuum. This low-pressure environment lowers the oil's boiling point, causing it to vaporize more readily. The vaporized oil, now in mist form, mixes with the refrigerant and is pulled into the compression chamber. While some oil carryover is normal and even necessary for lubrication, excessive amounts can lead to problems such as reduced compressor efficiency, increased wear, and potential damage to internal components like valves and bearings.
Preventing excessive oil mist carryover involves several practical strategies. First, ensure the compressor is properly charged with the correct amount of oil—typically 1.5 to 2 times the volume of the compressor's displacement. Overcharging can increase the oil surface area, promoting more vaporization. Second, maintain optimal refrigerant flow rates to minimize turbulence over the oil surface. Third, use oil separators or receivers in the system to capture and return oil to the compressor before it reaches critical components. Regular maintenance, including oil level checks and system cleaning, is also crucial to prevent buildup and ensure efficient operation.
A comparative analysis of refrigeration systems reveals that newer designs often incorporate features to mitigate oil mist carryover. For instance, some systems use synthetic oils with higher viscosity indices, which vaporize less readily under varying temperatures. Others employ advanced compressor designs with improved oil management, such as sump heaters or oil-return lines. In contrast, older systems may rely more heavily on manual adjustments and frequent monitoring to control oil carryover. By adopting these modern solutions, technicians can reduce the risk of compressor damage and extend the lifespan of refrigeration equipment.
Finally, understanding the role of temperature and pressure in oil mist carryover is key to troubleshooting. High suction temperatures or low suction pressures exacerbate vaporization, as they create conditions favorable for oil to turn into mist. For example, a suction temperature of 50°F (10°C) or higher can significantly increase oil carryover. To counteract this, ensure proper insulation of suction lines and maintain adequate airflow over condenser coils to keep system pressures within optimal ranges. By addressing these factors, technicians can effectively manage oil mist carryover and maintain the reliability of refrigeration compressors.
Easy Steps to Safely Remove a Refrigerator from Your Pickup Truck
You may want to see also
Explore related products
Leaking Seals/Gaskets: Worn seals allow oil to seep into compressor from other components
Oil migration into a refrigerator compressor often begins with compromised seals or gaskets. These components, typically made of rubber or synthetic materials, degrade over time due to exposure to temperature fluctuations, moisture, and chemical refrigerants. As they wear, microscopic gaps form, allowing oil to bypass its intended containment areas. For instance, a worn crankshaft seal can permit oil from the compressor’s crankcase to seep into the refrigerant circuit, eventually reaching the compressor’s internal components. This issue is particularly common in older units or those subjected to heavy use, where the seals’ elasticity diminishes, reducing their effectiveness as barriers.
Identifying a seal or gasket leak requires vigilance. Symptoms include reduced cooling efficiency, unusual noises from the compressor, or visible oil residue near the compressor or tubing connections. A practical diagnostic step is to inspect the compressor’s exterior for oil stains or use a UV dye test, which highlights leaks under ultraviolet light. If a leak is suspected, immediate action is crucial to prevent further damage. Replacing the worn seal or gasket is a straightforward repair, but it demands precision to ensure a proper fit and avoid future leaks. Always consult the refrigerator’s manual or a technician for model-specific instructions.
Preventive maintenance can significantly extend the life of seals and gaskets. Regularly cleaning the compressor area to remove dust and debris reduces the risk of abrasive wear. Additionally, maintaining optimal operating temperatures—avoiding overloading the refrigerator and ensuring proper ventilation—minimizes thermal stress on the seals. For units in humid environments, consider using a dehumidifier to reduce moisture-related degradation. While these measures cannot halt aging entirely, they can delay the onset of leaks and preserve compressor performance.
Comparing the cost of preventive care to the expense of compressor repair underscores its value. Replacing a worn seal typically costs between $50 and $200, depending on the model and labor rates. In contrast, a compressor replacement can range from $500 to $1,000, not including diagnostics or refrigerant recharging. By addressing seal issues early, homeowners can avoid not only the financial burden but also the inconvenience of a malfunctioning refrigerator. This proactive approach aligns with the principle of "pay a little now or a lot later," making it a wise investment in appliance longevity.
In summary, leaking seals or gaskets are a primary pathway for oil to enter a refrigerator’s compressor, driven by material degradation over time. Early detection through symptom awareness and diagnostic tools, coupled with preventive maintenance, can mitigate this issue effectively. While the repair itself is relatively simple, its impact on avoiding costly compressor damage cannot be overstated. By prioritizing seal integrity, users can ensure their refrigerator operates efficiently and reliably for years to come.
Refrigerating Toll House Cookie Dough: Tips for Freshness and Safety
You may want to see also
Explore related products
Excessive Oil Charge: Overfilling oil reservoir leads to oil being drawn into compressor with refrigerant
Oil in a refrigerator's compressor is essential for lubrication, but an excessive oil charge can lead to operational inefficiencies and potential damage. Overfilling the oil reservoir is a common mistake that results in oil being drawn into the compressor alongside the refrigerant. This occurs because the compressor's suction force does not differentiate between refrigerant and oil, especially when the oil level exceeds the recommended capacity. For instance, a typical residential refrigerator compressor requires approximately 4 to 8 ounces of oil, depending on the model. Exceeding this range by even a small margin can lead to oil being pulled into the system, disrupting the compressor's performance.
The consequences of overfilling the oil reservoir are both immediate and long-term. Initially, the compressor may experience increased energy consumption as it works harder to circulate the refrigerant-oil mixture. This inefficiency can lead to higher utility bills and reduced cooling efficiency. Over time, the excess oil can accumulate in the evaporator or condenser coils, restricting airflow and heat exchange. For example, a refrigerator with an overfilled oil reservoir might struggle to maintain consistent temperatures, leading to food spoilage or frost buildup. Technicians often diagnose this issue by observing oil fouling in the system or detecting abnormal compressor noises.
Preventing excessive oil charge requires precision during maintenance or repairs. When adding oil to a compressor, always refer to the manufacturer’s specifications for the exact quantity. Use a calibrated measuring tool to ensure accuracy, as even a slight overfill can cause problems. For DIY enthusiasts, it’s crucial to understand that oil is not a "more is better" component in refrigeration systems. If unsure, consult a professional to avoid costly mistakes. Additionally, during compressor replacement or system recharging, thoroughly flush the lines to remove any residual oil that could contribute to overfilling.
Comparatively, an underfilled oil reservoir poses its own risks, such as inadequate lubrication leading to compressor wear. However, overfilling is often more problematic because it directly interferes with the refrigerant cycle. Unlike underfilling, which may only affect the compressor’s lifespan, overfilling can immediately impact the entire refrigeration system’s functionality. For instance, while an underfilled compressor might fail after months of use, an overfilled system could show symptoms of inefficiency within days. This highlights the importance of adhering to precise oil dosage guidelines.
In conclusion, excessive oil charge due to overfilling the reservoir is a preventable yet significant issue in refrigerator compressors. By understanding the recommended oil quantities, using accurate measuring tools, and avoiding common pitfalls, technicians and homeowners can maintain optimal system performance. Regular inspections and adherence to manufacturer guidelines are key to preventing oil from being drawn into the compressor with the refrigerant. Addressing this issue not only extends the compressor’s lifespan but also ensures energy efficiency and reliable cooling performance.
Refrigerating Foundation Sticks: Benefits, Risks, and Best Practices Explained
You may want to see also
Explore related products
Improper Installation: Incorrect system setup causes oil to migrate into compressor during operation
Oil migration into a refrigerator compressor due to improper installation is a preventable yet common issue that can lead to reduced efficiency, increased wear, and even system failure. One critical oversight is the failure to maintain proper refrigerant charge levels during setup. When a system is undercharged, the compressor works harder to achieve the desired cooling, causing excessive heat and oil foaming. This foaming reduces oil viscosity, allowing it to mix more easily with the refrigerant and migrate into the compressor. Conversely, overcharging can create high pressures that force oil past seals, leading to the same problem. Technicians must use precise measurements, such as charging by superheat or subcooling, to avoid these imbalances.
Another installation error lies in inadequate piping design and layout. Sharp bends, excessive lengths, or improper sizing of suction and discharge lines can disrupt oil return to the compressor. For instance, a suction line that slopes upward toward the compressor instead of downward can trap oil, preventing it from draining back into the crankcase. Similarly, a discharge line with insufficient slope or velocity can fail to carry oil effectively, leaving it to accumulate in the evaporator or other components. Proper piping practices, including maintaining a minimum slope of 1/4 inch per foot for suction lines, are essential to ensure oil returns efficiently.
The orientation of the compressor during installation also plays a significant role in oil migration. Compressors are designed to operate in specific positions, typically upright, to ensure oil pools in the crankcase and lubricates moving parts effectively. Installing a compressor on its side or upside down disrupts this balance, allowing oil to flood the system and mix with refrigerant. This not only starves the compressor of lubrication but also increases the risk of oil entering the evaporator or condenser, where it can impede heat transfer and reduce system performance. Always refer to manufacturer guidelines for correct compressor orientation.
Finally, neglecting to evacuate the system properly before charging introduces moisture and contaminants that accelerate oil breakdown. Moisture reacts with refrigerant and oil to form acids, which degrade seals and promote oil foaming. Contaminants, such as solder flux or particulate matter, can clog oil passages or damage compressor components, leading to oil circulation issues. A thorough evacuation to a minimum of 500 microns, followed by a nitrogen purge to remove residual moisture, is critical to prevent these issues. Skipping or rushing this step compromises the entire installation, setting the stage for oil migration and long-term system failure.
To mitigate these risks, follow a systematic installation process: verify refrigerant charge accuracy, design and install piping according to best practices, ensure correct compressor orientation, and perform a complete evacuation. These steps, though time-consuming, are far less costly than repairing or replacing a compressor damaged by oil migration. Proper installation not only protects the compressor but also ensures the refrigerator operates efficiently and reliably for its intended lifespan.
Should Pyrantel Pamoate Be Refrigerated? Storage Tips and Best Practices
You may want to see also
Explore related products
Compressor Wear: Internal wear increases oil circulation, pushing excess oil into compressor
Over time, the internal components of a refrigerator's compressor can experience wear, leading to increased oil circulation and, consequently, excess oil being pushed into the compressor. This phenomenon is a result of the gradual breakdown of the compressor's seals, bearings, and other moving parts, which allows oil to flow more freely throughout the system. As the compressor operates, the oil is continuously circulated to lubricate and cool the internal components, but when wear occurs, the oil can accumulate in areas where it is not intended to be, such as the compressor's intake or discharge lines.
One of the primary causes of internal wear is the constant friction and heat generated by the compressor's moving parts. As the compressor cycles on and off, the components expand and contract, causing microscopic wear and tear. This wear can be exacerbated by factors such as high ambient temperatures, frequent door openings, and a lack of regular maintenance. For instance, if the refrigerator's condenser coils are clogged with dust and debris, the compressor must work harder to maintain the desired temperature, increasing the risk of internal wear. To mitigate this, it is recommended to clean the condenser coils every 6-12 months, depending on the environment and usage.
The consequences of excess oil in the compressor can be significant. As oil accumulates in the intake or discharge lines, it can restrict airflow, reducing the compressor's efficiency and increasing energy consumption. In severe cases, the oil can even cause the compressor to overheat, leading to premature failure. A study by the National Institute of Standards and Technology (NIST) found that compressors with excess oil circulation experienced a 15-20% reduction in efficiency, resulting in increased energy costs for homeowners. To prevent this, it is essential to monitor the compressor's oil levels and address any signs of wear promptly.
To diagnose and address compressor wear, technicians can perform a series of tests and inspections. One effective method is to measure the compressor's oil pressure and temperature using specialized gauges. A healthy compressor typically operates within a specific pressure range, usually between 150-250 psi, depending on the model and manufacturer. If the pressure exceeds this range, it may indicate excess oil circulation due to internal wear. Additionally, technicians can inspect the compressor's oil filter and screen for signs of debris or contamination, which can further exacerbate wear. By identifying and addressing these issues early, homeowners can extend the lifespan of their refrigerator and avoid costly repairs.
In conclusion, understanding the relationship between compressor wear and excess oil circulation is crucial for maintaining a refrigerator's efficiency and longevity. By recognizing the signs of wear, such as increased oil pressure or restricted airflow, and taking proactive measures to address them, homeowners can prevent premature compressor failure and reduce energy costs. Regular maintenance, including cleaning the condenser coils and monitoring oil levels, is essential for preventing internal wear and ensuring optimal performance. As a general guideline, refrigerators should be serviced by a professional technician every 3-5 years, depending on usage and environmental factors, to ensure that any potential issues are identified and addressed before they escalate.
Fresh Corn Storage: How Long Does It Last in the Fridge?
You may want to see also
Frequently asked questions
Oil enters the compressor through the suction line, where it is drawn in with the refrigerant vapor during the refrigeration cycle.
Oil is used to lubricate the moving parts of the compressor, reduce friction, and dissipate heat, ensuring the compressor operates efficiently and lasts longer.
Yes, oil can migrate through the refrigerant lines to other components like the evaporator or condenser, especially if the system is not properly designed or maintained.
Oil accumulation occurs due to improper oil return mechanisms, high refrigerant velocities, or system inefficiencies that prevent oil from returning to the compressor.
