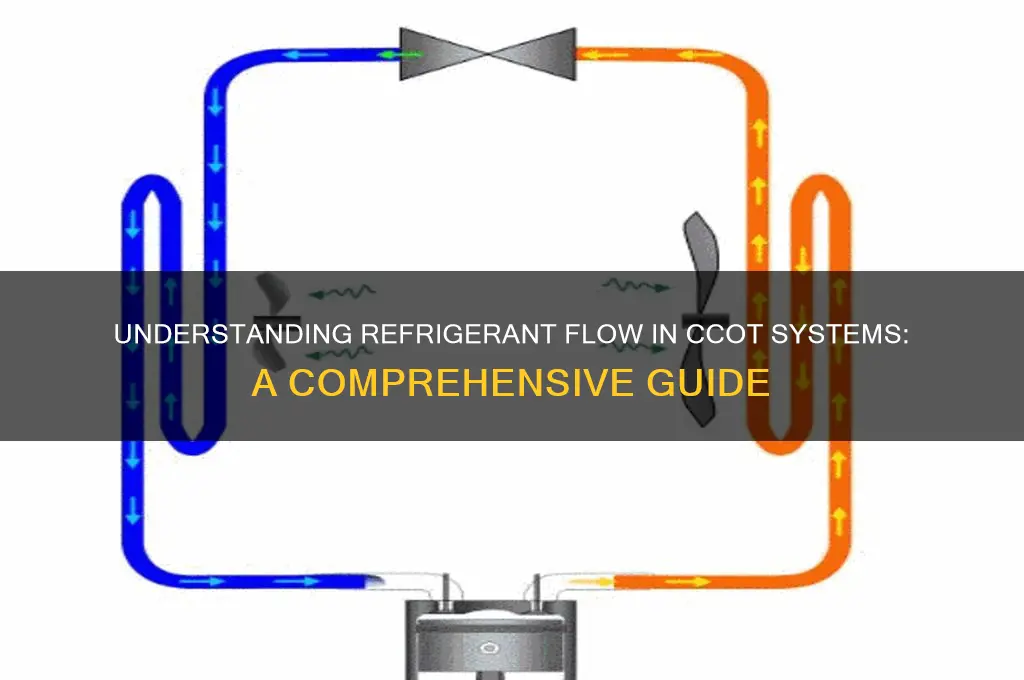

The flow of refrigerant in a CCOT (Condenser, Compressor, Outdoor Thermostat) system is a critical process that ensures efficient cooling. It begins with the compressor, which pressurizes and heats the refrigerant gas, pushing it into the condenser. Here, the hot refrigerant releases heat to the surrounding environment, condensing into a high-pressure liquid. This liquid then flows through an expansion valve, where it undergoes a rapid pressure drop, causing it to evaporate partially and cool significantly. The cold, low-pressure refrigerant enters the evaporator, absorbing heat from the indoor space, which completes the cycle as it returns to the compressor in a gaseous state, ready to be compressed again. This continuous loop is fundamental to the system's ability to transfer heat and maintain desired temperatures.
| Characteristics | Values |
|---|---|
| Refrigerant Flow Direction | Reversible (can flow in both directions depending on mode: heating or cooling) |
| Components Involved | Compressor, Condenser, Expansion Valve, Evaporator, Reversing Valve |
| Cooling Mode Flow | Compressor → Condenser → Expansion Valve → Evaporator → Compressor |
| Heating Mode Flow | Compressor → Reversing Valve → Evaporator → Expansion Valve → Condenser → Compressor |
| Refrigerant State in Condenser | High-pressure, high-temperature gas (releases heat) |
| Refrigerant State in Evaporator | Low-pressure, low-temperature liquid/gas (absorbs heat) |
| Role of Reversing Valve | Switches refrigerant flow direction between heating and cooling modes |
| Expansion Valve Function | Reduces refrigerant pressure and temperature before entering evaporator |
| Compressor Role | Compresses low-pressure gas into high-pressure gas |
| Energy Efficiency | High efficiency due to heat pump functionality |
| Application | HVAC systems, heat pumps, and air conditioning units |
| Refrigerant Types Commonly Used | R-410A, R-32, R-407C (environmentally friendly options) |
| Flow Control | Thermostatic expansion valves or electronic expansion valves |
| Pressure Differences | High pressure in condensing side, low pressure in evaporating side |
| Temperature Differences | High temperature in condensing side, low temperature in evaporating side |
| System Flexibility | Can provide both heating and cooling from a single system |
| Maintenance Requirements | Regular checks on refrigerant levels, valves, and reversing mechanism |
Explore related products
What You'll Learn
- Compressor Suction: Refrigerant enters compressor as low-pressure vapor from evaporator coil
- Compression Process: Vapor is compressed, increasing temperature and pressure significantly
- Condensation Cycle: Hot refrigerant condenses into liquid in condenser coil, releasing heat
- Expansion Valve Role: Liquid refrigerant expands, drops pressure, and cools before evaporator
- Evaporation Stage: Cool liquid absorbs heat, evaporates into vapor, and returns to compressor
Compressor Suction: Refrigerant enters compressor as low-pressure vapor from evaporator coil
The journey of refrigerant in a CCot (Chiller, Condenser, Oil Separator, Throttle) system begins with the compressor suction phase, a critical step that sets the stage for the entire cooling process. As the refrigerant exits the evaporator coil, it transforms into a low-pressure vapor, primed for compression. This state is crucial because the compressor, often referred to as the heart of the system, relies on this low-pressure vapor to function efficiently. If the refrigerant were not in this state, the compressor could face increased strain, leading to reduced performance or even mechanical failure. Understanding this phase is essential for anyone troubleshooting or optimizing a CCot system.
From a practical standpoint, ensuring the refrigerant enters the compressor as low-pressure vapor involves meticulous attention to the evaporator coil’s operation. The coil must be clean and free of debris to facilitate efficient heat exchange, allowing the refrigerant to absorb heat and vaporize effectively. Technicians should regularly inspect the evaporator for signs of frosting or restricted airflow, both of which can impede vaporization. For instance, a clogged air filter can reduce airflow by up to 50%, significantly impacting the refrigerant’s ability to vaporize. Addressing these issues not only ensures proper compressor suction but also enhances overall system efficiency.
A comparative analysis highlights the importance of this phase in different CCot system designs. In systems with variable-speed compressors, the suction pressure must be precisely controlled to match the compressor’s speed. Deviations from the optimal low-pressure vapor state can lead to inefficiencies, such as increased energy consumption or inadequate cooling. For example, a system operating with a suction pressure 10% lower than recommended can experience a 15% drop in cooling capacity. Conversely, systems with fixed-speed compressors rely on consistent suction conditions to maintain performance, making regular maintenance even more critical.
Persuasively, investing time in optimizing the compressor suction phase yields significant long-term benefits. Properly maintained systems not only operate more efficiently but also have extended lifespans. For instance, a well-maintained CCot system can reduce energy costs by up to 20% compared to a neglected one. Additionally, preventing compressor damage through careful monitoring of suction conditions can save thousands of dollars in repair or replacement costs. By prioritizing this phase, operators can ensure their systems deliver reliable performance while minimizing operational expenses.
In conclusion, the compressor suction phase is a cornerstone of refrigerant flow in a CCot system. It demands attention to detail, from maintaining the evaporator coil to monitoring suction pressure. Whether dealing with variable-speed or fixed-speed compressors, understanding and optimizing this phase is key to achieving efficient and reliable cooling. By focusing on this critical step, operators can unlock the full potential of their CCot systems, ensuring they perform optimally under all conditions.
Can Your Fridge Lie Down? Safe Side Placement Duration Explained
You may want to see also
Explore related products
Compression Process: Vapor is compressed, increasing temperature and pressure significantly
The compression process is the heart of any refrigeration cycle, including the CCot (Compressor, Condenser, Expansion Valve, Evaporator) system. Here, low-pressure, low-temperature vapor refrigerant enters the compressor, where it undergoes a dramatic transformation. Through mechanical force, the compressor reduces the volume of the vapor, causing its molecules to collide more frequently and intensely. This collision generates heat, significantly raising the refrigerant's temperature and pressure. Imagine squeezing a balloon filled with air; the air molecules are forced closer together, increasing both temperature and pressure within the balloon. This principle, applied on a larger scale, is the essence of the compression process.
A typical residential air conditioning system compressor might operate at a suction pressure of around 68-80 psi (pounds per square inch) and discharge pressure of 250-280 psi, with corresponding temperature increases from approximately 40°F (4°C) to 160°F (71°C). This substantial increase in temperature and pressure is crucial, as it prepares the refrigerant for the next stage of the cycle, where it will release its heat and condense back into a liquid.
The efficiency of the compression process is vital for the overall performance of the CCot system. Inefficient compression leads to higher energy consumption and reduced cooling capacity. Modern compressors utilize advanced technologies like scroll or rotary designs to maximize efficiency by minimizing energy loss during compression. Additionally, proper maintenance, such as regular cleaning and lubrication, ensures optimal compressor performance and prolongs its lifespan.
Think of the compressor as the engine of your refrigeration system. Just like a car engine needs regular tune-ups, your compressor requires care to operate at its best.
It's important to note that the compression process is not without its challenges. The high temperatures and pressures generated can put significant stress on the compressor components. Therefore, careful selection of materials and design considerations are essential to ensure the compressor can withstand these demanding conditions. Furthermore, safety measures like pressure relief valves are incorporated to prevent potential hazards in case of excessive pressure buildup.
Understanding the intricacies of the compression process allows for a deeper appreciation of the complex workings of CCot systems and highlights the importance of proper maintenance and design for optimal performance and safety.
Refrigerating Breast Milk After 3 Hours: Safe Storage Tips
You may want to see also
Explore related products
Condensation Cycle: Hot refrigerant condenses into liquid in condenser coil, releasing heat
The condensation cycle is a critical phase in the refrigerant flow of a CCot (Condenser, Compressor, Outdoor Thermostat) system, where hot, high-pressure refrigerant gas transitions into a liquid state. This process occurs within the condenser coil, a component designed to facilitate heat exchange between the refrigerant and the surrounding environment. As the refrigerant enters the condenser, it carries thermal energy absorbed from the indoor space. The coil’s surface area and airflow across it are optimized to dissipate this heat efficiently, allowing the refrigerant to condense from a vapor to a liquid. This phase change is essential for the system’s operation, as it prepares the refrigerant for the next stages of the cycle, ensuring continuous cooling.
Analyzing the condensation cycle reveals its thermodynamic principles. The refrigerant, typically a substance like R-410A or R-32, enters the condenser at a high temperature and pressure. As it passes through the coil, the ambient air or water (depending on the system type) cools it below its condensation point. This process follows the Second Law of Thermodynamics, where heat naturally flows from a hotter to a cooler medium. The efficiency of this heat transfer depends on factors like coil cleanliness, airflow rate, and ambient temperature. For instance, a dirty condenser coil can reduce heat dissipation by up to 30%, leading to higher energy consumption and system strain.
From a practical standpoint, maintaining the condenser coil is crucial for optimal performance. Homeowners and technicians should inspect and clean the coil at least twice a year, especially in dusty or pollen-heavy environments. Use a soft brush or vacuum to remove debris, and avoid high-pressure water that could damage the fins. For air-cooled systems, ensure a clearance of at least 12 inches around the outdoor unit to promote adequate airflow. Water-cooled systems require regular checks for leaks and scale buildup, which can be mitigated with water treatment solutions. Neglecting these steps can lead to reduced efficiency, higher utility bills, and premature system failure.
Comparing the condensation cycle in CCot systems to other refrigeration cycles highlights its unique role. Unlike absorption chillers, which use heat to drive the refrigeration process, CCot systems rely on mechanical compression and condensation. The condenser’s design and location also differ in split systems versus packaged units. In split systems, the condenser is outdoors, exposed to ambient conditions, while packaged units house all components in a single cabinet. Understanding these differences helps in troubleshooting and optimizing system performance, ensuring the refrigerant condenses effectively regardless of the setup.
In conclusion, the condensation cycle is a cornerstone of refrigerant flow in CCot systems, transforming hot gas into liquid while releasing heat. Its efficiency hinges on thermodynamic principles, proper maintenance, and system design. By focusing on these aspects, users can ensure their cooling systems operate reliably and economically, even in demanding conditions. Regular upkeep and awareness of environmental factors are key to maximizing the condenser’s performance and extending the system’s lifespan.
Can Samsung Refrigerators Operate Without a Water Filter?
You may want to see also
Explore related products
Expansion Valve Role: Liquid refrigerant expands, drops pressure, and cools before evaporator
The expansion valve is a critical component in a CCOT (Cycling Clutch Orifice Tube) system, acting as the gatekeeper for refrigerant flow and pressure control. Its primary function is to meter the liquid refrigerant, allowing it to expand rapidly, which results in a significant drop in pressure and temperature. This process is essential for the refrigerant to absorb heat effectively in the evaporator. As the high-pressure liquid refrigerant enters the expansion valve, it encounters a restriction, forcing it to undergo a phase change from liquid to vapor. This transformation is accompanied by a substantial decrease in temperature, typically dropping from around 100°F (38°C) at the condenser outlet to about 40°F (4°C) at the evaporator inlet, depending on the system design and ambient conditions.
Consider the analogy of a spray bottle: when you press the nozzle, the liquid inside is forced through a small opening, causing it to disperse into a fine mist. Similarly, the expansion valve creates a pressure differential, enabling the refrigerant to expand and cool rapidly. This cooling effect is crucial, as it prepares the refrigerant to absorb heat from the surrounding air in the evaporator. For instance, in automotive air conditioning systems, the expansion valve ensures that the refrigerant enters the evaporator at the optimal temperature to efficiently cool the cabin air. A properly functioning expansion valve maintains a superheat of 5-15°F (3-8°C) at the evaporator outlet, ensuring maximum heat absorption without flooding the compressor with liquid refrigerant.
From a practical standpoint, the expansion valve’s role is twofold: it regulates refrigerant flow and controls the evaporator’s temperature. If the valve is malfunctioning, it can lead to issues such as freezing of the evaporator coil (due to insufficient superheat) or poor cooling performance (due to excessive superheat). Technicians often diagnose expansion valve problems by measuring the refrigerant’s temperature and pressure before and after the valve. For example, a clogged orifice or a stuck valve can cause high-side pressure to rise and low-side pressure to drop, indicating a restriction in the refrigerant flow. Regular maintenance, including cleaning or replacing the expansion valve as needed, is essential to ensure optimal system performance.
Comparing the expansion valve to other throttling devices, such as capillary tubes or orifice tubes, highlights its advantages in terms of control and adaptability. Unlike fixed orifices, the expansion valve can adjust refrigerant flow based on system demands, making it more efficient in varying operating conditions. For instance, in a CCOT system, the expansion valve works in tandem with the clutch cycling mechanism to maintain consistent evaporator temperatures, even during idle or low-load conditions. This dynamic control is particularly beneficial in applications where cooling requirements fluctuate, such as in vehicles or commercial refrigeration units.
In conclusion, the expansion valve’s role in a CCOT system is indispensable, as it facilitates the precise metering and cooling of refrigerant before it enters the evaporator. By understanding its function and importance, technicians and engineers can better diagnose and address system inefficiencies. For DIY enthusiasts, recognizing symptoms like warm air from vents or unusual noises from the evaporator can signal potential expansion valve issues. Always consult manufacturer guidelines or seek professional assistance when dealing with refrigerant systems, as improper handling can lead to safety hazards or system damage.
Do Oreo Balls Need Refrigeration? Storage Tips for Perfect Treats
You may want to see also
Explore related products
Evaporation Stage: Cool liquid absorbs heat, evaporates into vapor, and returns to compressor
The evaporation stage is where the magic of cooling begins in a CCot (Chiller, Condenser, and Oil Separator) system. As the cool liquid refrigerant enters the evaporator, it encounters a warmer environment, typically the space or fluid that needs cooling. This temperature differential sets the stage for heat absorption. The refrigerant's primary role here is to act as a heat sponge, drawing thermal energy from the surroundings. This process is governed by the principle of heat transfer, where heat naturally flows from a higher-temperature region to a lower-temperature one. The refrigerant's low boiling point allows it to evaporate at a relatively low temperature, making it an efficient heat absorber.
Consider a typical application in an air conditioning system. The evaporator coil, often located indoors, is where the refrigerant absorbs heat from the room air. As the warm air passes over the coil, the refrigerant inside absorbs the heat, causing it to evaporate from a liquid into a vapor. This phase change is crucial, as it enables the refrigerant to carry a significant amount of heat energy. For instance, in a residential AC unit, the evaporating temperature might be around 40°F (4°C), allowing the refrigerant to effectively cool the indoor air to a comfortable temperature. The efficiency of this process depends on factors like the refrigerant's type, flow rate, and the evaporator's design.
From a practical standpoint, ensuring optimal evaporation is key to maximizing cooling efficiency. One critical aspect is maintaining the right refrigerant charge. An undercharged system may not have enough refrigerant to absorb sufficient heat, leading to poor cooling performance. Conversely, overcharging can cause liquid refrigerant to return to the compressor, potentially damaging it. Technicians often use tools like refrigerant scales and pressure gauges to accurately measure and adjust the charge. For example, in a small split AC system, the ideal refrigerant charge might be around 1.5 to 2 pounds, depending on the unit's size and design.
Another important consideration is airflow across the evaporator. Adequate airflow ensures that the warm air is effectively cooled as it passes over the coil. Restricted airflow, often caused by dirty filters or blocked vents, can reduce the system's cooling capacity and lead to ice formation on the evaporator. Regular maintenance, such as cleaning or replacing air filters every 1-3 months, can prevent these issues. Additionally, ensuring that the evaporator coil itself is clean and free of debris is vital for efficient heat transfer.
In summary, the evaporation stage is a critical component of the refrigerant cycle in a CCot system. It’s where the refrigerant’s cooling power is harnessed, transforming it from a cool liquid into a vapor capable of carrying heat away from the desired space. By understanding the principles of heat absorption, maintaining proper refrigerant charge, and ensuring optimal airflow, one can enhance the efficiency and longevity of the cooling system. Whether in a home AC unit or an industrial chiller, mastering the evaporation stage is essential for achieving effective and reliable cooling.
Can Refrigerators Stay Outside in Freezing Weather? Expert Advice
You may want to see also
Frequently asked questions
A CCot (Chiller, Condenser, and Outdoor Temperature) system is a type of refrigeration or air conditioning setup. Refrigerant flows in a closed loop, starting from the compressor, where it is pressurized and heated, then to the condenser to release heat, followed by the expansion valve to reduce pressure, and finally to the evaporator to absorb heat before returning to the compressor.
Refrigerant flows in a specific direction: from the compressor to the condenser, then to the expansion valve, and finally to the evaporator before returning to the compressor. This ensures proper heat exchange and system efficiency.
The expansion valve reduces the pressure and temperature of the refrigerant, causing it to change from a high-pressure liquid to a low-pressure liquid-vapor mixture. This prepares the refrigerant to absorb heat efficiently in the evaporator.
The compressor is the heart of the CCot system, as it pressurizes and circulates the refrigerant. It draws in low-pressure, low-temperature refrigerant vapor from the evaporator, compresses it into a high-pressure, high-temperature gas, and pushes it into the condenser to release heat.
