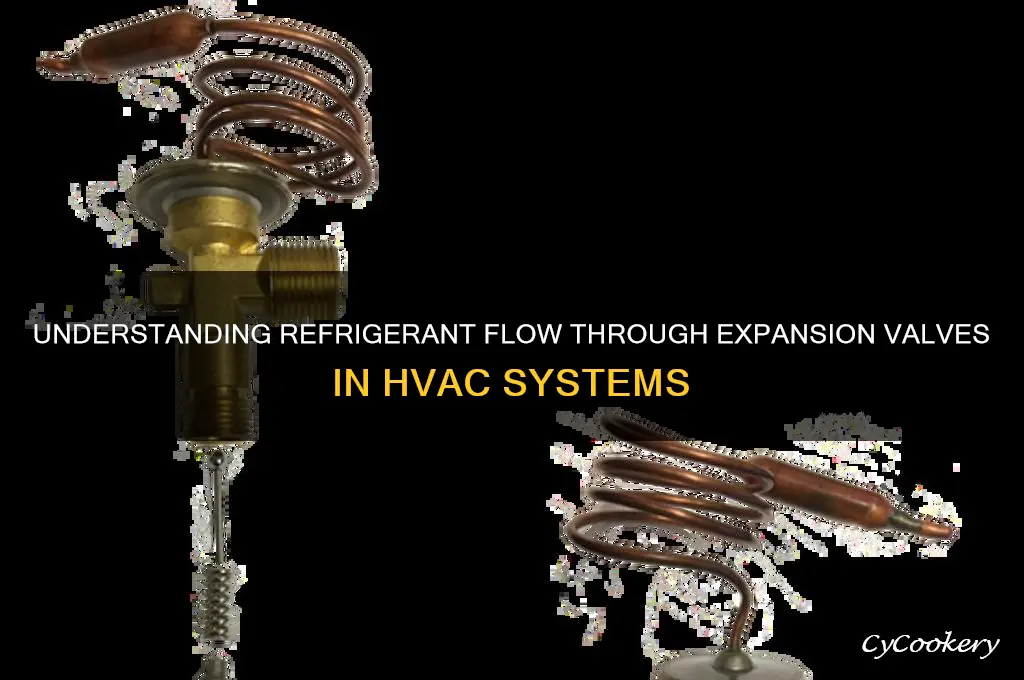

The expansion valve system is a critical component in refrigeration and air conditioning cycles, responsible for controlling the flow and pressure of refrigerant as it transitions from the high-pressure liquid state to a low-pressure, low-temperature mixture of liquid and vapor. As the refrigerant enters the expansion valve, it encounters a restriction that causes a sudden drop in pressure, leading to rapid cooling and partial vaporization. This process is essential for efficient heat absorption in the evaporator. The flow of refrigerant through the expansion valve is carefully regulated to ensure optimal performance, balancing the needs of the system to maintain desired temperatures while minimizing energy consumption. Understanding this flow dynamics is key to designing and troubleshooting effective refrigeration systems.
| Characteristics | Values |
|---|---|
| Refrigerant State Before Expansion Valve | High-pressure liquid (subcooled or saturated) |
| Expansion Valve Function | Throttles refrigerant, reduces pressure, and converts liquid to low-pressure vapor-liquid mixture |
| Pressure Drop | Significant drop from high-pressure side (condenser) to low-pressure side (evaporator) |
| Temperature Drop | Flash gas formation causes temperature drop due to Joule-Thomson effect |
| Refrigerant State After Expansion Valve | Low-pressure, low-temperature vapor-liquid mixture (typically 20-30% vapor) |
| Flow Control | Regulated by valve orifice size, superheat, and thermal or electronic sensors |
| Types of Expansion Valves | Thermostatic Expansion Valve (TXV), Electronic Expansion Valve (EXV), Capillary Tube |
| Energy Efficiency | Improves system efficiency by ensuring proper evaporator superheat |
| Common Applications | Air conditioning systems, refrigeration systems, heat pumps |
| Maintenance Requirement | Regular cleaning and calibration to prevent clogging or malfunction |
| Environmental Impact | Proper operation reduces refrigerant usage and minimizes environmental harm |
Explore related products
What You'll Learn
- Refrigerant State Changes: Liquid to vapor phase transition during expansion valve operation
- Pressure Drop Mechanism: Sudden pressure reduction causing refrigerant flash gas formation
- Flow Control Process: Regulating refrigerant flow rate for optimal heat exchange efficiency
- Temperature Effect: Cooling effect due to refrigerant expansion and energy absorption
- System Efficiency Factors: Impact of valve type, superheat, and subcooling on performance
Refrigerant State Changes: Liquid to vapor phase transition during expansion valve operation
The expansion valve is a critical component in refrigeration systems, acting as the gateway between the high-pressure liquid refrigerant and the low-pressure evaporator. As the refrigerant passes through the valve, it undergoes a rapid pressure drop, triggering a dramatic state change from liquid to vapor. This phase transition is the cornerstone of the cooling process, absorbing heat from the surrounding environment and providing the chilling effect we rely on.
Imagine a pot of water boiling on a stove. As heat is applied, water molecules gain energy, transitioning from a liquid state to a gaseous state, forming steam. Similarly, in an expansion valve system, the refrigerant, typically a substance like R-410A or R-22, experiences a sudden drop in pressure, causing it to boil and evaporate. This process, known as flash evaporation, occurs almost instantaneously, with a portion of the refrigerant transforming into a vapor, while the remaining liquid becomes supercooled. The degree of supercooling depends on the specific refrigerant and the system's operating conditions, but it typically ranges from 5°F to 15°F below the refrigerant's saturation temperature.
To optimize the efficiency of this phase transition, it's essential to maintain proper refrigerant flow rates and temperatures. A common rule of thumb is to ensure that the refrigerant enters the expansion valve at a temperature of 20°F to 30°F subcooled, meaning it's a certain degree below its saturation temperature. This can be achieved by using a receiver or a subcooler, which helps to remove any residual heat from the refrigerant before it reaches the expansion valve. Additionally, the valve's orifice size should be carefully selected to match the system's capacity, typically ranging from 0.030 inches to 0.060 inches in diameter, depending on the refrigerant type and flow rate.
One practical example of this process can be seen in a typical air conditioning system. As the refrigerant flows through the expansion valve, it undergoes a pressure drop from approximately 250 psig (pounds per square inch gauge) to around 60 psig. This sudden decrease in pressure causes the refrigerant to evaporate, absorbing heat from the indoor air and providing cooling. The resulting vapor-liquid mixture then enters the evaporator coil, where it continues to absorb heat, eventually becoming a saturated vapor at the evaporator outlet. To ensure optimal performance, technicians should regularly check the system's superheat, which is the difference between the actual temperature of the refrigerant vapor and its saturation temperature, typically maintained between 5°F and 15°F.
In summary, the liquid-to-vapor phase transition during expansion valve operation is a complex yet fascinating process that relies on precise control of refrigerant flow, temperature, and pressure. By understanding the underlying principles and implementing best practices, such as proper subcooling, accurate valve sizing, and regular superheat monitoring, technicians can optimize system efficiency, reduce energy consumption, and extend equipment lifespan. As a practical tip, consider using a digital manifold gauge set to accurately measure refrigerant pressures and temperatures, and refer to the manufacturer's specifications for recommended superheat and subcooling values, typically found in the system's service manual or on the equipment's data plate.
Do Edibles Expire? Shelf Life Without Refrigeration Explained
You may want to see also
Explore related products
Pressure Drop Mechanism: Sudden pressure reduction causing refrigerant flash gas formation
The sudden pressure reduction across an expansion valve is a critical juncture in refrigerant flow, triggering a phenomenon known as flash gas formation. This process, while essential for heat absorption in the evaporator, demands careful management to ensure system efficiency.
As high-pressure liquid refrigerant encounters the constriction of the expansion valve, its pressure plummets. This abrupt drop in pressure lowers the refrigerant's boiling point, causing a portion of the liquid to instantly vaporize, forming flash gas. The ratio of flash gas to liquid leaving the valve depends on the degree of pressure reduction and the refrigerant's properties.
Imagine a pot of water boiling on a stove. As heat is applied, bubbles of steam (vapor) form and rise to the surface. Similarly, the expansion valve acts as a catalyst, providing the "heat" in the form of pressure reduction, prompting the refrigerant to transition from liquid to vapor. This flash gas, though initially undesirable in the liquid line, becomes crucial in the evaporator.
The formation of flash gas within the expansion valve serves a dual purpose. Firstly, it facilitates the refrigerant's ability to absorb heat from the surrounding environment in the evaporator coil. The vaporization process itself is endothermic, meaning it absorbs heat, effectively cooling the coil and the air passing over it. Secondly, the presence of flash gas helps regulate the refrigerant's temperature, preventing it from becoming too cold and potentially freezing within the evaporator.
However, excessive flash gas formation can lead to issues. An overly high flash gas ratio can result in inadequate liquid refrigerant reaching the evaporator coil, reducing its heat absorption capacity. This imbalance can lead to inefficient cooling and increased energy consumption. Therefore, precise control of the expansion valve is paramount to achieving the optimal balance of flash gas and liquid refrigerant for efficient system operation.
Determining Your Hotpoint Refrigerator's Age: A Simple Guide
You may want to see also
Explore related products
Flow Control Process: Regulating refrigerant flow rate for optimal heat exchange efficiency
The expansion valve is a critical component in refrigeration and air conditioning systems, acting as the gatekeeper for refrigerant flow between the high-pressure and low-pressure sides of the system. Its primary function is to regulate the flow rate of refrigerant, ensuring it enters the evaporator at the optimal pressure and temperature for efficient heat exchange. This process is not merely about allowing refrigerant to pass through; it involves a precise control mechanism that responds to system conditions in real time. By metering the refrigerant, the expansion valve facilitates the phase change from liquid to vapor, which is essential for absorbing heat from the surrounding environment.
Consider the analogy of a dam controlling water flow in a river. Just as a dam releases water at a rate that sustains downstream ecosystems without causing flooding, the expansion valve modulates refrigerant flow to maintain optimal evaporator performance. If the flow rate is too high, the refrigerant may not fully evaporate, leading to liquid refrigerant returning to the compressor (a condition known as liquid slugging, which can damage the compressor). Conversely, if the flow rate is too low, the evaporator may not absorb enough heat, reducing system efficiency. The expansion valve’s ability to strike this balance is rooted in its design, which often includes a thermostatic element or electronic control to adjust flow based on evaporator superheat—the difference between the actual vapor temperature and the saturation temperature at the evaporator outlet.
In practice, regulating refrigerant flow involves a dynamic interplay between system pressure, temperature, and load conditions. For instance, in a thermostatic expansion valve (TXV), a bulb filled with refrigerant is attached to the evaporator outlet. As the superheat changes, the bulb’s pressure adjusts, causing the valve to open or close accordingly. This ensures that the refrigerant enters the evaporator at a slightly superheated state, optimizing heat absorption. Electronic expansion valves (EXVs) take this a step further by using sensors and microprocessors to fine-tune flow rates based on real-time data, offering greater precision and adaptability to varying loads. For example, in a commercial refrigeration system, an EXV might adjust flow rates every 15 seconds to account for fluctuating door openings or ambient temperatures.
One practical tip for technicians is to monitor superheat levels during system commissioning. A superheat value of 8–12°F (4–7°C) is typically ideal for most refrigeration systems, though this can vary based on the refrigerant type and application. If superheat is too low, the expansion valve may need adjustment to reduce flow, while high superheat indicates excessive flow restriction. Additionally, when retrofitting systems with alternative refrigerants, such as R-410A or R-32, ensure the expansion valve is compatible or replace it with a model designed for the new refrigerant’s properties. Failure to do so can result in inefficient heat exchange and increased energy consumption.
Ultimately, the flow control process in expansion valve systems is a delicate dance of precision and responsiveness. By understanding the principles behind refrigerant metering and the tools available for control, technicians and engineers can optimize system performance, enhance energy efficiency, and extend equipment lifespan. Whether using a TXV or EXV, the goal remains the same: to ensure refrigerant flows at the right rate, at the right time, for maximum heat exchange efficiency. This not only improves system reliability but also contributes to sustainability by reducing energy waste and minimizing environmental impact.
Does Your Frigidaire Fridge Have a Warranty? Find Out Now
You may want to see also
Explore related products
![AC FLOW [Explicit]](https://m.media-amazon.com/images/I/71murXIduRL._AC_UL320_.jpg)
Temperature Effect: Cooling effect due to refrigerant expansion and energy absorption
Refrigerant expansion through the valve is a critical process that directly contributes to the cooling effect in refrigeration systems. As the high-pressure liquid refrigerant passes through the narrow orifice of the expansion valve, it undergoes a rapid pressure drop, causing a significant portion of the liquid to flash into vapor. This phase change from liquid to vapor absorbs a substantial amount of heat from the surrounding environment, a principle known as latent heat absorption. For instance, in a typical residential air conditioning system, the refrigerant (e.g., R-410A) may enter the expansion valve at a temperature of 100°F (38°C) and exit at around 40°F (4°C), effectively lowering the temperature of the evaporator coil and enabling it to absorb heat from indoor air.
To maximize the cooling effect, it’s essential to ensure proper refrigerant flow and valve calibration. An expansion valve that is too restrictive can lead to insufficient superheat, causing liquid refrigerant to flood the compressor, while one that is too open can result in inadequate cooling capacity. Technicians often adjust the valve to maintain a superheat level of 8–12°F (4–7°C) for optimal performance. For example, in commercial refrigeration systems, precise control of the expansion valve is critical to maintaining product temperatures within safe ranges, such as keeping frozen goods at 0°F (-18°C) or chilled items at 38°F (3°C). Regular maintenance, including cleaning the valve and checking for wear, ensures consistent energy absorption and system efficiency.
The cooling effect generated by refrigerant expansion is not only dependent on the valve but also on the thermodynamic properties of the refrigerant itself. Different refrigerants have varying latent heat capacities, which influence their ability to absorb energy during expansion. For instance, R-22, a historically common refrigerant, has a latent heat of vaporization of approximately 100 BTU/lb, while R-410A offers around 80 BTU/lb. Despite the lower value, R-410A’s higher operating pressures and efficiency make it a more effective choice for modern systems. When selecting a refrigerant, consider its environmental impact, such as global warming potential (GWP), alongside its cooling performance.
Practical tips for enhancing the temperature effect include ensuring proper insulation around the evaporator coil to minimize heat gain and using a thermostatic expansion valve (TXV) for precise control. In retrofitting older systems, upgrading to a TXV from a fixed orifice can improve energy efficiency by 10–15%. Additionally, monitoring refrigerant charge levels is crucial, as an overcharged system can reduce the expansion effect, while an undercharged system may lead to inadequate cooling. For DIY enthusiasts, investing in a manifold gauge set and learning to interpret superheat readings can help fine-tune the expansion valve for optimal performance. By understanding and leveraging the principles of refrigerant expansion, both professionals and homeowners can achieve efficient and effective cooling.
Einstein's Revolutionary Refrigerator: Transforming Cooling Technology and Global Impact
You may want to see also
Explore related products
System Efficiency Factors: Impact of valve type, superheat, and subcooling on performance
The choice of expansion valve significantly impacts the efficiency of a refrigeration system. Thermostatic expansion valves (TXVs) offer superior control compared to fixed orifices, as they dynamically adjust refrigerant flow based on evaporator superheat. This ensures optimal evaporator performance across varying load conditions. For instance, a TXV can maintain a consistent 10°F superheat, maximizing heat absorption while preventing liquid refrigerant from entering the compressor. In contrast, fixed orifices provide a constant flow, leading to inefficiencies during part-load conditions. Electronic expansion valves (EXVs) further enhance precision by integrating with system controls, allowing for micro-adjustments that can improve efficiency by up to 15% in advanced HVAC systems.
Superheat, the temperature difference between the refrigerant vapor leaving the evaporator and its saturation temperature, is a critical parameter for system efficiency. Insufficient superheat (less than 5°F) risks liquid refrigerant returning to the compressor, causing damage. Excessive superheat (over 20°F) indicates underfeeding, reducing evaporator effectiveness. For example, in a supermarket refrigeration system, maintaining 8–12°F superheat ensures the evaporator operates at peak efficiency without compromising compressor safety. Technicians should use a digital manifold gauge to monitor superheat and adjust the TXV accordingly, ensuring the system runs within optimal parameters.
Subcooling, the process of cooling liquid refrigerant below its saturation temperature, plays a vital role in system performance. Proper subcooling (5–15°F) ensures that only liquid refrigerant enters the expansion valve, preventing flash gas formation. This maximizes the refrigerant’s heat absorption capacity in the evaporator. For instance, a system with 10°F subcooling can achieve up to 8% higher efficiency compared to one with no subcooling. Subcooling can be enhanced by adding a liquid line heat exchanger or ensuring adequate condenser performance. Regularly cleaning condenser coils and checking for refrigerant charge issues are practical steps to maintain optimal subcooling levels.
The interplay between valve type, superheat, and subcooling underscores the importance of system design and maintenance. A TXV paired with precise superheat and subcooling control can deliver energy savings and extend equipment lifespan. For example, a commercial chiller system with an EXV, 10°F superheat, and 12°F subcooling can reduce energy consumption by 20% compared to a fixed orifice system with poor subcooling. To achieve these results, technicians should follow a systematic approach: select the appropriate valve type, monitor superheat and subcooling regularly, and address deviations promptly. By optimizing these factors, systems can operate at peak efficiency, reducing operational costs and environmental impact.
Do Onions Go Bad in the Fridge? Storage Tips Revealed
You may want to see also
Frequently asked questions
The primary function of an expansion valve is to meter and control the flow of refrigerant, reducing its pressure and temperature as it enters the evaporator, allowing it to absorb heat and cool the surrounding space.
Refrigerant flows from the condenser (high-pressure liquid) to the expansion valve, where it is throttled, causing a drop in pressure and temperature. The low-pressure, low-temperature refrigerant then enters the evaporator to absorb heat and complete the cycle.
The sudden drop in pressure caused by the expansion valve forces the refrigerant to partially evaporate, changing from a high-pressure liquid to a low-pressure liquid/vapor mixture, which is essential for efficient heat absorption in the evaporator.
The expansion valve ensures the correct amount of refrigerant enters the evaporator, preventing overfeeding or underfeeding. This maintains optimal heat transfer efficiency and prevents issues like liquid slugging or poor cooling performance.
Some expansion valves are adjustable to fine-tune refrigerant flow based on system conditions (e.g., temperature, load). Adjustments may be needed to optimize performance, especially in systems with varying cooling demands or ambient temperatures.
