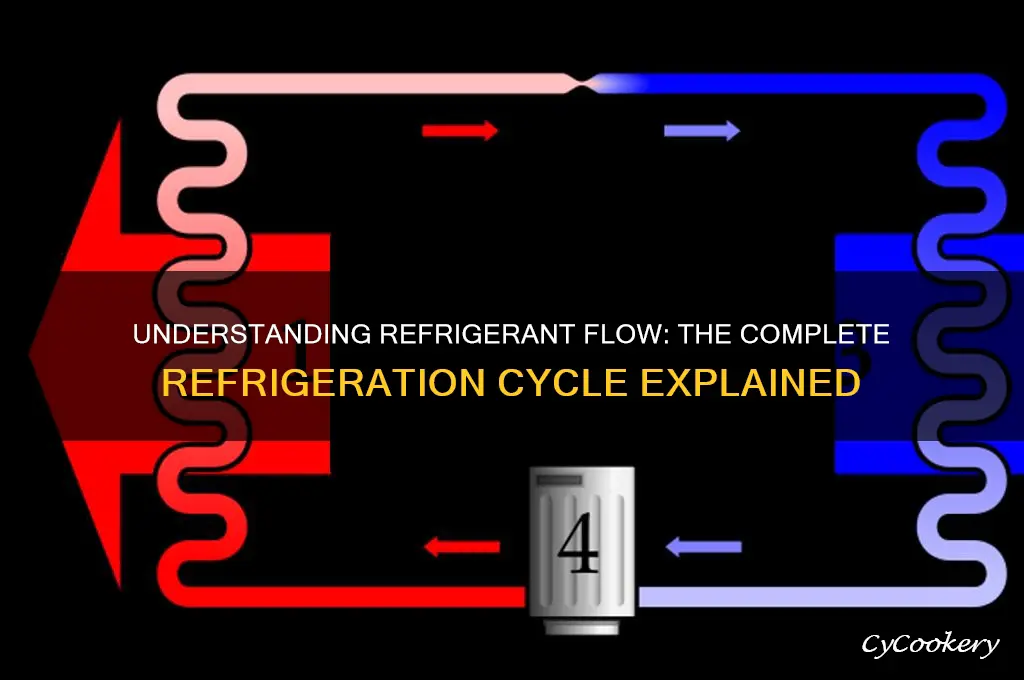

The refrigeration cycle is a fundamental process that enables cooling systems to transfer heat from a lower-temperature environment to a higher-temperature one, and at its core is the movement of refrigerant. This cycle begins with the refrigerant in a low-pressure, low-temperature gaseous state, which is then compressed by the compressor, raising its temperature and pressure. The hot, high-pressure gas moves to the condenser, where it releases heat to the surrounding environment, condensing into a high-pressure liquid. Next, the liquid refrigerant passes through the expansion valve, where it undergoes a rapid pressure drop, causing it to partially evaporate and cool significantly. This cold, low-pressure mixture of liquid and vapor then enters the evaporator, where it absorbs heat from the space being cooled, fully evaporating back into a low-pressure gas. Finally, the refrigerant returns to the compressor, completing the cycle and ensuring continuous heat transfer.
| Characteristics | Values |
|---|---|
| Phase Changes | Refrigerant undergoes phase changes (liquid to vapor and vice versa) as it moves through the cycle. |
| Compression | Vapor refrigerant is compressed by the compressor, increasing its temperature and pressure (superheated vapor). |
| Condensation | Hot, high-pressure vapor is condensed into a liquid in the condenser by rejecting heat to the surroundings. |
| Expansion | High-pressure liquid refrigerant passes through an expansion device (e.g., capillary tube, expansion valve), causing a pressure drop and partial vaporization (two-phase mixture). |
| Evaporation | Low-pressure, two-phase refrigerant absorbs heat from the refrigerated space in the evaporator, fully vaporizing into a saturated vapor. |
| Pressure Levels | Cycle operates between high pressure (condensing side) and low pressure (evaporation side). |
| Temperature Levels | Temperature varies from low (evaporator) to high (condenser) due to heat absorption and rejection. |
| Refrigerant States | Exists as saturated liquid, two-phase mixture, saturated vapor, and superheated vapor at different stages. |
| Heat Transfer | Absorbs heat in the evaporator (cooling effect) and rejects heat in the condenser. |
| Work Input | Compressor performs work to circulate the refrigerant, consuming electrical energy. |
| Cycle Direction | Refrigerant flows in a closed loop, continuously repeating the cycle. |
| Common Refrigerants | R-410A, R-32, R-134a, etc., depending on application and environmental regulations. |
| Efficiency Metrics | Coefficient of Performance (COP) measures efficiency; higher COP indicates better performance. |
| Control Mechanisms | Thermostatic expansion valves, pressure regulators, and other controls maintain optimal cycle conditions. |
Explore related products
What You'll Learn
- Compression Process: Refrigerant is compressed from low-pressure gas to high-pressure, high-temperature gas by the compressor
- Condensation Stage: Hot refrigerant gas releases heat in the condenser, condensing into high-pressure liquid
- Expansion Mechanism: High-pressure liquid refrigerant passes through an expansion valve, dropping pressure and temperature
- Evaporation Phase: Low-pressure liquid absorbs heat in the evaporator, turning into low-pressure gas
- Cycle Repetition: Refrigerant returns to the compressor, completing the continuous refrigeration cycle loop
Compression Process: Refrigerant is compressed from low-pressure gas to high-pressure, high-temperature gas by the compressor
The compression process is the heart of the refrigeration cycle, where the refrigerant undergoes a dramatic transformation. Imagine a low-pressure gas, cool and expansive, entering the compressor. This gas, typically a hydrofluorocarbon (HFC) like R-410A, is then subjected to intense mechanical force. The compressor, often a reciprocating or rotary type, acts like a muscular pump, squeezing the refrigerant molecules closer together. This compression increases the pressure and temperature significantly, turning the gas into a high-energy state. For instance, R-410A might enter the compressor at around 68°F (20°C) and 68 psig (pounds per square inch gauge), and exit at approximately 165°F (74°C) and 300 psig, depending on the system design.
This process is not merely about increasing pressure; it’s about creating the conditions necessary for heat exchange. The high-pressure, high-temperature gas is now primed to release its heat in the next stage of the cycle. However, the compressor’s efficiency is critical. Over-compression can lead to excessive energy consumption, while under-compression reduces the system’s cooling capacity. Modern compressors often incorporate variable-speed drives to optimize this process, adjusting the compression rate based on demand. For residential air conditioning units, compressors typically operate at 1,725 to 3,600 RPM (revolutions per minute), ensuring a balance between performance and energy efficiency.
One practical tip for maintaining compressor efficiency is to regularly clean the condenser coils, as dirty coils force the compressor to work harder, increasing wear and energy use. Additionally, ensure the refrigerant charge is accurate; too much or too little can strain the compressor. For example, a 3-ton air conditioning system requires approximately 6 to 7 pounds of R-410A refrigerant, depending on the manufacturer’s specifications. Overcharging by just 10% can reduce efficiency by up to 15%, while undercharging can lead to insufficient cooling and potential compressor damage.
Comparing the compression process to other stages of the refrigeration cycle highlights its unique role. Unlike the expansion process, which is passive and relies on pressure differences, compression is active and energy-intensive. It’s the only stage where external energy (usually electricity) is directly input into the system. This makes the compressor both the most critical and the most vulnerable component. For instance, in a commercial refrigeration system, the compressor accounts for about 60% of the total energy consumption, making its efficiency paramount.
In conclusion, the compression process is a delicate balance of physics and engineering. It transforms a low-energy refrigerant into a high-energy state, setting the stage for effective heat rejection. By understanding the specifics—such as optimal pressure ranges, compressor speeds, and maintenance practices—technicians and users can ensure the system operates at peak efficiency. Whether it’s a home air conditioner or an industrial chiller, the compression process remains the cornerstone of refrigeration technology.
Supporting a 24-Inch Cabinet Above Your Fridge: A Step-by-Step Guide
You may want to see also
Explore related products
$15.19 $24.95
Condensation Stage: Hot refrigerant gas releases heat in the condenser, condensing into high-pressure liquid
The condensation stage is a pivotal moment in the refrigeration cycle, where the hot, high-pressure refrigerant gas transforms into a high-pressure liquid, releasing heat in the process. This phase occurs within the condenser, a heat exchanger designed to facilitate the transfer of heat from the refrigerant to the surrounding environment. As the refrigerant enters the condenser, its temperature is significantly higher than the ambient air, creating a temperature differential that drives the heat exchange process. For instance, in a typical residential air conditioning system, the refrigerant may enter the condenser at around 120°F (49°C), while the outdoor air temperature is approximately 85°F (29°C).
To understand the condensation process, consider the following steps: First, the hot refrigerant gas flows through the condenser coils, which are often made of copper or aluminum due to their excellent thermal conductivity. As the refrigerant comes into contact with the cooler condenser coils, heat is transferred from the refrigerant to the coils, and subsequently, to the surrounding air. This heat transfer is accelerated by the use of fans or blowers, which force air over the condenser coils, increasing the rate of heat dissipation. The refrigerant's temperature gradually decreases as it releases heat, causing it to change state from a gas to a liquid. This phase change is critical, as it allows the refrigerant to store and transport energy efficiently throughout the refrigeration cycle.
From a practical standpoint, the condensation stage requires careful consideration of several factors to ensure optimal performance. One crucial aspect is the condenser's design and sizing, which must be tailored to the specific refrigeration system and its intended application. For example, in commercial refrigeration systems, condensers are often designed with multiple passes and rows of coils to maximize heat transfer surface area, while minimizing pressure drop. Additionally, the refrigerant's flow rate and temperature must be carefully controlled to prevent issues such as liquid hammer or inadequate heat rejection. In some cases, subcooling – the process of cooling the liquid refrigerant below its condensation temperature – may be employed to improve system efficiency and reduce the risk of flash gas formation.
A comparative analysis of different condenser types reveals the importance of selecting the right design for a given application. Air-cooled condensers, for instance, are commonly used in residential and light commercial applications due to their simplicity, low cost, and ease of installation. However, they may not be suitable for high-temperature or high-capacity systems, where water-cooled condensers offer superior performance and efficiency. Water-cooled condensers use a separate water circuit to reject heat from the refrigerant, allowing for more precise temperature control and higher heat transfer rates. In industrial applications, evaporative condensers – which combine air and water cooling – are often preferred for their energy efficiency and ability to handle large refrigeration loads.
In conclusion, the condensation stage is a complex yet fascinating process that plays a critical role in the refrigeration cycle. By understanding the principles of heat transfer, phase change, and system design, engineers and technicians can optimize condenser performance, improve energy efficiency, and ensure reliable operation. Whether designing a new refrigeration system or troubleshooting an existing one, a thorough understanding of the condensation stage is essential for achieving optimal results. By considering factors such as condenser type, sizing, and control strategies, professionals can create effective solutions that meet the unique demands of their specific applications, ultimately contributing to a more sustainable and efficient refrigeration industry.
Refrigerated Chicken Left Out: Safe Time Limits and Risks
You may want to see also
Explore related products
Expansion Mechanism: High-pressure liquid refrigerant passes through an expansion valve, dropping pressure and temperature
The expansion valve is a critical component in the refrigeration cycle, acting as the gateway between the high-pressure and low-pressure sides of the system. As high-pressure liquid refrigerant enters the expansion valve, it encounters a restriction that causes a sudden drop in pressure. This pressure drop is not just a random event; it’s a carefully engineered process designed to convert the refrigerant from a high-pressure liquid to a low-pressure, low-temperature mixture of liquid and vapor. The valve’s orifice size and design are tailored to the specific refrigerant and system requirements, ensuring optimal performance. For instance, in a typical residential air conditioning system using R-410A refrigerant, the expansion valve might reduce the pressure from approximately 250 psi (high side) to around 70 psi (low side), simultaneously cooling the refrigerant to near-freezing temperatures.
Consider the expansion valve as the system’s throttle, controlling the flow rate and state of the refrigerant. Its operation is both precise and dynamic, responding to changes in system load and ambient conditions. For example, thermostatic expansion valves (TXVs) use a temperature-sensitive bulb to adjust the valve opening, maintaining a consistent superheat at the evaporator outlet. This ensures that the refrigerant fully evaporates by the time it leaves the evaporator, maximizing heat absorption efficiency. In contrast, fixed orifice valves, often found in smaller systems like refrigerators, rely on a static opening size, which simplifies design but offers less adaptability. Understanding these mechanisms is key to diagnosing issues like frost buildup on the evaporator coil, which can indicate an improperly functioning expansion valve.
From a practical standpoint, maintaining the expansion valve is essential for system longevity and efficiency. Clogging due to refrigerant oil or debris is a common issue, leading to reduced flow and poor cooling performance. Regularly checking for signs of ice or oil accumulation near the valve can help identify potential problems early. Additionally, when retrofitting a system to use a different refrigerant, the expansion valve must be replaced or recalibrated to match the new refrigerant’s properties. For instance, switching from R-22 to R-410A requires a valve designed for higher pressures and different flow characteristics. Technicians should also be mindful of the valve’s location in the system; improper installation, such as placing it too close to the evaporator, can lead to inefficient operation or liquid slugging in the compressor.
Comparing the expansion valve to other throttling devices highlights its unique role in the refrigeration cycle. Unlike a capillary tube, which is a passive, fixed-length tube with a small internal diameter, the expansion valve offers active control over refrigerant flow. This makes it more suitable for systems with varying loads, such as air conditioners in climates with fluctuating temperatures. However, this complexity comes at a cost—expansion valves are generally more expensive and require more maintenance than capillary tubes. For DIY enthusiasts or homeowners, understanding this trade-off can guide decisions when repairing or upgrading a refrigeration system. For example, a window air conditioner with a capillary tube might be simpler to maintain but less efficient under extreme conditions compared to a unit with a TXV.
In conclusion, the expansion valve is not just a component but a linchpin in the refrigeration cycle, bridging the high-pressure and low-pressure sides while enabling efficient heat transfer. Its design and operation are finely tuned to the system’s needs, balancing precision with adaptability. Whether you’re a technician troubleshooting a malfunctioning system or a homeowner curious about how your air conditioner works, grasping the expansion valve’s function provides valuable insights into the broader mechanics of refrigeration. By ensuring proper maintenance and understanding its role, you can optimize system performance and extend its lifespan, ultimately saving energy and reducing costs.
Car Refrigerator Costs: What to Expect When Buying One
You may want to see also
Explore related products
Evaporation Phase: Low-pressure liquid absorbs heat in the evaporator, turning into low-pressure gas
The evaporation phase is where the magic of cooling begins. As the low-pressure liquid refrigerant enters the evaporator, it encounters a warmer environment, typically the space you want to cool, like your refrigerator or air conditioner. This temperature difference is crucial; the refrigerant, being at a lower pressure and temperature, is eager to absorb heat. Think of it as a sponge ready to soak up moisture, but in this case, it's heat energy. This process is driven by the second law of thermodynamics, which states that heat naturally flows from a hotter object to a cooler one. Here, the refrigerant acts as the cooler medium, drawing heat from the surrounding air or substance.
The Science Behind the Phase Change
When the refrigerant absorbs heat, it undergoes a phase change from liquid to gas. This transformation occurs at a nearly constant temperature, known as the boiling point of the refrigerant at that specific pressure. For example, R-134a, a common refrigerant, boils at approximately -26.5°C (-15.7°F) under low-pressure conditions. This phase change is highly efficient because it absorbs a significant amount of heat energy, known as the latent heat of vaporization. For R-134a, this value is about 215 kJ/kg, meaning it can absorb 215 kilojoules of heat for every kilogram of refrigerant that changes from liquid to gas. This efficiency is why refrigerants are so effective in cooling systems.
Practical Considerations in the Evaporator
Designing an efficient evaporator involves maximizing the surface area for heat transfer while ensuring even distribution of the refrigerant. Coiled tubes or fins are commonly used to increase contact with the warmer air. The refrigerant should flow at a rate that allows complete evaporation by the time it leaves the evaporator. If the flow is too fast, some liquid may remain, reducing efficiency and potentially damaging the compressor. Conversely, too slow a flow can lead to superheating of the gas, wasting energy. For residential air conditioners, the evaporator is often paired with a fan to circulate indoor air, ensuring consistent cooling.
Troubleshooting Common Issues
If your cooling system isn’t performing well, the evaporation phase is a critical area to inspect. Frost buildup on the evaporator coils indicates restricted airflow or low refrigerant levels, both of which hinder heat absorption. Dirty coils can reduce heat transfer efficiency by up to 30%, so regular cleaning is essential. Another issue is improper refrigerant charge; too little refrigerant means insufficient heat absorption, while too much can flood the evaporator, preventing proper evaporation. Technicians often use a superheat calculation to ensure the refrigerant is evaporating correctly—a superheat value of 5-10°C is ideal for most systems.
Environmental and Safety Tips
While the evaporation phase is safe when the system is intact, handling refrigerants requires caution. Many refrigerants, like R-410A, are under high pressure and can cause frostbite upon contact. Always wear protective gloves and goggles when servicing a system. Additionally, refrigerants like R-22 are ozone-depleting and phased out in many regions, so consider upgrading to eco-friendly alternatives like R-32 or R-410A. Proper disposal of old refrigerants is crucial—never release them into the atmosphere. Instead, use certified recovery machines to reclaim and recycle them, reducing environmental impact.
Can You Safely Store Baby Formula in the Refrigerator?
You may want to see also
Explore related products
Cycle Repetition: Refrigerant returns to the compressor, completing the continuous refrigeration cycle loop
The refrigerant's journey back to the compressor marks a critical phase in the refrigeration cycle, one that ensures the system's continuous operation. After absorbing heat from the evaporator and transforming into a low-pressure vapor, the refrigerant is drawn into the compressor, where its pressure and temperature are significantly increased. This process is essential for the refrigerant to release the absorbed heat in the next stages. The compressor acts as the heart of the system, pumping the refrigerant through the cycle and maintaining the necessary pressure differential for heat exchange.
Consider the analogy of a relay race, where the refrigerant is the baton passed between runners. Each runner (component) plays a vital role, but the baton must return to the starting point (compressor) to begin the next lap. In this case, the refrigerant's return to the compressor is akin to the baton being handed back to the first runner, ready to embark on another cycle. This repetition is crucial for maintaining the desired temperature in the refrigerated space, whether it's a household refrigerator or an industrial cooling system.
From a practical standpoint, understanding this cycle repetition is key to troubleshooting and maintaining refrigeration systems. For instance, if the refrigerant fails to return to the compressor efficiently, it could indicate a restriction in the suction line or a malfunctioning expansion valve. Technicians often use pressure gauges and temperature sensors to monitor the refrigerant's journey, ensuring it completes the cycle within optimal parameters. A typical residential air conditioning system operates with a suction pressure of around 60-70 psi and a discharge pressure of 220-250 psi, depending on outdoor temperatures and system design.
The continuous loop also highlights the importance of refrigerant selection and system design. Modern refrigerants, such as R-410A or R-32, are chosen for their thermodynamic properties and environmental impact, ensuring efficient heat transfer and minimal energy loss during cycle repetition. Engineers must carefully calculate the system's capacity, taking into account factors like heat load, ambient temperature, and desired cooling effect. For example, a 3-ton air conditioning unit typically requires approximately 6-8 pounds of refrigerant, depending on the specific refrigerant type and system design.
In the context of energy efficiency, cycle repetition plays a significant role in minimizing waste. Each time the refrigerant returns to the compressor, it presents an opportunity to optimize the system's performance. Variable-speed compressors, for instance, can adjust their capacity based on cooling demand, reducing energy consumption during partial-load conditions. This technology is particularly beneficial in commercial refrigeration, where cooling requirements fluctuate throughout the day. By fine-tuning the cycle repetition, these systems can achieve energy savings of up to 30-50%, contributing to both cost reduction and environmental sustainability.
Hot Chili Storage: How Long Can It Safely Sit Out?
You may want to see also
Frequently asked questions
Refrigerant moves through the cycle via a combination of pressure changes created by the compressor, which forces the refrigerant to flow through the system, and phase changes (evaporation and condensation) driven by heat exchange.
The compressor acts as the heart of the refrigeration cycle, increasing the pressure and temperature of the refrigerant vapor, forcing it to move through the condenser, expansion valve, and evaporator.
Refrigerant changes state from low-pressure vapor in the evaporator (absorbing heat), to high-pressure vapor in the compressor, to high-pressure liquid in the condenser (releasing heat), and finally to low-pressure liquid/vapor mix after the expansion valve.
The refrigerant flows in a specific direction due to the pressure differential created by the compressor and the restriction at the expansion valve, which maintains a continuous cycle of high-pressure and low-pressure zones.
