The oil pan, also known as the sump, is a vital component of a car's lubrication system. It holds the oil that is circulated through the engine, ensuring smooth operation and longevity. While the oil level in the pan can vary, it is typically maintained at a level that ensures adequate lubrication and cooling of engine components. Overfilling or underfilling the oil pan can lead to oil pressure and temperature problems, affecting the engine's performance and potentially causing damage. Therefore, it is important to regularly check the oil level and maintain it within the recommended range.
Oil Pan Characteristics
| Characteristics | Values |
|---|---|
| Oil Pan Function | Holds oil, allowing it to circulate through the engine for lubrication, cooling, and cleaning |
| Oil Level Monitoring | Use a dipstick to measure the oil level inside the pan, with "low" and "full" indicators |
| Oil Volume | Varies, but typically around 3-3.5 quarts when the dipstick indicates "full" |
| Oil Temperature | High oil temperatures can occur with too much oil or when the oil is unable to dissipate heat |
| Oil Pressure | Under-filled or over-filled pans can cause oil pressure problems and affect engine performance |
| Oil Quality | Modern oils have anti-foaming agents to reduce foaming, and various smoke points |
| Oil Circulation | Oil follows multiple paths to the bottom oil pan and only one path, under pressure, to lubricate the engine |
| Oil Filtration | Oil passes through a filter to remove debris and maintain engine health |
| Oil Pan Maintenance | Regular maintenance and replacement are crucial to prevent leaks, corrosion, and engine damage |
| Oil Pan Materials | Aluminum for lightweight and heat dissipation, steel for durability, chosen based on vehicle needs |
Explore related products
What You'll Learn
Oil pan capacity
The oil pan capacity in your vehicle is important to get right as it can have a significant impact on the performance of your engine. Too much oil in the pan can cause high oil temperatures as the extra oil splashes around the crank and under the pistons, creating windage. This windage can cause aeration in the oil, reducing its ability to pull heat away from the engine. Conversely, too little oil can cause the engine to overheat and can also cause oil pressure problems. For example, during cornering, braking or acceleration, the oil may be unable to reach the pickup, causing the pump to run dry.
The correct oil pan capacity is usually determined by the manufacturer's suggested level. However, there are other factors that can impact the capacity and oil level required, such as the oil pump volume, engine oiling passage tolerances, and motor stroke. For instance, a longer stroke motor will require a slightly lower oil level compared to the original oil pan capacity as the counterweights on the crank go deeper into the pan. Therefore, it is important to consider the unique specifications of your vehicle when determining the correct oil pan capacity.
One way to measure the oil pan capacity and ensure the correct oil level is by using a dipstick. It is important to calibrate the dipstick correctly to the manufacturer's suggested oil level before adding oil or filling the components. After adding oil, run the motor for a minute to allow the oil to fill the added oiling components, then turn off the engine and check the level with the dipstick. If the oil level is below the dipstick mark, add more oil until it reaches the correct level.

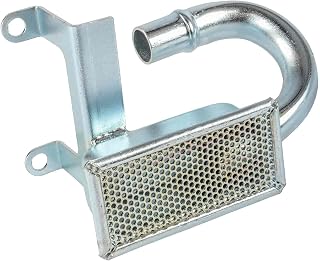

It is also important to consider the clearance between the pickup tube and the bottom of the bowl in the oil pan. Insufficient clearance can restrict oil flow into the pump and lead to issues such as spun crank bearings due to oil starvation. Therefore, it is recommended to not jack your car or engine via the oil pan as it can cause the bottom of the pan to dent and restrict oil flow.
Adjusting Pan Size: Tips and Tricks
You may want to see also
Explore related products
Oil level problems
Firstly, it is important to understand how oil moves through the engine. The oil is poured into the top of the engine and moves through various paths, eventually reaching the bottom oil pan or sump. It then moves through a tube with a screen to prevent debris from entering the oil pump. The oil pump pressurises the oil, forcing it through the oil filter and into the oil galleries inside the engine. This process ensures the rotating components of the engine are lubricated.
Now, let's discuss the problems that can occur due to incorrect oil levels. Low oil levels can cause issues with lubrication and engine performance. If the oil level is too low, the engine components will experience increased friction, leading to a loosening of the engine rods. This can result in knocking sounds and potential engine damage. Additionally, low oil levels can trigger warning signals and warning lights, indicating the need for immediate attention.
On the other hand, overfilling the oil pan can also lead to several issues. Excess oil can increase pressure, reduce lubrication, and cause aeration and overheating problems. It may also force oil past the piston rings and into the combustion chamber, resulting in oil burning, fouled spark plugs, and increased emissions. Furthermore, overfilling can lead to oil leaks from seals and gaskets, potentially damaging other engine components.
To address oil level problems, it is essential to monitor oil levels regularly. This can be done using a dipstick or, in newer vehicles, sensors that provide information about the amount and condition of the oil. If the oil level is low, it should be topped up according to the recommendations in the owner's manual. If the oil level is too high, excess oil should be drained, and the oil filter replaced if necessary.
In conclusion, oil level problems can have significant implications for engine performance and vehicle safety. Regular monitoring and maintenance of oil levels are crucial to prevent potential damage and ensure the smooth operation of the vehicle.
Repairing a Leaking Car Oil Pan: Quick DIY Guide
You may want to see also
Explore related products
Oil temperature
The oil temperature in an oil pan is affected by the level of oil in the pan. If the oil level is too high, the oil will heat up quickly as it is continuously splashed on the crank and cylinder walls. This can cause aeration in the oil, reducing its ability to pull heat away from the engine. Conversely, if the oil level is too low, the oil temperature will rise more slowly but will still get too hot as the reduced capacity of oil is unable to dissipate the heat fast enough. Each quart of oil is run through the engine more frequently when there is less oil in the pan.
The ideal oil temperature depends on several factors, including the type of oil, the engine design, and the operating conditions. For example, the oil temperature in a longer-stroke engine may be higher due to the deeper counterweights on the crank, which require a slightly lower oil level. Additionally, the oil pump volume, engine oiling passage tolerances, and motor stroke can impact the oil temperature.
It is important to monitor the oil temperature to ensure it remains within the optimal range for the specific oil and engine. High oil temperatures can lead to oil pressure problems and engine damage. One way to monitor oil temperature is by using an oil temperature sensor or gauge, which can be installed in the drain plug of the oil pan.
Some factors that can affect oil temperature include the ambient temperature, load, and engine speed (RPM). For example, when running at higher RPM, the oil level in the pan can be reduced as the oil is pumped into the block. Additionally, the oil's ability to cool the engine can be impacted by windage, which can be caused by excessive oil splashing and creating aeration in the oil.
To maintain optimal oil temperature, it is crucial to use the correct type and amount of oil for the specific engine and operating conditions. Regular oil changes and maintenance can also help ensure the oil is performing effectively in cooling and lubricating the engine.
Pan-Roasted Chicken: Crispy, Tender, Delicious
You may want to see also
Explore related products
Oil pump volume
The volume of oil in the oil pan is an important factor in ensuring the proper functioning of an engine. While the oil level in the pan may vary depending on engine speed and other factors, maintaining the appropriate oil volume is crucial for effective lubrication and cooling.
High-volume oil pumps, such as the Melling 10296 High Volume, High-Pressure LS Oil Pump, are designed to address increased engine requirements. This particular pump offers an 18% increase in volumetric flow compared to standard factory pumps, delivering up to 8 GPM (gallons per minute). It is important to note that high-volume pumps may not be suitable for all engines, and incorrect usage can lead to accelerated oil starvation.
To ensure optimal performance and avoid issues like spark scatter or distributor gear failures, it is crucial to select the appropriate oil pump for the specific engine application. Additionally, proper installation and maintenance, including the use of oil pump screen installation tools and regular oil changes, are essential to prevent contamination and maintain efficient oil flow and pressure.
In summary, oil pump volume plays a critical role in ensuring the engine receives the required volume of oil for lubrication and cooling. High-volume pumps can address increased engine demands, but careful selection and installation are necessary to maintain the balance between oil volume and engine requirements.
Microwave Size for 9x13 Pans
You may want to see also
Explore related products
Oil pan maintenance
The oil pan, often called the sump, is a vital component that safeguards the engine's health. It plays a key role in the engine's lubrication system by holding the oil and allowing it to circulate. The oil pump pulls oil from the pan and sends it to different components, where it lubricates, cools, and cleans, reducing friction and wear.
Maintaining the oil pan is crucial to keep the engine in top shape and prolong its life. Here are some essential considerations for oil pan maintenance:
- Oil Level: Ensuring the correct oil level in the pan is critical. Too much oil can lead to high oil temperatures and windage, affecting the oil's ability to cool the engine. On the other hand, under-filling the pan can cause oil pressure problems and high oil temperatures due to reduced heat dissipation.
- Oil Quality: Regularly check the quality of your oil. Oil can turn black quickly due to various factors, such as the type of oil or engine conditions. Consider getting a used oil analysis to assess the condition of your oil and determine if an oil change is necessary.
- Leaks and Corrosion: Inspect the area under your vehicle for any signs of oil leaks. Drops on the ground or spots may indicate a crack or hole in the oil pan. Corrosion, impacts, or exposure to the elements can cause these leaks. Addressing leaks promptly is essential to prevent engine damage.
- Dents and Damage: Low ground clearance or debris can cause dents in the oil pan. Even small dents can disrupt oil flow, leading to engine problems. Unusual noises, such as knocking or ticking sounds, may indicate a damaged oil pan and low oil levels.
- Overheating: The oil pan plays a crucial role in maintaining engine temperature. If the engine overheats, it may indicate an issue with the oil pan's ability to hold oil and keep engine components lubricated and cool.
- Replacement: If the oil pan shows severe damage, leaks, or corrosion that affects its function, it may need to be replaced. Consider the age of your vehicle, the cost of replacement, and whether you can perform the replacement yourself or require professional assistance.
When replacing the oil pan, carefully follow these steps:
- Remove the bolts around the old oil pan with a wrench. If necessary, use a rubber mallet to gently loosen it further.
- Clean the surface by removing any old gasket material from the engine block.
- Install the new gasket, ensuring it is seated properly.
- Align the new oil pan and bolt it securely, following the recommended tightening sequence.
- Refill the engine with the correct type and amount of oil.
- Start the engine and let it run for a few minutes.
- Inspect for any signs of oil leaks around the new oil pan and drain plug.
- If no leaks are detected, turn off the engine and carefully lower the vehicle back to the ground.
Toilet Pan Stains: Removal Tricks
You may want to see also
Frequently asked questions
The oil pan, often called the sump, is a vital part of the engine's lubrication system. It holds the oil, allowing it to circulate through the engine and be pulled by the oil pump.
The oil level in the pan can vary depending on the engine's requirements and the vehicle's intended use. Generally, the oil level should be high enough to submerge the tube and screen attached to the pickup tube, which is usually about four inches deep in the oil pan.
Overfilling the oil pan can lead to higher oil temperatures as the extra oil splashes around the crank and under the pistons, creating windage. This can reduce the oil's ability to cool the engine effectively.
Under-filling the oil pan can cause oil pressure problems, especially during cornering, braking, or acceleration. It can also lead to oil temperature issues as the oil is not able to dissipate heat fast enough.
Common signs that your oil pan may need replacement include oil leaks, dents and damage, unusual noises, and an overheating engine. It is important to address these issues promptly to prevent further engine damage.
