VRF (Variable Refrigerant Flow) systems are advanced HVAC technologies that provide efficient heating and cooling by precisely controlling the flow of refrigerant to multiple indoor units. Unlike traditional systems, VRFs use inverter-driven compressors to adjust refrigerant flow based on the specific needs of each zone, ensuring optimal temperature control and energy efficiency. These systems consist of an outdoor unit connected to multiple indoor units via refrigerant piping, allowing for simultaneous heating and cooling in different areas. VRFs are highly versatile, scalable, and eco-friendly, making them ideal for residential, commercial, and industrial applications. Their ability to modulate capacity and reduce energy waste makes them a popular choice for modern, sustainable building designs.
Explore related products
What You'll Learn
- System Components: Outdoor units, indoor units, refrigerant piping, controls, and heat exchangers explained
- Refrigerant Flow Control: Modulating flow to match cooling/heating demands in multiple zones efficiently
- Zoning Capabilities: Individual temperature control in different areas using separate indoor units
- Energy Efficiency: Inverter technology reduces energy consumption by adjusting compressor speed dynamically
- Installation & Design: Proper sizing, piping layout, and system configuration for optimal performance
System Components: Outdoor units, indoor units, refrigerant piping, controls, and heat exchangers explained

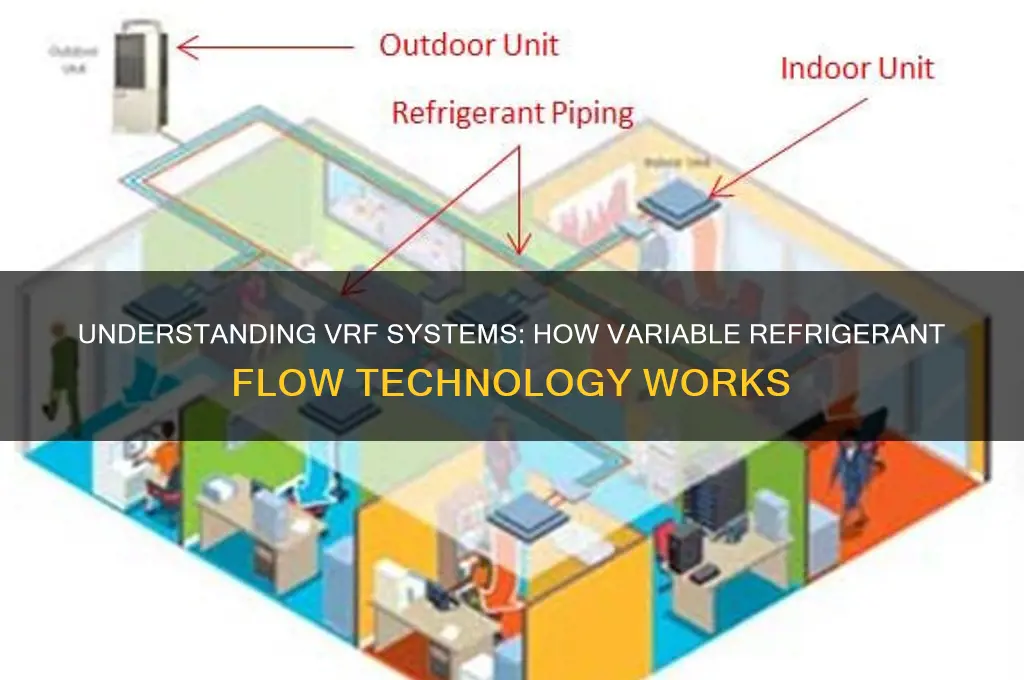

VRF systems are a marvel of modern HVAC technology, and their efficiency hinges on the seamless integration of several key components. At the heart of this system lies the outdoor unit, often referred to as the condenser. This powerhouse is responsible for regulating the flow of refrigerant, which is the lifeblood of the entire system. Unlike traditional HVAC setups, a single outdoor unit in a VRF system can support multiple indoor units, making it a versatile and space-saving solution. These outdoor units are designed to handle varying loads, ensuring optimal performance whether it’s a scorching summer day or a chilly winter night. For instance, a typical residential VRF system might feature a 3-ton outdoor unit capable of connecting to up to eight indoor units, each serving a different zone.
Moving indoors, the indoor units are the unsung heroes that deliver conditioned air directly to the living or working spaces. These units come in various forms, such as wall-mounted, ceiling-cassette, or duct-type, allowing for flexibility in installation and design. Each indoor unit operates independently, thanks to advanced inverter technology, which adjusts the refrigerant flow based on the specific needs of the zone it serves. This zoning capability not only enhances comfort but also significantly reduces energy waste. For example, a wall-mounted indoor unit in a bedroom can be set to a cooler temperature at night, while the living room unit remains off, ensuring energy is used only where and when it’s needed.
The refrigerant piping acts as the circulatory system of the VRF setup, connecting the outdoor unit to the indoor units. This piping is typically made of copper or aluminum and is designed to minimize pressure drop and heat loss. The refrigerant flows through these pipes in a closed loop, changing states from gas to liquid and back again as it absorbs and releases heat. Proper installation of the piping is critical; even small leaks or kinks can compromise system efficiency. For instance, a well-designed VRF system might use ¼-inch to 1-inch diameter pipes, depending on the length of the run and the number of indoor units connected.
Controls are the brain of the VRF system, orchestrating the flow of refrigerant and ensuring each zone maintains its desired temperature. These controls rely on sophisticated algorithms and sensors to monitor conditions in real time, adjusting the system’s operation accordingly. Modern VRF systems often come with smart controls, allowing users to manage settings via smartphone apps or integrated building management systems. For example, a commercial VRF system might use occupancy sensors to reduce cooling in unoccupied conference rooms, saving energy without sacrificing comfort.
Finally, heat exchangers play a pivotal role in the heat transfer process, enabling the system to both heat and cool as needed. These components are found in both the outdoor and indoor units, facilitating the exchange of thermal energy between the refrigerant and the indoor or outdoor air. The efficiency of a VRF system is largely determined by the design and quality of its heat exchangers. For instance, microchannel heat exchangers, which are compact and highly efficient, are commonly used in modern VRF systems to maximize performance in a minimal footprint. Together, these components form a cohesive system that delivers unparalleled comfort and energy efficiency.
Adding an Icemaker to Maytag MRT118FFFH: Compatibility and Installation Guide
You may want to see also
Explore related products
Refrigerant Flow Control: Modulating flow to match cooling/heating demands in multiple zones efficiently
VRF systems excel at zone-specific temperature control by precisely modulating refrigerant flow. Unlike traditional HVAC systems that cycle on and off, VRFs use inverter-driven compressors and electronic expansion valves to adjust refrigerant volume in real time. This allows each indoor unit to receive exactly the amount of heating or cooling it needs, eliminating energy waste and temperature fluctuations. For instance, a sunny office zone might require 70% of the system's capacity while a shaded conference room needs only 30%, all simultaneously.
The key to this efficiency lies in the system's ability to vary refrigerant flow rates. Inverter technology enables compressors to operate at speeds ranging from 20% to 120% of their maximum capacity, matching output to demand. Electronic expansion valves further refine control by precisely metering refrigerant flow to each indoor unit. This granular control ensures that zones are maintained within ±0.5°C of the setpoint, providing unparalleled comfort and energy savings of up to 30% compared to conventional systems.
Consider a multi-zone retail space with varying occupancy and solar exposure. During peak hours, the VRF system might direct 60% of its refrigerant flow to the crowded showroom while allocating only 10% to the unoccupied storage area. At night, the system reverses this distribution, prioritizing heating or cooling where needed. This dynamic allocation is achieved through a centralized controller that continuously monitors zone conditions and adjusts refrigerant flow accordingly.
However, achieving optimal performance requires careful system design and maintenance. Oversized or undersized systems can lead to inefficiencies, as can improper refrigerant charging. Technicians must ensure that piping lengths and elevations are within manufacturer specifications to maintain proper flow dynamics. Regularly cleaning filters and checking for refrigerant leaks are also critical to sustaining system efficiency.
In conclusion, refrigerant flow control in VRF systems is a sophisticated process that hinges on inverter technology, electronic expansion valves, and intelligent zone management. By modulating flow to match exact demands, VRFs deliver superior comfort and energy efficiency across diverse environments. Proper design and maintenance are essential to unlock the full potential of this technology, making it a cornerstone of modern HVAC solutions.
R12a vs 134a: Compatibility and Risks in Refrigerant Systems
You may want to see also
Explore related products
Zoning Capabilities: Individual temperature control in different areas using separate indoor units
VRF systems excel at zoning, allowing individual temperature control in different areas through the use of separate indoor units connected to a single outdoor unit. This capability is a game-changer for buildings with diverse occupancy patterns or varying thermal needs. Imagine an office where the conference room requires a cooler setting during a crowded meeting, while individual offices prefer a warmer environment. VRF systems achieve this by precisely modulating refrigerant flow to each indoor unit, ensuring optimal comfort without wasting energy on unused spaces.
This level of granularity is achieved through advanced controls and inverter-driven compressors. Each indoor unit communicates its demand to the outdoor unit, which adjusts refrigerant flow accordingly. This eliminates the inefficiency of traditional systems that treat entire zones as a single entity, often leading to over-conditioning or under-conditioning.
Consider a retail store with a bustling entrance area, a quieter back office, and a temperature-sensitive storage room. A VRF system can simultaneously cool the entrance, maintain a comfortable temperature in the office, and provide precise cooling for the storage room, all from a single outdoor unit. This not only enhances comfort but also significantly reduces energy consumption compared to operating separate systems for each area.
The benefits extend beyond comfort and energy savings. Zoning capabilities allow for personalized control, catering to individual preferences and specific activity requirements. This is particularly valuable in healthcare facilities, where patient rooms may require different temperature settings than common areas, or in hotels where guests can adjust the temperature in their rooms independently.
Implementing VRF zoning requires careful planning. A qualified HVAC professional should assess the building's layout, occupancy patterns, and thermal loads to determine the optimal number and placement of indoor units. Properly sized units and ductwork are crucial for achieving balanced airflow and efficient operation. Additionally, consider integrating the VRF system with a building management system (BMS) for centralized control and monitoring, further enhancing energy efficiency and system performance.
Refrigerated TCS Foods: Safe Storage Duration and Best Practices
You may want to see also
Explore related products
Energy Efficiency: Inverter technology reduces energy consumption by adjusting compressor speed dynamically
Inverter technology lies at the heart of VRF systems' energy efficiency, fundamentally altering how these systems consume power. Traditional HVAC systems operate compressors in an on/off cycle, leading to energy spikes and inconsistent temperatures. Inverter-driven VRFs, however, continuously modulate compressor speed based on real-time demand. This dynamic adjustment ensures the system delivers only the precise amount of heating or cooling required, eliminating wasteful over-cycling and reducing energy consumption by up to 30% compared to conventional systems.
Consider a scenario where a VRF system serves a multi-zone building with varying occupancy and temperature needs. During peak hours, the inverter ramps up compressor speed to meet higher demands, while during off-peak periods or in unoccupied zones, it slows down to maintain minimal energy use. This granular control is achieved through advanced sensors and algorithms that constantly monitor indoor conditions, outdoor temperatures, and refrigerant flow rates. The result is a system that operates at optimal efficiency regardless of external factors or internal fluctuations.
The benefits of inverter technology extend beyond energy savings. By avoiding the harsh start-stop cycles of traditional compressors, VRF systems experience less mechanical stress, leading to longer lifespans and reduced maintenance costs. Additionally, the ability to precisely control refrigerant flow allows for simultaneous heating and cooling in different zones, a feature particularly valuable in mixed-use buildings. For instance, a hotel can cool guest rooms while heating a lobby or pool area, all from a single system, without energy overlap or inefficiency.
Practical implementation of inverter-driven VRFs requires careful system design and sizing. Engineers must account for peak loads, zoning requirements, and future expansion possibilities to maximize efficiency. Regular maintenance, including refrigerant level checks and inverter calibration, ensures sustained performance. Building owners can further enhance energy savings by integrating VRF systems with smart thermostats or building management systems, enabling remote monitoring and automated adjustments based on occupancy patterns or weather forecasts.
In conclusion, inverter technology is not just a feature of VRF systems—it’s the cornerstone of their energy efficiency. By dynamically adjusting compressor speed, these systems deliver unparalleled control, comfort, and cost savings. For those seeking to reduce energy consumption without compromising performance, inverter-driven VRFs offer a proven, scalable solution tailored to the complexities of modern heating and cooling demands.
Does Detox Tea Go Bad in the Fridge? Storage Tips Revealed
You may want to see also
Explore related products
Installation & Design: Proper sizing, piping layout, and system configuration for optimal performance
Proper sizing is the cornerstone of a high-performing VRF system. Undersized systems struggle to meet demand, leading to inefficiency and discomfort, while oversized units cycle frequently, wasting energy and shortening equipment lifespan. Accurate load calculations are critical, factoring in building orientation, insulation, occupancy patterns, and local climate data. Tools like Manual J or specialized VRF software ensure precision, accounting for latent and sensible loads. For instance, a 1,500-square-foot office with south-facing windows in a hot, humid climate requires a different capacity than a similarly sized space in a temperate zone. Always verify manufacturer guidelines for tonnage-to-area ratios, typically ranging from 300 to 500 square feet per ton, depending on conditions.
Piping layout demands meticulous planning to minimize pressure drops and refrigerant charge. Keep pipe runs as short and straight as possible, avoiding sharp bends that restrict flow. Use properly sized piping—undersized lines increase friction, while oversized ones lead to oil logging. Maintain a minimum slope of 1/250 toward the outdoor unit to facilitate oil return, crucial for system longevity. Insulate all refrigerant lines to prevent condensation and energy loss, especially in unconditioned spaces. For multi-story buildings, consider a stacked riser design to reduce vertical pipe lengths and simplify installation. Always follow manufacturer specifications for maximum allowable pipe lengths and height differences between indoor and outdoor units.
System configuration hinges on zoning and control strategies to maximize efficiency and comfort. Group indoor units serving similar load profiles into zones, ensuring balanced refrigerant distribution. Use advanced controllers to modulate capacity based on real-time demand, leveraging features like occupancy sensors and weather data integration. For example, a VRF system in a hotel can reduce capacity in unoccupied rooms while maintaining comfort in public areas. Incorporate heat recovery systems where applicable, allowing simultaneous heating and cooling across zones. Properly configured systems can achieve up to 30% energy savings compared to traditional HVAC setups, making this step indispensable.
During installation, adhere to best practices to avoid common pitfalls. Secure all piping to prevent vibration and stress on joints, using appropriate hangers and supports. Flush the system with dry nitrogen to remove debris before charging with refrigerant, ensuring cleanliness. Vacuum test the system to eliminate moisture, which can cause acid formation and damage components. Commission the system thoroughly, verifying refrigerant charge, airflow, and control functionality. Train end-users on system operation to prevent misuse, such as setting unrealistic temperature setpoints or blocking indoor units. Regular maintenance, including filter cleaning and refrigerant checks, ensures sustained performance and extends system life.
In conclusion, optimal VRF performance relies on a trifecta of precise sizing, thoughtful piping design, and intelligent system configuration. Each element interacts dynamically, requiring careful consideration and adherence to manufacturer guidelines. By prioritizing these aspects during installation and design, engineers and technicians can deliver systems that excel in efficiency, comfort, and reliability, setting the stage for long-term success.
Mastering Humidity Control: A Guide to Optimal Refrigerator Settings
You may want to see also
Frequently asked questions
A VRF system is a highly efficient HVAC technology that uses refrigerant as the primary medium for heating and cooling. It works by distributing refrigerant to multiple indoor units via a network of piping, allowing for individualized temperature control in different zones. The system adjusts the refrigerant flow based on demand, ensuring optimal comfort and energy efficiency.
The main components of a VRF system include an outdoor condensing unit, indoor units (such as wall-mounted, cassette, or duct-type), refrigerant piping, and a centralized control system. The outdoor unit houses the compressor, while the indoor units deliver conditioned air to specific zones. The control system monitors and adjusts the refrigerant flow to meet the heating or cooling needs of each zone.
VRF systems offer several advantages, including higher energy efficiency due to their ability to modulate refrigerant flow, zoned temperature control for personalized comfort, quieter operation, and a smaller footprint compared to traditional ductwork systems. They are also highly flexible, making them suitable for both new construction and retrofit applications.
