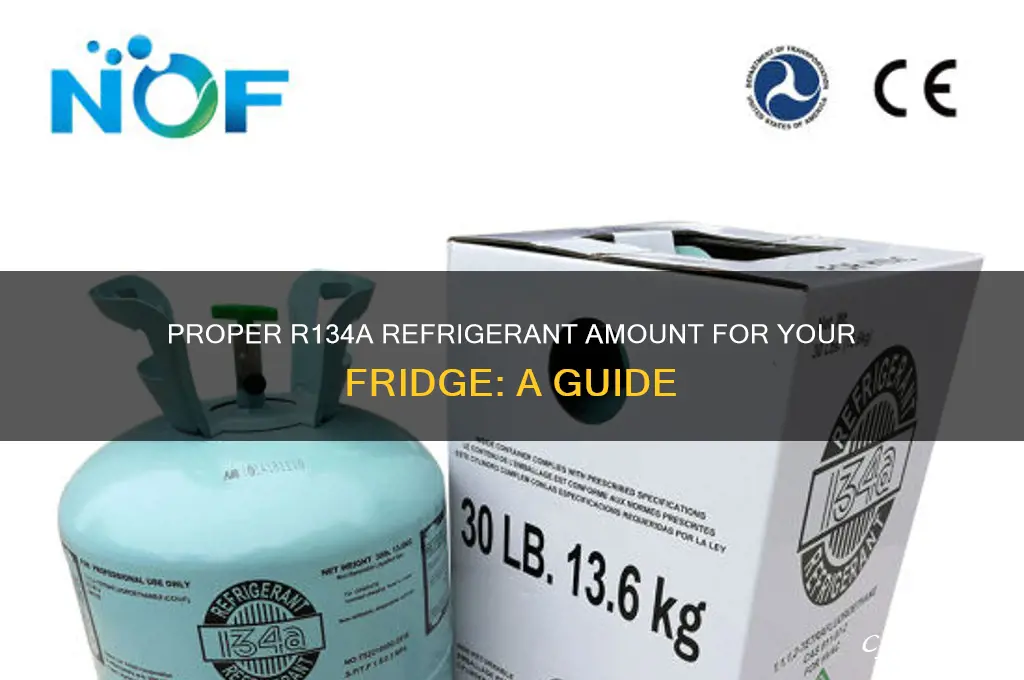

Determining the correct amount of R134a refrigerant to add to a refrigerator is crucial for optimal performance and efficiency. The quantity required depends on several factors, including the refrigerator's model, size, and the specific cooling system design. Overfilling or underfilling can lead to issues such as poor cooling, increased energy consumption, or even damage to the compressor. Manufacturers typically provide guidelines in the user manual or on a label located near the compressor, specifying the exact amount of R134a needed. If this information is unavailable, consulting a professional technician is recommended to ensure accurate measurement and safe handling of the refrigerant.
| Characteristics | Values |
|---|---|
| Refrigerant Type | R134a (Tetrafluoroethane) |
| Typical Charge Amount | 3-8 oz (85-227 grams) depending on refrigerator size and model |
| Charge Method | By weight (using a refrigerant scale) or by pressure (using gauges) |
| Optimal Pressure Range | 0-100 psig (pounds per square inch gauge) depending on temperature |
| Temperature Range | Operates effectively between -26°C to 15°C (-15°F to 59°F) |
| Environmental Impact | High Global Warming Potential (GWP) of 1,430 |
| Compatibility | Designed for systems originally using R12 (CFC) or R22 (HCFC) |
| Safety Precautions | Avoid overcharging; use proper PPE (gloves, goggles) during handling |
| Recharging Frequency | Only when leaks are detected or system performance degrades |
| Professional Recommendation | Always consult manufacturer guidelines or a certified technician |
| Alternative Refrigerants | R600a (Isobutane) or R290 (Propane) for newer, eco-friendly models |
Explore related products
What You'll Learn
R134a Refrigerant Capacity Chart
Determining the correct amount of R134a refrigerant for a refrigerator is crucial for optimal performance and efficiency. A R134a Refrigerant Capacity Chart serves as a vital tool for this purpose, providing specific guidelines based on the refrigerator’s size, model, and manufacturer recommendations. These charts typically list the required refrigerant charge in ounces or grams, ensuring the system operates within safe and efficient parameters. For instance, a standard household refrigerator may require between 4 to 6 ounces of R134a, while larger commercial units could need significantly more.
Analyzing the chart reveals a direct correlation between refrigerator volume and refrigerant capacity. Smaller units, such as mini-fridges or compact models, often require 2 to 4 ounces of R134a, whereas full-size refrigerators typically need 5 to 7 ounces. This variation underscores the importance of consulting the chart rather than estimating, as overcharging or undercharging can lead to system inefficiencies, increased energy consumption, or even compressor failure. Always refer to the manufacturer’s specifications or the chart provided with the refrigerator for precise measurements.
Practical application of the R134a Refrigerant Capacity Chart involves more than just reading values. It requires understanding the unit’s age, condition, and any prior repairs. Older refrigerators may have experienced refrigerant leaks or system wear, necessitating a careful assessment before recharging. Additionally, environmental factors like ambient temperature can influence the required charge. For example, refrigerators in hotter climates may need slightly more refrigerant to maintain consistent cooling. Always use a reliable refrigerant scale and follow safety protocols when handling R134a.
A comparative analysis of different charts highlights inconsistencies across sources, emphasizing the need for caution. Some charts may provide ranges rather than exact values, allowing for adjustments based on specific conditions. Others might include additional notes on system design or component compatibility. When discrepancies arise, prioritize the manufacturer’s guidelines or consult a professional technician. DIY enthusiasts should avoid guesswork, as improper charging can void warranties or cause irreversible damage.
In conclusion, the R134a Refrigerant Capacity Chart is an indispensable resource for anyone recharging a refrigerator. It combines precision with practicality, ensuring the system operates at peak efficiency while minimizing risks. By adhering to the chart’s recommendations and considering external factors, users can maintain their refrigerators effectively, prolonging their lifespan and reducing energy costs. Always approach refrigerant handling with care, and when in doubt, seek expert assistance.
Understanding R410A Refrigerant's GWP: Environmental Impact Explained
You may want to see also
Explore related products
Calculating R134a for Specific Fridge Models
Determining the correct amount of R134a refrigerant for a specific fridge model requires precision to ensure optimal performance and energy efficiency. Unlike a one-size-fits-all approach, each refrigerator model has unique specifications dictated by its size, design, and cooling capacity. For instance, a compact mini-fridge typically holds between 2 to 4 ounces of R134a, while a full-sized refrigerator may require 6 to 8 ounces. These values are not arbitrary; they are derived from the manufacturer’s guidelines, which account for factors like insulation thickness, compressor size, and intended operating conditions. Always consult the fridge’s service manual or the manufacturer’s website for the exact charge amount to avoid undercharging or overcharging, both of which can lead to inefficiency or system damage.
Analyzing the relationship between fridge volume and refrigerant quantity reveals a practical rule of thumb: larger appliances demand more R134a. However, this correlation is not linear. A 10 cubic foot refrigerator might require 3 ounces, while a 20 cubic foot model may need only 5 ounces due to differences in design and efficiency. This highlights the importance of model-specific data. For older refrigerators, especially those over a decade old, the original charge amount may have been lost to time. In such cases, technicians often use a recovery scale to measure the existing refrigerant and compare it to the manufacturer’s specifications, ensuring accuracy in replenishment.
Persuasive arguments for adhering to precise R134a calculations center on safety and environmental responsibility. Overcharging a fridge can cause high head pressure, leading to compressor failure or even refrigerant leaks, which contribute to greenhouse gas emissions. Conversely, undercharging results in poor cooling performance and increased energy consumption. By following model-specific guidelines, homeowners and technicians not only extend the lifespan of the appliance but also minimize environmental impact. For example, a properly charged refrigerator can reduce energy usage by up to 10%, translating to lower utility bills and a smaller carbon footprint.
Comparing DIY refrigerant charging to professional servicing underscores the complexity of the task. While some homeowners attempt to recharge their fridges using refrigerant cans with gauges, this approach often lacks the precision required for model-specific charging. Professionals, on the other hand, use vacuum pumps, manifold gauges, and recovery machines to ensure the system is free of contaminants and charged to exact specifications. For instance, a technician might evacuate the system to a deep vacuum of 500 microns before adding the precise amount of R134a, a step often skipped in DIY attempts. This meticulous process guarantees both safety and efficiency, making professional servicing the recommended choice for most users.
Descriptive insights into the charging process reveal a step-by-step methodology that ensures accuracy. First, the fridge’s model number and serial number are cross-referenced with the manufacturer’s database to determine the correct charge. Next, the system is evacuated to remove air and moisture, which can degrade performance. The refrigerant is then added slowly while monitoring the system’s pressure and temperature using gauges. For example, a technician might add 7 ounces of R134a to a 22 cubic foot refrigerator while maintaining a suction pressure of 68 PSI at 80°F ambient temperature. Finally, the system is leak-tested to ensure longevity. This detailed approach contrasts sharply with generic charging methods, emphasizing the importance of model-specific calculations for optimal results.
Do Refrigerators Fail in Cold Weather? Myths vs. Facts Explained
You may want to see also
Explore related products
Tools Needed for R134a Refrigerant Charging
Charging a refrigerator with R134a refrigerant requires precision and the right tools to ensure safety and efficiency. The first essential tool is a manifold gauge set, which allows you to monitor the pressure of the refrigerant during the charging process. This tool typically includes high and low-side gauges, hoses, and valves, enabling you to connect to the refrigerator’s service ports and accurately measure the system’s pressure. Without this, you risk overcharging or undercharging the system, leading to poor performance or damage.
Another critical tool is a vacuum pump, which is used to evacuate air and moisture from the refrigeration system before adding R134a. Moisture in the system can cause acid formation, leading to corrosion and reduced efficiency. A vacuum pump ensures the system is clean and ready for refrigerant, typically pulling a vacuum of at least 500 microns for optimal results. Skipping this step can void warranties and shorten the lifespan of the appliance.
For precise refrigerant addition, a refrigerant scale is indispensable. R134a is typically charged by weight, not volume, and the amount required varies by refrigerator model. Most residential refrigerators need between 2 to 4 ounces of R134a, but always refer to the manufacturer’s specifications. A digital scale ensures you add the exact amount, preventing overcharging, which can cause high head pressure and compressor failure.
Safety tools should never be overlooked. Safety goggles and gloves protect against refrigerant leaks, which can cause skin and eye irritation. Additionally, a leak detector helps identify any issues in the system before or after charging. Even a small leak can lead to inefficient cooling and wasted refrigerant, so this tool is crucial for long-term performance.
Finally, a temperature clamp or thermocouple is useful for monitoring the suction line temperature, which should ideally be between 50°F and 60°F during charging. This ensures the refrigerant is flowing correctly and the system is operating within safe parameters. While not always necessary, it provides an extra layer of assurance that the charging process is successful. With these tools, you can confidently and safely charge a refrigerator with R134a.
Should Smoked Meat Be Refrigerated? Essential Storage Tips Revealed
You may want to see also
Explore related products
Steps to Add R134a to a Fridge
Adding R134a refrigerant to a refrigerator is a task that requires precision and caution. The amount of R134a needed varies depending on the fridge’s capacity and design, typically ranging from 2 to 6 ounces for standard household units. Overcharging can damage the compressor, while undercharging reduces efficiency. Always refer to the manufacturer’s specifications or the label near the compressor for the exact charge amount. If this information is unavailable, consult a professional or use a refrigerant scale for accuracy.
Before beginning, ensure the fridge is unplugged and has been off for at least 30 minutes to stabilize internal pressures. Gather the necessary tools: a refrigerant manifold gauge set, R134a canister with a charging hose, and safety gear like gloves and goggles. Attach the manifold gauges to the fridge’s service ports, typically located near the compressor. Open the low-pressure side valve slowly to check for leaks using a soap bubble test or electronic leak detector. Even a small leak can render the process ineffective and hazardous.
With the system confirmed leak-free, connect the R134a canister to the charging hose and attach it to the low-pressure side. Monitor the gauge closely while adding refrigerant in small increments, allowing time for the system to equalize. For most fridges, the target pressure should match the ambient temperature in Fahrenheit (e.g., 75°F for a room at 75°F). Avoid exceeding this pressure, as it can strain the compressor. Once the correct charge is achieved, close the valves, disconnect the hoses, and check for leaks again.
While DIY charging is possible, it’s easy to make costly mistakes. Overcharging by just 1 ounce can reduce efficiency by 5%, while undercharging may lead to insufficient cooling. If you’re unsure about any step, hiring a certified technician is safer and often more cost-effective. Additionally, improper handling of refrigerants can harm the environment, as R134a contributes to greenhouse gas emissions. Always dispose of excess refrigerant and containers responsibly, following local regulations.
In summary, adding R134a to a fridge involves careful preparation, precise measurement, and attention to safety. By following these steps and respecting the limitations of DIY repairs, you can restore your fridge’s cooling efficiency without risking damage or environmental harm. When in doubt, prioritize professional assistance to ensure the job is done correctly.
Why Dry Ice is a Superior Refrigerant: Key Benefits Explained
You may want to see also
Explore related products
Safety Precautions When Handling R134a
Handling R134a requires strict adherence to safety protocols to prevent health risks and environmental damage. This refrigerant, commonly used in household refrigerators, is non-toxic but can displace oxygen in confined spaces, leading to asphyxiation. Always work in well-ventilated areas to minimize inhalation risks, especially since R134a is heavier than air and tends to accumulate at ground level. If you suspect a leak, evacuate the area immediately and use a refrigerant leak detector to identify the source before attempting repairs.
Personal protective equipment (PPE) is non-negotiable when handling R134a. Wear safety goggles to protect your eyes from accidental splashes or leaks, as direct contact can cause irritation or frostbite due to its low boiling point (-26.5°C or -15.7°F). Insulated gloves are essential to prevent skin exposure, particularly when dealing with liquid R134a, which can cause cold burns. Avoid loose clothing or jewelry that could snag on equipment, increasing the risk of accidental release or injury during the charging process.
Before adding R134a to a refrigerator, verify the system’s capacity, typically listed on the manufacturer’s label near the compressor or in the user manual. Overcharging can damage the compressor or lead to inefficient cooling, while undercharging results in poor performance. Use a refrigerant scale to measure the exact amount, ensuring it aligns with the system’s specifications. For example, a standard household refrigerator may require between 3 to 6 ounces (85 to 170 grams) of R134a, but always consult the specific model’s guidelines.
Proper disposal of R134a is critical to environmental safety. Never release excess refrigerant into the atmosphere, as it contributes to global warming with a high Global Warming Potential (GWP) of 1,430. Instead, recover and recycle it using certified equipment or contact a licensed HVAC technician for assistance. Store R134a in a cool, dry place, away from heat sources or open flames, as it is flammable under certain conditions. Always keep containers sealed to prevent leaks and label them clearly to avoid misuse.
Finally, education and training are paramount for safe R134a handling. If you’re not a certified technician, consider hiring a professional to charge your refrigerator, as improper handling can void warranties or cause irreversible damage. For DIY enthusiasts, familiarize yourself with local regulations and EPA guidelines, which often require certification for purchasing or handling refrigerants. Online tutorials and manufacturer guides can provide additional insights, but hands-on experience or formal training remains the safest approach.
Should Homemade Peanut Butter Be Refrigerated? Storage Tips Revealed
You may want to see also
Frequently asked questions
The amount of R134a to add depends on your refrigerator’s capacity and the manufacturer’s specifications. Typically, it ranges from 2 to 6 ounces, but always refer to the owner’s manual or the label on the refrigerator for the exact amount.
Adding R134a yourself is not recommended unless you are a certified technician. Improper handling can lead to overcharging, undercharging, or safety hazards. It’s best to hire a professional to ensure the system is properly charged.
Signs that your refrigerator may need more R134a include insufficient cooling, frost buildup, or the compressor running constantly. However, low refrigerant is not always the cause, so it’s important to diagnose the issue correctly.
Overcharging with R134a can cause high pressure in the system, leading to compressor damage, reduced efficiency, or even system failure. Always follow the manufacturer’s guidelines or consult a professional.
R134a is commonly used in modern refrigerators, but some older models may use different refrigerants like R12 or R22. Always check the label or manual to confirm the correct refrigerant type before adding any.
