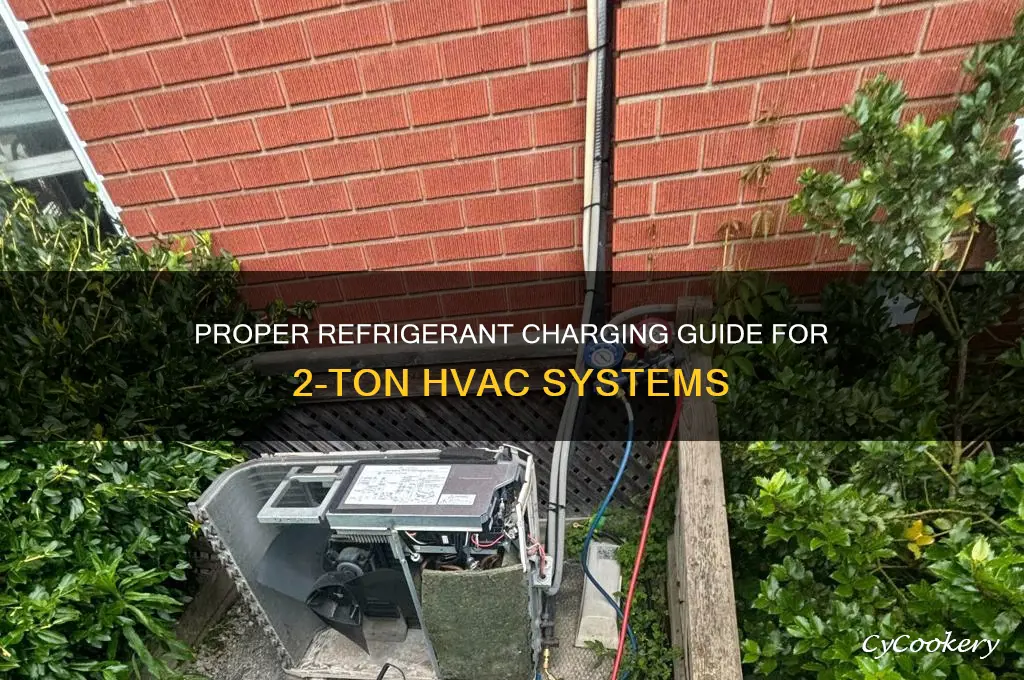

When determining how much refrigerant to charge a 2-ton system, it’s crucial to follow precise guidelines to ensure optimal performance and efficiency. A 2-ton air conditioning system typically requires approximately 5 to 6 pounds of refrigerant, but this can vary based on factors such as the specific refrigerant type (e.g., R-410A or R-22), system design, and manufacturer recommendations. Overcharging or undercharging the system can lead to issues like reduced cooling capacity, increased energy consumption, or even compressor damage. Always refer to the system’s specifications, use accurate gauges, and follow EPA regulations to achieve the correct charge, ensuring the system operates safely and effectively.
| Characteristics | Values |
|---|---|
| System Capacity | 2 Tons (24,000 BTU) |
| Refrigerant Type | R-410A (Commonly used) |
| Total Refrigerant Charge | 6.5 to 7.5 lbs (2.95 to 3.4 kg) |
| Liquid Line Charge | 3.5 to 4.0 lbs (1.59 to 1.81 kg) |
| Vapor Line Charge | 3.0 to 3.5 lbs (1.36 to 1.59 kg) |
| Subcooling Requirement | 10°F to 15°F (5.5°C to 8.3°C) |
| Superheat Target | 10°F to 15°F (5.5°C to 8.3°C) |
| Charging Method | Subcooling or Superheat |
| Ambient Temperature Range | 65°F to 95°F (18°C to 35°C) |
| Indoor Wet Bulb Temperature | 55°F to 65°F (12.8°C to 18.3°C) |
| Outdoor Temperature | Varies with ambient conditions |
| Manufacturer Guidelines | Refer to specific unit manual |
| Safety Precautions | Follow EPA and local regulations |
| Tools Required | Refrigerant scales, gauges |
| Charge Adjustment | Based on system performance |
Explore related products
What You'll Learn
- Manufacturer Guidelines: Check unit specifications for recommended refrigerant charge amounts based on system size
- Superheat Method: Measure superheat to determine proper refrigerant charge for optimal performance
- Subcooling Method: Use subcooling readings to verify liquid refrigerant levels in the system
- Fixed Orifice Systems: Charge by superheat for systems with fixed metering devices
- TXV Systems: Adjust charge using subcooling for systems with thermostatic expansion valves
Manufacturer Guidelines: Check unit specifications for recommended refrigerant charge amounts based on system size
Manufacturers design HVAC systems with precise refrigerant requirements, ensuring optimal performance and efficiency. For a 2-ton system, the recommended charge amount varies by model and design, but typically falls within a specific range. For instance, a common guideline for R-410A refrigerant in a 2-ton split system might be 6 to 7 pounds, depending on factors like indoor coil size and outdoor unit configuration. These specifications are not arbitrary; they are derived from rigorous testing to balance cooling capacity, energy efficiency, and system longevity. Ignoring these guidelines can lead to issues like reduced efficiency, increased wear on components, or even system failure.
To locate the correct charge amount, start by consulting the unit’s installation manual or specification sheet. These documents often include a refrigerant charge table that correlates system size (in tons) with the appropriate refrigerant quantity. For example, a 2-ton system using R-22 might require 15 pounds, while the same size system using R-410A would need significantly less due to differences in pressure and density. If the manual is unavailable, check the unit’s nameplate or contact the manufacturer directly. Some manufacturers also provide online databases or apps where you can input the model number to retrieve specifications.
Following manufacturer guidelines is not just about performance—it’s also a safety and legal requirement. Overcharging a system can cause high head pressure, leading to compressor damage or even rupture, while undercharging results in insufficient cooling and potential freeze-ups. For example, a 2-ton system charged with 5 pounds of R-410A instead of the recommended 6.5 pounds may struggle to maintain set temperatures, especially during peak loads. Conversely, adding 8 pounds could overload the compressor, shortening its lifespan. Adhering to specifications ensures the system operates within safe pressure and temperature limits.
Practical tips for accurate charging include verifying the system is free of leaks before adding refrigerant and using a reliable scale to measure the charge. If the system has been repaired or modified, recheck the manufacturer’s guidelines, as the recommended charge may have changed. For instance, replacing a 2-ton condenser with a newer model might require a different refrigerant type or quantity. Always use the correct refrigerant type specified by the manufacturer, as using an incompatible refrigerant can void warranties and cause irreversible damage. By prioritizing manufacturer guidelines, technicians can ensure a 2-ton system performs efficiently, safely, and reliably.
Optimal Refrigerant Line Temperature: How Cold Should It Be?
You may want to see also
Explore related products
Superheat Method: Measure superheat to determine proper refrigerant charge for optimal performance
The superheat method is a precise and reliable way to determine the correct refrigerant charge in a 2-ton system, ensuring optimal performance and energy efficiency. Superheat refers to the temperature increase of refrigerant vapor as it travels from the evaporator outlet to the compressor inlet. By measuring this value, technicians can accurately assess whether the system is undercharged, overcharged, or properly charged. This method is particularly effective because it directly relates to the system’s ability to absorb heat, a critical function of any air conditioning or refrigeration unit.
To apply the superheat method, follow these steps: First, measure the suction pressure using a gauge and convert it to temperature using a refrigerant pressure-temperature chart. Next, measure the actual temperature of the suction line at the compressor inlet using a thermocouple or infrared thermometer. Subtract the suction line temperature from the saturated suction temperature to calculate superheat. For a 2-ton system using R-410A refrigerant, the target superheat typically ranges between 10°F and 15°F, depending on the manufacturer’s specifications. Adjust the refrigerant charge accordingly: add refrigerant if superheat is too high (indicating undercharge) or recover refrigerant if superheat is too low (indicating overcharge).
One of the key advantages of the superheat method is its adaptability to varying load conditions. Unlike other charging methods, superheat measurement accounts for real-time system performance, making it ideal for both residential and commercial 2-ton systems. For instance, during peak cooling demand, superheat may temporarily rise, but consistent monitoring ensures the charge remains within the optimal range. This dynamic approach prevents issues like liquid slugging (caused by overcharging) or poor dehumidification (caused by undercharging), both of which can reduce system lifespan and efficiency.
However, accuracy in superheat measurement depends on proper technique and equipment calibration. Ensure the thermocouple or thermometer is securely attached to the suction line and insulated to prevent ambient temperature interference. Additionally, verify that the refrigerant type matches the pressure-temperature chart used, as different refrigerants have distinct properties. For R-410A, a common refrigerant in modern 2-ton systems, precise measurements are critical due to its high operating pressures. Regularly cross-check readings with other system parameters, such as subcooling, to validate the charge.
In conclusion, the superheat method is an indispensable tool for charging a 2-ton system, offering both accuracy and adaptability. By focusing on this metric, technicians can avoid the inefficiencies and risks associated with improper charging. While it requires attention to detail and the right tools, the payoff is a system that operates at peak performance, delivering consistent comfort and energy savings. Whether troubleshooting or performing routine maintenance, mastering superheat measurement is a skill that pays dividends in the long-term health of any HVAC system.
Should Shallots Be Refrigerated? Optimal Storage Tips for Freshness
You may want to see also
Explore related products
Subcooling Method: Use subcooling readings to verify liquid refrigerant levels in the system
The subcooling method is a precise way to verify liquid refrigerant levels in a 2-ton system, ensuring optimal performance and efficiency. By measuring the temperature drop of the liquid refrigerant below its saturation point, technicians can accurately determine if the system is undercharged, overcharged, or correctly charged. This method is particularly useful because it provides a direct indication of the refrigerant’s state in the liquid line, reducing guesswork and minimizing the risk of system damage.
To apply the subcooling method, start by identifying the correct subcooling target for your specific refrigerant and system. For R-410A, a common refrigerant in 2-ton systems, the ideal subcooling range is typically 10°F to 15°F. Use a digital thermometer or a manifold gauge set with temperature sensors to measure the liquid line temperature at the condenser outlet and the saturation temperature of the refrigerant. Subtract the saturation temperature from the liquid line temperature to calculate the subcooling value. For instance, if the liquid line temperature is 100°F and the saturation temperature is 90°F, the subcooling is 10°F, indicating a properly charged system.
One practical tip is to perform subcooling measurements under stable operating conditions, such as when the system has been running for at least 15 minutes. This ensures accurate readings and accounts for thermal equilibrium. Additionally, always refer to the manufacturer’s specifications for the recommended subcooling range, as values can vary based on system design and refrigerant type. For example, R-22 systems may have different subcooling targets compared to R-410A systems.
A key advantage of the subcooling method is its ability to diagnose charging issues without relying solely on pressure readings, which can be influenced by ambient temperature and other variables. For instance, if the subcooling value is below the target range, it suggests an undercharged system, while a value above the range indicates overcharging. Adjust the refrigerant charge incrementally, rechecking the subcooling value after each adjustment until the target range is achieved. This systematic approach ensures the system operates at peak efficiency, reducing energy consumption and extending equipment lifespan.
In summary, the subcooling method is a reliable and accurate technique for verifying liquid refrigerant levels in a 2-ton system. By focusing on temperature differentials rather than pressure alone, technicians can achieve precise charging, avoid common pitfalls, and maintain system performance. Always pair this method with manufacturer guidelines and proper tools for the best results.
Reviving Brown Lemons: Creative Uses for Refrigerated Citrus at Home
You may want to see also
Explore related products
Fixed Orifice Systems: Charge by superheat for systems with fixed metering devices
In fixed orifice systems, charging by superheat is the preferred method for ensuring optimal refrigerant flow through the metering device. Unlike systems with expansion valves, fixed orifices lack the ability to adjust to varying conditions, making precise charging critical. Superheat—the temperature of the refrigerant vapor at the outlet of the evaporator coil compared to its saturation temperature—serves as the key metric. For a 2-ton system, the target superheat typically ranges between 8°F to 12°F, depending on the manufacturer’s specifications and operating conditions. Exceeding this range can lead to inefficiency, liquid slugging, or compressor damage, while falling short results in insufficient heat absorption and reduced capacity.
To charge by superheat, begin by operating the system under normal conditions, allowing it to stabilize for at least 15 minutes. Measure the suction pressure and temperature at the evaporator outlet using a reliable gauge set and thermocouple. Calculate superheat by subtracting the saturation temperature (from the pressure-temperature chart) from the actual temperature. If superheat is below target, add refrigerant in small increments, typically 2–4 ounces at a time, and recheck. Overcharging is easier than correcting an undercharge, so proceed cautiously. For a 2-ton system, the total refrigerant charge is usually around 6–8 pounds, but this varies by design, so consult the equipment manual for exact values.
One common mistake is ignoring ambient conditions, which significantly impact superheat. High outdoor temperatures or low indoor loads can skew readings, making it essential to verify conditions align with design parameters. Another pitfall is failing to account for line set length and elevation differences, which affect pressure drop and refrigerant flow. For every 10 feet of vertical lift, add approximately 0.5°F to the target superheat to compensate. Additionally, ensure all components are clean and free of debris, as restrictions can mimic undercharge symptoms.
Practical tips include using a digital manifold gauge with automatic superheat calculation to minimize error. Always charge in liquid form, adding refrigerant through the liquid line service valve. If the system has a sight glass, observe for proper refrigerant flow—bubbles indicate undercharge, while a full liquid column suggests overcharge. Finally, document initial and final superheat values, pressures, and ambient conditions for future reference. Proper charging not only maximizes efficiency but also extends the lifespan of the equipment, making it a critical skill for HVAC technicians.
Determining Your Amana Refrigerator's Age: A Quick Guide
You may want to see also
Explore related products
TXV Systems: Adjust charge using subcooling for systems with thermostatic expansion valves
In TXV systems, precise refrigerant charging is critical for optimal performance, and subcooling becomes the key metric for adjustment. Unlike fixed orifice systems, TXVs dynamically control refrigerant flow based on evaporator load, making charge accuracy even more vital. Overcharging leads to high head pressures and inefficiency, while undercharging results in low suction pressures and potential compressor damage. Subcooling—the temperature drop below the saturation point in the liquid line—offers a direct indicator of refrigerant charge. For a 2-ton system, target a subcooling range of 8°F to 12°F for peak efficiency.
To adjust the charge using subcooling, follow these steps: First, measure the liquid line temperature and the suction saturation temperature (using pressure gauges or a digital manifold). Calculate subcooling by subtracting the suction saturation temperature from the liquid line temperature. If subcooling falls below 8°F, add refrigerant in small increments (1–2 lbs at a time for a 2-ton system), allowing the system to stabilize after each addition. If subcooling exceeds 12°F, recover refrigerant to reduce the charge. Always refer to the manufacturer’s specifications for exact target values, as they may vary slightly by model.
Caution: Over-reliance on pressure alone can mislead, as ambient conditions and airflow affect readings. Subcooling provides a more stable reference, but it requires accurate temperature measurements. Use thermistors or digital sensors for precision, and avoid relying on analog gauges for temperature readings. Additionally, ensure the system is operating at steady-state conditions (typically after 15–20 minutes of runtime) before taking measurements.
The takeaway is clear: subcooling is the gold standard for charging TXV systems. It accounts for variables like ambient temperature and load, providing a reliable metric for charge adjustment. For a 2-ton system, maintaining 8°F to 12°F of subcooling ensures efficient operation, protects the compressor, and maximizes system lifespan. Master this technique, and you’ll achieve consistent performance regardless of external factors.
New Fridge Food Safety: When to Start Storing Groceries
You may want to see also
Frequently asked questions
A 2-ton system typically requires between 5 and 7 pounds of refrigerant, depending on the specific design, manufacturer, and installation details. Always refer to the manufacturer’s specifications for the exact amount.
Charging by weight alone is not sufficient. You must also consider superheat, subcooling, and system performance. Use a refrigerant scale and follow the manufacturer’s guidelines to ensure proper charging.
Overcharging can lead to high head pressure, reduced efficiency, and potential compressor damage. Undercharging results in low suction pressure, inadequate cooling, and possible evaporator freezing. Always charge accurately to avoid these issues.
