Jeep owners and mechanics alike have been debating the correct torque for oil pans in Jeep Cherokees. While some sources suggest that the torque for an oil pan should be wrist tight, others provide more specific torque values in ft. lbs. and in. lbs. For a 2001 Jeep Cherokee, the factory manual provides torque specs of 1/4-20 studs 120 in lbs and 5/16-18 studs 156 in lbs, which can be converted to ft. lbs. as 1/4x20 = 7 and 5/16x18 = 11. However, there are discrepancies in the factory manual, with other sections providing different torque values, and some mechanics have suggested even lower torque values of 84 in lbs for 1/4 bolts and 11 ft-lbs (132 in lbs) for 5/16 bolts. Ultimately, it is important to tighten the bolts correctly to prevent leaks, with some sources recommending the use of a torque wrench to ensure accuracy.
Explore related products
What You'll Learn
Torque wrench settings for oil pan bolts
The torque wrench settings for oil pan bolts in a Jeep Cherokee 2001 will depend on the type of screws used.
For small screws with the following dimensions: 1/4"-20x1/2", use a 7/16" wrench and torque to 7 pound-feet. For large screws with dimensions of 5/16"-18x3/4", use a 1/2" wrench and torque to 11 pound-feet.
The above information is for the oil sump. For the valve cover, the screws are 1/4"-20x1" or so, and a 7/16" wrench should be used with a torque of around 7 pound-feet.
There are some discrepancies in the factory manual for the Jeep Cherokee 2001. In the installation description, the torque specs are listed as:
- 1/4 - 20 studs: 120 in Ibs
- 5/16 - 18 studs: 156 in Ibs
However, in the torque table at the end of the chapter, different values are given:
- 1/4 - 20 studs: 84 in Ibs
- 5/16 - 18 studs: 132 in Ibs
The lower values in the torque table at the end of the engine section are recommended by some mechanics. These values are also supported by repair software, Mitchell Pro-Demand.
Converting the above values to ft-lbs, the torque values are:
- 1/4x20 = 7 ft-lbs
- 5/16x18 = 11 ft-lbs
It is worth noting that the AMC engines in the Jeep Cherokee use SAE fasteners, not ISO. While some metric sockets may fit the screws, they may not be entirely compatible.
Finally, when it comes to tightening the bolts, a "wrist tight" approach is recommended by some, suggesting that over-tightening is not necessary.
How to Prevent Steak from Sticking to Your Pan
You may want to see also
Explore related products
Oil pan bolt size
The bolt size of a Jeep Cherokee's oil pan depends on the model year and the specific bolt in question.
For a 2001 Jeep Cherokee XJ, the four corner bolts are 5/16", while all the others are 1/4". The factory manual gives torque specifications in inches, which are 1/4 - 20 studs 120 in lbs and 5/16 - 18 studs 156 in lbs. However, in the torque table at the end of the chapter, different values are given: 1/4 - 20 studs 84 in lbs and 5/16 - 18 studs 132 in lbs.
Converting the above values to foot-pounds, we get 7 ft lbs for 1/4 x 20 and 11 ft lbs for 5/16 x 18. These values are further supported by repair software, which gives 84 in lbs for 1/4" and 11 ft lbs (132 in lbs) for 5/16".
For a 2016 Jeep Grand Cherokee, the transmission oil/fluid filter pan bolt torque specifications are given as 10 N-m (89 in lbs).
For a 1993-1998 Jeep Grand Cherokee ZJ, the oil pan bolt size is given as 11mm, 1/4", or 5/16".
It is important to note that the bolt size and torque specifications may vary depending on the specific model and year of the Jeep Cherokee. Always refer to the factory manual or a trusted mechanic for the most accurate information.
How Aluminium Makes Steel Cookware Better
You may want to see also
Explore related products
Oil pan gasket replacement

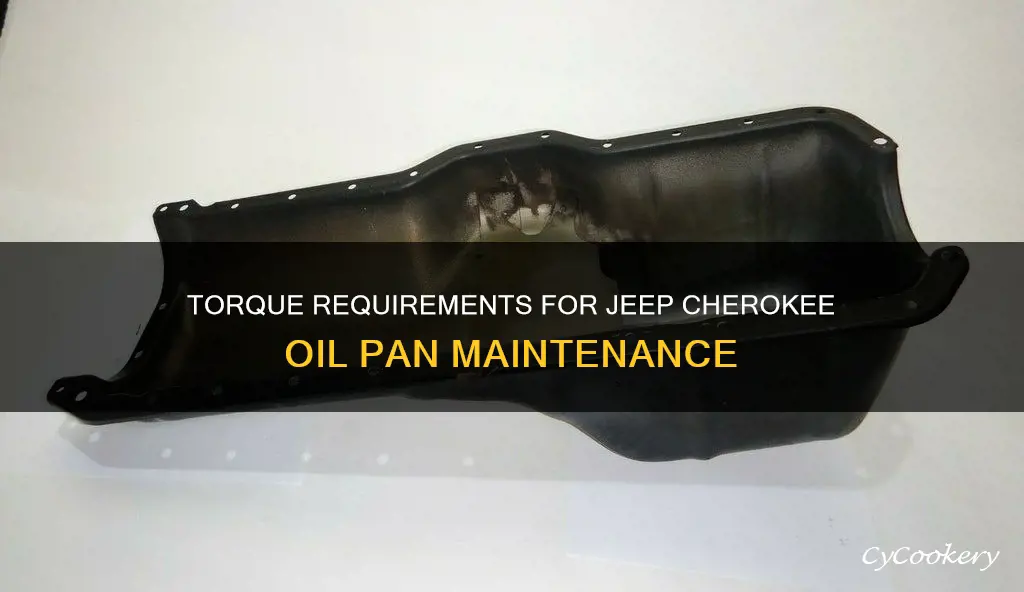

The oil pan gasket seals the surfaces between the oil pan and the lower part of the engine block. The engine's oil pan is attached to the bottom of the engine. It holds the engine's oil capacity, acting as a reservoir for oil circulating through the engine's oil passages. The oil pan gasket is sandwiched between the bottom of the engine block and the oil pan to keep circulating oil inside the engine.
An oil leak may be noted on the ground where the vehicle is parked. However, many vehicles have plastic trays underneath the engine that may catch leaking oil and conceal the leak. In such cases, a low oil level, a burning oil smell, or even smoke from oil burning in the engine bay may be noted. Oil leaks are easiest to spot when they are new or fresh. The technician may clean the fluid around the leak and direct you to come back later to confirm where the leak is coming from. With more progressed oil leaks, the technician will also add a dye to the oil. After the vehicle has been driven with the dye, a UV light will be used to pinpoint the leakage and recommend a repair.
The technician will drain the oil and remove the oil pan from the engine. Removal of the oil pan may require raising the vehicle or removing the front subframe. The mating surfaces on both the engine block and the oil pan will be cleaned, and a new gasket will be applied. Some vehicles have a paper gasket, while others may only require an application of sealant according to the manufacturer.
The torque values for the oil pan bolts in ft. lbs. are 1/4x20 = 7, and 5/16x18 = 11. The inch-pound values are 84 and 132, respectively.
Fire Pan: Camping Essential
You may want to see also
Explore related products
Oil pan installation
The oil pan bolt torque specs for a 2001 Jeep Cherokee XJ are: 1/4x20 = 7 ft. lbs. and 5/16x18 = 11 ft. lbs.
First, obtain the appropriate oil pan gasket replacement. Gasket materials vary depending on the type of metal used in the oil pan. Name-brand gaskets come with any necessary sealants. While the oil is draining, remove the splash shield and bell housing cover. In front-wheel-drive vehicles, the oil pan is often mated to the transaxle. Other accessories, such as the exhaust manifold support and air-conditioning bracketry, might need to be detached. A service manual can help identify all oil-pan bolt locations. Some might be obscured behind other parts.
Once all the bolts are removed, the pan can be dropped. If necessary, tap it lightly with a mallet to break the seal. Scrape off any gasket residue and clean all sealing surfaces thoroughly with a solvent. Also, clean the inside of the oil pan and inspect it for cracks. Then, install the new gasket per its instructions. This usually involves using regular grease to hold it in position.
Now, you can add any upgrades to the oil pickup and pan baffle. Install the oil pickup per its torque spec. Many oil pans require a criss-cross pattern to allow the pan to seat properly and the silicone to evenly distribute. Follow the criss-cross pattern to torque all the bolts down. Make sure not to over-torque these, as they can easily strip or break. When everything is torqued up, you can now grab the oil dipstick tube and snap it back in. If your motor has a few miles on it, this is a good time to install fresh seals. If you are having trouble installing the tube by hand, lube up the seals, line up the tube to the pan, and give the top of the tube a strike with a rubber mallet.
Finally, check the welds by spraying/misting soapy water on the outside of the oil pan and blowing air on the inside of the weld to see if the soapy water is bubbling. Alternatively, fill the oil pan with water and check for leaks. Be careful how much heat is being put into the oil during the weld process, as you don’t want to warp the mounting rails of the oil pan.
Dust Pizza Pan: Cornmeal Magic
You may want to see also
Explore related products
Oil pan torque discrepancies
There are some discrepancies in the torque specifications for the oil pan of a Jeep Cherokee 2001. The factory manual for the Jeep Cherokee XJ (1984-2001) provides conflicting information. In the installation description, the torque specifications are listed as follows:
- 1/4 - 20 studs: 120 in-lbs
- 5/16 - 18 studs: 156 in-lbs
However, in the torque table at the end of the chapter, different values are provided:
- 1/4 - 20 studs: 84 in-lbs
- 5/16 - 18 studs: 132 in-lbs
These discrepancies can cause confusion and impact the accuracy of the torque settings. It is important to have the correct torque specifications to ensure that the oil pan is properly secured and sealed.
Some sources suggest that the lower torque values specified in the torque table at the end of the engine section of the manual are the more reliable figures. These values are also supported by repair software, which recommends 84 in-lbs for the 1/4" bolts and 11 ft-lbs (132 in-lbs) for the 5/16" bolts.
It is worth noting that some mechanics recommend tightening the bolts by hand until they feel "wrist tight," without the need for specific torque measurements. However, others emphasize the importance of accurate torque settings to prevent leaks and ensure the oil pan gasket's integrity.
To convert the inch-pounds (in-lbs) measurements to foot-pounds (ft-lbs), you can divide by 12 or 15, depending on the source. This gives a range of torque values for the 1/4" bolts from 7 ft-lbs to 10 ft-lbs, and for the 5/16" bolts from 11 ft-lbs to 16.5 ft-lbs.
Given the discrepancies and the potential consequences of incorrect torque settings, it is advisable to refer to multiple sources, including the factory manual, repair software, and the advice of experienced mechanics, to determine the most appropriate torque settings for the oil pan of a Jeep Cherokee 2001.
Unleashing Pan's Flute in Sevtech: A Comprehensive Guide
You may want to see also
Frequently asked questions
The torque values in ft. lbs. are: 1/4x20 = 7, and 5/16x18 = 11.
The torque values in inch lbs are: 1/4 = 84, and 5/16 = 132.
The bolt size is 11mm, or 1/4" and 5/16".
Tighten the bolts in a crossing pattern.
A torque wrench is the recommended tool to tighten the oil pan bolts.
