The 2006 Toyota Corolla's air conditioning system relies on a precise refrigerant charge to function efficiently. Understanding the correct refrigerant charge is crucial for maintaining optimal cooling performance and preventing potential damage to the system. The refrigerant, typically R-134a, circulates through the AC components, absorbing heat from the cabin and releasing it outside. An incorrect charge, whether overcharged or undercharged, can lead to issues such as poor cooling, compressor damage, or increased fuel consumption. For a 2006 Toyota Corolla, the recommended refrigerant charge is typically around 1.5 to 1.7 pounds, but it’s essential to consult the vehicle’s manual or a professional technician for accurate specifications and proper charging procedures.
| Characteristics | Values |
|---|---|
| Year and Model | 2006 Toyota Corolla |
| Refrigerant Type | R-134a |
| AC System Capacity | Approximately 0.75 lbs (340g) |
| Oil Type | PAG (Polyalkylene Glycol) Oil |
| Oil Capacity | Varies by compressor; typically 4-6 oz (118-177 ml) |
| Compressor Type | Variable Displacement |
| High-Side Pressure (A/C On) | 250-300 PSI (17.2-20.7 bar) |
| Low-Side Pressure (A/C On) | 30-45 PSI (2.1-3.1 bar) |
| Charging Port Location | Low-pressure side (suction line) |
| Recommended Charge Method | By weight using a refrigerant scale |
| Ambient Temperature Range | 68°F to 86°F (20°C to 30°C) |
| Notes | Ensure system is leak-free before charging; evacuate system to proper vacuum level before recharging. |
Explore related products
$18.84 $19.99
What You'll Learn
Checking Refrigerant Levels
Maintaining the correct refrigerant charge in a 2006 Toyota Corolla is crucial for optimal air conditioning performance. Over time, refrigerant levels can drop due to leaks or natural seepage, leading to reduced cooling efficiency. Checking the refrigerant level is a straightforward process, but it requires precision and the right tools.

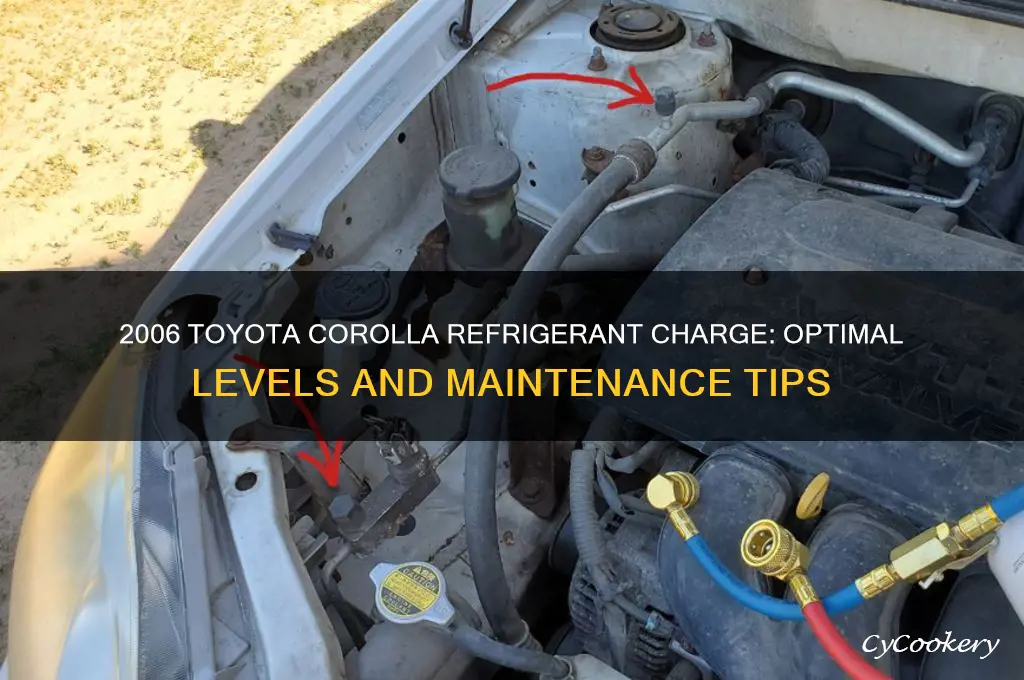

To begin, ensure the vehicle is parked on a level surface and the engine is turned off. Locate the low-pressure service port, typically found on the larger of the two aluminum lines near the firewall. This port is where you’ll connect the refrigerant gauge. A standard manifold gauge set with a low-side hose is essential for this task. Attach the hose to the service port securely, ensuring no air leaks.
Next, start the engine and set the air conditioning to maximum cooling with the fan on high. Allow the system to run for a few minutes to stabilize. Observe the gauge reading; for a 2006 Toyota Corolla with R-134a refrigerant, the ideal pressure ranges between 25 and 45 psi when the ambient temperature is around 80°F (27°C). If the pressure falls below this range, the system is undercharged. However, avoid overcharging, as it can cause high-pressure issues and damage components like the compressor.
If the refrigerant level is low, add small amounts of R-134a refrigerant through the low-pressure port while monitoring the gauge. Most systems require between 1.5 and 2.0 pounds of refrigerant, but refer to the vehicle’s specifications for exact values. Use a refrigerant can with a built-in hose and ensure it’s upright during charging. Shake the can periodically to maintain consistent flow.
Finally, after reaching the correct pressure, turn off the engine and disconnect the gauge. Check for leaks using a UV dye or electronic leak detector, as low refrigerant levels often indicate a leak. Addressing leaks promptly prevents repeated recharging and ensures long-term system health. Regularly checking refrigerant levels not only keeps the cabin cool but also extends the life of the air conditioning system.
Quick Fixes for a Frozen Refrigerant AC Line: Step-by-Step Guide
You may want to see also
Explore related products
Adding Refrigerant Safely
The 2006 Toyota Corolla uses R-134a refrigerant, a standard for most vehicles of its era. Before adding refrigerant, verify the system’s pressure using a gauge to avoid overcharging, which can damage the compressor. The ideal operating pressure ranges between 25-45 psi on the low side and 150-250 psi on the high side when the engine is running and the AC is on max. Exceeding these limits indicates a potential leak or other issue that requires professional attention.
The process of adding refrigerant involves connecting the recharge hose to the low-pressure port, typically located on the larger of the two AC lines near the firewall. Start the engine, turn the AC to max, and monitor the gauge. Slowly release refrigerant into the system until the low-side pressure reaches the manufacturer’s recommended range. Overfilling can cause the refrigerant to back up into the compressor, leading to failure. Stop immediately if the gauge reads above 45 psi on the low side.
Safety precautions are critical when handling refrigerant. R-134a is non-toxic but can cause frostbite if it comes into contact with skin. Wear protective gloves and goggles, and avoid inhaling fumes. Never recharge a system that’s actively leaking, as this poses environmental risks and violates regulations. If the system requires more than 1-2 cans of refrigerant to reach the correct pressure, consult a professional to diagnose and repair the underlying issue.
In conclusion, adding refrigerant to a 2006 Toyota Corolla is a task that demands precision and caution. By following these steps and adhering to safety guidelines, you can maintain your AC system’s efficiency without causing harm. However, persistent issues or uncertainty warrant professional intervention to ensure long-term reliability and compliance with environmental standards.
Should Bagels Be Refrigerated? Storage Tips for Freshness and Flavor
You may want to see also
Explore related products
Identifying Leaks
A 2006 Toyota Corolla’s refrigerant charge relies on a sealed system, but leaks can develop over time, compromising performance. Identifying these leaks early is crucial to prevent further damage and maintain efficient cooling. Leaks often manifest as reduced cooling capacity, visible oil residue around components, or a hissing sound near connections. Detecting them requires a systematic approach, combining visual inspection, pressure testing, and the use of specialized tools like UV dye or electronic leak detectors.
Visual Inspection: The First Line of Defense
Begin by examining the air conditioning system’s components for signs of oil residue or moisture, which indicate refrigerant leakage. Focus on hoses, fittings, the compressor, and the evaporator. Oil streaks or wet spots around these areas are telltale signs. Pay attention to O-rings and seals, as they are common failure points due to age and wear. A flashlight and clean cloth can aid in spotting subtle traces. While this method is straightforward, it may miss small leaks, necessitating further investigation.
Pressure Testing: Pinpointing Hidden Leaks
If visual inspection is inconclusive, pressure testing is the next step. Evacuate the system, recharge it with nitrogen, and monitor the pressure gauge for drops. A steady decline indicates a leak. This method is effective for locating leaks in hard-to-reach areas, such as the evaporator or condenser. However, it requires specialized equipment and should be performed by someone with experience to avoid over-pressurizing the system. Always follow safety protocols, including wearing protective gear.
Advanced Techniques: UV Dye and Electronic Detectors
For precise leak detection, inject UV dye into the system during a refrigerant recharge. Over time, the dye will escape with the refrigerant, leaving a fluorescent trail under UV light. This method is highly effective for pinpointing leaks, even in microscopic cracks. Alternatively, electronic leak detectors can identify refrigerant gases by sensing their unique chemical composition. These tools are more expensive but offer real-time detection, making them ideal for professional use. Both methods require careful execution to avoid contaminating the system.
Preventive Measures: Extending System Life
Once leaks are identified and repaired, take preventive steps to minimize future issues. Regularly inspect O-rings and seals, replacing them as part of routine maintenance. Keep the system clean to prevent debris buildup, which can accelerate wear. Avoid overcharging the refrigerant, as excessive pressure can stress components and lead to leaks. Finally, address minor issues promptly to prevent them from escalating into costly repairs. Proactive care ensures the 2006 Toyota Corolla’s AC system remains reliable for years to come.
Quickly Chill Your Can: Effective Tips to Speed Up Refrigeration
You may want to see also
Explore related products
Using Pressure Gauges
Pressure gauges are indispensable tools for accurately charging the refrigerant in a 2006 Toyota Corolla’s air conditioning system. These gauges measure the system’s high and low side pressures, ensuring the correct amount of refrigerant is added without overcharging or undercharging. Overcharging can lead to compressor damage, while undercharging results in poor cooling performance. By connecting the gauges to the A/C system’s service ports, you can monitor pressures in real-time, aligning them with manufacturer specifications for optimal performance.
To use pressure gauges effectively, start by evacuating the system with a vacuum pump to remove moisture and air. Once the system is evacuated, connect the gauges to the low-side and high-side service ports, typically located near the firewall or on the A/C lines. With the engine running and the A/C set to maximum cooling, observe the gauge readings. For a 2006 Toyota Corolla, the low-side pressure should typically read between 30–40 PSI, while the high-side pressure should range from 180–250 PSI, depending on ambient temperature. Always refer to the vehicle’s manual or a refrigerant charging chart for precise values.
One common mistake when using pressure gauges is misinterpreting readings due to external factors. Ambient temperature significantly affects pressure, so use a temperature-pressure chart to adjust your target values accordingly. For example, on a 90°F day, the high-side pressure may exceed 250 PSI, which is normal. Conversely, cooler temperatures will lower both high and low-side pressures. Ignoring these adjustments can lead to incorrect charging, compromising the system’s efficiency.
When adding refrigerant, do so gradually while monitoring the gauges. Use the low-side port for charging, as it allows for better control. Add refrigerant in small increments, allowing the system to stabilize after each addition. Overcharging by as little as 0.5 oz can cause issues, so precision is key. If the gauges indicate a full charge but the system still underperforms, inspect for leaks or other issues, as pressure alone doesn’t always reveal the root cause.
In conclusion, pressure gauges are not just tools but the backbone of a successful refrigerant charge. Their proper use ensures the 2006 Toyota Corolla’s A/C system operates efficiently, prolonging its lifespan and maintaining comfort. By understanding how to interpret readings, account for external factors, and charge refrigerant methodically, even a novice can achieve professional results. Always prioritize accuracy and patience when working with these gauges to avoid costly mistakes.
Using a Meat Thermometer to Verify Your Fridge's Temperature Accuracy
You may want to see also
Explore related products
Recharging Steps for 2006 Corolla
The 2006 Toyota Corolla uses R-134a refrigerant, and recharging its AC system requires precision to avoid overcharging or undercharging. Start by locating the low-pressure service port, typically found on the larger AC line near the firewall. Ensure the engine is off and the AC system is cool to the touch before proceeding. This initial step is critical, as working on a pressurized or hot system can lead to injury or damage.
Next, connect the refrigerant can’s hose to the low-pressure port and start the engine. Turn the AC to its highest setting (max cooling, fan on high) to engage the compressor. Slowly add refrigerant, monitoring the gauge on the recharge kit. The target pressure varies by ambient temperature but generally falls between 35–45 PSI for most climates. Overcharging can cause the system to malfunction, while undercharging reduces cooling efficiency. Always refer to the vehicle’s manual or a temperature-pressure chart for accurate readings.
A common mistake is ignoring the system’s condition before recharging. If the AC isn’t blowing cold air, check for leaks using a UV dye or electronic leak detector. Recharging a leaking system is temporary and wasteful. Additionally, ensure the compressor clutch engages when the AC is turned on; a faulty clutch indicates an electrical issue, not a refrigerant problem. Addressing these issues first saves time and refrigerant.
Finally, after reaching the correct pressure, disconnect the recharge hose and inspect for leaks around the service port. Run the AC for 2–3 minutes to distribute the refrigerant evenly. If the system still underperforms, consider consulting a professional, as issues like a failing compressor or clogged expansion valve may require advanced diagnostics. Properly executed, this process restores the 2006 Corolla’s AC efficiency without unnecessary complications.
Should You Refrigerate Baking Soda? Storage Tips and Myths Debunked
You may want to see also
Frequently asked questions
A 2006 Toyota Corolla typically holds approximately 1.5 to 2.0 pounds (0.68 to 0.91 kg) of refrigerant (R-134a) for its air conditioning system.
To check the refrigerant charge, use a manifold gauge set connected to the low-pressure and high-pressure ports of the A/C system. Turn on the A/C to its maximum setting, and compare the gauge readings to the recommended pressures for your vehicle, typically found in the owner’s manual or under the hood.
While it’s possible to add refrigerant yourself using a recharge kit, it’s recommended to consult a professional technician. Overcharging or undercharging the system can cause damage, and leaks or other issues may require expert diagnosis and repair.
