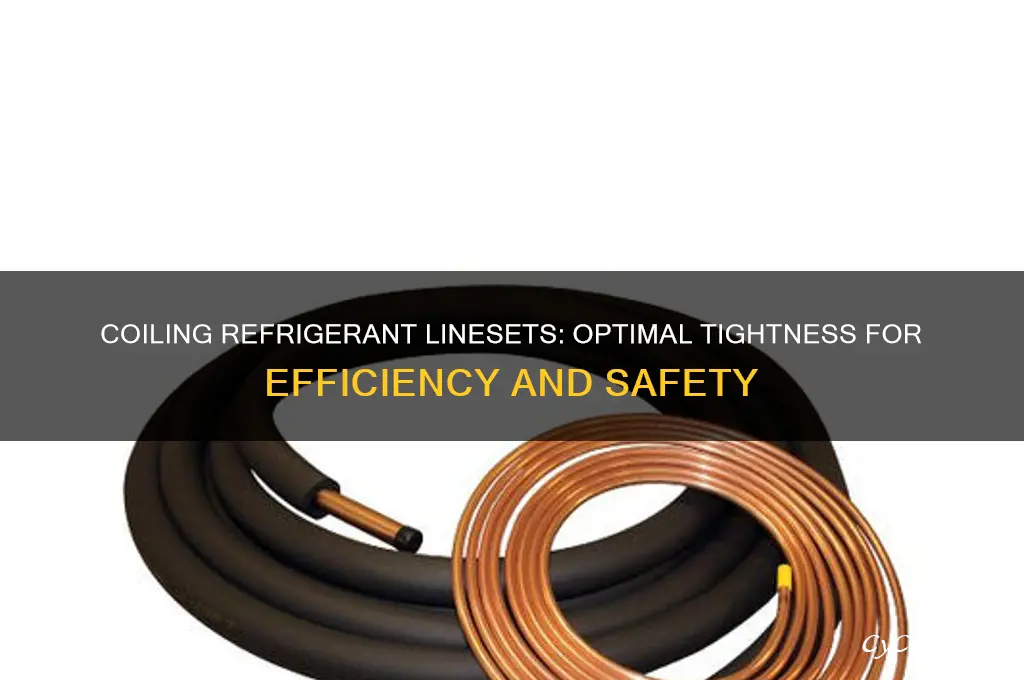

When considering the installation of a refrigerant lineset, one critical factor is how tightly it can be coiled without compromising performance or safety. The flexibility of the lineset is essential for navigating through walls, ceilings, and other obstacles, but excessive bending can lead to kinking, reduced refrigerant flow, or even damage to the insulation and tubing. Manufacturers typically provide minimum bending radius guidelines, which vary depending on the diameter and type of lineset. Exceeding these limits can result in increased pressure drop, reduced system efficiency, and potential long-term reliability issues. Proper planning and adherence to these specifications are crucial to ensure optimal operation and longevity of the HVAC or refrigeration system.
| Characteristics | Values |
|---|---|
| Minimum Bending Radius | Typically 5 to 10 times the outside diameter of the lineset |
| Maximum Coil Tightness | Depends on tube size; e.g., 3/8" lineset: 6" diameter coil, 1/2": 8" |
| Material Impact | Copper and aluminum have different flexibility; copper allows tighter bends |
| Pressure Drop Concerns | Tighter coils increase friction, potentially reducing system efficiency |
| Manufacturer Guidelines | Always follow manufacturer specifications for specific lineset models |
| Installation Best Practices | Avoid kinking or crushing the lineset during coiling |
| Temperature Considerations | Extreme temperatures may affect material flexibility |
| Industry Standards | Refer to ASHRAE or HVACR guidelines for recommended bending practices |
| Application-Specific Limits | Residential vs. commercial systems may have different requirements |
| Long-Term Durability | Overly tight coils may lead to stress fractures or leaks over time |
Explore related products
What You'll Learn
Maximum Coil Diameter Limits
The diameter of a coiled refrigerant lineset is not arbitrary; it directly impacts the system’s efficiency and longevity. Manufacturers specify maximum coil diameters to prevent excessive bending stress, which can lead to microfractures, reduced refrigerant flow, and eventual leaks. For copper linesets, a common rule of thumb is that the coil diameter should not be less than 12 times the tube’s outer diameter. For example, a ¼-inch tube should not be coiled tighter than 3 inches in diameter. Exceeding this limit risks kinking the line, compromising the system’s integrity.
Consider the practical implications of ignoring these limits. A lineset coiled too tightly can restrict refrigerant flow, causing pressure drops and reduced cooling capacity. In extreme cases, the tubing may deform permanently, necessitating replacement. For instance, a ⅜-inch lineset coiled to a 4-inch diameter might appear manageable during installation but could lead to long-term performance issues. Always consult the manufacturer’s guidelines, as these limits vary by material and wall thickness.
To ensure compliance, measure the tube’s outer diameter and calculate the minimum allowable coil diameter before bending. Use a mandrel or coil-bending tool to maintain consistent curvature, avoiding sharp bends. For larger linesets, such as those used in commercial systems, the maximum coil diameter may be as large as 24 times the tube’s diameter. For example, a ½-inch tube should not be coiled tighter than 12 inches. Adhering to these limits safeguards the system’s efficiency and extends its lifespan.
A comparative analysis reveals that aluminum linesets, while more flexible, still have strict coiling limits due to their lower tensile strength. Unlike copper, aluminum can withstand slightly tighter bends but is more prone to fatigue under repeated stress. For aluminum, the coil diameter should not be less than 10 times the tube’s outer diameter. This material-specific nuance underscores the importance of tailoring installation practices to the lineset’s composition.
In conclusion, respecting maximum coil diameter limits is non-negotiable for refrigerant lineset installations. These limits are not arbitrary but are rooted in material science and system performance requirements. By adhering to manufacturer guidelines and employing proper tools, technicians can avoid costly errors and ensure optimal system functionality. Treat these limits as a safeguard, not a suggestion, to maintain the integrity of your HVAC system.
Refrigerating Bread Dough Overnight: Tips for Perfect Results Every Time
You may want to see also
Explore related products
Refrigerant Flow Restrictions
The tightness of a refrigerant lineset coil directly impacts system performance, and understanding the limits is crucial for HVAC technicians and installers. Refrigerant flow restrictions can lead to reduced cooling capacity, increased energy consumption, and even system failure. When a lineset is coiled too tightly, the internal diameter of the bend is reduced, causing turbulence and increased friction, which in turn raises the pressure drop across the line. This effect is more pronounced in smaller diameter lines, such as those used in mini-split systems, where even a slight reduction in diameter can significantly impede refrigerant flow.
Consider the following scenario: a technician needs to install a 10-foot lineset with a ¼-inch diameter in a confined space. The manufacturer recommends a minimum bending radius of 6 inches to prevent kinking and ensure optimal flow. However, due to spatial constraints, the technician coils the lineset to a 4-inch radius. This reduction in radius decreases the effective cross-sectional area by approximately 25%, leading to a proportional increase in pressure drop. Over time, this restriction can cause the system to work harder, reducing its efficiency and potentially leading to compressor damage.
To avoid such issues, follow these practical steps: first, always refer to the manufacturer’s guidelines for the minimum bending radius of the specific lineset being used. Second, plan the installation route carefully to minimize sharp bends and unnecessary coiling. Third, use bending tools designed for refrigerant lines to achieve smooth, consistent curves without kinking. For example, a line bender with a radius of 6 inches or greater is ideal for most residential linesets. Lastly, after installation, perform a pressure drop calculation or use a flow meter to verify that the refrigerant flow is within acceptable limits.
A comparative analysis of tightly coiled vs. properly bent linesets reveals significant performance differences. A lineset coiled to 75% of its recommended bending radius may experience a 30-50% increase in pressure drop, depending on the refrigerant type and flow rate. In contrast, adhering to the manufacturer’s guidelines typically results in less than a 10% increase. This highlights the importance of precision in installation, as even small deviations can have substantial consequences. For instance, R-410A, a common refrigerant, is more sensitive to pressure drops than R-22, making strict adherence to bending radii even more critical in modern systems.
In conclusion, refrigerant flow restrictions caused by overly tight lineset coils are preventable with careful planning and adherence to guidelines. Technicians must balance spatial constraints with system performance, ensuring that bends meet minimum radius requirements. By doing so, they can maintain optimal efficiency, extend equipment lifespan, and avoid costly repairs. Remember, a properly installed lineset is not just about fitting the space—it’s about ensuring the system operates as designed, delivering reliable cooling without unnecessary strain.
Cutting 134a Refrigerant in Half: Safe Practice or Risky Move?
You may want to see also
Explore related products
Coiling Impact on Efficiency
The tightness of a refrigerant lineset coil directly affects system efficiency, primarily through increased friction and pressure drop. As the coil radius decreases, the refrigerant encounters more resistance, requiring the compressor to work harder. This not only increases energy consumption but also reduces the overall cooling capacity. For instance, a lineset coiled to a radius of 6 inches can experience up to a 20% increase in pressure drop compared to a straight run, according to HVAC industry standards. Such inefficiencies can lead to higher operational costs and premature system wear.
To mitigate efficiency losses, follow these practical guidelines when coiling linesets. First, maintain a minimum bending radius of 3 to 5 times the diameter of the tubing, depending on the refrigerant type and tubing material. For example, a ⅜-inch copper lineset should have a coil radius of at least 1.5 to 2.5 inches. Second, avoid sharp bends by using a tubing bender rather than manual force. Third, limit the total length of coiled sections to no more than 10% of the overall lineset run. Adhering to these practices ensures optimal refrigerant flow and minimizes energy waste.
Comparing tightly coiled linesets to properly installed ones highlights the efficiency trade-offs. A system with a lineset coiled too tightly may exhibit symptoms like reduced cooling performance, higher utility bills, and frequent compressor cycling. In contrast, a lineset with appropriate coiling maintains steady refrigerant flow, resulting in consistent cooling and lower energy consumption. For example, a residential HVAC system with a correctly coiled lineset can achieve up to 15% better efficiency compared to one with excessive bending, as demonstrated in field studies.
Finally, consider the long-term implications of improper coiling on system lifespan and maintenance. Tightly coiled linesets not only reduce efficiency but also increase the risk of refrigerant leaks and tubing fatigue. Over time, this can lead to costly repairs or premature system replacement. To avoid these issues, inspect linesets during installation and routine maintenance, ensuring they meet manufacturer specifications. By prioritizing proper coiling practices, you can maximize efficiency, extend system longevity, and reduce operational costs.
Refrigerated Pork Chops Past Expiration: Safe to Eat or Toss?
You may want to see also
Explore related products
Material Stress Concerns
The minimum bending radius of a refrigerant lineset is a critical factor in preventing material stress and ensuring system longevity. Copper linesets, commonly used in HVAC systems, have a recommended minimum bending radius of 3 to 5 times the tube’s outer diameter. For example, a 3/8-inch line should not be coiled tighter than a 1.5- to 2.5-inch radius. Exceeding this limit risks kinking, which can restrict refrigerant flow, reduce efficiency, and even cause system failure. Always measure the radius before bending to avoid overstressing the material.
Material fatigue is another concern when coiling refrigerant linesets, particularly in systems subjected to vibration or frequent thermal cycling. Repeated bending and unbending, even within the recommended radius, can lead to microfractures in the lineset over time. This is especially true for thinner-walled copper tubing, which is more susceptible to fatigue than thicker-walled alternatives. To mitigate this, consider using pre-insulated linesets with reinforced outer jackets or installing vibration dampeners near the coil. Regular inspections for cracks or deformations are also essential, particularly in high-stress environments.
The type of refrigerant and operating pressures further influence how tightly a lineset can be coiled. High-pressure refrigerants like R-410A exert greater stress on the tubing walls, reducing the allowable bending radius compared to lower-pressure alternatives like R-22. For instance, linesets carrying R-410A should be coiled with a radius at least 20% larger than those for R-22 to account for the increased pressure. Always consult the manufacturer’s guidelines for specific refrigerant compatibility and pressure ratings before bending or coiling linesets.
Temperature fluctuations play a significant role in material stress, particularly in outdoor installations where linesets are exposed to extreme weather. Copper expands and contracts with temperature changes, and tight coils can amplify this movement, leading to strain or cracking. In regions with temperature swings exceeding 50°F (28°C), consider using flexible linesets or adding expansion loops to accommodate thermal expansion. Additionally, avoid coiling linesets in areas prone to direct sunlight or freezing conditions, as these can exacerbate material stress.
Finally, improper handling during installation is a common cause of material stress in coiled linesets. Dragging, twisting, or forcibly bending the tubing can introduce weak points that compromise its integrity. Always use appropriate tools, such as tube benders, and support the lineset along its entire length during bending. If coiling is unavoidable, do so gradually and evenly, ensuring the radius remains within the recommended limits. Post-installation, test the system for leaks and inspect the coils for any signs of deformation or stress before finalizing the setup.
Refrigerator Bulk Fermentation: Mastering Slow Sourdough Rise for Perfect Bread
You may want to see also
Explore related products
Manufacturer Guidelines Overview
Manufacturers universally emphasize the critical relationship between lineset diameter and bending radius to prevent kinking or crushing during installation. For copper linesets, a common rule of thumb is to maintain a minimum bending radius of 3 to 5 times the tube’s outer diameter. For example, a ¼-inch lineset should be coiled with a radius no tighter than 1.5 inches. Exceeding this threshold risks damaging the inner rifling, which disrupts refrigerant flow and compromises system efficiency. Always consult the specific manufacturer’s guidelines, as materials like aluminum or pre-insulated linesets may have stricter requirements due to varying wall thicknesses and flexibility.
While diameter-to-radius ratios provide a baseline, manufacturers often include additional constraints based on lineset length and refrigerant type. For instance, longer linesets (over 50 feet) may require a larger bending radius to account for increased stress during coiling. Systems using R-410A refrigerant, which operates at higher pressures, typically demand more rigid handling to avoid deformation. Some manufacturers provide charts correlating lineset size, refrigerant type, and maximum allowable bends per foot. Ignoring these specifications can void warranties and lead to premature system failure, particularly in high-pressure applications.
Practical installation tips from manufacturers often highlight the importance of using proper tools and techniques. Hand-bending should be avoided for linesets larger than ⅜ inch, as it increases the risk of uneven pressure and microfractures. Instead, use a tube bender with a mandrel to ensure consistent curvature. Manufacturers also advise against coiling linesets immediately after removing them from packaging, as residual coiling from shipping can weaken the material. Allow the lineset to relax for at least 24 hours in a straightened position before bending to its final configuration.
A comparative analysis of guidelines from leading manufacturers reveals both consistency and variation. For example, Carrier and Trane align closely on bending radii for copper linesets but differ in their recommendations for pre-insulated linesets, with Trane advising a 10% larger radius to protect the insulation layer. Daikin, on the other hand, provides detailed instructions for multi-port linesets, emphasizing the need to stagger bends to prevent overlapping and pressure points. These nuances underscore the importance of referencing the specific manufacturer’s documentation rather than relying on industry generalizations.
Finally, manufacturers stress the long-term implications of improper coiling, which extend beyond immediate system performance. A lineset coiled too tightly can experience reduced lifespan due to fatigue, leading to leaks or blockages years after installation. For commercial systems, where linesets often run hundreds of feet, the cumulative effect of minor bending errors can be catastrophic. Manufacturers recommend documenting bending radii and inspection points during installation to facilitate troubleshooting and warranty claims. This proactive approach not only ensures compliance but also safeguards the system’s integrity over its operational life.
Can All Refrigerant Recovery Tanks Safely Handle R134a?
You may want to see also
Frequently asked questions
A refrigerant lineset should not be coiled tighter than a radius of 6 to 8 times the diameter of the tubing to avoid kinking or damaging the lines.
Yes, tightly coiling the lineset can restrict refrigerant flow, increase pressure drop, and reduce system efficiency, leading to poor performance.
Yes, excessive bending or kinking from tight coiling can weaken the tubing, potentially leading to cracks or leaks in the lineset.
Yes, larger diameter linesets require a larger bending radius. Always follow manufacturer recommendations or industry standards (e.g., 6-8 times the tube diameter) for safe coiling.
