Adding 404A refrigerant to a cooler requires careful preparation and adherence to safety guidelines due to its high pressure and potential hazards. Before starting, ensure the system is properly evacuated and free of moisture, as 404A is sensitive to contaminants. Use a refrigerant manifold gauge set to monitor pressure and a scale to accurately measure the amount of refrigerant being added. Always wear protective gear, including gloves and safety goggles, and work in a well-ventilated area. Begin by connecting the refrigerant cylinder to the low-pressure side of the system, then slowly open the valve to add the refrigerant while monitoring the system’s pressure and temperature. Avoid overcharging, as it can lead to inefficiency or damage to the cooler. If unsure, consult a certified HVAC technician to ensure the process is performed correctly and safely.
| Characteristics | Values |
|---|---|
| Refrigerant Type | R-404A |
| Application | Commercial and industrial refrigeration systems, including coolers |
| Required Tools | Refrigerant manifold gauge set, refrigerant cylinders, vacuum pump |
| Safety Precautions | Wear protective gear (gloves, goggles), ensure proper ventilation |
| System Preparation | Evacuate the system to remove moisture and air, check for leaks |
| Charging Method | Liquid or vapor injection depending on system design |
| Pressure Guidelines | Follow manufacturer’s specifications for low and high-side pressures |
| Temperature Conditions | Ambient temperature affects charging procedure |
| Environmental Impact | R-404A has high GWP (Global Warming Potential); consider alternatives |
| Regulatory Compliance | Adhere to local regulations (e.g., EPA, F-Gas) |
| Post-Charging Checks | Monitor system performance, check for leaks, and verify superheat/subcooling |
| Professional Recommendation | Certified HVAC/R technician recommended for handling R-404A |
Explore related products
What You'll Learn
- Safety Precautions: Wear protective gear, ensure proper ventilation, and follow refrigerant handling guidelines
- System Preparation: Turn off the cooler, evacuate air, and check for leaks before adding refrigerant
- Refrigerant Charging: Use a manifold gauge set to measure and add 404A refrigerant accurately
- Pressure Monitoring: Maintain correct pressure levels to avoid overcharging or undercharging the system
- Post-Charging Checks: Test the cooler for proper operation and verify refrigerant levels after charging
Safety Precautions: Wear protective gear, ensure proper ventilation, and follow refrigerant handling guidelines
Adding 404A refrigerant to a cooler is a task that demands precision and caution. Before you even think about opening a refrigerant cylinder, ensure you’re equipped with the right protective gear. Refrigerants like 404A can cause skin and eye irritation, frostbite, or respiratory issues if mishandled. Wear safety goggles, insulated gloves, and long-sleeved clothing to shield yourself from direct contact. A face shield is also recommended if you’re working in close proximity to the refrigerant lines. These precautions aren’t optional—they’re essential to prevent injuries that can occur within seconds of exposure.
Proper ventilation is another critical aspect often overlooked. Refrigerants displace oxygen and can accumulate in poorly ventilated areas, leading to asphyxiation or chemical inhalation risks. Always work in an open or well-ventilated space, and use fans or exhaust systems to maintain airflow. If you’re working indoors, ensure the area is free of ignition sources, as 404A is flammable under certain conditions. A simple rule of thumb: if you can’t maintain a clear, breathable environment, postpone the task until you can.
Handling 404A refrigerant isn’t just about personal safety—it’s also about compliance with environmental and legal standards. Follow EPA guidelines for refrigerant recovery, recycling, and disposal. Use only certified recovery equipment to prevent accidental release into the atmosphere, which contributes to ozone depletion and global warming. Keep a refrigerant scale handy to measure the exact amount needed, typically based on the cooler’s specifications. Overcharging or undercharging can damage the system, so precision is key.
Lastly, educate yourself on emergency procedures. Know how to respond if refrigerant exposure occurs. In case of skin contact, immediately rinse with warm water for at least 15 minutes. If inhaled, move to fresh air and seek medical attention if symptoms persist. Keep a first-aid kit and a spill cleanup kit nearby, including absorbent materials and neutralizing agents. Being prepared isn’t just about following rules—it’s about ensuring you can act swiftly and effectively when something goes wrong.
In summary, adding 404A refrigerant isn’t a task to be taken lightly. Protective gear, proper ventilation, and adherence to handling guidelines aren’t mere suggestions—they’re safeguards that protect you, the environment, and the equipment. Approach the process with respect for the risks involved, and you’ll minimize the chances of accidents or long-term damage.
Upgrade Your RV Kitchen: A Guide to Installing a New Refrigerator
You may want to see also
Explore related products
System Preparation: Turn off the cooler, evacuate air, and check for leaks before adding refrigerant
Before adding 404A refrigerant to a cooler, proper system preparation is critical to ensure safety, efficiency, and compliance with industry standards. The first step is to turn off the cooler completely, allowing the system to stabilize and preventing accidental exposure to high-pressure components. This includes disconnecting power at the source to eliminate any risk of electrical hazards during the process. Failure to do this can lead to compressor damage or personal injury, as the system’s components are designed to operate under specific conditions that are disrupted when refrigerant is added.
Once the cooler is powered down, the next step is to evacuate the air from the system using a vacuum pump. This process removes moisture, non-condensable gases, and any residual air that could compromise the refrigerant’s performance. A deep vacuum of at least 500 microns is recommended to ensure the system is free of contaminants. Moisture, in particular, can react with 404A refrigerant to form acids, leading to corrosion and reduced system lifespan. Proper evacuation is a non-negotiable step, as it directly impacts the efficiency and longevity of the cooling system.
After evacuation, checking for leaks is essential to prevent refrigerant loss and ensure the system operates safely. Use an electronic leak detector or a soap solution to inspect all connections, valves, and coils for leaks. Even minor leaks can lead to significant refrigerant loss over time, reducing cooling efficiency and increasing operational costs. If leaks are detected, repair them before proceeding. Ignoring this step can result in repeated refrigerant additions, wasted resources, and potential environmental harm due to refrigerant emissions.
In summary, system preparation—turning off the cooler, evacuating air, and checking for leaks—is a foundational step in adding 404A refrigerant. Each phase serves a distinct purpose: de-energizing the system ensures safety, evacuation removes contaminants, and leak detection prevents future issues. Skipping or rushing these steps undermines the entire process, risking system damage, inefficiency, and compliance violations. By prioritizing thorough preparation, technicians can ensure a successful refrigerant addition and maintain optimal cooler performance.
Prevent GE Refrigerator Defrost Issues: Quick Fixes and Maintenance Tips
You may want to see also
Explore related products

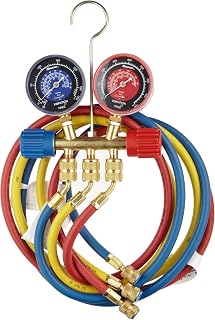

Refrigerant Charging: Use a manifold gauge set to measure and add 404A refrigerant accurately
Adding 404A refrigerant to a cooler requires precision, and a manifold gauge set is your indispensable tool for this task. This device allows you to monitor system pressures, ensuring the refrigerant is added accurately and safely. Before you begin, verify the cooler’s specifications to determine the correct charge amount, typically measured in pounds or ounces. Overcharging or undercharging can lead to inefficiency or damage, so the manifold gauge set acts as both a guide and a safeguard.
The process starts by connecting the manifold gauge set to the cooler’s service ports. Attach the blue hose to the low-pressure side and the red hose to the high-pressure side, leaving the yellow hose for the refrigerant cylinder. Open the manifold valves slowly to equalize pressure and confirm the system is functioning correctly. If the gauges indicate a vacuum, the system is ready for charging. If not, evacuate the system using a vacuum pump to remove moisture and air before proceeding.
Once the system is prepared, connect the yellow hose to the 404A refrigerant cylinder and open the valve slightly to allow the refrigerant to flow. Monitor the gauges closely, aiming for the manufacturer’s recommended pressure levels. For example, a typical cooler might require 2-3 pounds of 404A, but this varies based on size and design. Add the refrigerant gradually, pausing periodically to check the system’s performance and ensure even distribution.
Accuracy is paramount, but so is safety. Always wear protective gear, including gloves and safety goggles, as 404A can cause frostbite or injury if mishandled. Work in a well-ventilated area to avoid inhaling refrigerant fumes. If you’re unsure about any step, consult a professional to avoid costly mistakes or hazards.
In conclusion, using a manifold gauge set to add 404A refrigerant is a methodical process that demands attention to detail. By following these steps and adhering to safety precautions, you can ensure your cooler operates efficiently and prolong its lifespan. Precision in charging not only optimizes performance but also minimizes environmental impact, making it a responsible practice for any technician or DIY enthusiast.
Refrigerating Steamed Spinach: Optimal Storage Time and Tips
You may want to see also
Explore related products
Pressure Monitoring: Maintain correct pressure levels to avoid overcharging or undercharging the system
Adding 404A refrigerant to a cooler requires precision, and pressure monitoring is the linchpin of this process. Overcharging or undercharging the system can lead to inefficiency, damage, or even failure. The pressure-temperature relationship of 404A is critical: at 75°F (24°C), the saturated pressure should be approximately 155 PSI. Deviating from this benchmark risks compromising performance. For instance, overcharging increases head pressure, straining the compressor, while undercharging reduces cooling capacity and can lead to liquid slugging.
To monitor pressure effectively, use a manifold gauge set connected to the system’s low and high-side ports. Start by recording baseline pressures with the system running under normal conditions. When adding refrigerant, do so incrementally—no more than 2-3 ounces at a time—while continuously observing the gauges. For a typical medium-sized cooler, the target superheat (temperature difference between the suction line and saturated refrigerant temperature) is 10-15°F. Adjustments should be made slowly, allowing the system to stabilize for 5-10 minutes between additions to ensure accuracy.
A common mistake is relying solely on pressure readings without considering ambient temperature. For example, if the ambient temperature rises from 80°F to 95°F, the high-side pressure will increase naturally, which might be misinterpreted as overcharging. Always cross-reference pressure readings with the manufacturer’s pressure-temperature chart for 404A. Additionally, ensure the system is clean and free of debris, as contaminants can skew pressure readings and lead to misdiagnosis.
Pressure monitoring isn’t just about avoiding immediate issues—it’s about long-term system health. Overcharging by as little as 10% can reduce a cooler’s efficiency by up to 20%, while undercharging can lead to evaporator coil frosting and reduced airflow. Regularly inspect the sight glass for proper refrigerant flow; bubbles indicate undercharging, while a completely full sight glass suggests overcharging. By maintaining correct pressure levels, you ensure optimal heat transfer, energy efficiency, and the longevity of the cooler.
In practice, pressure monitoring is both an art and a science. It requires patience, attention to detail, and a systematic approach. Use digital gauges for higher accuracy, especially in systems with tight pressure tolerances. If in doubt, consult a certified HVAC technician, as improper handling of 404A can void warranties or violate safety regulations. Remember, the goal isn’t just to add refrigerant—it’s to achieve balance, where pressure, temperature, and flow work in harmony to deliver consistent cooling performance.
Refrigerators: Heat Removers or Silent Heat Adders Explained
You may want to see also
Explore related products
Post-Charging Checks: Test the cooler for proper operation and verify refrigerant levels after charging
After adding 404A refrigerant to your cooler, the job isn’t done—post-charging checks are critical to ensure the system operates efficiently and safely. Start by running the cooler for at least 15–20 minutes to allow the refrigerant to circulate fully. Observe the suction and discharge pressures using gauges; they should stabilize within the manufacturer’s specified range, typically 20–40 psi for low-side and 150–250 psi for high-side, depending on ambient temperature. If pressures remain unstable or fall outside these limits, it may indicate an overcharge, undercharge, or system issue requiring further investigation.
Next, verify the refrigerant level by checking the sight glass or liquid line for proper flow. A clear sight glass with occasional bubbles indicates a correctly charged system, while a constant stream of bubbles suggests undercharging, and no bubbles or a solid refrigerant column points to overcharging. Adjustments should be made incrementally, adding or recovering refrigerant in small amounts (e.g., 0.5–1 lb at a time) to avoid overcorrection. Always refer to the system’s capacity chart for precise refrigerant requirements.
While the cooler is running, inspect for leaks using an electronic leak detector or soapy water solution at fittings, valves, and connections. Even minor leaks can compromise performance and lead to refrigerant loss over time. If a leak is detected, isolate the area, recover the refrigerant, and repair the issue before recharging. Leaks not only waste refrigerant but also pose environmental and safety risks, making this step non-negotiable.
Finally, assess the cooler’s performance by checking temperature differentials and airflow. Measure the temperature drop across the evaporator coil; a typical range is 15–20°F, though this varies by system design. Ensure the evaporator and condenser coils are clean and free of debris, as fouling can reduce efficiency. Listen for unusual noises, such as hissing or rattling, which may indicate mechanical issues. Proper post-charging checks not only validate the refrigerant charge but also ensure the cooler operates reliably, extending its lifespan and maintaining optimal cooling performance.
Mastering HVAC: Accurate Refrigerant Charge Checking with Gauges Guide
You may want to see also
Frequently asked questions
First, ensure the system is properly evacuated and free of moisture. Connect the refrigerant cylinder to the low-pressure side of the system using a manifold gauge set. Slowly open the valve on the cylinder and monitor the gauges to maintain the correct pressure. Add refrigerant until the desired superheat or subcooling levels are achieved, following manufacturer guidelines.
Signs of low refrigerant include reduced cooling performance, longer run times, or frost buildup on the evaporator coils. Use a manifold gauge set to check the system pressure; if it’s below the recommended range for 404A, refrigerant may need to be added. Always consult the system’s specifications or a professional for accurate diagnosis.
Adding refrigerant requires proper training and equipment due to safety and environmental regulations. If you’re not EPA-certified, it’s best to hire a licensed HVAC technician. Mishandling refrigerants can lead to system damage, personal injury, or legal penalties. Always prioritize safety and compliance.
