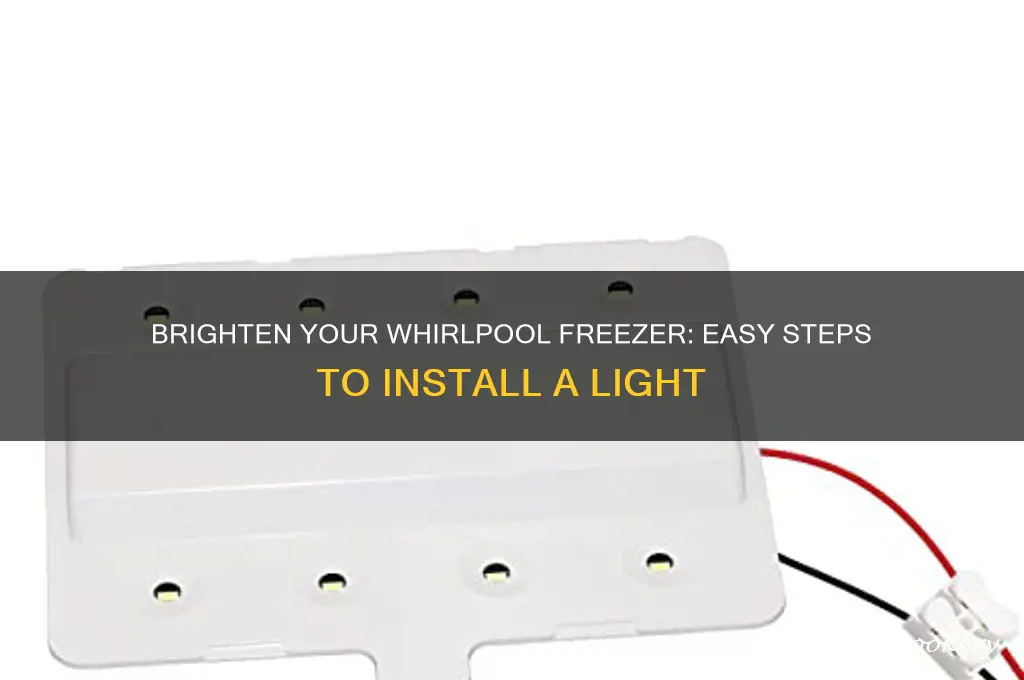

Adding a freezer light to your Whirlpool refrigerator can enhance visibility and convenience, especially when accessing items in low-light conditions. While many Whirlpool models come equipped with lighting, older units or specific designs may lack this feature. Installing a freezer light involves identifying the correct type of bulb or LED compatible with your refrigerator, ensuring it fits the existing socket or wiring harness. You’ll also need to follow safety precautions, such as unplugging the appliance and using insulated tools to avoid electrical hazards. This upgrade not only improves functionality but also adds a modern touch to your refrigerator, making it easier to locate items quickly and efficiently.
Explore related products
What You'll Learn
Tools and Materials Needed
Adding a freezer light to your Whirlpool refrigerator requires a blend of precision tools and compatible materials. Start with a voltage tester to ensure the power is off before you begin, preventing electrical mishaps. A screwdriver set—both Phillips and flathead—is essential for removing panels and securing components. For wiring, you’ll need 16-gauge stranded wire, which is flexible enough to fit into tight spaces yet durable for long-term use. A wire stripper is crucial for preparing the wire ends, ensuring clean connections without damaging the copper. Lastly, choose an LED light fixture rated for refrigerator use, as it operates efficiently in cold temperatures and consumes minimal energy.
Selecting the right materials is as critical as the tools themselves. Opt for a waterproof wire connector to safeguard against moisture buildup, a common issue in freezer environments. A heat shrink tubing kit is highly recommended to insulate wire connections, reducing the risk of short circuits. If your freezer has limited space, consider a low-profile light fixture designed to fit snugly without obstructing storage. For mounting, double-sided foam tape or small screws can secure the light in place, depending on your freezer’s interior material. Always verify compatibility with Whirlpool models to avoid voiding warranties or causing damage.
While the tools and materials are straightforward, their application demands attention to detail. For instance, when using a drill to create mounting holes, select a bit size that matches your screws precisely to prevent cracking the freezer’s interior lining. A multimeter is invaluable for testing continuity in the wiring circuit, ensuring the light will function reliably. If you’re unsure about electrical work, a wire connector kit with pre-insulated caps simplifies the process, reducing the chance of errors. Remember, the goal is not just to add a light but to do so safely and sustainably.
Finally, consider the long-term maintenance of your installation. Use silicone sealant to seal any gaps around the light fixture, preventing cold air leaks that could strain the refrigerator’s compressor. Keep a spare fuse on hand, as the additional electrical load might require one, depending on your model. For those with older Whirlpool units, a universal light socket adapter may be necessary to ensure compatibility with modern LED fixtures. By investing in the right tools and materials, you’ll not only enhance your freezer’s functionality but also ensure a professional-grade result that lasts for years.
