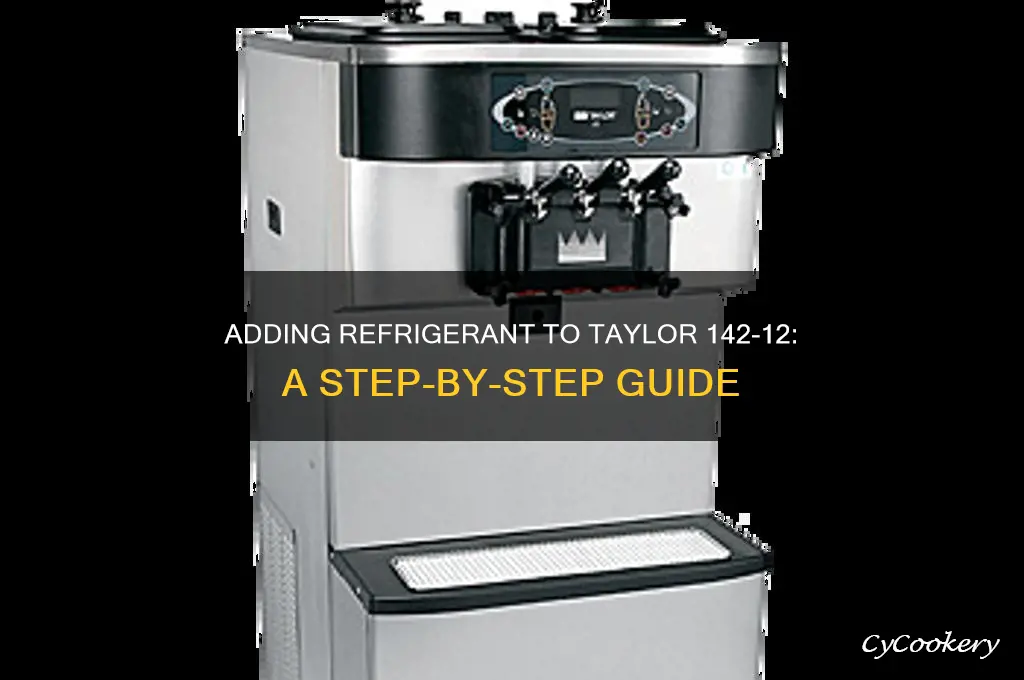

Adding refrigerant to a Taylor 142-12 soft serve ice cream machine requires careful attention to safety and precision to ensure optimal performance and longevity of the equipment. Before beginning, it is essential to verify that the system is properly evacuated and free of any contaminants, as improper handling can lead to damage or inefficiency. The process involves connecting a refrigerant manifold gauge set to the machine’s service ports, monitoring the pressure levels, and slowly adding the correct type and amount of refrigerant as specified by the manufacturer. It is crucial to follow Taylor’s guidelines and wear appropriate protective gear, as refrigerants can be hazardous if mishandled. Always consult the machine’s manual or seek professional assistance if unsure about any step in the process.
| Characteristics | Values |
|---|---|
| Model | Taylor 142-12 |
| Refrigerant Type | R-404A (or R-507, check unit specifications) |
| Required Tools | Refrigerant manifold gauge set, vacuum pump, refrigerant scale, wrenches |
| Safety Precautions | Wear protective gear (gloves, goggles), ensure proper ventilation |
| System Pressure (Normal Operation) | High side: 200-250 PSI, Low side: 10-20 PSI (varies with ambient temp) |
| Charging Procedure | 1. Evacuate system to 500 microns. 2. Weigh and add refrigerant slowly. |
| Refrigerant Capacity | Approximately 20-25 lbs (check unit label or manual for exact amount) |
| Charging Port Location | Typically on the high-pressure side (liquid line service valve) |
| Temperature Monitoring | Monitor evaporator coil temperature (should be 15-20°F for ice cream) |
| Post-Charging Steps | Check for leaks, verify proper operation, and adjust superheat if needed |
| Maintenance Tips | Regularly clean condenser coils, check fan operation, and monitor pressures |
| Troubleshooting | High suction pressure: overcharged; Low suction pressure: undercharged |
| EPA Certification | Required for handling refrigerants (Section 608 certification) |
| Manual Reference | Refer to Taylor 142-12 service manual for specific instructions |
Explore related products
What You'll Learn
Safety precautions before adding refrigerant to Taylor 142-12
Before adding refrigerant to a Taylor 142-12, ensure the system is powered off and unplugged to prevent electrical hazards. This simple step eliminates the risk of accidental activation, which could lead to injury or damage to the machine. Always prioritize safety by disconnecting power at the source, not just turning off the switch.
Analyzing the machine’s condition is critical. Inspect for leaks, corrosion, or damage to the refrigerant lines and components. Even a small leak can compromise the system’s efficiency and pose environmental risks. Use a refrigerant leak detector or soapy water to identify leaks before proceeding. Addressing these issues first ensures a safe and effective refrigerant addition process.
Personal protective equipment (PPE) is non-negotiable. Refrigerants like R-404A, commonly used in the Taylor 142-12, can cause skin and eye irritation or frostbite upon contact. Wear nitrile gloves, safety goggles, and long sleeves to protect yourself. Proper ventilation is equally essential; work in a well-ventilated area or use a respirator if necessary to avoid inhaling refrigerant fumes.
Finally, verify the correct refrigerant type and charge amount. The Taylor 142-12 typically requires R-404A, but always consult the manual or service tag for confirmation. Overcharging the system can lead to high head pressure, reduced efficiency, or even compressor failure. Use a reliable refrigerant scale to measure the charge accurately, adhering to the manufacturer’s specifications for optimal performance and safety.
Car AC Recharge Cost: How Much to Get Refrigerant in Your Vehicle
You may want to see also
Explore related products
Tools required for refrigerant addition in Taylor 142-12
Adding refrigerant to a Taylor 142-12 soft-serve machine requires precision and the right tools to ensure safety and efficiency. The process begins with a refrigerant gauge set, which is essential for monitoring pressure levels during the addition. This tool connects to the machine’s service ports and provides accurate readings, allowing you to avoid overcharging or undercharging the system. Without it, you risk damaging the compressor or creating inefficiencies in cooling performance.
Next, a vacuum pump is indispensable for removing moisture and air from the system before adding refrigerant. Moisture can freeze inside the lines, leading to blockages, while air reduces the refrigerant’s effectiveness. The vacuum pump should be capable of achieving a deep vacuum (below 500 microns) to ensure the system is clean and ready for refrigerant. Pairing the pump with a manifold gauge set streamlines the process, allowing you to control the vacuum and monitor progress simultaneously.
Refrigerant scales are another critical tool, especially when dealing with R-404A, the typical refrigerant for the Taylor 142-12. Accurate measurement ensures you add the correct amount, typically around 30-35 ounces for this model, depending on the system’s specifications. Overfilling can cause high head pressure, while underfilling results in inadequate cooling. Digital scales with high precision (within 0.1 ounces) are recommended for this task.
Finally, protective gear, such as gloves and safety goggles, is often overlooked but crucial. Refrigerants like R-404A can cause skin and eye irritation upon contact, and accidental leaks are not uncommon during handling. Additionally, a refrigerant cylinder with a compatible valve and hose is necessary for transferring the refrigerant into the system. Ensure the hose is free of leaks and properly insulated to prevent frost buildup during the transfer process.
In summary, the tools required for refrigerant addition in a Taylor 142-12 include a refrigerant gauge set, vacuum pump, refrigerant scales, protective gear, and a compatible refrigerant cylinder. Each tool plays a specific role in ensuring the process is safe, accurate, and effective. Skipping any of these could lead to system damage, inefficiency, or personal injury, making them indispensable for anyone undertaking this task.
Refrigerating Bagels with Cream Cheese: Best Practices for Freshness
You may want to see also
Explore related products
Locating the refrigerant port on Taylor 142-12
The Taylor 142-12 soft-serve ice cream machine relies on a precise refrigerant system to maintain optimal freezing temperatures. Before adding refrigerant, you must first locate the access port, a crucial step often overlooked in troubleshooting guides. This port is typically found on the rear panel of the machine, near the bottom, and is identified by a small cap or valve fitting. Familiarizing yourself with this location is essential, as it ensures you can safely and efficiently address refrigerant-related issues.
Analyzing the machine’s design reveals a thoughtful layout that prioritizes accessibility for maintenance tasks. The refrigerant port is strategically placed to minimize the risk of accidental damage during operation, yet remains reachable without disassembling major components. However, its position near the bottom requires careful maneuvering to avoid spills or contamination. A practical tip: use a flashlight to illuminate the area, as the port’s cap can blend into the machine’s exterior finish, especially in dimly lit environments.
Instructively, locating the port involves a systematic approach. Start by powering down the machine and unplugging it to ensure safety. Next, remove any panels or covers obstructing the rear panel, typically secured with Phillips-head screws. Once exposed, inspect the lower section for a brass or aluminum fitting, often labeled with "REFRIGERANT" or "R-404A," depending on the model. If the cap is missing or damaged, replace it immediately to prevent refrigerant leaks, which can compromise performance and pose environmental risks.
Comparatively, the Taylor 142-12’s refrigerant port design differs from some commercial ice cream machines, which may integrate the port into the side or top panels. This rear-mounted configuration is advantageous for space-saving installations but requires careful handling during refrigerant charging. For instance, unlike side-mounted ports, which allow for easier access in tight spaces, the rear port demands sufficient clearance behind the machine. Always ensure the area is well-ventilated to disperse any refrigerant fumes safely.
Descriptively, the port itself is a small, threaded fitting, typically 1/4-inch in diameter, designed to accept standard refrigerant charging hoses. Its cap is often color-coded or marked with a warning label to prevent accidental tampering. Over time, the fitting may develop corrosion or residue buildup, especially in humid environments. To address this, clean the port with a dry cloth and apply a light coating of refrigerant oil to ensure a secure seal when reconnecting the charging hose. This attention to detail ensures a smooth and efficient refrigerant addition process.
Power Outages: Potential Risks to Grocery Store Refrigerated Cases
You may want to see also
Explore related products
Proper refrigerant type and amount for Taylor 142-12
The Taylor 142-12 soft serve machine relies on R-404A refrigerant to maintain optimal freezing temperatures. This specific type is non-negotiable; using an alternative refrigerant can damage the system and void warranties. R-404A, a zeotropic blend of gases, offers a balance of efficiency and environmental impact, making it suitable for commercial refrigeration applications like the Taylor 142-12.
While the exact refrigerant charge varies based on factors like ambient temperature and machine condition, the Taylor 142-12 typically requires approximately 4.5 pounds of R-404A. Overcharging can lead to high head pressure, reduced efficiency, and potential compressor damage, while undercharging results in inadequate cooling and poor product consistency.
Determining the correct refrigerant charge isn't a guessing game. It requires the use of specialized tools and knowledge. A qualified HVAC technician should perform this task, utilizing a manifold gauge set to monitor pressure and temperature readings. They'll follow a precise procedure, including evacuating the system, pulling a vacuum, and slowly adding refrigerant while observing system performance.
Attempting to add refrigerant yourself without proper training and equipment is highly discouraged. Mishandling refrigerants poses safety risks and can lead to costly repairs. Always prioritize professional service to ensure the longevity and optimal performance of your Taylor 142-12.
Should You Refrigerate Jelly Masks? Skincare Tips and Best Practices
You may want to see also
Explore related products
Step-by-step guide to adding refrigerant to Taylor 142-12
Adding refrigerant to a Taylor 142-12 soft-serve ice cream machine requires precision and adherence to safety protocols. Begin by ensuring the machine is powered off and unplugged to prevent electrical hazards. The Taylor 142-12 uses R-404A refrigerant, a common choice for commercial refrigeration systems due to its efficiency and environmental compliance. Before proceeding, verify the system’s pressure using a manifold gauge set to confirm it is low enough to require additional refrigerant. Always wear protective gear, including gloves and safety goggles, as refrigerant exposure can cause skin and eye irritation.
The process starts with locating the service valves, typically found near the compressor. Attach the manifold gauge set to the low-side service valve, ensuring all connections are secure to prevent leaks. Gradually open the valve and monitor the gauge to assess the current pressure. If the pressure is below the recommended range (typically 60–70 PSI for R-404A in this system), proceed with adding refrigerant. Use a refrigerant cylinder with a charging hose, connecting it to the low-side service valve. Open the cylinder valve slowly to allow refrigerant to flow into the system, monitoring the gauge to avoid overcharging.
Dosage is critical; the Taylor 142-12 typically holds approximately 2.5–3 pounds of R-404A. Add refrigerant in small increments, pausing to check the system’s performance and pressure. Overcharging can lead to inefficiency, increased energy consumption, and potential damage to the compressor. Once the desired pressure is achieved, close the cylinder valve and disconnect the charging hose. Allow the machine to run for 15–20 minutes to stabilize, then recheck the pressure to ensure it remains within the optimal range.
Practical tips include keeping the refrigerant cylinder upright during charging to prevent liquid refrigerant from entering the system, which can cause damage. Additionally, always refer to the Taylor 142-12 manual for specific pressure guidelines and safety instructions. If unsure about any step, consult a certified HVAC technician to avoid costly mistakes. Proper refrigerant management not only ensures the machine’s longevity but also maintains the quality of the soft-serve ice cream it produces.
In conclusion, adding refrigerant to a Taylor 142-12 is a task that demands attention to detail and safety. By following these steps and adhering to manufacturer guidelines, you can effectively recharge the system and restore its performance. Regular maintenance, including monitoring refrigerant levels, is essential to keep the machine operating at peak efficiency.
CVS Refrigerator Supplier: Unveiling the Brand Behind Their Cooling Solutions
You may want to see also
Frequently asked questions
Check for symptoms like insufficient cooling, ice buildup, or longer-than-usual freeze times. Low refrigerant levels can cause these issues. Use a manifold gauge set to verify the system pressure before adding refrigerant.
The Taylor 142-12 typically uses R-404A refrigerant. Always confirm the correct refrigerant type from the unit’s specification plate or manual before proceeding.
Turn off the machine, allow it to depressurize, and connect a refrigerant manifold gauge set. Slowly add refrigerant through the low-pressure side while monitoring the gauge to reach the recommended pressure for the ambient temperature.
You’ll need a refrigerant manifold gauge set, refrigerant cylinder with R-404A, charging hoses, and safety gear (gloves, goggles). Ensure all tools are compatible with the refrigerant type.
Adding refrigerant requires knowledge of HVAC systems and safety precautions. If you’re unsure, it’s best to hire a certified technician to avoid damage to the unit or personal injury.
