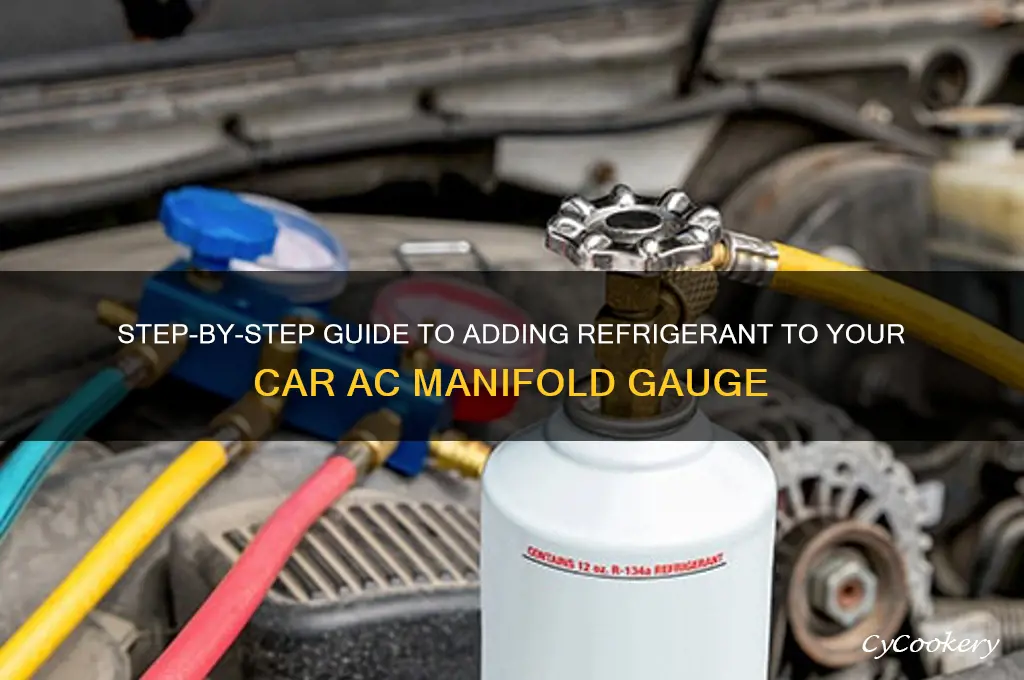

Adding refrigerant to a car’s AC system using a manifold gauge set is a precise process that requires careful attention to ensure safety and effectiveness. A manifold gauge set connects to the vehicle’s AC system, allowing you to monitor pressure levels and add refrigerant as needed. Before starting, it’s crucial to wear protective gear, ensure the AC system is free of leaks, and use the correct type of refrigerant specified for your vehicle. The process involves attaching the manifold gauges to the low and high-side service ports, evacuating any remaining air or moisture, and then slowly adding refrigerant while monitoring the gauges to maintain optimal pressure levels. Proper technique is essential to avoid overcharging the system, which can damage the AC components. Always refer to the vehicle’s manual and follow local regulations regarding refrigerant handling and disposal.
| Characteristics | Values |
|---|---|
| Required Tools | Manifold gauge set, refrigerant canister, gloves, safety goggles, AC service hoses |
| Refrigerant Type | R-134a (most modern vehicles), R-12 (older vehicles, requires conversion) |
| Pressure Readings | Low-side: 25-45 PSI (when AC is running), High-side: 150-250 PSI (varies by ambient temperature) |
| Safety Precautions | Wear gloves and goggles, avoid contact with skin, ensure proper ventilation |
| Steps | 1. Connect manifold gauge hoses to low-side and high-side ports 2. Start the vehicle and turn on AC to max 3. Monitor gauge readings 4. Attach refrigerant canister to manifold gauge 5. Slowly open the valve to add refrigerant 6. Monitor pressure until desired level is reached 7. Close valves and disconnect hoses |
| Environmental Considerations | Dispose of old refrigerant properly, avoid overcharging the system |
| Common Mistakes | Overfilling, using incorrect refrigerant type, not evacuating air properly |
| Professional Recommendation | Consult a certified technician if unsure or for complex systems |
| Cost of Refrigerant | $10-$50 per canister (R-134a), varies by brand and quantity |
| Frequency of Recharging | Typically every 2-3 years or when AC performance decreases |
| Legal Regulations | Must comply with EPA regulations for refrigerant handling and disposal |
Explore related products
What You'll Learn
- Prepare Tools and Safety Gear: Gather manifold gauge set, gloves, goggles, and refrigerant cans
- Locate AC Service Ports: Identify low-pressure and high-pressure ports on the AC system
- Connect Manifold Gauges: Attach hoses to ports and ensure tight, secure connections
- Monitor Pressure Levels: Observe gauges to check system pressure before adding refrigerant
- Add Refrigerant Safely: Slowly introduce refrigerant through the low-pressure port while monitoring
Prepare Tools and Safety Gear: Gather manifold gauge set, gloves, goggles, and refrigerant cans
Before attempting to add refrigerant to your car's AC system, it's crucial to assemble the necessary tools and safety gear. A manifold gauge set is the cornerstone of this process, allowing you to monitor pressure levels and ensure a precise refrigerant charge. This set typically consists of three hoses: one for the low-side service port, one for the high-side service port, and a third for the refrigerant can. Opt for a gauge set with clear, easy-to-read dials and durable hoses to minimize the risk of leaks.
Safety should never be an afterthought when working with refrigerants. Gloves, preferably made of nitrile or another chemical-resistant material, protect your skin from direct contact with the refrigerant, which can cause frostbite or chemical burns. Goggles shield your eyes from potential splashes or leaks, while long sleeves and pants provide an additional layer of protection. Ensure your work area is well-ventilated to avoid inhaling refrigerant fumes, which can be harmful or even fatal in high concentrations.
The refrigerant can itself is a critical component, but not all refrigerants are created equal. Modern vehicles typically use R-134a, while older models may require R-12 (though its use is largely phased out due to environmental concerns). Always verify your car’s AC system specifications before purchasing refrigerant. Cans often come with a built-in dispensing hose, but using a manifold gauge set provides greater control and accuracy. Be cautious of overcharging, as exceeding the recommended refrigerant level (usually 1.5 to 2 pounds for most vehicles) can damage the AC system.
Gathering these tools and safety gear is not just a preparatory step—it’s a safeguard against potential hazards and errors. A manifold gauge set ensures you add refrigerant methodically, while safety gear protects you from the refrigerant’s inherent risks. By investing time in proper preparation, you not only protect yourself but also increase the likelihood of a successful and efficient AC recharge. Always double-check your tools and gear before starting to avoid mid-process interruptions or accidents.
Overfilling AC Refrigerant: Risks, Consequences, and How to Avoid Damage
You may want to see also
Explore related products
Locate AC Service Ports: Identify low-pressure and high-pressure ports on the AC system
The first step in adding refrigerant to your car's AC system using a manifold gauge set is locating the service ports. These ports are the gateways to your AC system, allowing you to monitor pressure, evacuate air and moisture, and add refrigerant. Think of them as the vital access points for diagnosis and maintenance.
Every AC system has two service ports: one for the low-pressure side and one for the high-pressure side.
Identifying the Ports:
- Location: Typically, you'll find these ports near the firewall (the metal wall separating the engine compartment from the passenger cabin) or on the AC lines themselves. Consult your car's manual for the exact location, as it varies by make and model.
- Size and Color: Low-pressure ports are usually larger in diameter and often have a blue cap, while high-pressure ports are smaller and often have a red cap. This color-coding is a helpful visual cue, but don't rely solely on it – always double-check.
- Labeling: Some vehicles have labels near the ports indicating "Low" and "High."
Why Port Identification Matters:
Connecting your manifold gauge set to the wrong port can have serious consequences. Adding refrigerant to the high-pressure side, for example, can lead to dangerous over-pressurization, potentially causing system damage or even injury. Conversely, connecting to the low-pressure side when the system is already low on refrigerant can result in inaccurate pressure readings and ineffective charging.
Pro Tip: If you're unsure about port identification, take a picture of your AC system and consult a mechanic or refer to online forums specific to your car model for confirmation.
Optimal Fridge Temperature: Keeping Your Food Fresh and Safe Inside
You may want to see also
Explore related products
Connect Manifold Gauges: Attach hoses to ports and ensure tight, secure connections
Connecting manifold gauges to your car's AC system is a critical step in adding refrigerant, and the integrity of these connections can make or break the process. Begin by identifying the three ports on your manifold gauge set: the low-pressure side (blue hose), the high-pressure side (red hose), and the center yellow hose for refrigerant charging. Match these hoses to the corresponding ports on your vehicle’s AC system—typically, the low-pressure port is near the firewall, and the high-pressure port is closer to the compressor. Ensure the hoses are free of debris and damage before proceeding.
Attaching the hoses requires precision and care. Start by threading the low-pressure hose (blue) onto the low-side service port and the high-pressure hose (red) onto the high-side port. Tighten each connection by hand first, then use an adjustable wrench to secure it firmly. Over-tightening can damage the ports, so apply just enough force to prevent leaks. The center yellow hose remains disconnected until you’re ready to add refrigerant. A common mistake is cross-threading the fittings, so align them carefully and turn slowly as you attach them.
Once the hoses are connected, inspect each joint for tightness. Even a minor leak can compromise the system’s efficiency and lead to refrigerant loss. A practical tip is to apply a small amount of soapy water to the connections and watch for bubbles, which indicate leaks. If bubbles appear, loosen the fitting, realign it, and tighten again. This step is especially crucial if your vehicle is older, as age and corrosion can make ports more prone to leaks.
Finally, open the valves on the manifold gauges to equalize pressure and prepare for refrigerant charging. Listen for hissing sounds, which signal leaks that need immediate attention. Properly connected hoses not only ensure a safe and effective refrigerant recharge but also protect your AC system from contaminants and pressure imbalances. Taking the time to secure these connections correctly is a small investment that pays off in long-term performance and reliability.
Can You Safely Refrigerate Your Travel Mug? Expert Tips Inside
You may want to see also
Explore related products
Monitor Pressure Levels: Observe gauges to check system pressure before adding refrigerant
Before adding refrigerant to your car's AC system, monitoring pressure levels is crucial. The manifold gauge set acts as your diagnostic tool, revealing the system's current state. Connect the gauges to the low and high-side ports, ensuring a secure fit to prevent leaks. Observe the gauges: the low-side gauge should read between 25-45 psi when the AC is running, while the high-side gauge typically ranges from 200-300 psi, depending on ambient temperature. These readings provide a baseline, indicating whether the system is undercharged, overcharged, or functioning optimally.
Analyzing the pressure readings requires understanding your vehicle’s specifications. Consult the owner’s manual or a reliable service guide to determine the manufacturer’s recommended pressure ranges for your specific make and model. For instance, a 2005 Honda Civic may have different optimal pressures than a 2018 Toyota Camry. If the low-side pressure is below 25 psi, the system is likely undercharged, but don’t rush to add refrigerant—low pressure could also signal a leak or clogged expansion valve. Conversely, high-side pressure exceeding 300 psi may indicate an overcharged system or a blockage in the condenser.
Adding refrigerant without verifying pressure levels can lead to costly mistakes. Overcharging the system increases pressure, straining components like the compressor and hoses, potentially causing leaks or failure. Undercharging, on the other hand, reduces cooling efficiency and can lead to compressor damage due to insufficient lubrication. For example, adding 8 ounces of refrigerant to a system already at 40 psi on the low side could push it into the overcharged range, voiding warranties and shortening the AC’s lifespan. Always compare gauge readings to the recommended values before proceeding.
Practical tips can streamline the monitoring process. Start the engine and set the AC to maximum cooling with the fan on high to stabilize pressure readings. Allow the system to run for 5-10 minutes before taking measurements, ensuring accurate results. If the ambient temperature exceeds 85°F, high-side pressures may naturally rise, so adjust expectations accordingly. For older vehicles (10+ years), consider checking for leaks using a UV dye kit before interpreting pressure readings, as age-related wear increases the likelihood of refrigerant escape.
In conclusion, monitoring pressure levels is not just a preliminary step—it’s the foundation of safe and effective refrigerant addition. Misinterpreting gauge readings or ignoring manufacturer guidelines can turn a simple task into a costly repair. By observing pressures, analyzing deviations, and applying practical tips, you ensure the AC system operates efficiently without risking damage. Always prioritize accuracy and caution, treating the manifold gauge as your trusted guide in this process.
Easy Steps to Clean Your Whirlpool Fridge Drip Pan
You may want to see also
Explore related products
Add Refrigerant Safely: Slowly introduce refrigerant through the low-pressure port while monitoring
Adding refrigerant to a car's AC system is a delicate process that requires precision and caution. The low-pressure port, typically located on the suction line between the evaporator and compressor, is the designated entry point for refrigerant. This port is designed to handle the lower pressures associated with the suction side of the AC system, making it safer and more effective for introducing refrigerant. When preparing to add refrigerant, ensure the AC system is running and set to maximum cooling with the fan on high. This activates the compressor, creating a vacuum that facilitates the flow of refrigerant into the system.
The rate at which refrigerant is introduced is critical to the success and safety of the process. Slowly open the valve on the refrigerant can, allowing the gas to enter the system at a controlled pace. A sudden surge of refrigerant can overwhelm the compressor, leading to inefficiency or damage. As a general guideline, aim to add refrigerant at a rate of 1-2 ounces every 1-2 minutes, depending on the system's capacity and the severity of the undercharge. This gradual approach ensures the refrigerant mixes properly with the existing charge, maintaining optimal pressure levels throughout the system.
Monitoring the system during refrigerant addition is equally important. Use the manifold gauge set to observe the low-side pressure, which should ideally fall within the manufacturer’s specified range, typically between 25-45 PSI for most vehicles. If the pressure rises too quickly or exceeds the recommended limit, stop adding refrigerant immediately. Overcharging the system can cause high-side pressure to spike, potentially leading to component failure or even an explosion in extreme cases. Additionally, watch for frost or ice buildup on the suction line, which indicates an overcharge or moisture contamination.
Practical tips can further enhance safety and efficiency. Always wear protective gloves and goggles when handling refrigerant, as it can cause skin and eye irritation. Ensure the refrigerant can is upright to prevent liquid refrigerant from entering the system, which can damage the compressor. If using a self-sealing can with a hose, attach it securely to the low-pressure port to prevent leaks. For vehicles with older AC systems or those using R-12 refrigerant, consult a professional, as these systems require specialized handling and conversion kits. By following these steps and precautions, you can safely and effectively add refrigerant to your car’s AC system, restoring its cooling performance without risking damage.
Scrap Refrigerator Value: How Much Can You Earn?
You may want to see also
Frequently asked questions
The first step is to ensure the AC system is properly evacuated and free of moisture or contaminants. Connect the manifold gauge set to the low-pressure (suction) and high-pressure (liquid) ports of the AC system.
Check your vehicle’s owner’s manual or the AC system label under the hood to identify the correct refrigerant type, typically R-134a or R-1234yf. Using the wrong refrigerant can damage the system.
Turn on the AC to the lowest temperature and highest fan speed. Open the valve on the refrigerant can and slowly add refrigerant through the low-pressure side of the manifold gauge while monitoring the gauge readings to avoid overcharging.
Stop adding refrigerant when the gauge reads within the recommended pressure range for your vehicle’s AC system, typically found in the owner’s manual. Overcharging can cause damage, so monitor the gauge closely during the process.
