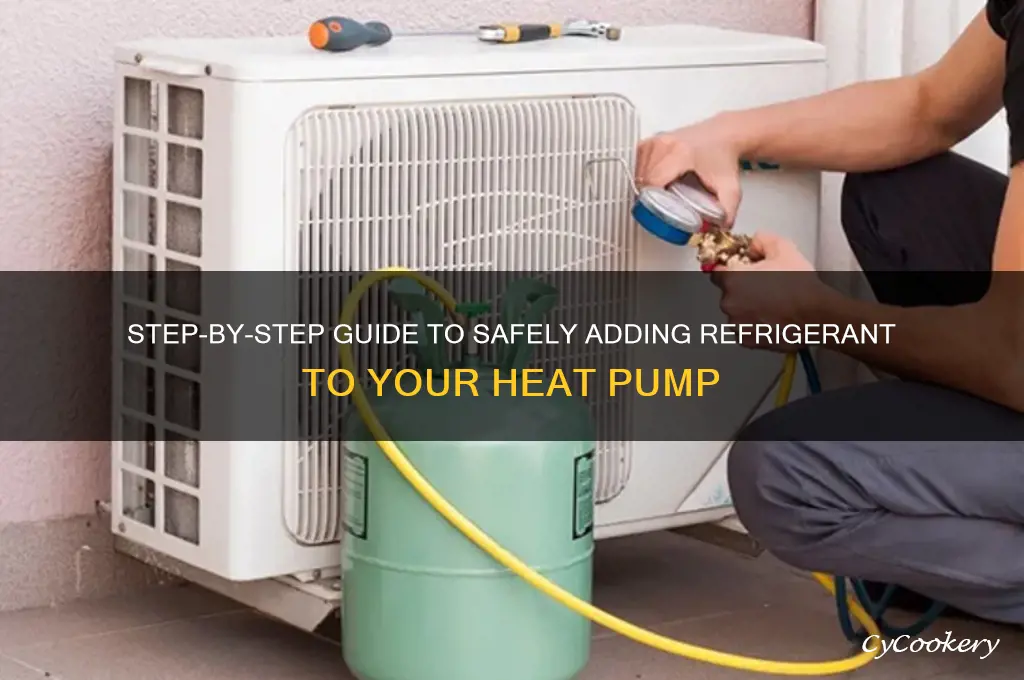

Adding refrigerant to a heat pump is a critical task that requires precision and expertise to ensure optimal performance and efficiency. Heat pumps rely on the correct amount of refrigerant to transfer heat between indoor and outdoor environments, and improper levels can lead to reduced efficiency, system damage, or even failure. Before attempting to add refrigerant, it is essential to diagnose the system for leaks or other issues, as simply adding refrigerant without addressing the root cause can exacerbate problems. This process typically involves using specialized tools such as gauges, recovery equipment, and vacuum pumps, and it should only be performed by a certified HVAC technician to comply with safety regulations and environmental standards. Understanding the specific type and amount of refrigerant required for your heat pump model is also crucial, as using the wrong refrigerant can cause irreversible damage.
| Characteristics | Values |
|---|---|
| Required Tools | Refrigerant manifold gauge set, refrigerant scale, vacuum pump, torque wrench, refrigerant cans/tanks |
| Safety Precautions | Wear protective gear (gloves, goggles), ensure proper ventilation, avoid skin/eye contact with refrigerant |
| System Preparation | Turn off the heat pump, allow system to cool, check for leaks using electronic leak detector |
| Evacuation Process | Connect vacuum pump to service valves, evacuate system to 500 microns or less for at least 30 minutes |
| Refrigerant Type | Use manufacturer-recommended refrigerant (e.g., R-410A, R-22, R-32) |
| Charging Method | Liquid or vapor charging based on system requirements and ambient conditions |
| Charging Procedure | Connect refrigerant tank to gauge set, open valves slowly, monitor gauge readings, add refrigerant until target superheat/subcooling is achieved |
| Target Superheat/Subcooling | Varies by system; typically 10-15°F superheat for cooling, 10-15°F subcooling for heating |
| Pressure Readings | Refer to manufacturer’s specifications for high/low side pressure ranges based on outdoor temperature |
| Post-Charging Steps | Check for leaks, verify proper operation, ensure correct airflow and thermostat settings |
| Environmental Compliance | Follow local regulations for refrigerant handling and disposal (e.g., EPA Section 608 certification) |
| Professional Assistance | Recommended for complex systems or if unsure about the process; improper charging can damage the system |
| Frequency of Charging | Only when low refrigerant is confirmed (e.g., via low pressure, frost buildup, reduced performance) |
| Cost of Refrigerant | Varies by type; R-410A is common but expensive; R-22 is phased out in many regions |
| System Compatibility | Ensure refrigerant matches the system design; mixing types can cause damage |
| Documentation | Record refrigerant type, amount added, and system pressures for future reference |
Explore related products
What You'll Learn
- Safety Precautions: Wear protective gear, ensure proper ventilation, and follow manufacturer guidelines to avoid injury
- Checking System Pressure: Use gauges to measure pressure levels before adding refrigerant to avoid overcharging
- Locating Service Valves: Identify low-side and high-side valves for correct refrigerant access and charging
- Adding Refrigerant: Slowly charge the system while monitoring pressure and temperature for accuracy
- Leak Detection: Perform a leak test post-charging to ensure system integrity and efficiency
Safety Precautions: Wear protective gear, ensure proper ventilation, and follow manufacturer guidelines to avoid injury
Adding refrigerant to a heat pump is not a DIY task for the faint-hearted. It involves handling chemicals under pressure, which can lead to severe injuries if mishandled. Before even considering this task, ensure you are equipped with the right protective gear. Gloves, safety goggles, and long-sleeved clothing are non-negotiable. Refrigerants can cause skin and eye irritation, and in extreme cases, frostbite. For instance, R-410A, a common refrigerant, can cause tissue damage upon contact with skin. Wearing protective gear acts as your first line of defense against such hazards.
Proper ventilation is another critical aspect often overlooked. Refrigerants are not only harmful upon direct contact but can also displace oxygen in enclosed spaces, leading to asphyxiation. Always work in an area with adequate airflow, preferably outdoors or in a well-ventilated workshop. If you must work indoors, use fans or open windows to maintain air circulation. A simple yet effective tip is to place a battery-operated carbon monoxide detector nearby to alert you to any dangerous gas buildup.
Manufacturer guidelines are your roadmap to safety and efficiency. Each heat pump model has specific requirements for refrigerant type, pressure levels, and charging procedures. Ignoring these can result in system damage or personal injury. For example, overcharging a system can lead to high-pressure cutouts or even component failure. Always refer to the user manual or service guide for precise instructions. If you’re unsure, consult a professional. The cost of a mistake far outweighs the expense of expert advice.
Let’s compare the risks of skipping safety precautions versus adhering to them. Without protective gear, a refrigerant leak could cause immediate skin or eye damage. Poor ventilation might lead to unconsciousness due to oxygen deprivation. Disregarding manufacturer guidelines could void warranties or create long-term system issues. Conversely, following safety protocols minimizes these risks, ensuring both your safety and the longevity of your heat pump. It’s a small investment of time and effort for significant peace of mind.
Instructively, here’s a step-by-step approach to integrating safety into the refrigerant charging process: First, don your protective gear before approaching the unit. Second, verify the workspace is well-ventilated and free from ignition sources, as some refrigerants are flammable. Third, locate the manufacturer’s guidelines and confirm the correct refrigerant type and charging procedure. Fourth, use a manifold gauge set to monitor pressure levels meticulously. Finally, double-check all connections and valves before initiating the charge. This structured approach ensures safety is woven into every step of the process.
