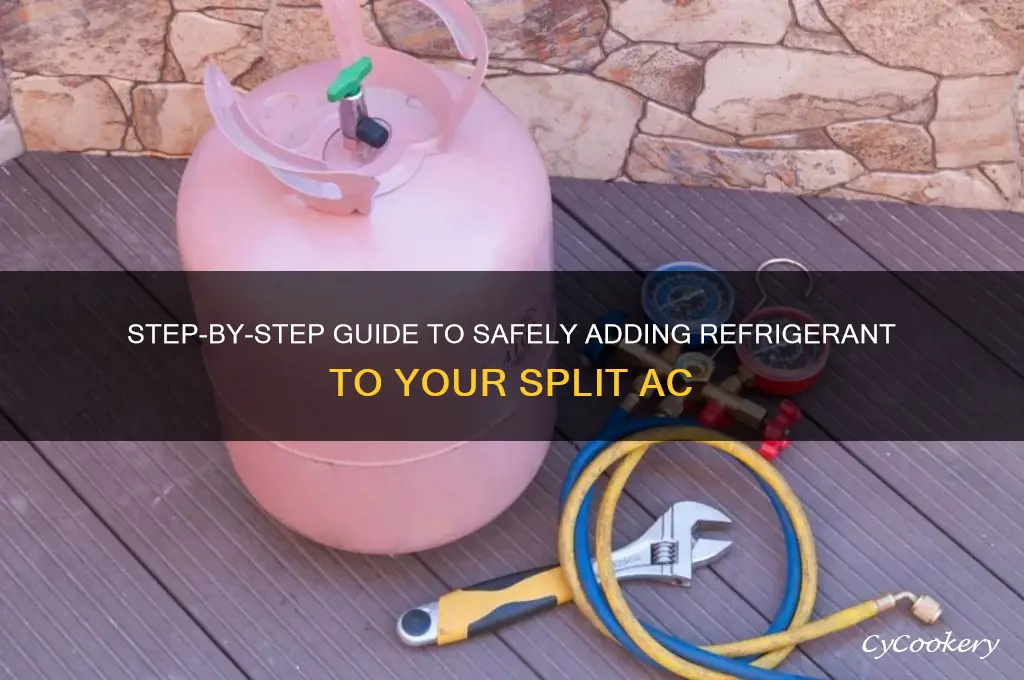

Adding refrigerant to a split AC system is a critical task that requires precision and caution, as improper handling can lead to system damage or safety hazards. Before starting, ensure the AC unit is turned off and the system is depressurized. Begin by identifying the correct type of refrigerant specified by the manufacturer, typically R-410A or R-22, and verify the system’s charge level using gauges to avoid overcharging. Connect the refrigerant cylinder to the low-pressure side of the system via a manifold gauge set, then slowly open the valve to allow refrigerant to flow into the unit while monitoring the pressure. Always wear protective gear and follow safety guidelines, and if unsure, consult a certified HVAC technician to ensure the process is done correctly and safely.
| Characteristics | Values |
|---|---|
| Required Tools | Refrigerant (specific type for your AC unit), refrigerant manifold gauge set, vacuum pump, wrenches, safety gear (gloves, goggles) |
| Safety Precautions | Work in a well-ventilated area, avoid contact with skin and eyes, ensure AC is turned off, follow manufacturer guidelines |
| Steps | 1. Locate the low-pressure port (usually marked with an "L") on the AC unit. 2. Connect the manifold gauge set to the low-pressure port. 3. Start the AC and let it run for a few minutes. 4. Open the refrigerant cylinder and slowly add refrigerant while monitoring the gauge. 5. Stop adding refrigerant when the gauge reaches the recommended pressure (consult manufacturer guidelines). 6. Disconnect the manifold gauge set and tighten the low-pressure port. |
| Refrigerant Type | R-410A (most common for modern split ACs), R-22 (phased out, check compatibility) |
| Pressure Guidelines | Varies by AC model and outdoor temperature; typically 60-80 psi for low-pressure side (consult manufacturer or AC manual) |
| Common Issues | Overcharging (high pressure, reduced efficiency), undercharging (low cooling capacity), leaks (check for hissing sounds or oil stains) |
| Professional Recommendation | Adding refrigerant requires technical knowledge; consult a certified HVAC technician if unsure |
| Environmental Impact | Refrigerants contribute to greenhouse gases; proper handling and disposal are crucial |
| Legal Considerations | In some regions, handling refrigerants requires EPA certification (e.g., U.S.) |
| Maintenance Tips | Regularly clean AC filters, check for leaks, and schedule professional inspections annually |
Explore related products
What You'll Learn
- Safety Precautions: Wear gloves, goggles; ensure proper ventilation; avoid skin/eye contact with refrigerant
- Locate Service Valves: Identify low-pressure port for refrigerant addition; usually marked with L or blue
- Connect Gauge Set: Attach manifold gauge set to service valves; ensure tight, secure connections
- Monitor Pressure Levels: Add refrigerant slowly while checking gauge readings; avoid overcharging the system
- Post-Addition Checks: Verify cooling performance, check for leaks, and ensure proper airflow
Safety Precautions: Wear gloves, goggles; ensure proper ventilation; avoid skin/eye contact with refrigerant
Refrigerants are hazardous chemicals that can cause severe skin and eye irritation, frostbite, or even respiratory issues if mishandled. Before attempting to add refrigerant to a split AC system, prioritize safety by wearing protective gear. Nitrile or rubber gloves provide a barrier against direct skin contact, while safety goggles shield your eyes from accidental splashes or leaks. This simple step significantly reduces the risk of chemical burns or long-term damage.
Proper ventilation is equally crucial when working with refrigerants. These substances can displace oxygen in enclosed spaces, leading to asphyxiation. Always perform refrigerant handling in well-ventilated areas, preferably outdoors or near open windows. If working indoors, use fans or exhaust systems to maintain airflow. Avoid inhaling refrigerant vapors, as they can cause dizziness, headaches, or more severe health complications.
Adding refrigerant requires precision and caution. Overcharging the system can lead to inefficiency, damage, or even explosions. Follow the manufacturer’s guidelines for the correct refrigerant type and dosage, typically measured in ounces or grams. Use a refrigerant scale or gauge to monitor the amount added, ensuring it aligns with the AC unit’s specifications. Never guess or estimate the quantity, as even small errors can have significant consequences.
In the event of accidental skin or eye contact with refrigerant, act swiftly. Rinse affected areas with lukewarm water for at least 15–20 minutes, removing contaminated clothing or jewelry as necessary. Seek medical attention immediately, even if symptoms seem minor. Prolonged exposure or delayed treatment can exacerbate injuries. Keep a first-aid kit nearby and familiarize yourself with emergency procedures before starting the task.
Finally, consider the environmental impact of refrigerant handling. Many refrigerants contribute to ozone depletion or global warming, so minimize leaks and dispose of excess properly. Use recovery equipment to reclaim refrigerant from the system if needed, and store it in approved containers. By adhering to these safety precautions, you not only protect yourself but also contribute to responsible AC maintenance practices.
