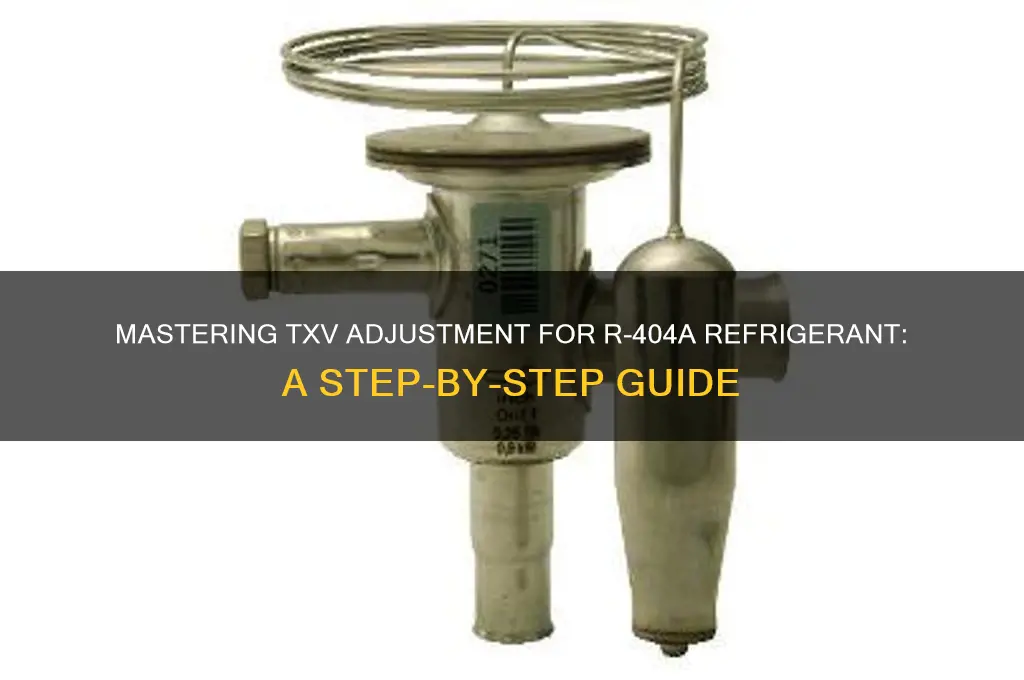

Adjusting a Thermostatic Expansion Valve (TXV) for R-404A refrigerant is a critical process to ensure optimal system performance and efficiency in refrigeration and air conditioning systems. The TXV regulates the flow of refrigerant into the evaporator, maintaining the correct superheat level, which is essential for proper heat exchange. When adjusting a TXV for R-404A, it’s important to first understand the system’s operating conditions, including evaporator temperature, condenser pressure, and refrigerant charge. Begin by measuring the superheat at the evaporator outlet and comparing it to the manufacturer’s recommended value. If the superheat is too high or too low, adjust the TXV stem gradually, turning it clockwise to decrease superheat or counterclockwise to increase it. Ensure the system is running under stable conditions during the adjustment process. Properly calibrated tools, such as a thermometer and pressure gauge, are essential for accurate measurements. Always refer to the system’s service manual for specific guidelines, as over-adjusting the TXV can lead to inefficiency or damage to the system.
| Characteristics | Values |
|---|---|
| Refrigerant Type | R-404A |
| TXV Adjustment Purpose | Optimize superheat to ensure proper refrigerant flow and system efficiency |
| Target Superheat Range | 10°F to 14°F (5.5°C to 7.7°C) |
| Adjustment Tool | TXV adjustment wrench or screwdriver |
| Adjustment Direction | Clockwise to decrease superheat, counterclockwise to increase superheat |
| Adjustment Increment | 1/8 to 1/4 turn at a time |
| System Conditions for Adjustment | System must be running at normal operating conditions |
| Measurement Tool | Thermometer or digital manifold gauge to measure superheat |
| Safety Precautions | Ensure system is off before accessing TXV; wear protective gear |
| Frequency of Adjustment | Only when superheat is outside the target range |
| Common Issues | Overcharging, undercharging, or incorrect TXV sizing |
| Professional Recommendation | Consult manufacturer guidelines or a certified HVAC technician |
Explore related products
What You'll Learn
- Understanding TXV Functionality: Learn how a TXV regulates refrigerant flow in HVAC systems
- Symptoms of TXV Maladjustment: Identify issues like freezing, low airflow, or high head pressure
- Tools Required for Adjustment: Gather manifold gauges, wrenches, and a temperature probe for calibration
- Step-by-Step Adjustment Process: Follow precise steps to adjust the TXV stem and body
- Post-Adjustment Testing: Verify system performance by checking superheat and refrigerant flow
Understanding TXV Functionality: Learn how a TXV regulates refrigerant flow in HVAC systems
The Thermostatic Expansion Valve (TXV) is a critical component in HVAC systems using refrigerants like R-404A, acting as the gatekeeper for refrigerant flow into the evaporator. Its primary function is to meter the refrigerant, ensuring it enters the evaporator at the correct temperature and pressure to maximize heat absorption while preventing liquid refrigerant from flooding the compressor. This delicate balance is achieved through a sensing bulb, a diaphragm, and a needle valve, all working in harmony to respond to changes in evaporator temperature and pressure. Understanding this mechanism is essential for anyone looking to adjust a TXV for optimal performance, especially with high-pressure refrigerants like R-404A.
Adjusting a TXV for R-404A refrigerant requires a systematic approach, beginning with an assessment of the system’s superheat—the difference between the actual temperature of the refrigerant vapor leaving the evaporator and its saturation temperature. Ideal superheat values for R-404A systems typically range between 10°F to 15°F, depending on the application. To adjust, locate the TXV’s adjustment stem, often found near the sensing bulb. Turning the stem clockwise increases superheat by restricting refrigerant flow, while counterclockwise decreases it. Use a digital thermometer to monitor the suction line temperature and pressure gauge to track system performance during adjustment. Small, incremental changes are key, as over-adjustment can lead to inefficient cooling or compressor damage.
A common misconception is that adjusting a TXV is a one-size-fits-all process, but R-404A’s unique properties demand precision. This refrigerant operates at higher pressures than R-22 or R-134a, making it more sensitive to flow restrictions. For instance, an undercharged system may mimic symptoms of a TXV needing adjustment, so verify refrigerant charge levels before proceeding. Additionally, ensure the sensing bulb is securely attached to the suction line and insulated to prevent ambient temperature interference. Proper insulation ensures the bulb accurately senses the refrigerant’s temperature, allowing the TXV to respond effectively to system demands.
Caution must be exercised when working with R-404A due to its high discharge temperatures and pressure differentials. Always wear appropriate PPE, including gloves and safety goggles, and ensure the system is depressurized before making adjustments. If unsure about the process, consult the manufacturer’s guidelines or seek professional assistance. Over-tightening the adjustment stem can damage the valve, while insufficient adjustment leads to inefficient heat exchange and increased energy consumption. Regular maintenance, including cleaning the evaporator coil and checking for refrigerant leaks, complements TXV adjustments to ensure long-term system reliability.
In conclusion, mastering TXV functionality and adjustment for R-404A refrigerant is a blend of technical knowledge and practical skill. By understanding the valve’s role in regulating refrigerant flow, monitoring superheat, and making precise adjustments, technicians can optimize HVAC system performance. This not only enhances cooling efficiency but also extends the lifespan of critical components, reducing operational costs and minimizing environmental impact. Whether troubleshooting or performing routine maintenance, a well-adjusted TXV is the cornerstone of a high-performing R-404A refrigeration system.
