Adjusting superheat in a refrigeration system is a critical process to ensure optimal performance, energy efficiency, and system longevity. Superheat refers to the temperature difference between the refrigerant vapor exiting the evaporator and its saturation temperature at the same pressure. Proper superheat adjustment prevents liquid refrigerant from returning to the compressor, which can cause damage, while also maximizing heat absorption in the evaporator. This involves monitoring the system’s operating conditions, measuring suction line temperatures and pressures, and adjusting the thermostatic expansion valve (TXV) or other metering devices accordingly. Accurate superheat control not only enhances cooling efficiency but also reduces wear on components, making it an essential skill for refrigeration technicians.
| Characteristics | Values |
|---|---|
| Definition of Superheat | The temperature difference between the refrigerant vapor at the outlet of the evaporator and its saturation temperature at the same pressure. |
| Purpose of Adjusting Superheat | Ensures proper refrigerant flow, prevents liquid refrigerant from entering the compressor, and optimizes system efficiency. |
| Ideal Superheat Range | Typically 8°F to 12°F (4°C to 7°C) for most refrigeration systems. |
| Tools Required | Thermometer, pressure gauge, wrench, screwdriver, superheat calculator (optional). |
| Steps to Adjust Superheat | 1. Measure suction pressure and temperature at the evaporator outlet. 2. Calculate superheat using the formula: Superheat = Temperature - Saturation Temperature. 3. Adjust the thermostatic expansion valve (TXV) or fixed orifice metering device to increase or decrease superheat. 4. Re-measure and repeat until desired superheat is achieved. |
| Adjusting TXV | Turn the adjustment stem clockwise to increase superheat (reduce refrigerant flow) or counterclockwise to decrease superheat (increase refrigerant flow). |
| Fixed Orifice Systems | Adjust superheat by changing the size of the orifice or using a different capillary tube. |
| Factors Affecting Superheat | Evaporator load, refrigerant charge, ambient temperature, and system design. |
| Common Mistakes | Overcharging the system, incorrect TXV adjustment, or misreading temperature/pressure gauges. |
| Safety Precautions | Wear protective gear, ensure system is off before adjustments, and follow manufacturer guidelines. |
| When to Adjust Superheat | During system installation, after repairs, or when performance issues (e.g., freezing coils, high suction pressures) are observed. |
| Impact of Incorrect Superheat | Low superheat: Liquid refrigerant slugging in the compressor. High superheat: Reduced capacity and efficiency. |
| Professional Assistance | Consult a certified HVAC/R technician for complex systems or persistent issues. |
Explore related products
What You'll Learn
Understanding Superheat Basics
Superheat is the temperature of a refrigerant vapor above its boiling point at a given pressure, a critical metric in refrigeration systems. It ensures that only vapor enters the compressor, preventing liquid refrigerant from causing damage. Understanding superheat basics begins with recognizing its dual components: sensible heat and latent heat. Sensible heat raises the refrigerant’s temperature to its boiling point, while latent heat transforms it from liquid to vapor. Proper superheat adjustment optimizes system efficiency, reduces wear on components, and ensures consistent cooling performance.
To measure superheat, technicians use two key temperatures: the suction line temperature (actual refrigerant vapor temperature) and the saturation temperature (boiling point at the system’s pressure). Subtract the saturation temperature from the suction line temperature to calculate superheat. For example, if the suction line reads 50°F and the saturation temperature is 35°F, the superheat is 15°. Ideal superheat values vary by system but typically range from 5°F to 20°F. Low superheat indicates potential liquid refrigerant entering the compressor, while high superheat suggests restricted refrigerant flow or inadequate heat absorption in the evaporator.
Adjusting superheat involves manipulating the refrigerant flow rate, typically by modifying the thermostatic expansion valve (TXV). The TXV controls how much refrigerant enters the evaporator coil based on the superheat level. If superheat is too low, adjust the TXV stem clockwise to reduce refrigerant flow, increasing superheat. If superheat is too high, turn the stem counterclockwise to allow more refrigerant, lowering superheat. Small adjustments are key—a quarter-turn can significantly impact performance. Always allow the system to stabilize for 10–15 minutes after each adjustment before remeasuring.
Practical tips for superheat adjustment include ensuring accurate temperature measurements with properly placed thermocouples and maintaining consistent system load conditions during testing. Ambient temperature and evaporator airflow also influence superheat, so account for these variables. For instance, reduced airflow over the evaporator coil can lead to higher superheat, mimicking a refrigerant restriction. Regularly cleaning coils and checking fan operation can prevent such issues. Understanding these factors allows technicians to diagnose and correct superheat problems efficiently, ensuring the system operates within optimal parameters.
In summary, mastering superheat basics is essential for maintaining refrigeration system health. By accurately measuring, analyzing, and adjusting superheat, technicians can prevent compressor damage, improve energy efficiency, and extend system lifespan. Remember, superheat is a dynamic metric influenced by multiple factors, so a systematic approach to adjustment and troubleshooting is crucial. With practice and attention to detail, achieving and maintaining proper superheat becomes second nature, contributing to reliable and efficient refrigeration performance.
Jacob Perkins' Revolutionary Invention: Building the First Practical Refrigerator
You may want to see also
Explore related products
Measuring Superheat Accurately with Tools
Accurate superheat measurement is the cornerstone of efficient refrigeration system performance. Even a 2°F error in superheat can translate to a 10% increase in energy consumption. This highlights the critical need for precise tools and techniques.
While various methods exist, the most reliable approach utilizes a combination of a digital manifold gauge set, thermocouples, and a psychrometric chart or superheat calculator.
Tools of the Trade:
- Digital Manifold Gauge Set: This essential tool measures suction pressure and temperature at the evaporator outlet. Opt for a model with high accuracy (±1% or better) and a wide temperature range to accommodate various refrigerants.
- Thermocouples: These temperature sensors are placed at the suction line near the evaporator outlet and at the compressor inlet. Type K thermocouples are commonly used due to their wide temperature range and affordability. Ensure proper insulation to prevent ambient temperature influence.
- Psychrometric Chart or Superheat Calculator: These tools relate saturation temperature, pressure, and superheat. Psychrometric charts are graphical representations, while calculators offer digital convenience.
Measurement Protocol:
- Stabilize the System: Allow the refrigeration system to run for at least 15 minutes to reach steady-state conditions.
- Record Pressures and Temperatures: Simultaneously record suction pressure from the manifold gauge set and temperatures at both thermocouple locations.
- Determine Saturation Temperature: Using the measured suction pressure, find the corresponding saturation temperature from the refrigerant's pressure-temperature chart.
- Calculate Superheat: Subtract the saturation temperature from the suction line temperature measured at the evaporator outlet. This difference represents the superheat.
Cautions and Considerations:
- Ambient Temperature Influence: Ensure thermocouples are well-insulated to minimize the impact of ambient temperature on readings.
- Thermocouple Placement: Position thermocouples securely and in good contact with the suction line for accurate temperature measurement.
- Refrigerant Type: Different refrigerants have unique pressure-temperature relationships. Always refer to the specific refrigerant's data sheet for accurate saturation temperature values.
Accurately measuring superheat is a fundamental skill for refrigeration technicians. By employing the right tools, following a systematic protocol, and being mindful of potential pitfalls, technicians can ensure optimal system performance, energy efficiency, and equipment longevity. Remember, precise superheat control is key to unlocking the full potential of any refrigeration system.
Top Places to Find Affordable Used RV Refrigerators for Sale
You may want to see also
Explore related products

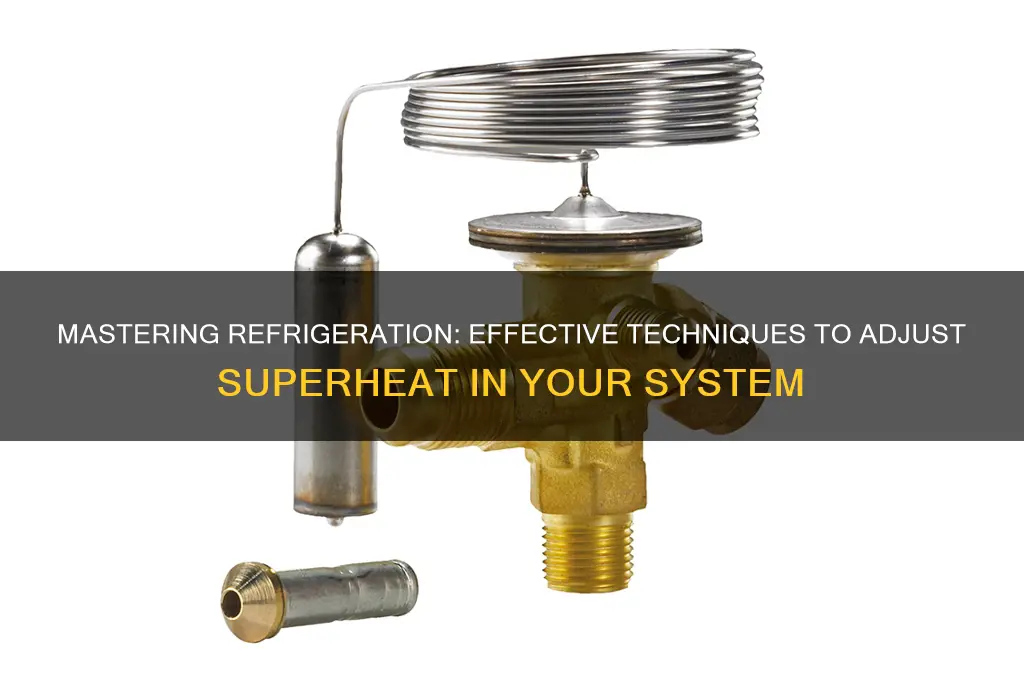

Adjusting TXV for Optimal Superheat
The thermostatic expansion valve (TXV) is a critical component in refrigeration systems, controlling refrigerant flow to maintain optimal superheat. Superheat, the temperature difference between the refrigerant vapor leaving the evaporator and the saturation temperature at the evaporator pressure, directly impacts system efficiency and performance. Adjusting the TXV to achieve the correct superheat ensures the evaporator is fully utilized without risking liquid refrigerant returning to the compressor, a condition known as floodback that can cause damage.
To adjust the TXV for optimal superheat, start by measuring the superheat value at the evaporator outlet. Use a thermocouple to measure the suction line temperature and a gauge to record the suction pressure. Convert the suction pressure to its corresponding saturation temperature using a refrigerant pressure-temperature chart. Subtract the saturation temperature from the actual suction line temperature to determine the current superheat. Most systems aim for a superheat range of 8°F to 12°F, though this can vary based on the refrigerant type and system design.
Once you’ve measured the superheat, locate the TXV adjustment stem, typically found near the valve body. Turning the stem clockwise increases the superheat by restricting refrigerant flow, while turning it counterclockwise decreases superheat by allowing more refrigerant to pass. Make small adjustments (approximately ¼ to ½ turn at a time) and allow the system to stabilize for 10–15 minutes before remeasuring superheat. Over-adjusting can lead to inefficient operation or liquid slugging, so patience and precision are key.
Consider environmental factors that influence superheat, such as ambient temperature and load conditions. For example, a system operating in a hot environment may require a slightly higher superheat setting to prevent floodback. Conversely, a system under light load might need a lower superheat to maintain efficiency. Regularly monitor and adjust the TXV to account for these variables, especially during seasonal transitions.
Finally, document all adjustments and measurements for future reference. Consistent superheat control not only extends the life of the compressor but also maximizes energy efficiency and cooling capacity. If adjustments fail to achieve the desired superheat, inspect the TXV for malfunctions, such as a stuck valve or faulty sensing bulb, and replace it if necessary. Proper TXV calibration is a cornerstone of refrigeration system maintenance, ensuring reliable performance and cost-effective operation.
Microwave Placement Tips: Can It Safely Sit on Your Fridge?
You may want to see also
Explore related products
Troubleshooting Common Superheat Issues
Superheat, the temperature increase of refrigerant vapor above its saturation point at the evaporator outlet, is critical for efficient refrigeration. Improper superheat levels can lead to system inefficiencies, component damage, or even system failure. Troubleshooting superheat issues requires a systematic approach, combining observation, measurement, and adjustment. Start by verifying the accuracy of your gauges and thermocouples, as faulty tools can lead to incorrect diagnoses. Ensure the system is operating under normal load conditions, as light or heavy loads can skew superheat readings.
One common issue is low superheat, which indicates that insufficient heat is being absorbed in the evaporator. This often results from restricted airflow, caused by dirty coils, clogged filters, or malfunctioning fans. Inspect and clean the evaporator coil, replace air filters, and verify fan operation. Another cause of low superheat is an oversized evaporator or a refrigerant charge that’s too high. If these factors are ruled out, check for liquid refrigerant flooding the evaporator, which can occur due to a malfunctioning expansion valve or a refrigerant charge issue. Adjust the charge or replace the valve as needed, ensuring the superheat value aligns with manufacturer specifications, typically 8–12°F for most systems.
Conversely, high superheat suggests the evaporator isn’t absorbing enough heat, often due to a low refrigerant charge or a restricted metering device. Begin by checking the refrigerant charge; if it’s low, add refrigerant incrementally while monitoring superheat. Be cautious not to overcharge, as this can lead to flooding. If the charge is correct, inspect the metering device (e.g., capillary tube or expansion valve) for restrictions or ice buildup, which can impede refrigerant flow. Thaw the suction line if ice is present and replace the metering device if necessary. High superheat can also result from inadequate heat load or a malfunctioning thermostatic expansion valve (TXV), which may require recalibration or replacement.
A comparative analysis of superheat issues reveals that both low and high superheat stem from imbalances in refrigerant flow or heat absorption. However, their root causes differ significantly. Low superheat often relates to external factors like airflow or charge, while high superheat typically involves internal system components like the metering device or TXV. Understanding these distinctions allows for targeted troubleshooting, reducing downtime and repair costs. For example, a technician encountering high superheat might first verify the charge before inspecting the TXV, whereas low superheat would prompt an immediate check of airflow and coil cleanliness.
In practical application, troubleshooting superheat requires patience and precision. Use a digital thermometer to measure suction line temperature and compare it to the pressure-temperature chart for the refrigerant in use. Adjustments should be made incrementally, allowing the system to stabilize after each change. For instance, when adding refrigerant to correct high superheat, add 2–4 oz. at a time, waiting 5–10 minutes between additions to observe the impact. Similarly, when addressing low superheat caused by airflow issues, clean the coil and filter, then monitor superheat for 15–20 minutes to ensure it stabilizes within the desired range. By following these steps and understanding the underlying causes, technicians can effectively resolve superheat issues and maintain optimal system performance.
Refrigerating Dried Shredded Coconut: Best Practices for Freshness and Storage
You may want to see also
Impact of Refrigerant Charge on Superheat
The refrigerant charge in a system directly influences superheat, a critical parameter for efficient and safe operation. An overcharged system restricts refrigerant flow, leading to inadequate heat absorption in the evaporator. This results in lower-than-desired superheat values, often below 5°F, indicating potential liquid refrigerant returning to the compressor—a condition known as floodback that can cause compressor damage. Conversely, an undercharged system allows excessive refrigerant vaporization, increasing superheat beyond optimal levels (typically 8–12°F for most systems). This reduces cooling capacity and efficiency, as the evaporator fails to utilize its full heat transfer surface.
To adjust superheat effectively, start by measuring suction pressure and temperature at the evaporator outlet. Calculate superheat by subtracting the saturation temperature (from the pressure-temperature chart) from the actual suction line temperature. For example, if suction pressure is 68 PSIG (saturation temperature ≈ 40°F) and suction line temperature is 50°F, superheat is 10°F. If superheat is too low, reduce the refrigerant charge incrementally, allowing 5–10 minutes between adjustments for the system to stabilize. If superheat is too high, add refrigerant in small increments (1–2 oz at a time for residential systems) while monitoring the temperature and pressure changes.
A common mistake is assuming that adding refrigerant will always lower superheat. In reality, an overcharged system can exhibit high superheat due to restricted flow, causing the evaporator to underperform. Always verify the charge by checking subcooling (liquid line temperature minus saturation temperature) simultaneously. Ideal subcooling ranges from 10–15°F; deviations indicate charging issues. For instance, low subcooling with high superheat suggests an undercharge, while high subcooling with low superheat points to overcharging.
Practical tips include using a digital manifold gauge set for accurate measurements and ensuring all service valves are fully open during adjustments. Avoid adjusting the charge during peak load conditions; instead, perform adjustments under steady-state operation. For systems with thermostatic expansion valves (TXVs), ensure the valve is functioning correctly, as a faulty TXV can mimic charging issues. Regularly clean the condenser and evaporator coils to maintain optimal heat exchange, as fouling can skew superheat readings and mask actual charging problems.
In summary, the refrigerant charge and superheat are interdependent, requiring careful balance for system efficiency. Overcharging or undercharging disrupts this balance, leading to inefficiency or damage. By systematically measuring, calculating, and adjusting the charge while considering subcooling and system conditions, technicians can achieve precise superheat control. This ensures the refrigeration system operates within its design parameters, maximizing performance and longevity.
Does Orange Juice Spoil Without Refrigeration? Facts and Tips
You may want to see also
Frequently asked questions
Superheat is the temperature difference between the refrigerant vapor leaving the evaporator and its saturation temperature at the same pressure. Adjusting superheat ensures proper refrigerant flow, prevents liquid slugging to the compressor, and maximizes system efficiency.
Measure superheat by taking the temperature of the suction line (refrigerant vapor) and the pressure at the evaporator outlet. Convert the pressure to its saturation temperature using a PT chart, then subtract the saturation temperature from the suction line temperature to find superheat.
You’ll need a thermocouple or digital thermometer to measure suction line temperature, a pressure gauge or manifold gauge set to measure evaporator pressure, and a PT chart or app to determine saturation temperature. Additionally, access to the thermostatic expansion valve (TXV) or metering device is required.
Loosen the adjustment screw on the TXV and turn it clockwise to increase superheat or counterclockwise to decrease it. Make small adjustments, wait for the system to stabilize, and remeasure superheat until the desired value is achieved. Tighten the screw once complete.
The typical superheat range is 8°F to 12°F (4°C to 7°C), depending on the system. Too high superheat reduces cooling capacity and efficiency, while too low superheat can lead to liquid refrigerant entering the compressor, causing damage. Always refer to the manufacturer’s specifications.
