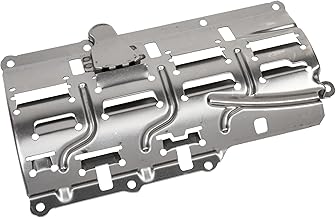

Baffled oil pans are a cost-effective solution for those who want to push their cars to the limit without compromising the lubrication system. In a standard wet sump system, oil is stored in the oil pan and sucked up to lubricate critical areas within the engine. However, during high-performance driving, the oil can slosh around, leading to oil starvation and potential engine failure. Baffled oil pans address this issue by incorporating chambers that restrict the oil's movement, ensuring it remains accessible to the pump. This simple modification can significantly improve the performance and reliability of a vehicle, making it a popular choice for automotive enthusiasts seeking an edge on the track or the road.
Characteristics | Values |
---|---|
Purpose | To prevent oil starvation and maintain lubrication under high-performance driving conditions |
Use case | Suitable for motorsports or track days where the engine is subjected to high g-forces for extended periods |
Alternative | Dry sump system used in racing series such as Formula 1, NASCAR, Indy, and American Le Mans |
Baffled oil pan design | Chambers that make it easy for oil to travel toward the oil pick-up but difficult for it to slosh around |
Baffled oil pan features | Compartments, square chamber for oil trap, trap doors, lips to prevent oil splash |
Benefits | Increased oil capacity, lower engine height, improved lubrication |
Construction material | Metal, aluminium |
Construction technique | Welding, fabrication |
What You'll Learn
Use cardboard to make a baffle pattern
Baffling an oil pan is a great way to prevent oil starvation and maintain lubrication under high-performance driving conditions. This is a common issue with the typical small-block Mopar open sump, where oil can slosh around and compromise the lubrication system.
To make a baffle pattern for your oil pan, you can use low-tech corrugated cardboard. This simple and cost-effective method will allow you to create a custom baffle that fits your specific oil pan. Here's a step-by-step guide:
Step 1: Measure and Mark the Cardboard
Place the cardboard over the sump and mark the outline of the sump on the cardboard. This will ensure that your baffle fits snugly over the sump. Make sure to allow for a turned-up flange along each side of the cardboard. This flange will help secure the baffle in place.
Step 2: Cut the Cardboard
Using scissors or a craft knife, carefully cut out the marked cardboard to create a lid for your sump. Ensure that the turned-up flanges are of equal length and width, creating a uniform edge around the baffle.
Step 3: Customise the Cardboard Baffle
Now, you need to customise the cardboard baffle to mimic the design of your stock big-block baffle. The front edge of the baffle should sit flush just below the floor at the front of the sump, while the rear edge should overlap the floor at the back. This design will help control the flow of oil and prevent it from sloshing around.
Step 4: Test Fit the Baffle
Before finalising your cardboard baffle, test fit it in your oil pan to ensure it sits securely and doesn't obstruct any components. Make any necessary adjustments to the baffle for a perfect fit.
Step 5: Transfer the Design to Sheet Metal
Once you're happy with the cardboard baffle, use it as a template to mark and cut your sheet metal. Transfer all the measurements and customisations to the sheet metal, ensuring a precise fit.
Step 6: Install the Sheet Metal Baffle
Finally, install the sheet metal baffle into your oil pan, following any necessary instructions for your specific vehicle.
By following these steps, you can create a custom oil pan baffle using cardboard as a pattern. This baffle will help control oil movement, prevent oil starvation, and improve lubrication, resulting in better performance and engine health.
Mastering Panning Shots on Your Phone: Cheap and Easy Tricks
You may want to see also
Ensure the baffle fits the sump
When installing an oil pan baffle, it is crucial to ensure that the baffle perfectly fits the sump to achieve optimal performance and avoid potential issues. Here are some detailed instructions and considerations to ensure a precise fit:
Firstly, it is important to select a baffle that is specifically designed for your vehicle's oil pan. Different vehicles have varying oil pan configurations, so choosing a baffle that is compatible with your specific make and model is essential. This ensures that the baffle aligns with the oil pan's compartments, the oil pump, and the oil pickup.
Before installation, carefully measure the dimensions of your oil pan and sump. Take into account the depth of the sump, the distance between the inlet and outlet pipes, and the diameter and depth of the sump structure. These measurements will guide you in selecting the appropriate baffle size and type.
When installing the baffle, pay close attention to its positioning within the sump. The baffle should be placed securely, ensuring it does not obstruct the inlet and outlet pipes. The top of the baffle should be slightly above the inlet pipe to effectively capture and direct the oil. Additionally, the bottom of the baffle should be positioned below the outlet pipe to facilitate proper oil flow.
In some cases, you may need to make adjustments to the baffle or the sump to achieve a precise fit. This could involve trimming the baffle to match the dimensions of your oil pan or making modifications to the sump itself. It is crucial to consult a professional or a mechanic if you are unsure about making any modifications.
It is also worth noting that some vehicles may require a custom-made baffle. If you cannot find a suitable off-the-shelf baffle, consider consulting a specialist who can fabricate a custom baffle that perfectly fits your vehicle's unique sump configuration. This option may be more expensive, but it ensures a precise fit and optimal performance.
Restore Your Ceramic Pan's Non-Stick Coating
You may want to see also
Make trap doors that only open inward
Trap doors in oil pans are a great way to control oil flow, and by making them open inwards, you can effectively manage the oil flow in multiple directions. Here are some steps and tips to make trap doors that only open inward:
Planning and Design:
First, you need to determine the number and placement of the trap doors. Consider the forces acting on the oil, such as acceleration, deceleration, and cornering forces. For example, in a drag racing oil pan, you may only need to control oil flow in the forward and backward directions, while in a road race pan, you also need to account for lateral forces during turns.
Materials and Assembly:
You can use aluminium for the trap doors, with a stainless steel pin and offset knuckle for smooth operation. To allow the doors to only open inward, you can use wired hinges instead of standard door hinges. These wired hinges will restrict the opening angle of the trap doors, preventing them from opening outward. The hinges should be small enough that they don't jam the doors open, but strong enough to withstand the forces acting on them.
Installation:
When installing the trap doors, ensure they are slightly open when no G-forces are applied, allowing oil to flow freely into the oil pump pickup area. You can attach the trap doors using rivets or screws with locking nuts. It is recommended to use 1/8" aluminium solid body (aircraft) rivets.
Testing and Adjustment:
Once the trap doors are installed, test the oil pan under various conditions to ensure the trap doors are functioning as intended. You may need to adjust the hinges or the opening angle to get the desired results.
Additional Considerations:
If you're building a custom oil pan, you can also incorporate other features such as side kick-outs to increase oil capacity, or a turbo drain bung. Additionally, some manufacturers offer pre-made oil pans with trap doors, such as Moroso, Improved Racing, and Punch-Out Performance, which can save you time and ensure optimal performance.
By following these steps and considerations, you can effectively make trap doors that only open inward for your oil pan, helping to control oil flow and improve performance, especially in racing applications.
Spaghetti Squash Simmered to Perfection in Your Hot Pot
You may want to see also
Prevent oil from splashing out with lips
Lips are an important feature of a baffled oil pan. They play a crucial role in preventing oil from splashing out of the pan and causing a mess or even safety hazards. These lips are strategically placed at the top of the chamber and on the sides, acting as barriers that keep the oil contained.
In a baffled oil pan, the oil is meant to travel through specific pathways, and the lips are part of this carefully designed system. By placing lips at key points, the oil is guided towards the oil pick-up chamber, ensuring that it is effectively trapped and directed where it needs to go. This prevents the oil from escaping and splashing onto other parts of the engine or the surrounding area.
The design of these lips is such that they allow oil to flow in one direction while making it difficult for the oil to move in the opposite direction. This unidirectional flow is essential in managing the movement of oil within the pan, especially under high g-forces or during rapid movements. By restricting the oil's movement, the lips help maintain a stable oil supply for the engine.
Additionally, the lips contribute to the overall increase in the oil pan's capacity. With the oil directed and trapped efficiently, more oil can be stored in the system. This is beneficial, especially for high-performance vehicles or racing cars, as it ensures a consistent supply of oil even under demanding conditions.
In summary, the lips on a baffled oil pan are a critical component in preventing oil from splashing out. They guide the oil towards the pick-up chamber, restrict its movement to one direction, and increase the overall oil capacity of the pan. This innovative design enhances the performance and reliability of the engine, making it a popular choice for car enthusiasts and racing applications.
How to Remove Stubborn, Burnt Mac and Cheese
You may want to see also
Seal off the outside of the sections to force oil towards the centre
To baffle an oil pan, you need to create chambers that make it easy for the oil to travel toward the oil pick-up but difficult for it to slosh the other way. This can be done by sealing off the outside of the sections to force oil towards the centre.
- Use trap doors: Install trap doors that only open inward, allowing oil to enter the chamber but not exit. This will help ensure oil flows towards the centre and doesn't slosh back out.
- Create lips or baffles: Add lips or baffles at the top of the chamber and on the sides to prevent oil from splashing out. These obstructions will guide the oil towards the centre and the oil pick-up.
- Seal the outside sections: Make sure to seal the outside of your sections to the walls of the pan. This will force the oil towards the centre and prevent it from simply running around the outside.
- Control trap door movement: To enhance the effectiveness of trap doors, consider adding a mechanism to limit how far they can open. This will help ensure they don't flip up the wrong way or interfere with each other.
- Increase oil pan capacity: If possible, consider increasing the capacity of the oil pan. This will provide more oil in the system and can help ensure a continuous supply towards the centre.
- Use horizontal baffles: Install horizontal baffles sealed to the top of the vertical baffles to keep oil from flowing over the top. This will further guide the oil towards the centre and prevent it from taking unintended paths.
- Use commercial hinges: When constructing trap doors, consider using commercial hinges instead of homemade ones. Sticky homemade hinges can cause issues with the proper functioning of the trap doors.
- Ensure a proper seal: When sealing the outside sections, ensure a proper seal against the walls of the pan. Any gaps or openings can allow oil to bypass the chambers and reduce the effectiveness of the baffle system.
Best Pans for Perfectly Seared Meat
You may want to see also
Frequently asked questions
An oil pan baffle is a device used to prevent oil starvation in high-performance cars. It consists of chambers and trap doors that control the flow of oil, making it easy for the oil to travel towards the oil pick-up but difficult for it to slosh around.
An oil pan baffle is necessary to maintain constant lubrication under high-performance driving conditions, such as motorsports or track days. Without a baffle, the oil can slosh to one side of the pan, away from the oil pick-up, leading to excessive wear and engine failure.
An oil pan baffle uses chambers and trap doors to control the flow of oil. The chambers are designed to trap oil, and the trap doors only allow oil to enter the chamber, not exit. This makes it easier for the oil to travel towards the oil pick-up and prevents it from sloshing around.
The main benefit of using an oil pan baffle is improved oil control, which helps to maintain constant lubrication. Additionally, oil pan baffles can increase the capacity of the oil pan, providing more oil available for the system.
To make an oil pan baffle at home, you can use spare sheet metal to fabricate a performance pan. You can also use low-tech corrugated cardboard to make a baffle pattern and mimic the design of a stock big-block baffle.
