Ella Walter

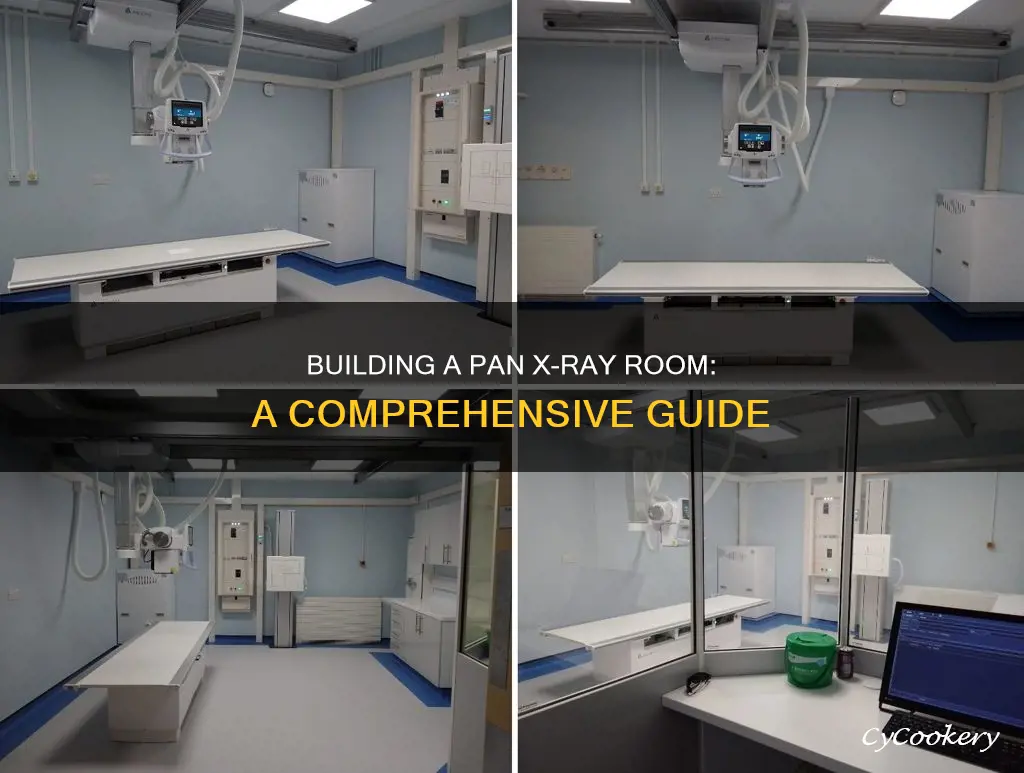

Building an X-ray room is a complex process that requires careful planning, specialised knowledge, and adherence to strict regulations. Before beginning construction, it is essential to consult a Radiation Protection Adviser (RPA) for official health and safety guidance regarding ionizing radiation regulations. The room's dimensions should accommodate staff and equipment, with an average size of 16 m2 recommended. Concrete walls, ceilings, and floors of specified thicknesses are necessary to prevent radiation leakage, and lead shielding is crucial for walls, doors, and windows. The layout must ensure sufficient distance between the X-ray machine and occupied areas, and compliance testing verifies shielding effectiveness and operator safety. Electrical considerations, such as power outlets and generators, must also be addressed. Finally, registration and compliance with state and federal regulations are vital to ensure safe X-ray machine usage.
| Characteristics | Values |
|---|---|
| Dimensions | 16 m2 is the recommended average size. The room should be large enough to accommodate staff and equipment. For urgent care, a 12' x 14' room is recommended. For dental X-rays, most panoramic units require a minimum operating space of 4' x 4', while most panoramic-cephalometric combinations need 7' x 5'. |
| Location | Ideally located on the ground floor of the building to avoid radiation travelling below. If not possible, ensure the floor and ceiling have a thickness of 200 mm of solid concrete. Should be located on an outside wall shooting towards a parking lot or empty space to reduce lead requirements and costs. |
| Control Console Area | The floor dimensions should be no less than 1.5 m x 2 m. The control area should be at least 2 m from the X-ray machine and contain a screen for operators to monitor the procedure from a safe distance. |
| Radiation Shielding | Lead or barium plaster is required to prevent radiation from leaking through. The amount of lead required depends on factors such as the intensity and direction of radiation, frequency of use, and materials used in construction. Concrete may also be used, with thicknesses ranging from 150 mm to 350 mm depending on exposure needs and layout. |
| Windows | Should contain lead glass or lead acrylic in the form of double glazing. Window framing should also be shielded and protected by lead blinds or shutters. Unshielded windows should be positioned at least 2 m above the ground. |
| Doors | Must provide a solid barrier with lead lining for radiation protection. Doors can include lead-lined windows and should consist of no less than 1.5 mm of protective lead. For mammography procedures, a door can be equivalent to 1 mm of lead or 25.4 mm of solid wood. |
| Electrical Requirements | Traditional chiropractic rooms or urgent care facilities should have 100 amps dedicated to the room. The power outlet should be considered when selecting an X-ray machine, as well as the network configuration and software. |
| Compliance | Compliance testing is crucial to ensure the room is safe for patients and staff. This includes shielding verification and operator safety. Registration of the X-ray system with relevant authorities may also be required to ensure safety and compliance with regulations. |
Explore related products
What You'll Learn
- Radiation shielding: Lead-lined walls, windows, and doors are essential to prevent radiation leaks
- Room dimensions: The room should accommodate equipment and staff with optimal dimensions of 16 m2
- Equipment selection: Choose the right X-ray machine configuration, considering power, voltage, and software
- Location: Positioning on an outside wall towards an empty space reduces lead requirements and costs
- Compliance: Ensure registration and compliance testing to meet safety standards and regulations
Radiation shielding: Lead-lined walls, windows, and doors are essential to prevent radiation leaks
Radiation shielding is a critical component of ensuring the safety of medical professionals, patients, and the general public in facilities that use X-rays. Lead-lined walls, windows, and doors are essential components of radiation shielding, providing a solid barrier to prevent radiation leaks and protect against radiation exposure.
Lead-lined walls are constructed by covering the concrete walls with lead sheets or panels that absorb and block radiation. The thickness of the lead lining depends on the specific use case and regulations. For example, for general radiography and fluoroscopy, the primary wall thickness should be 320 mm solid cement before a secondary layer of 230 mm. In contrast, a panoramic and cephalometric dental unit requires a lead thickness of 1.59 mm or a standard concrete wall. It is important to consult with a Radiation Protection Adviser (RPA) and medical physicists to determine the exact thickness and ensure compliance with regulations.
Lead-lined windows are another crucial component of radiation shielding. These windows are constructed using leaded glass or lead acrylic in the form of double glazing. The window framing is also shielded with lead-lined hollow metal frames or lead strips and discs to ensure continuous protection. Radiation Protection Products, Inc. offers lead glass that meets ANSI Z97.1 and CPSC 16 CFR 1201 codes, providing full radiation protection and excellent visibility.
Lead-lined doors are fabricated using metal or wood with the required lead thickness. The lead must cover the full height and width of the door, and the gap between the bottom of the door and the floor should be minimised to prevent radiation leaks. Doors for X-ray rooms must also have lead lining to ensure radiation protection. X-ray room doors can include lead-lined windows and should consist of no less than 1.5 mm of protective lead. Ultraray offers lead-lined doors with various wood veneers and designer metal finishes, ensuring both functionality and aesthetics.
Overall, lead-lined walls, windows, and doors are essential components of radiation shielding in X-ray rooms. By following regulations and guidelines, and consulting with experts, you can ensure the effective prevention of radiation leaks and the safety of all individuals involved.
Slide Pizza Out: No Pan, No Problem
You may want to see also
Explore related products
Room dimensions: The room should accommodate equipment and staff with optimal dimensions of 16 m2
When building a PAN X-ray room, it is important to consider the room's dimensions to ensure it can accommodate the necessary equipment and staff. The recommended average size for an X-ray room is 16 square metres. This allows for a spacious area that facilitates efficient workflow and provides optimal patient comfort.
The room should be large enough to house all the required equipment, including a wall stand, tube stand, and a lead-lined operator area. The operator area, where the radiographer stands during the procedure, should have a minimum floor dimension of 1.5 metres by 2 metres. It should be positioned at a safe distance from the X-ray machine, with a clear view of the procedure.
When determining the room size, consider the specific equipment you plan to use. For example, chiropractic facilities typically require less space than urgent care facilities, as the former may only need a wall stand and a tube stand, while the latter also requires space for a table. Additionally, the layout should account for the distance between the X-ray machine and areas occupied by staff or patients to ensure radiation exposure remains well below safe limits.
Before finalising the room dimensions, it is advisable to consult with experts in the field, such as Biokinemetrics, who can assist in designing and implementing the X-ray room according to your specific needs. They can guide you in optimising the space utilisation and ensuring compliance with state and federal regulations.
Greasing Pan for Pumpkin Bread: Tips & Tricks
You may want to see also
Explore related products
Equipment selection: Choose the right X-ray machine configuration, considering power, voltage, and software
When it comes to choosing the right X-ray machine configuration, careful consideration of power, voltage, and software is essential.
Firstly, the power requirements for X-ray machines vary depending on the specific type of machine and its intended use. For instance, portable machines, which are designed for use outside radiology suites, typically have lower power ratings compared to stationary units, with a range of 2 kW to 5 kW. In contrast, fixed X-ray machines, such as those used for chest X-rays or dental imaging, offer a broader range of kVp settings and higher power ratings, usually between 5 kW and 20 kW. It is important to note that higher kVp settings demand more energy, and fluoroscopy procedures generally require more power than single-exposure imaging. Therefore, ensuring an adequate power supply is crucial for stable performance and smooth workflow.
Secondly, voltage is a critical factor in X-ray machine selection. Excitation voltage, the potential difference between the cathode and anode sides of the tube, determines the highest energy X-ray the machine can produce. X-ray tubes typically operate in the kV range, with excitation voltages of around 50 kV in analytical applications and 100 kV or higher in imaging applications. When selecting a machine, it is vital to understand the relationship between excitation voltage, beam current, and tube power. The voltage and current values will influence the power supply requirements, and selecting a compatible power supply is essential for the machine's functionality.
Lastly, software is an often-overlooked aspect of X-ray machine configuration. The X-ray machine and its software can impact image acquisition, integration, and accessibility. Before installation, it is important to plan how the X-rays will be accessed, where they will be viewed, and for what purpose. Discussing these considerations with the X-ray vendor or dealer is advisable to ensure the system meets your specific needs.
Additionally, it is worth noting that the layout and spatial requirements of the X-ray room should be considered when selecting the machine. The positioning of the X-ray controls and buttons, as well as the patient entry point, should be thoughtfully designed to ensure a comfortable and efficient experience for both clinical staff and patients.
In summary, choosing the right X-ray machine configuration involves a careful assessment of power, voltage, software, and spatial considerations to ensure optimal functionality, efficiency, and patient experience.
Deep Pan Pizzas: Calorie Bombs
You may want to see also
Explore related products
Location: Positioning on an outside wall towards an empty space reduces lead requirements and costs
When building an X-ray room, one of the most critical aspects is radiation shielding. To prevent radiation from leaking through, the walls of an X-ray room typically require lead or barium plaster. The amount of lead required is determined by a physicist's report, which takes into account factors such as the occupancy level in surrounding rooms and the material composition of the building.
Positioning the X-ray room on an outside wall towards an empty space, such as a parking lot, can help reduce the lead requirements and costs. This is because there is less risk of radiation exposure to staff and the public in an empty space. By reducing the number of potential occupants nearby, you can decrease the amount of lead shielding needed to protect them.
Additionally, the positioning of windows and doors plays a crucial role in determining location and cost. Shielded windows need to contain lead glass or lead acrylic in the form of double glazing, with the window framing also shielded and protected by lead blinds or shutters. Unshielded windows should be positioned at least 2 metres above the ground.
To ensure compliance with safety regulations, it is essential to consult with experts and undertake thorough equipment room drawings. This will help determine the exact amount of lead needed, taking into consideration factors such as shooting direction, window placement, and existing materials in the space.
Furthermore, it is important to consider the layout of the X-ray room. The distance between the X-ray machine and areas occupied by staff or the public, such as waiting rooms, should be carefully planned to ensure that radiation exposure remains well below safe limits, especially in high-traffic areas.
Copper Pans: Safe or Not?
You may want to see also
Explore related products
Compliance: Ensure registration and compliance testing to meet safety standards and regulations
Compliance is a critical aspect of building an X-ray room to ensure the safety of patients and staff. Here are the steps to ensure registration and compliance testing to meet the required standards and regulations:
Consult a Radiation Protection Adviser (RPA):
Before initiating the construction or renovation of an X-ray room, it is mandatory to consult a Radiation Protection Adviser (RPA). The RPA will provide essential guidance on health and safety protocols related to ionizing radiation regulations. They will ensure that your project complies with the relevant codes and regulations, such as the Approved Code of Practice.
Understand Regulatory Requirements:
Familiarize yourself with the regulatory requirements specific to your region. In the United States, for example, the Food and Drug Administration (FDA) provides Compliance Guides and Resource Manuals for X-ray systems. These guides outline the performance standards, safety regulations, and compliance testing parameters that manufacturers and users of X-ray equipment must adhere to.
Design and Construction Standards:
Adhere to specific design and construction standards for X-ray rooms. This includes considerations such as room dimensions, shielding for walls and windows, door specifications, and equipment placement. Ensure that the X-ray room meets the required thickness of walls and ceilings, often specified in concrete or lead equivalents. Windows should be shielded with lead glass or lead acrylic, and doors should provide a solid barrier with lead lining to ensure radiation protection.
Equipment Compliance:
Ensure that all equipment installed in the X-ray room complies with the relevant standards. This includes X-ray machines, generators, and associated components. Equipment manufactured after September 5, 1978, for instance, must meet specific requirements for variable controls and technique factors. Additionally, pay attention to the specific requirements for the type of X-ray procedures you intend to perform, such as panoramic dental X-rays or chiropractic applications.
Compliance Testing and Registration:
Engage with the relevant authorities to undergo compliance testing and obtain the necessary registrations and certifications. The specific process may vary depending on your location, but it typically involves inspections, performance tests, and verification of compliance with safety standards. In the United States, the FDA is involved in compliance surveys and provides guidance on the import and use of X-ray systems.
By diligently following these steps and staying informed about the latest regulations, you can ensure that your X-ray room meets the necessary compliance standards, prioritizing the safety of patients and staff.
Audacity's Panning: Stereo Sound and Beyond
You may want to see also
Frequently asked questions
Before building a pan X-ray room, you must contact a Radiation Protection Adviser (RPA) for official health and safety guidance. You should also determine the right location for the room, which should be large enough to accommodate staff and equipment. The room should also be located on an outside wall shooting towards a parking lot or empty space to reduce the lead requirement and mitigate costs.
The walls of a pan X-ray room usually require lead or barium plaster to prevent radiation from leaking through. In some cases, concrete floors and ceilings can provide sufficient protection, but it depends on the energy of the X-ray beams and the layout of the building. The amount of lead required will depend on factors such as the occupancy level in surrounding rooms and the material composition of the building.
The electrical requirements for a pan X-ray room will depend on the specific equipment being used. Traditional chiropractic rooms or urgent care facilities should have 100 amps dedicated to the room. If you do not have the right electrical levels, you can use a stored energy generator that works on a standard 110-volt outlet with 20 amps dedicated to the room.
