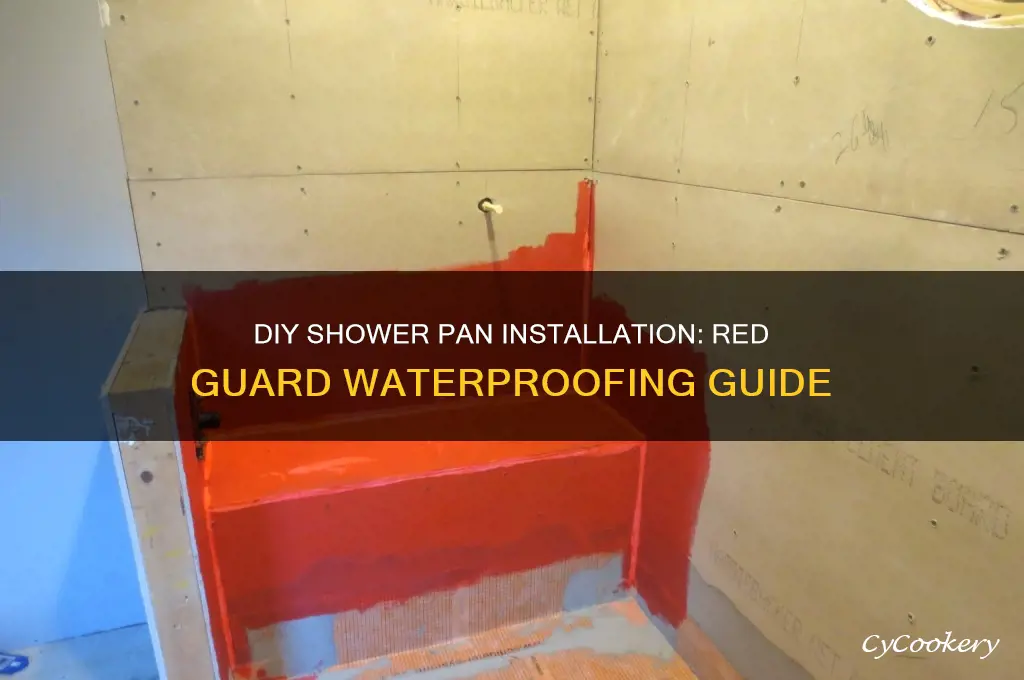

Building a shower pan using RedGuard is a popular method for creating a waterproof and durable base for your shower. RedGuard, a liquid-applied waterproofing membrane, is ideal for this task due to its flexibility, ease of application, and ability to bond directly to various substrates like concrete, plywood, or cement backer board. The process begins with preparing the shower pan area, ensuring it’s clean, smooth, and sloped toward the drain for proper water drainage. Next, apply RedGuard in thin, even coats using a roller or brush, allowing each layer to dry completely before adding the next. Special attention should be given to corners, seams, and the drain area to prevent leaks. Once the waterproofing is complete, install the mortar bed or shower pan liner, followed by tiling or other finishing materials. This method ensures a watertight shower pan that protects against moisture damage and extends the life of your shower installation.
| Characteristics | Values |
|---|---|
| Material Needed | RedGuard Waterproofing, cement backer board, mortar, shower drain assembly, tile, trowel, notched trowel, mixing tools, sponge, utility knife, safety gear. |
| Subfloor Preparation | Ensure subfloor is clean, dry, and structurally sound. Install a shower drain assembly. |
| Waterproofing | Apply RedGuard to walls and floor, extending 6-8 inches beyond the shower area. Allow to dry completely (typically 2-4 hours). |
| Mortar Bed Slope | Mix mortar and apply to create a slope of 1/4 inch per foot toward the drain. Use a trowel to shape and smooth the surface. |
| Cement Backer Board Installation | Install cement backer board on walls, ensuring proper waterproofing at seams and corners. |
| Second Layer of RedGuard | Apply a second coat of RedGuard over the mortar bed and walls after the first coat has dried. |
| Tile Installation | Once RedGuard is fully cured, install tiles using a waterproof thin-set mortar. Use a notched trowel for proper adhesive application. |
| Grouting | After tiles are set, grout the joints with a waterproof grout. Clean excess grout with a sponge. |
| Final Waterproofing | Apply a final coat of RedGuard over the grout lines and edges for added protection. |
| Drying Time | Allow 24-48 hours for RedGuard and grout to fully cure before using the shower. |
| Maintenance | Regularly inspect for cracks or damage and reapply RedGuard as needed. |
| Safety Precautions | Wear gloves, goggles, and a mask when handling RedGuard and other materials. Ensure proper ventilation during application. |
Explore related products
What You'll Learn
- Prepare the Shower Floor: Clean, dry, and level the subfloor for proper Red Guard application
- Apply Red Guard: Roll or brush Red Guard evenly, ensuring full coverage and no gaps
- Create the Slope: Build a gentle slope toward the drain using mortar or foam
- Install the Drain: Secure the shower drain assembly and ensure watertight connections
- Test for Leaks: Fill the pan with water for 24 hours to check for leaks
Prepare the Shower Floor: Clean, dry, and level the subfloor for proper Red Guard application
Before applying RedGuard to your shower pan, it's crucial to prepare the shower floor properly. Start by cleaning the subfloor thoroughly to remove any dirt, debris, or old adhesive. Use a stiff-bristled brush and a vacuum to ensure all particles are removed. If there are any stubborn stains or residue, use a mild detergent and water to scrub the area, then rinse and allow it to dry completely. A clean subfloor is essential for proper adhesion of the RedGuard and other waterproofing materials.
Once the subfloor is clean, inspect it for any signs of moisture or water damage. If the subfloor is damp or wet, it's vital to identify and fix the source of the moisture before proceeding. Use a moisture meter to check the moisture content of the subfloor, ensuring it's within the recommended range for RedGuard application. If the subfloor is too moist, use fans or dehumidifiers to dry it out thoroughly. A dry subfloor is critical to prevent mold growth, ensure proper adhesion, and maintain the integrity of the shower pan.
After cleaning and drying the subfloor, check its levelness using a long straightedge or level. The subfloor should be level and slope slightly toward the drain to ensure proper water drainage. If the subfloor is uneven or has low spots, use a self-leveling compound or mortar mix to level it out. Follow the manufacturer's instructions for mixing and applying the compound, and allow it to cure completely before proceeding. A level subfloor is essential for a successful RedGuard application and a properly functioning shower pan.
In addition to being clean, dry, and level, the subfloor should also be structurally sound and free of any cracks or damage. Inspect the subfloor for any signs of wear, rot, or deterioration, and repair or replace any damaged areas as needed. If the subfloor is made of wood, ensure it's treated with a moisture-resistant coating or sealant to prevent water damage. A sturdy and stable subfloor provides a solid foundation for the RedGuard and other shower pan components, ensuring a long-lasting and waterproof installation.
Before applying RedGuard, it's also essential to prepare the drain assembly and ensure it's properly installed and secured. Check that the drain is level and flush with the subfloor, and that the drain pipe is properly connected and sealed. If necessary, use a drain assembly kit or consult a professional plumber to ensure proper installation. With a clean, dry, level, and structurally sound subfloor, you'll be ready to apply RedGuard and create a waterproof barrier for your shower pan. Remember to follow the manufacturer's instructions and safety guidelines throughout the process, and allow sufficient time for each step to ensure a successful and long-lasting installation.
Braising Steak: Pan-Fry or Braise?
You may want to see also
Explore related products
Apply Red Guard: Roll or brush Red Guard evenly, ensuring full coverage and no gaps
When applying Red Guard as part of building a shower pan, the goal is to create a seamless, waterproof barrier that prevents water intrusion. Begin by preparing the surface, ensuring it is clean, dry, and free of debris. Use a roller or brush specifically designed for waterproofing membranes to apply Red Guard, as these tools ensure even distribution and proper adhesion. Start by pouring a manageable amount of Red Guard into a paint tray, allowing you to work efficiently without wasting material. Roll or brush the product onto the surface in a consistent, overlapping pattern, maintaining a wet edge to avoid lap marks.
Focus on applying Red Guard evenly across the entire shower pan area, including corners, seams, and transitions. Pay special attention to vulnerable spots such as where the walls meet the floor or around drain assemblies, as these areas are prone to water pooling. Use a smaller brush for tight spaces and corners to ensure full coverage, as rollers may not reach these areas effectively. Work methodically, section by section, to avoid missing any spots and to maintain a uniform thickness of the membrane.
Ensure there are no gaps or thin spots in the Red Guard application, as these can compromise the waterproofing integrity. Hold the roller or brush at a consistent angle and apply moderate pressure to achieve an even coat. If using a roller, back-roll the product to smooth out any streaks or bubbles, ensuring a flat and continuous layer. For brushed applications, use long, even strokes in one direction to minimize streaks and ensure full coverage.
Allow the first coat of Red Guard to dry completely according to the manufacturer’s instructions before applying a second coat. The second coat should be applied perpendicular to the direction of the first coat to enhance coverage and fill any potential gaps. This cross-coating technique ensures a robust, watertight barrier. Inspect the surface after each coat to confirm even application and address any deficiencies before proceeding.
Finally, verify that all areas, including corners and edges, are fully saturated with Red Guard and free of gaps. Proper application is critical to the success of the shower pan, as it prevents water from seeping through and causing damage. Once the final coat is dry, the shower pan is ready for the next steps in the installation process, such as tiling or finishing the surface. Attention to detail during the Red Guard application phase ensures a durable and reliable waterproofing solution.
Beets in a Crock Pot: Cooking Time and Tips
You may want to see also
Explore related products
Create the Slope: Build a gentle slope toward the drain using mortar or foam
Creating the slope toward the drain is a critical step in building a shower pan using Red Guard, as it ensures proper water drainage and prevents standing water. To achieve this, you can use either mortar or foam, depending on your preference and the specific requirements of your project. If using mortar, start by preparing a consistent mix that is neither too wet nor too dry. Spread the mortar over the subfloor, beginning from the drain and working outward. Use a trowel to shape a gentle slope, typically aiming for a gradient of about ¼ inch per foot. This slope should direct water efficiently toward the drain without being too steep, which could compromise the shower pan’s integrity. Ensure the mortar is smooth and even, as any irregularities can affect the waterproofing layer applied later.
For those opting for foam, consider using pre-sloped foam boards designed specifically for shower pans. These boards are lightweight, easy to cut, and come with a built-in slope toward the drain. Measure and cut the foam to fit your shower area, ensuring it aligns perfectly with the drain. Secure the foam to the subfloor using construction adhesive or screws, taking care not to damage the foam’s surface. If necessary, you can stack multiple layers of foam to achieve the desired slope, but ensure each layer is securely attached and seamless to avoid water penetration.
Regardless of the material chosen, it’s essential to verify the slope’s accuracy before proceeding. Use a level or a straight edge to check that the gradient is consistent and directs water toward the drain. Minor adjustments can be made by adding or removing material as needed. Once the slope is confirmed, allow the mortar to cure fully or ensure the foam is firmly in place before moving on to the next step.
After the slope is established, clean the surface thoroughly to remove any debris or dust. This prepares the base for the application of Red Guard, the waterproofing membrane. A properly sloped shower pan not only ensures efficient drainage but also prevents water from pooling, which can lead to mold, mildew, or structural damage over time. Taking the time to create an accurate slope is a foundational aspect of a successful shower pan installation.
Finally, double-check the alignment of the drain with the sloped surface to ensure they work in harmony. The drain should sit at the lowest point, with the slope guiding water directly into it. This step is crucial for the functionality of the shower pan and the longevity of the entire shower system. With the slope correctly built, you’re now ready to apply Red Guard and complete the waterproofing process, bringing your shower pan project one step closer to completion.
Calphalon Unison Pans: Oven-Safe?
You may want to see also
Explore related products
Install the Drain: Secure the shower drain assembly and ensure watertight connections
Before proceeding with the shower pan installation, ensure the drain pipe is properly positioned and aligned with the shower area. Start by inserting the shower drain assembly into the pre-cut hole in the subfloor. The drain assembly typically consists of a drain body, a strainer, and a coupling that connects to the drain pipe. Carefully adjust the drain body to ensure it sits level with the subfloor, as this will be crucial for proper water flow and to maintain the slope of the shower pan. Use a level to verify its alignment.
Next, secure the drain assembly to the subfloor. Apply a bead of silicone caulk or plumber’s putty around the underside of the drain body to create a watertight seal. This step is essential to prevent water from seeping beneath the drain and causing damage to the subfloor. Once the caulk or putty is applied, firmly press the drain assembly into place, ensuring it adheres securely. Follow the manufacturer’s instructions for any additional fasteners or screws that may be required to hold the drain body in position.
With the drain body secured, connect it to the drain pipe. Use a coupling or adapter that matches the size and type of your drain pipe. Apply thread seal tape or pipe dope to the threads of the coupling to ensure a watertight connection. Tighten the coupling securely, but avoid over-tightening, as this can damage the threads or the drain assembly. Double-check that the connection is leak-free by running water through the drain and inspecting for any signs of leakage.
After the drain assembly is installed and connected, test its integrity by filling the area around the drain with water. Observe the drain and the connections for any leaks. If leaks are detected, address them immediately by tightening connections or reapplying sealant. Once the drain is confirmed to be watertight, proceed with the next steps of building the shower pan, ensuring the slope directs water toward the drain efficiently.
Finally, prepare the area around the drain for the application of Red Guard waterproofing membrane. Clean the surface thoroughly, removing any debris or residue that could interfere with adhesion. Follow the manufacturer’s instructions for applying Red Guard, ensuring the drain assembly is fully integrated into the waterproofed area. Proper installation of the drain and its seamless integration with the Red Guard membrane are critical to the long-term performance and durability of the shower pan.
Removing Burnt Popcorn from Revere Ware Pan
You may want to see also
Explore related products
Test for Leaks: Fill the pan with water for 24 hours to check for leaks
Once you’ve completed the installation of your shower pan using Red Guard waterproofing, the next critical step is to test for leaks to ensure the pan is watertight. This step is non-negotiable, as even a small leak can lead to water damage, mold, and costly repairs down the line. The most effective way to test the integrity of your shower pan is to fill the pan with water and let it sit for 24 hours. Here’s how to do it correctly:
Begin by thoroughly cleaning the shower pan to remove any debris or residue from the installation process. Ensure the drain is plugged or sealed to prevent water from escaping. Slowly fill the pan with water until it reaches a depth of at least 2 inches. This depth ensures that all areas of the pan, including the sides and corners, are submerged and tested for waterproofing. Mark the water level on the wall or use a piece of tape as a reference point to monitor if the water level drops during the test.
After filling the pan, carefully inspect the entire area for any signs of leakage. Check the seams, corners, and edges where Red Guard was applied, as these are common areas for potential weak spots. Also, examine the floor and walls adjacent to the shower pan, as water seepage may not always be immediately visible within the pan itself. If you notice any dampness, pooling, or water stains, it indicates a leak that needs to be addressed before proceeding.
Leave the water in the pan undisturbed for a full 24 hours. During this time, periodically check the water level against your reference mark. If the water level drops significantly, it suggests that water is escaping through a leak in the pan. Even a small decrease in water level should be investigated, as it could indicate a hidden issue. Additionally, reinspect the surrounding areas for any new signs of moisture or damage.
If the pan passes the 24-hour leak test without any issues, you can confidently proceed with tiling or finishing the shower area. However, if a leak is detected, drain the water and identify the source of the problem. Common culprits include inadequate Red Guard coverage, poorly sealed seams, or damage to the waterproofing layer. Repair the issue by reapplying Red Guard or reinforcing the affected area, then repeat the 24-hour leak test to ensure the pan is now watertight. This meticulous testing process is essential for guaranteeing the longevity and functionality of your shower pan.
Salt Pan Formation: A Geological Mystery Explained
You may want to see also
Frequently asked questions
Red Guard is a waterproof membrane designed to protect surfaces from water damage. It is commonly used for shower pans because it creates a seamless, waterproof barrier that prevents leaks and moisture penetration, ensuring a durable and long-lasting shower installation.
Yes, Red Guard should be applied directly to a clean, smooth, and structurally sound substrate. Ensure the substrate is free of debris, dust, and any loose material before application for optimal adhesion and waterproofing.
Typically, two coats of Red Guard are recommended for shower pans. Apply the first coat and let it dry completely, then apply the second coat at a 90-degree angle to the first for full coverage and maximum waterproofing.
Yes, you can tile directly over Red Guard once it has fully cured. Ensure the surface is clean and free of dust before applying thinset and setting the tiles for a secure bond.
Red Guard typically takes 2-4 hours to dry between coats, depending on humidity and temperature. Allow at least 24 hours for full curing before tiling to ensure the membrane is fully set and ready for tile installation.
