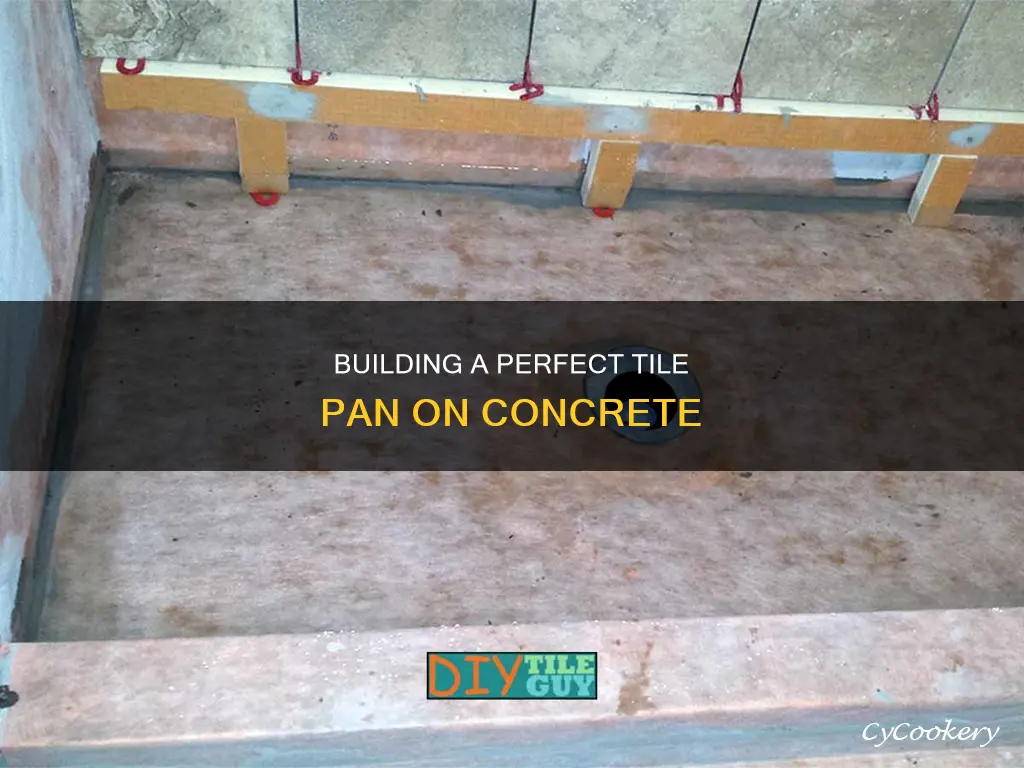

Building a tile shower pan on a concrete floor requires careful planning and execution to ensure a sturdy and durable result. It involves several steps, including creating a pre-sloped layer, installing a waterproof membrane or shower pan liner, and properly framing the structure. The process typically takes two to four days and can cost up to $1,000 or more for professional installation. It is important to consult building codes and guidelines, such as the Tile Council of North America (TCNA) Handbook, to ensure a safe and compliant installation. This introduction will provide an overview of the key considerations and steps involved in building a tile shower pan on a concrete floor, offering valuable insights for both DIY enthusiasts and professionals alike.
Explore related products
What You'll Learn
Ensure the floor slopes towards the drain
When tiling a concrete floor, it is important to ensure that the floor slopes towards the drain to prevent flooding and water damage. This can be achieved by creating a slope with a mortar bed on top of a vapour barrier. Here is a step-by-step guide to ensure the floor slopes towards the drain:
First, calculate the slope required. The industry standard is 1/4" per foot, but this may vary depending on the steepness of the slope and the size of the tiles. For example, a steep slope may require a smaller tile and a greater slope, such as 3/4" per foot.
Next, prepare the concrete floor by removing any paint, sealer, or glue residue. Ensure the concrete is in good condition, with no cracks or moisture issues. Then, mark the slope by making a straight line around the perimeter of the tile shower pan. This will guide you in trowelling and packing the mortar.
Mix the mortar and place it on wire mesh, forming the slope with a trowel and a piece of wood. The wood should be cut to reach from the mark around the perimeter to the top of the drain assembly. Allow the mortar to set for 24 hours.
After the mortar has set, you can install a PVC shower pan liner and apply sealant between the liner and the drain clamping assembly. Do not put sealant on top of the PVC liner. Install building paper on the floor and up the walls to prevent moisture from reaching the wood.
Finally, tile over the slope, ensuring that the tiles follow the contour of the floor. Smaller tiles are better suited for steep slopes, while larger tiles can be used for shallow or minimal slopes. Cut the tiles diagonally to minimise visible lippage and potential tripping hazards.
By following these steps, you can ensure that your tiled concrete floor slopes effectively towards the drain, preventing water damage and maintaining a safe and functional surface.
Baking Stuffing? Try the Muffin Pan Method
You may want to see also
Explore related products
Use a pre-sloped layer of deck mud
When building a tile shower pan, it is important to start with a floor that slopes towards the drain. The slope is built with a pre-sloped layer of deck mud on top of a vapour barrier to eliminate the possibility of water damage to the wood structure of your home. Deck mud is made from a mixture of cement and sand, with a ratio of 5:1.
To begin, calculate your floor slope by measuring the distance from the drain to the farthest wall in feet. The target is a 1/4" slope per foot from the wall to the drain. Multiply this distance by 0.25, then add 1/2" to establish the high point of your mortar bed in inches. Mark this point and extend it around the entire perimeter of the shower. For example, if the drain is 3 feet from the shower wall, your high point should be 1.25" above the subfloor.
Next, dump a bucket or two of deck mud into the shower pan. Use a 2x4 or trowel to smooth out the pre-slope floor. The deck mud should be flush with or slightly higher than the top of the bottom flange of the drain. Pack the deck mud with a 2x4 or heavy trowel as you go. Don't worry about getting this step perfect; as long as there aren't any major humps or dips between the wall and drain, you will be fine.
After you have established the pre-slope, let the deck mud dry for several days. Once it has dried, you can begin tiling.
Our Place: The Story Behind the Brand's Cookware
You may want to see also
Explore related products
Install a waterproof membrane
To install a waterproof membrane, follow these steps:
First, ensure that your concrete surface is smooth and free from any irregularities, debris, or moisture. This is important because any imperfections may affect the adhesion and performance of the membrane. If you are using a PVC roofing membrane, the concrete must comply with national standards.
Next, you will need to create a cleavage membrane. Cut a sheet of building paper or roofing felt to fit the bottom of the shower base. This will act as a protective layer between the concrete and the waterproofing membrane. Install metal lath or reinforcement over the cleavage membrane, securing it with nails or staples.
Now, you can calculate and mark the slope of your floor. Measure the distance from the drain to the farthest wall in feet, and target a slope of 1/4" per foot from the wall to the drain. Multiply this distance by 0.25, then add 1/2" to determine the high point of your mortar bed. Mark this point and extend it around the entire perimeter of the shower. Set the drain flange 1/2" above the subfloor to create a low-point reference for your slope.
After marking the slope, you can install the waterproofing membrane. Make sure to follow the manufacturer's instructions for any specific requirements. PVC and TPO membranes are popular choices due to their flexibility, tear resistance, and ease of installation. Ensure that the membrane is installed smoothly and securely, following the slope you marked earlier.
Finally, you will need to install a shower pan liner and create a proper drain connection. Use a PVC liner and apply sealant between the liner and the drain clamping assembly, ensuring that no sealant is on top of the PVC liner. Install the top of the drain clamping assembly by bolting it to the bottom, sandwiching the PVC liner to form a waterproof seal.
By following these steps, you will have successfully installed a waterproof membrane for your tile on concrete project.
Booking Pan Pacific Airlines: A Step-by-Step Guide
You may want to see also
Explore related products
Use a shower pan curb
Building a shower pan curb on a concrete floor requires careful planning and execution to ensure a durable and functional shower. Here is a step-by-step guide to help you build a shower pan curb using tile on a concrete floor:
Prepare the Concrete Floor:
Start by preparing the concrete floor to create a sturdy base for your shower pan. Clean and level the concrete surface, ensuring it is free of any debris or irregularities.
Create a Pre-Slope:
Construct a pre-slope layer using deck mud or mortar to ensure proper water drainage. This layer should slope at a rate of 1/4" per foot from the wall towards the drain. The pre-slope will prevent water stagnation and mould issues.
Install a Waterproofing Membrane:
Cover the pre-slope layer with a waterproofing membrane or shower pan liner. This membrane will protect the underlying structure from water damage. Ensure the membrane is properly fitted and secured, following the manufacturer's instructions.
Build the Curb:
Now, you can start building the curb itself. One common method is to use three 2x4s stacked on top of each other. Screw the first 2x4 into the floor, and then add and secure the remaining two. This forms the framework for your curb.
Prepare the Surface:
Cover the floor with a layer of felt paper to prevent the wood subfloor from absorbing moisture and causing the cement to cure too quickly. Then, install metal lath or wire mesh over the felt paper. Overlap the seams and staple or nail the lath securely to the floor. This step provides a strong base for the mortar or mud.
Apply Mortar or Mud:
Mix mortar or deck mud to a stiff consistency and apply it over the lath, forming a smooth slope from the curb to the drain. Use a trowel and a straight edge to achieve a level surface. Allow the mortar to partially set, and then fine-tune it with a straight edge and a flat trowel.
Tile the Curb:
Once the mortar has set sufficiently, you can begin tiling the curb. If your curb has a straight design, use bullnose tiles to cover the top. For curved designs, consider using a curb cap made from granite, cultured stone, or marble. Ensure the tiles are level and secured properly.
Finalize the Top:
Complete the top of the curb by applying thin-set to the backs of the bullnose pieces and setting them in place. Use a level to ensure everything is straight and true. Masking tape can help hold the pieces in place while they set.
Grouting:
After the tiles have been set, apply grout to fill the spaces between the tiles. Ensure the grout is consistent and smooth, creating a seamless finish.
Remember to consult local building codes and guidelines, such as the Tile Council of North America (TCNA) Handbook, for additional requirements and recommendations specific to your region.
Manifesting Your Pan of Destiny
You may want to see also
Explore related products
Seal the shower pan with silicone
To build a tile shower pan on a concrete floor, you can lay down a couple of rows of bricks, held together with thinset, in place of a wood curb.
Now, to seal the shower pan with silicone, follow the steps outlined below:
First, it is important to understand why shower pans need to be sealed. Shower pans are prefabricated shower inserts that form the floor of a shower. They come in a variety of shapes, sizes, and materials, including fiberglass, acrylic, and stone. When installing a shower pan, it is crucial to seal around the drain underneath, the seams along the walls, and, if necessary, along the outside. Proper sealing ensures that your shower pan remains sturdy and waterproof, preventing water damage, which can range from unsightly eyesores to rotting walls and subflooring.
Second, select the appropriate silicone sealant. Using 100% RTV silicone to seal the shower pan is an effective way to create completely waterproof seals that will endure for years. Silicone sealant is a superior option for ensuring flexibility, durability, and addressing the unique challenges posed by bathroom fixtures. It is also important to choose a silicone shower pan sealer that is formulated to resist mold and mildew growth. This will help maintain a strong, aesthetically pleasing, and watertight seal, protecting the health and safety of all who use the shower.
Third, follow the correct procedure for applying the silicone sealant. Before applying the sealant, ensure that the floor is clean and free of any dirt or debris. Determine the installation position of the water-retaining strip and mark it on the ground. If using a pre-cut strip, such as the Shower Tray Sealing Strip, remove the self-adhesive paper and install the strip at the marked position. If the strip requires cutting to size, use a saw or scissors to adjust it to the required length. It is important to note that the adhesive can be removed before use if necessary. Once the strip is installed, fill in the edges with a suitable adhesive, such as kitchen and bathroom glue, and allow it to dry completely before use.
Additionally, if you are repairing or replacing an existing seal, it is important to remove the old grout and clean the area thoroughly before applying the new silicone sealant. This can be done using a rag dipped in acetone or rubbing alcohol, being cautious to protect any fiberglass surfaces that may react adversely.
The Perfect Oil Pan for LS Swap G-Body Cars
You may want to see also
Frequently asked questions
The first step is to build a curb for your shower. The easiest method is to use three 2x4s stacked on top of each other. The first one is screwed into the floor, followed by the second and third.
The second step is to put down a layer of felt paper and then cover the floor with metal lathe. Cover the entire floor with the metal lathe, overlapping any seams. Staple the lathe to the floor.
The third step is to pour mud. Dump a bucket or two of deck mud in the shower pan. Use a 2x4 or trowel to smooth out the pre-slope floor.
