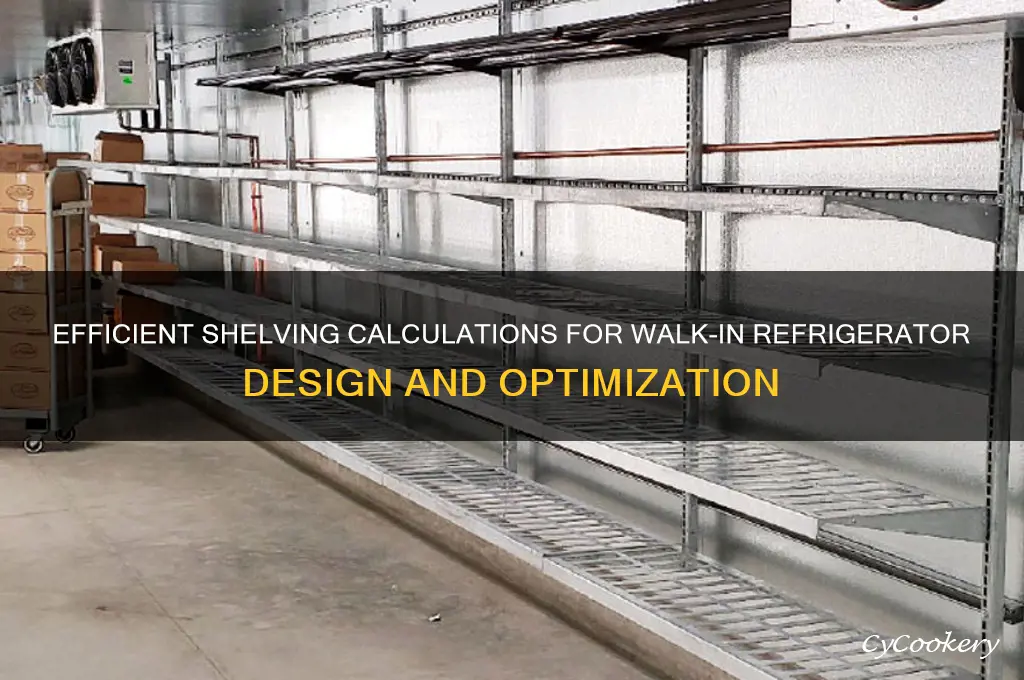

Calculating the shelving for a walk-in refrigerator involves several key steps to ensure optimal storage efficiency and compliance with safety standards. Begin by measuring the interior dimensions of the refrigerator, including height, width, and depth, to determine the available space. Consider the type of items to be stored, as this will influence shelf spacing and weight capacity requirements. Standard shelf heights typically range from 12 to 18 inches apart, but this can vary based on specific needs. Use durable, food-safe materials like stainless steel or aluminum for the shelves to withstand cold temperatures and frequent use. Factor in the weight distribution and ensure the shelving system is securely anchored to the refrigerator’s structure. Finally, account for proper airflow to maintain consistent cooling, leaving adequate space between shelves and walls. Accurate calculations will maximize storage capacity while ensuring accessibility and functionality.
Explore related products
What You'll Learn
- Determine Required Size: Measure available space, consider storage needs, and plan for airflow around the unit
- Calculate Cooling Load: Estimate heat gain from food, ambient temperature, and door openings
- Choose Refrigeration System: Select compressor size, evaporator type, and insulation thickness for efficiency
- Plan Shelving Layout: Optimize shelf spacing, material, and weight capacity for accessibility and airflow
- Estimate Energy Costs: Factor in system efficiency, usage hours, and electricity rates for budgeting
Determine Required Size: Measure available space, consider storage needs, and plan for airflow around the unit
Measuring the available space is the cornerstone of determining the required size for your walk-in refrigerator shelving. Start by taking precise dimensions of the area where the unit will be installed. Note the height, width, and depth, ensuring you account for any obstructions like doors, vents, or structural elements. Use a laser measure or a tape measure for accuracy, and double-check your numbers to avoid costly mistakes. Remember, a walk-in refrigerator isn’t just a storage unit—it’s a workspace. Allow at least 36 inches of clearance for aisles to ensure safe and efficient movement, especially if staff will be using carts or equipment.
Once you’ve measured the space, consider your storage needs. Calculate the volume of food, beverages, or supplies you plan to store by categorizing items (e.g., bulk produce, prepared meals, dairy) and estimating their quantities. For example, a restaurant might require 500 cubic feet for weekly inventory, while a small bakery could need 200 cubic feet for ingredients and finished goods. Factor in future growth—aim for 20–30% more space than your current needs to accommodate expansion. Shelving should be adjustable to adapt to changing storage demands, so choose a system that offers flexibility in shelf height and configuration.
Airflow is a critical but often overlooked aspect of walk-in refrigerator design. Proper ventilation ensures the unit operates efficiently, maintaining consistent temperatures and preventing hot spots. Plan for at least 6 inches of clearance around the unit’s sides, top, and back to allow air to circulate freely. Avoid placing the refrigerator in tight corners or against walls without adequate space. If your space is limited, consider a remote condenser unit, which can be installed separately from the refrigeration box, freeing up valuable floor space while maintaining airflow requirements.
Balancing space constraints, storage needs, and airflow demands requires a strategic approach. For instance, if your available space is 10 feet by 10 feet with an 8-foot ceiling, subtract the required clearance (6 inches on each side and 6 inches at the top) to determine the usable interior dimensions: 9’6” x 9’6” x 7’6”. This gives you approximately 675 cubic feet of storage space. If your calculated storage needs are 500 cubic feet, this setup works—but if you need 700 cubic feet, you’ll either need to adjust the shelving layout or reconsider the unit’s placement. Always consult with a refrigeration specialist to ensure your design meets safety and efficiency standards.
Refrigerating Dehydrated Meat: Essential or Optional? Expert Tips Inside
You may want to see also
Explore related products
Calculate Cooling Load: Estimate heat gain from food, ambient temperature, and door openings
Accurately estimating the cooling load for a walk-in refrigerator is critical to ensuring optimal performance and energy efficiency. The cooling load represents the total heat gain that the refrigeration system must counteract to maintain the desired temperature. This heat gain stems from three primary sources: the food stored inside, the ambient temperature surrounding the unit, and the frequency of door openings. Each factor interacts dynamically, requiring a systematic approach to calculation.
Step 1: Quantify Heat Gain from Food
Food introduces heat into the refrigerator through its initial temperature and the metabolic processes of perishable items. For example, fresh produce releases heat as it ripens, while frozen goods thawing in a cooler environment contribute latent heat. To calculate this, determine the weight of the food (in pounds or kilograms) and its specific heat capacity. Multiply the weight by the specific heat, the temperature difference between the food and the desired storage temperature, and a factor accounting for metabolic heat (typically 0.5–1.0 BTU/lb/day for fresh produce). For instance, 100 lbs of vegetables at 70°F entering a 38°F cooler would yield a heat gain of approximately 3,200 BTU/hr, assuming a specific heat of 0.45 BTU/lb°F.
Step 2: Account for Ambient Temperature
The external environment significantly impacts the cooling load. Higher ambient temperatures increase heat infiltration through walls, ceilings, and floors. Use the U-factor (thermal transmittance) of the refrigerator’s insulation and the surface area to calculate this heat gain. For a walk-in with a U-factor of 0.25 BTU/hr·ft²·°F and 500 ft² of surface area, a 20°F temperature difference (90°F ambient, 70°F desired) results in 2,500 BTU/hr of heat gain. This step underscores the importance of high-quality insulation in reducing energy consumption.
Step 3: Factor in Door Openings
Each time the door opens, warm air enters, raising the internal temperature. The heat gain from door openings depends on their frequency, duration, and the temperature difference between ambient and storage conditions. A typical calculation involves multiplying the volume of air exchanged (door area × opening height × number of openings) by the specific heat of air (0.24 BTU/lb°F) and the temperature difference. For example, a 3’x7’ door opened 20 times daily for 15 seconds in a 90°F environment adds roughly 1,800 BTU/hr. Reducing door openings or installing air curtains can mitigate this heat gain.
Cautions and Practical Tips
Overlooking any of these factors can lead to undersized refrigeration systems, resulting in inadequate cooling and increased wear. Conversely, overestimating the cooling load wastes energy and inflates costs. Use conservative estimates for variables like door opening frequency and ambient temperature to ensure reliability. Regularly monitor performance and adjust calculations based on real-world data. For instance, if the actual heat gain is lower than estimated, consider upgrading insulation or reducing door openings to optimize efficiency.
Calculating the cooling load for a walk-in refrigerator requires a meticulous approach, balancing the heat gain from food, ambient conditions, and operational practices. By quantifying these factors, you can select a refrigeration system that meets your needs without overspending on capacity. This precision not only ensures food safety but also promotes sustainability by minimizing energy waste.
Does Chicken Broth Need Refrigeration? Storage Tips and Safety Guide
You may want to see also
Explore related products
Choose Refrigeration System: Select compressor size, evaporator type, and insulation thickness for efficiency
Selecting the right refrigeration system for a walk-in cooler is a critical decision that hinges on three key components: compressor size, evaporator type, and insulation thickness. Each element plays a distinct role in ensuring energy efficiency, temperature consistency, and operational longevity. Start by assessing the compressor size, which must match the cooling load of the space. An undersized compressor will struggle to maintain temperatures, while an oversized one wastes energy and increases wear. Use the formula: Compressor Size (BTU/hr) = Volume (ft³) × Heat Gain Factor (BTU/hr/ft³), where the heat gain factor accounts for factors like ambient temperature, door openings, and product load. For a 200 ft³ walk-in with a heat gain factor of 1.5, a 300 BTU/hr compressor would suffice.
Next, consider the evaporator type, which directly impacts airflow and cooling efficiency. Ceiling-mounted evaporators are ideal for uniform cooling in larger spaces, while wall-mounted units save floor space but may create hot spots. For high-humidity environments, low-profile evaporators with corrosion-resistant coatings are recommended. Pair the evaporator with a defrost system—either electric or hot gas—to prevent ice buildup, which can reduce efficiency by up to 30%. Electric defrost is simpler but consumes more energy, while hot gas defrost is faster and more efficient but requires precise engineering.
Insulation thickness is equally vital, acting as a thermal barrier to minimize heat infiltration. The industry standard for walk-in coolers is 4 inches of polyurethane foam, offering an R-value of 25. However, in extreme climates or for ultra-low temperatures, consider 6 inches (R-37.5) to reduce energy consumption by up to 20%. Thicker insulation also dampens noise and enhances structural integrity. Use a vapor barrier to prevent moisture migration, which can degrade insulation performance over time.
To optimize efficiency, integrate these components holistically. For instance, a larger compressor can compensate for thinner insulation, but this trade-off increases operational costs. Conversely, investing in thicker insulation reduces the compressor’s workload, extending its lifespan and lowering energy bills. A case study of a 300 ft³ walk-in cooler in a Florida restaurant demonstrated that upgrading from 4-inch to 6-inch insulation and downsizing the compressor saved $1,200 annually in energy costs.
Finally, factor in maintenance and scalability. Choose a compressor with a serviceable design and opt for evaporators with accessible coils for easier cleaning. If future expansion is likely, select a system with modular components that can adapt to increased demand. By balancing these considerations, you’ll create a refrigeration system that’s not only efficient today but resilient for years to come.
Easy Steps to Remove Aluminum Can Residue from Fridge Drawers
You may want to see also
Explore related products
Plan Shelving Layout: Optimize shelf spacing, material, and weight capacity for accessibility and airflow
Efficient shelving layout in a walk-in refrigerator hinges on balancing accessibility, airflow, and structural integrity. Start by measuring the interior dimensions and identifying obstructions like vents or door swings. Use these measurements to sketch a floor plan, allocating zones for specific item categories (e.g., produce, dairy, meats) based on temperature requirements and frequency of use. For instance, high-turnover items should be placed at eye level or within easy reach to minimize door openings and energy loss.
Material selection is critical for longevity and hygiene. Stainless steel shelves are ideal due to their corrosion resistance, ease of cleaning, and ability to withstand cold temperatures without warping. Avoid wood, which can absorb moisture and harbor bacteria, and opt for wire shelving only if proper supports are in place to prevent sagging under heavy loads. For example, a 24-inch-deep stainless steel shelf with a weight capacity of 350 lbs per pair of brackets is suitable for bulk storage of canned goods or packaged meats.
Shelf spacing requires careful calculation to ensure proper airflow and item accessibility. As a rule of thumb, maintain a minimum of 2 inches between shelves to allow cold air circulation, preventing hot spots and ensuring even cooling. For taller items like beverage cases or stacked containers, adjust spacing to 6–8 inches. Use adjustable shelving systems to accommodate varying item heights and future storage needs. For instance, placing dairy products on shelves spaced 4 inches apart allows for proper airflow while keeping items organized and visible.
Weight capacity must align with intended use to avoid structural failure. Distribute heavy items across multiple shelves or reinforce mounting points with additional brackets. For walk-ins with concrete floors, anchor brackets directly into the slab for maximum stability. If using a raised floor system, ensure the substructure can support the combined weight of shelves, items, and personnel. A practical tip: load the bottom shelves with the heaviest items (e.g., bulk produce or kegs) to lower the center of gravity and reduce the risk of tipping.
Finally, incorporate accessibility features to streamline operations. Install sliding shelves or pull-out racks for deep storage areas to prevent overreaching and ensure all items are visible. Label shelves with categories or expiration dates to maintain FIFO (First In, First Out) practices. For example, color-coded shelf edges can designate zones for raw, prepared, or allergen-free foods, reducing cross-contamination risks. Regularly audit the layout to adjust spacing or reposition shelves as inventory needs evolve, ensuring the walk-in remains both functional and compliant with food safety standards.
Is R-424 a Viable Replacement for R-22 Refrigerant?
You may want to see also
Explore related products
Estimate Energy Costs: Factor in system efficiency, usage hours, and electricity rates for budgeting
Energy costs for walk-in refrigerators are not just a line item in your budget—they’re a variable you can control with careful planning. Start by understanding the three critical factors: system efficiency, usage hours, and electricity rates. System efficiency, measured in kilowatt-hours (kWh) per cubic foot, varies by unit age, insulation quality, and compressor type. A modern, energy-efficient unit might consume 1.5 kWh per cubic foot daily, while an older model could double that. Knowing this baseline is your first step to accurate cost estimation.
To calculate daily energy consumption, multiply the system’s efficiency (kWh per cubic foot) by the refrigerator’s volume (in cubic feet). For example, a 1,000-cubic-foot unit with an efficiency of 1.5 kWh per cubic foot consumes 1,500 kWh daily. Next, factor in usage hours. If the unit runs 24/7, use the full daily consumption. However, if it cycles on and off, estimate operational hours—say, 18 hours daily—and adjust accordingly (1,500 kWh × 0.75 = 1,125 kWh). This precision ensures your budget reflects actual usage patterns.
Electricity rates are the final piece of the puzzle. Rates vary widely by region and provider, typically ranging from $0.08 to $0.20 per kWh. Multiply your adjusted daily consumption by the rate to find daily costs. Using the previous example, at $0.12 per kWh, daily costs would be $135 (1,125 kWh × $0.12). Annualize this by multiplying by 365, yielding $49,275. This granular approach transforms guesswork into actionable data for budgeting.
Caution: Overlooking peak demand charges or seasonal rate fluctuations can skew estimates. Many utilities charge higher rates during peak hours or summer months, when cooling loads increase. Review your electricity bill for tiered pricing or time-of-use rates, and adjust calculations accordingly. Additionally, consider energy-saving measures like LED lighting, strip curtains, or automatic door closers to reduce consumption further.
In conclusion, estimating energy costs for a walk-in refrigerator requires a methodical approach. By combining system efficiency, usage hours, and electricity rates, you can create a budget that’s both accurate and adaptable. Regularly revisit these calculations as rates or operational needs change, ensuring your budget remains aligned with reality. This proactive strategy not only saves money but also positions your operation for long-term sustainability.
Refrigerating Corn: Best Practices for Freshness and Flavor Preservation
You may want to see also
Frequently asked questions
The shelving capacity is calculated by multiplying the usable shelf area (length × width) by the number of shelves, then factoring in the weight limit per shelf to ensure it meets storage needs.
Measure the height of items to be stored and add 2-3 inches of clearance between shelves to allow for air circulation and easy access.
Consider the size of the refrigerator, the type and quantity of items to be stored, weight capacity of shelves, and required airflow for proper cooling.
