Replacing a C4 transmission pan gasket is a straightforward task that can be done at home with the right tools and a bit of confidence. The basic principles are similar to most transmissions. Before starting, it is recommended to use a lift or jack stands to access the underside of the car. The first step is to remove the bolts holding the pan in place, leaving the corner bolts for last. As the C4 does not have a drain plug, fluid will start to leak once the bolts are loosened, so it is important to have a drip pan ready. After removing the pan, the old gasket should be cleaned off, and the pan should be cleaned thoroughly. A new gasket can then be installed, ensuring that the sealing surfaces are clean and flat. Finally, the new filter and pan can be installed, and the transmission topped off with fresh fluid.

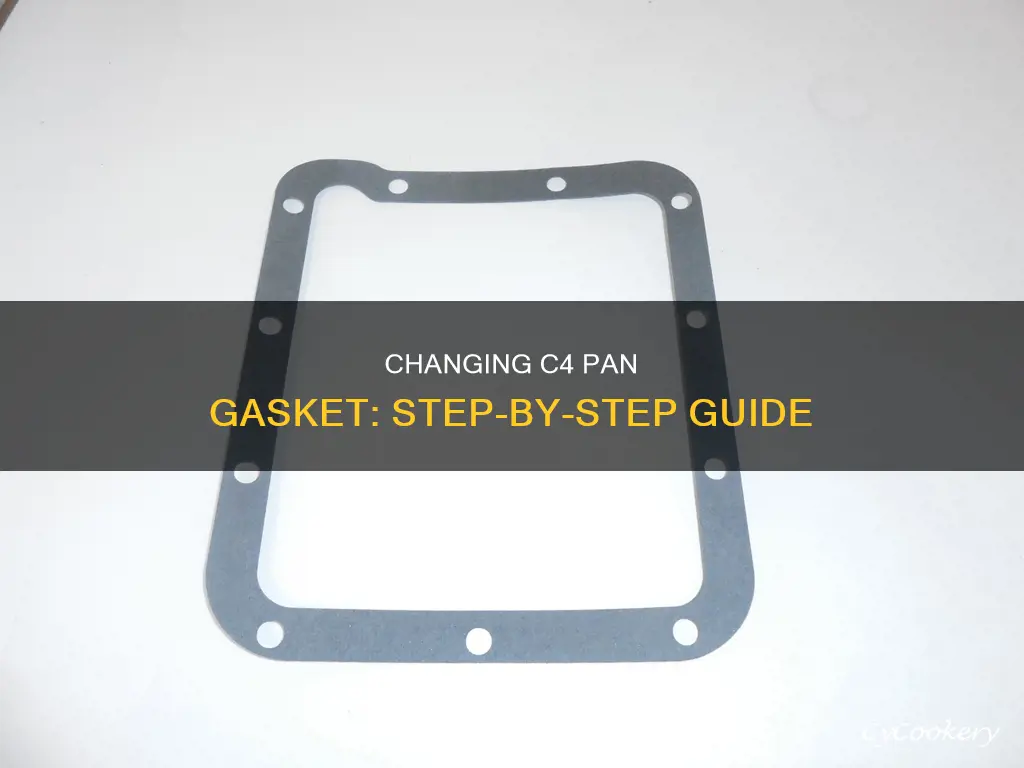

How to Change a C4 Pan Gasket
| Characteristics | Values |
|---|---|
| Tools | 1/2" socket, screwdriver, razor blade, hydraulic jack, wood pieces, ratchet |
| Car Models | 1967 Ford C4, 1971 Ford Torino 500, 1990 Chevrolet Corvette Coupe, 1994 Chevrolet Corvette Coupe, 1995 Chevrolet Corvette Coupe |
| Gasket Types | RTV, Fel-Pro, cork, duraprene, composite |
| Steps | Remove bolts, clean pan, scrape old gasket, install new filter, tighten bolts, refill transmission fluid |
| Tips | Use a drip pan, don't over-tighten bolts, ensure gasket is seated correctly, disconnect radiator hoses and transmission coolant lines |
| Online Resources | YouTube video, forum discussions |
Explore related products
What You'll Learn
Removing the old gasket
Once the fluid has finished dripping out, it's time to clean the pan thoroughly. Make sure to peel or scrape off the old gasket completely. You can use a razor blade to ensure that none of the old gasket material is left behind. Spray the pan with a cleaner like Brakleen, and wipe it down.
At this point, you can also clean the pan flange. Sit the pan on a bench with the flange facing up, and check if the bolt holes are raised. If they are, use a hammer to gently tap them back down, ensuring the flange is flat.
Now, you're ready to install the new gasket. It's important to take your time and ensure the gasket is seated correctly, especially at the front. You can use a light coat of tacky glue to help position the gasket, spraying it lightly and letting it dry before putting the bolts back in to keep the holes aligned.
Copper Pans and Teflon Coating: What's the Deal?
You may want to see also
Explore related products
Cleaning the pan
Start by removing the old gasket. Use a screwdriver to carefully pry and peel off the old gasket. Be cautious not to scratch or damage the surface of the pan. You can also use a razor blade to scrape off any stubborn residue or remaining gasket material. Ensure that the entire gasket is removed, and the surface is relatively smooth.
Once the majority of the old gasket is removed, it's time to spray the pan with a cleaner. Brakleen is a popular choice, but you can use any suitable alternative. Cover the entire surface, including the edges and corners, with the cleaner. Let it sit for a while to loosen any remaining residue or grease.
After the cleaner has had time to work, usually a few minutes, wipe down the pan with a clean cloth or paper towel. Ensure you wipe away all the loosened residue and cleaner. You may need to use a small brush or a dedicated gasket removal tool to reach tight spaces and corners.
Inspect the pan carefully to ensure that all gasket material has been removed. Use a light source and angle the pan to check for any remaining residue. If necessary, repeat the process of spraying and wiping until the pan is entirely clean and free of any old gasket material.
Finally, before installing the new gasket, ensure the pan is completely dry. You may use a clean cloth to wipe away any remaining moisture or residue. It is essential to have a clean and dry surface to ensure the new gasket adheres correctly and forms a tight seal.
By following these steps, you can effectively clean the pan during the process of changing a C4 pan gasket, ensuring a successful repair or maintenance procedure.
The Intriguing Composition of AC Pan Tablets
You may want to see also
Explore related products
Installing a new filter
To install a new filter, first finger-tighten the bolts. Then, use a ratchet to tighten them further, following a star pattern: left, right, front, and back, repeating this pattern until the bolts are tight enough. Be careful not to over-tighten the bolts.
Once the new filter is in place, top off your transmission with fresh fluid. Ensure that you use the correct type of fluid for your vehicle. For example, a 1971 Ford C4 requires Type F fluid. After adding the fluid, you may need to let your vehicle reach operating temperature and recheck the fluid levels.
If you are using a gasket, there are a few different methods to install it. One option is to use a very thin layer of RTV to hold the gasket in place on the pan. Ensure that the sealing surfaces are clean and flat before applying the RTV. Another option is to use a spray-on tacky glue to adhere the gasket to the pan. Let the glue dry before proceeding.
Some gaskets, such as the Fel-Pro gasket, have slightly undersized holes that allow you to screw in a few bolts while the gasket is sitting on a bench, which helps to keep it in place. If your gasket does not have this feature, you can insert bolts into the holes to keep them aligned during installation.
Removing Broiled Food from Enamel Pans: Quick and Easy!
You may want to see also
Explore related products
Adding a thin layer of RTV
When changing a C4 pan gasket, adding a thin layer of RTV can help hold the gasket in place and prevent leaks. Here is a detailed guide on how to add a thin layer of RTV:
Before applying the RTV, it is important to prepare the surface. Clean the case and pan surfaces with 80-grit sandpaper, sanding in the direction of bolt to bolt. Ensure that the surfaces are free of any residue by cleaning them with a thinner or brakekleen. It is crucial that the sealing surfaces are clean and flat. Check for any low points, digs, or deep marks on the case surface, as these areas may require a small amount of RTV to fill them.
Once the surfaces are prepared, apply a thin layer of RTV to the gasket. It should be a very thin film, just enough to hold the gasket in place without allowing it to move around or get squeezed inside the transmission. Make sure not to use too much RTV, as it can cause the gasket to move or get squeezed.
After applying the RTV, install the bolts but do not tighten them fully yet. Start in the middle on one side and tighten one bolt, then move to the other side and tighten the bolt opposite to it. Continue tightening the bolts in this pattern, ensuring that the RTV does not skin over.
Finally, check for any leaks after installation. If leaks persist, you may need to use a thread sealer on the threads of the bolts. Additionally, always ensure that there is no fluid present on the mating surfaces when installing the pan and gasket.
Keep Spaghetti from Sticking: Tips for Perfect Pasta
You may want to see also
Explore related products
Topping off with fresh fluid
Once you've installed the new gasket, it's time to top off the transmission with fresh fluid. This is a crucial step to ensure your vehicle's optimal performance and prevent future leaks. Here's a detailed guide on how to do it:
Before adding any fluid, make sure you have the correct type for your car. In the case of a 1971 Ford C4, for instance, Type F fluid is recommended. Always refer to your vehicle's manual or consult a mechanic if you're unsure about the appropriate fluid type.
Now, locate the transmission fluid reservoir. This is usually situated close to the engine, often on the side or at the rear. It will be labelled or have a dipstick with 'Transmission Fluid' or 'ATF' (Automatic Transmission Fluid).
Next, check the fluid level with the dipstick. If your vehicle has been running recently, allow it to cool down first, as the fluid level should be checked when the car is cold. Remove the dipstick, wipe it clean, insert it back into the reservoir, then remove it again to get an accurate reading. There are usually markings or holes on the dipstick to indicate the ideal fluid level.
If the fluid level is below the recommended mark, carefully pour in the appropriate fluid until it reaches the correct level. Don't overfill, as this can cause damage and leaks. A funnel can be useful to avoid spills.
After adding fluid, it's important to let your vehicle get up to operating temperature and then recheck the fluid level. This is because the fluid expands as it warms up, so you may need to make adjustments. Repeat the process of checking the level with the dipstick and top it off as needed.
Remember, working on your vehicle's transmission can be complex, and it's important to take your time and be cautious. If you feel uncomfortable at any point, don't hesitate to consult a professional mechanic.
Cleaning the Drip Pan: A Step-by-Step Guide
You may want to see also
Frequently asked questions
The process of changing a C4 pan gasket involves first removing the old gasket, cleaning the pan, and then installing the new gasket.
First, loosen the bolts on the side, front, and back, leaving the corner ones for last. As you loosen the bolts, fluid will start to leak, so have a drip pan ready. Once the fluid stops dripping, remove the front two bolts and carefully hold the bottom of the pan so it doesn't fall.
After removing the old gasket, clean the pan with Brakleen or a cleaner of your choice. Make sure to scrape off any remaining gasket material with a razor blade.
First, install a new filter and finger-tighten the bolts. Then, use a ratchet to tighten them in a star pattern: left side, right side, front, and back. Don't over-tighten the bolts. Finally, top off the transmission with fresh fluid, making sure it is the correct type for your vehicle.
