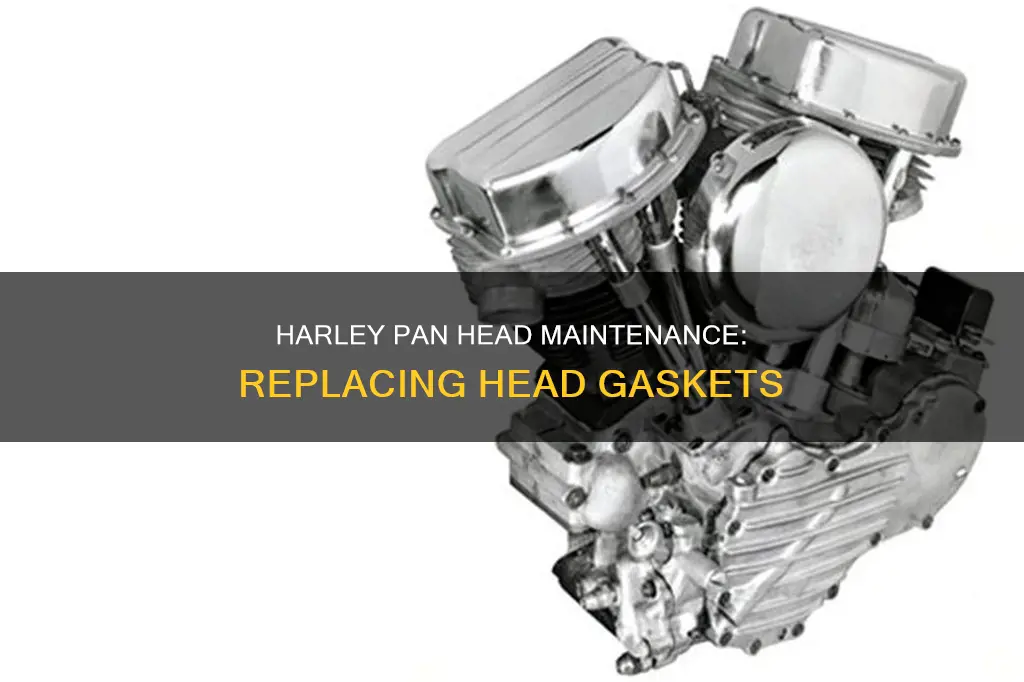

Changing a head gasket on a Harley Pan Head motorcycle is a complex process that requires mechanical expertise and familiarity with the vehicle's engine. A blown head gasket can lead to catastrophic engine failure, so it is important to address the issue promptly. The process involves removing the cylinder head, scraping off any remnants of the old gasket, applying a new gasket, and ensuring proper alignment and torque when reassembling the parts. It is recommended to consult a professional or seek guidance from experienced individuals to ensure a successful repair or replacement of the head gasket.
Explore related products
What You'll Learn
Loosen cylinder head bolts and remove the cylinder head
To loosen the cylinder head bolts and remove the cylinder head, you will need to begin by loosening the cylinder head bolts. It is important to be careful during this step, as you do not want to use excessive force or hardened scrapers to avoid damaging the engine. The old gasket will likely tear and leave debris stuck to the head and engine block, so use a scraper to carefully remove this, ensuring that no debris falls into the cylinder or back up through the head.
Once the cylinder head bolts have been loosened and any debris has been removed, you can proceed to remove the cylinder head itself. Be sure to take note of any \"fire rings\" that may be present as part of the top of the cylinder, as these can indicate a potential leak. If you notice any dents in the aluminium head, this may be due to the cast cylinder not fitting properly when torqued, which can lead to future replacement needs.
After removing the cylinder head, it is important to check for any signs of warping or unevenness on the surface, as this could have contributed to the leak. Use a large flat file to lightly run over the head gasket surface and inspect for any imperfections. If you are reusing the cylinder head, it is also recommended to have the heads checked for trueness.
Additionally, consider replacing the valve seals and inspecting the guides and valve seats for any signs of wear or damage. If you decide to replace the cylinder head, ensure that you acquire the correct replacement, especially if you own a vintage or rare Harley Pan Head model. Fabricating your own gasket out of blank gasket material sheets is an option, but it is important to follow the proper specifications.
