Tiffany Haney
Changing the oil pan gasket on a 1989 Cadillac DeVille can be a challenging task. While it is possible to do it with the engine in the car, it may be necessary to remove the engine or use an engine lift assembly to access the bolts at the rear of the pan. Before beginning the repair, it is important to clean the inside of the oil pan and the cylinder block contact surface thoroughly. If reusing the gasket, ensure it is not damaged and avoid exposing it to cleaning solvents. When installing a new gasket, start by fitting it into the oil pan groove, working it in both directions. Torque the bolts to the specified tension and refill the crankcase. Finally, run the engine and check for leaks.

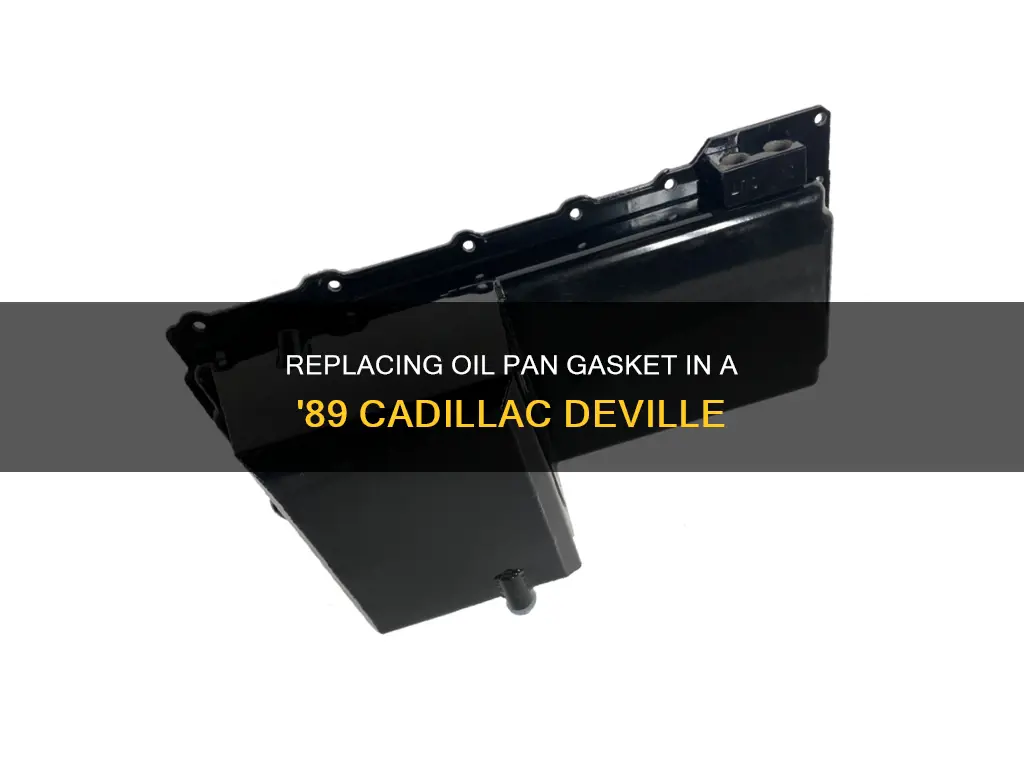

How to change oil pan gasket 1989 Cadillac Deville
| Characteristics | Values |
|---|---|
| Oil pan bolts | Remove all bolts and work the oil pan out |
| Oil pan gasket | Reusable unless it is damaged |
| Gasket cleaning | Do not expose the gasket to cleaning solvents |
| Gasket installation | Start the gasket into the oil pan groove and work it into the groove in both directions |
| Gasket replacement | Replace the gasket if it is exposed to oil and expands |
| Torque | 89 inch lbs. (10 Nm) |
| Oil pan drain plug | Torque to 15 ft. lbs. (20 Nm) |
| Engine | Jack up the engine to get clearance to the bolts |
| Trans-axle assembly | Remove if necessary |
| Engine lift assembly | Required to hold the engine/transmission |
| Exhaust manifold | Disconnect |
| JB Weld | Can be used as a semi-permanent repair |
| Permatex brand | Use 'ultra grey' for sealing the pan |
| OEM gasket | Silicone, cannot be reused |
| Grey sealer | Recommended for sealing |
Explore related products
What You'll Learn
Removing the oil pan bolts
To remove the oil pan bolts, you will first need to jack up the engine to get clearance to access the bolts. Place a short piece of wood, such as a 4x4, sideways to hold the engine up by the pulley. Ensure that the wood is placed on the edge of the pulley, or you will block access to the front oil pan bolts. Remove the right front wheel and the splash shield for easier access.
Next, remove the two plate guards covering the lower throttle body. You will then need to remove the oil pan bolts. Depending on the model of your Cadillac Deville, there may be around 20 oil pan bolts. Be sure to remove all of them to work the oil pan out and away from the oil pump. Note that the oil pan gasket is reusable unless it is damaged. If you are reusing the gasket, be careful not to damage it and do not expose it to cleaning solvents.
If you are unable to remove all the bolts, you may need to purchase specialty knuckles and swivels from a hardware store. In some cases, you may need to remove the trans-axle assembly or use an engine lift assembly to hold the engine and transmission up while you access the bolts.
Once all the bolts are removed, carefully work the oil pan out, being mindful that it may get stuck on the oil pump.
Navigating to Pots and Pans Saddleworth: A Guide
You may want to see also
Explore related products
Cleaning the oil pan and cylinder block
To clean the oil pan and cylinder block of your 1989 Cadillac DeVille, you'll first need to remove the oil pan. This is a challenging task, but with the right tools and precautions, it can be accomplished.
Begin by jacking up the car and removing the right front wheel and the splash shield for easier access. You may also need to remove the trans-axle assembly, engine, or transmission to create more room to work, especially if this is your first time. Make sure to put a container under the oil pan to catch any oil that may spill or drain.
Remove the oil pan bolts, starting with the ones at the front of the pan by the front pulley. There may be as many as 20 bolts, and they can be difficult to access, so be patient and persistent. Once the bolts are removed, carefully work the oil pan out and away from the oil pump, as it may get stuck.
With the oil pan removed, you can now clean the inside of the pan and the cylinder block contact surface. Use a suitable cleaning agent, being careful not to damage the gasket if you plan to reuse it. If the gasket is damaged or has been exposed to oil, it will need to be replaced.
If you choose to reuse the gasket, ensure it is thoroughly cleaned and free of any oil residue. If you're installing a new gasket, start by fitting it into the oil pan groove, working it into the groove in both directions. Once the gasket is in place, you can proceed to torque the bolts and drain plug to the specified values. Finally, refill the crankcase, run the engine, and check for any leaks.
The Perfect Sear: Pan Temperature Control
You may want to see also
Explore related products
Installing a new gasket
To install a new gasket, start by thoroughly cleaning the inside of the oil pan and the cylinder block contact surface. Be careful not to damage the gasket and do not expose it to cleaning solvents. Next, start the gasket into the oil pan groove and work it into the groove in both directions. Once the gasket is exposed to oil, it will expand and no longer stay in the groove without wrinkles. If this happens, replace the gasket. Torque the bolts, in sequence, to 89 inch lbs. (10 Nm). Torque the oil pan drain plug to 15 ft. lbs. (20 Nm). Refill the crankcase, run the engine, and check for leaks.
Note that this process may be different for your specific vehicle model and year, and it is always recommended to refer to a factory service manual or seek professional assistance for vehicle repairs.
Some additional tips from online forums include:
- Using a lift or engine lift assembly to hold the engine/transmission while you work.
- Removing the trans-axle assembly if necessary.
- Using a product like Permatex to seal the pan.
- Checking for leaks in the lower block seal, as this is often the source of the problem.
Tightening Oil Pan Bolts: An Effective Leak-Stopping Solution?
You may want to see also
Explore related products
Torqueing the bolts
When it comes to torqueing the bolts of your 1989 Cadillac Deville's oil pan gasket, there are a few important steps to follow. Firstly, make sure you have the correct tools for the job, including a torque wrench that can accurately measure the torque applied to the bolts. You will also need to refer to the factory service manual or a repair guide for your specific vehicle to identify the correct torque specifications and sequence for tightening the bolts.
Begin by cleaning the contact surfaces of the oil pan and cylinder block. This is crucial to ensure that no oil residue or debris interferes with the sealing process. Once the surfaces are prepared, carefully position the new gasket, ensuring it sits securely in the oil pan groove. Work the gasket into the groove in both directions to achieve a snug fit.
Now, it's time to torque the bolts. Follow the recommended sequence provided in your repair manual to avoid any issues. Using your torque wrench, apply 89 inch-pounds (10 Nm) of torque to each bolt, tightening them one by one in the specified order. It is important to torque the bolts evenly and not overtighten them, as this can damage the gasket or the oil pan itself.
After torqueing all the bolts to the specified torque value, it is a good idea to double-check that each bolt is secure and properly tightened. Once you are satisfied, you can move on to the next step of the oil pan gasket replacement process, which includes refilling the crankcase and checking for any leaks. Remember to dispose of your old gasket and any cleaning materials properly, following local regulations and guidelines.
Heavy-Duty Stainless Steel Baking Pans: What Gauge?
You may want to see also
Explore related products
Refilling the crankcase
Once you've replaced the oil pan gasket, cleaned the oil pan, and torqued the bolts, it's time to refill the crankcase.
First, you'll need to choose the right type and amount of oil for your Cadillac. Check your owner's manual or a repair guide for the specific type of oil recommended for your vehicle. The amount of oil you'll need to add will depend on the capacity of your engine and how much oil was drained. It's important to add the correct amount of oil to avoid overfilling, which can cause damage to your engine.
Next, locate the oil filler cap, which is usually found on the top of the engine. Remove the cap and set it aside. Take your new oil and carefully pour it into the filler hole, using a funnel if necessary to avoid spills. Pour slowly and keep an eye on the oil level as you go to avoid overfilling.
Once you've added the recommended amount of oil, replace the oil filler cap securely. Start the engine and let it run for a few minutes. Check the oil level with the dipstick to ensure it's at the correct level and top up if necessary.
Finally, check for leaks. Examine the area around the oil pan gasket and bolts for any signs of oil seepage. If you notice any leaks, tighten the bolts further and recheck for leaks. If leaks persist, you may need to retorque the bolts or inspect the gasket for proper installation.
