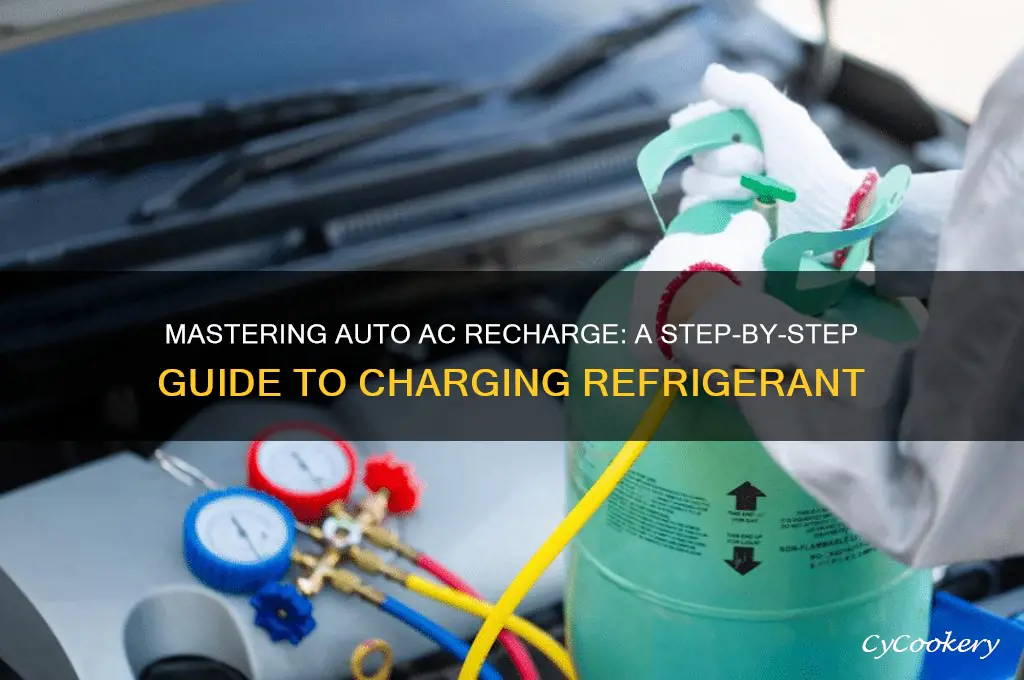

Charging refrigerant in an automotive air conditioning system is a precise process that requires careful attention to detail to ensure optimal performance and avoid damage. It involves adding the correct amount of refrigerant, typically R-134a or R-1234yf, to the system while monitoring pressure and temperature levels. Before starting, it is essential to evacuate the system of any air and moisture using a vacuum pump, as these contaminants can cause inefficiencies or harm components. The refrigerant is then added through the low-pressure port using a manifold gauge set, following the manufacturer’s specifications for the vehicle. Overcharging or undercharging can lead to poor cooling, compressor damage, or system failure, so using accurate tools and adhering to guidelines is critical. Always wear protective gear and work in a well-ventilated area, as refrigerants can be hazardous.
| Characteristics | Values |
|---|---|
| Refrigerant Type | R-134a (most modern vehicles), R-12 (older vehicles, phased out) |
| Tools Required | Refrigerant charging kit, manifold gauge set, vacuum pump, thermometer |
| Safety Precautions | Wear safety goggles, gloves, and ensure proper ventilation |
| System Preparation | Evacuate the system with a vacuum pump for at least 30 minutes |
| Charging Method | Liquid or vapor charging (follow manufacturer's guidelines) |
| Pressure Specifications | High-side: 250-300 PSI (summer), 150-200 PSI (winter); Low-side: 25-45 PSI |
| Temperature Considerations | Ambient temperature affects charging amounts (refer to vehicle manual) |
| Charging Steps | 1. Connect gauges, 2. Start engine, 3. Monitor pressures, 4. Add refrigerant |
| Overcharging Risks | Can damage compressor, reduce efficiency, or cause system failure |
| Environmental Impact | Proper disposal of old refrigerant is required (follow local regulations) |
| Professional Assistance | Recommended for complex systems or if unsure about the process |
| Frequency of Charging | Only when system is low or after repairs (not a routine maintenance task) |
| Cost of Refrigerant | Varies by type and quantity (R-134a is more common and affordable) |
| Legal Compliance | Must comply with EPA regulations for refrigerant handling and disposal |
| System Inspection | Check for leaks, damaged components, and proper functioning before charging |
| Charging Time | Typically 15-30 minutes depending on system size and condition |
| Post-Charging Check | Verify proper cooling performance and pressure levels |
Explore related products
What You'll Learn
- Safety Precautions: Wear protective gear, ensure proper ventilation, and follow manufacturer guidelines to avoid injury
- System Inspection: Check for leaks, damage, or clogs before charging the refrigerant
- Vacuum Process: Evacuate air and moisture from the system using a vacuum pump
- Refrigerant Charging: Add refrigerant slowly, monitoring pressure and temperature with gauges
- Post-Charge Testing: Run the AC system, verify performance, and check for leaks or issues
Safety Precautions: Wear protective gear, ensure proper ventilation, and follow manufacturer guidelines to avoid injury
Charging refrigerant in an automotive air conditioning system is a task that demands precision and caution. Before even considering the process, it’s critical to understand the inherent risks involved. Refrigerants like R-134a or R-1234yf are under high pressure and can cause severe skin and eye injuries if mishandled. Additionally, inhaling these chemicals can lead to respiratory distress or frostbite upon contact. These dangers underscore the necessity of safety precautions, not just as recommendations but as non-negotiable steps to protect yourself and others.
Protective gear is your first line of defense. Always wear safety goggles to shield your eyes from accidental sprays or leaks. Insulated gloves are equally essential, as they protect your hands from extreme cold and potential chemical burns. A long-sleeved shirt and pants made of durable material further minimize skin exposure. While it may seem excessive, this gear is designed to prevent injuries that can occur in seconds. For instance, a refrigerant leak under pressure can freeze skin instantly, causing tissue damage similar to severe burns.
Proper ventilation is another cornerstone of safety. Automotive refrigerants are heavier than air and can accumulate in low-lying areas, increasing the risk of inhalation. Always perform the charging process in a well-ventilated area, preferably outdoors or in a garage with open doors. If working indoors, use exhaust fans to maintain airflow. Be particularly cautious in confined spaces, where even small leaks can quickly reach dangerous concentrations. For example, a 10x10-foot room with poor ventilation can become hazardous within minutes if a refrigerant leak occurs.
Following manufacturer guidelines is not just a best practice—it’s a safeguard against system damage and personal injury. Each vehicle has specific refrigerant requirements, including the correct type and charge amount. Overcharging the system can lead to compressor failure, while undercharging results in inefficient cooling. Refer to the vehicle’s service manual for precise instructions, including the recommended pressure levels and charging procedures. Ignoring these guidelines can void warranties and, more critically, compromise safety. For instance, using the wrong refrigerant type can cause chemical reactions that damage components and release toxic fumes.
In practice, these precautions form a safety net that allows you to work confidently. Start by inspecting your protective gear for any tears or defects before beginning. Position the vehicle in a well-ventilated area and ensure all windows are open. Double-check the refrigerant type and charge specifications in the manual, then proceed methodically. If you notice any leaks during the process, stop immediately, evacuate the area, and address the issue with the proper tools. By prioritizing safety at every step, you not only protect yourself but also ensure the longevity and efficiency of the vehicle’s air conditioning system.
