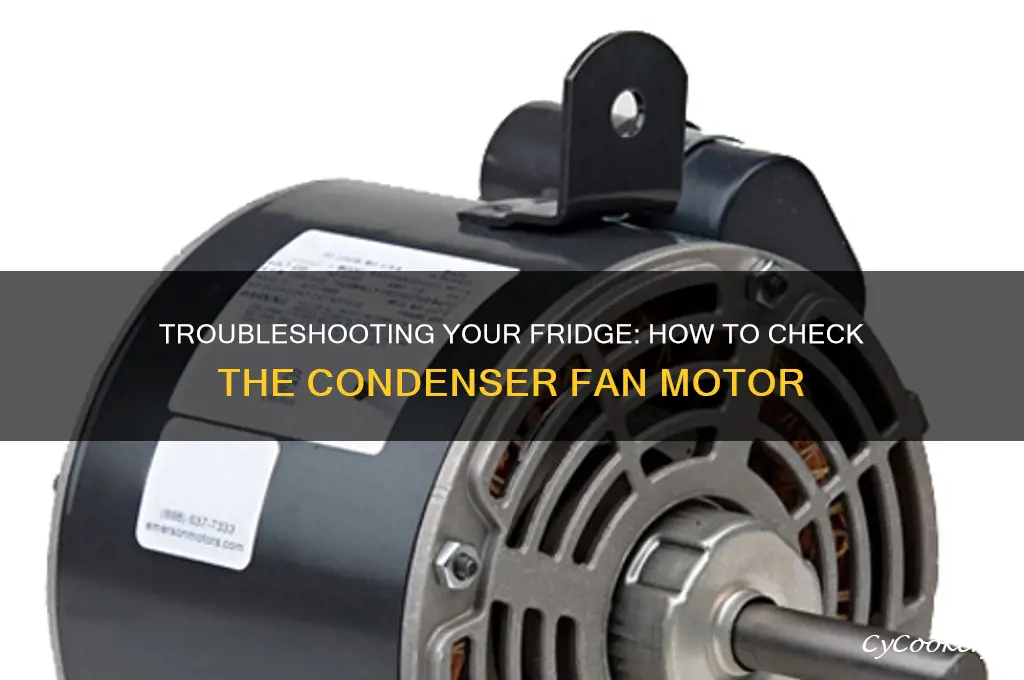

Checking the condenser fan motor in a refrigerator is a crucial step in diagnosing and resolving cooling issues. The condenser fan motor plays a vital role in dissipating heat from the refrigerant, ensuring the appliance operates efficiently. To inspect it, start by unplugging the refrigerator for safety. Locate the condenser fan, typically found near the compressor at the bottom rear of the unit. Remove the access panel to expose the motor and fan blades. Visually inspect for any obstructions, debris, or damage to the fan blades, and ensure the motor is securely mounted. Next, manually spin the fan to check for stiffness or unusual noises, which could indicate worn bearings. If the fan doesn’t spin freely or the motor fails to run when tested, it may need to be replaced. Regular maintenance of the condenser fan motor can prevent overheating and extend the life of your refrigerator.
| Characteristics | Values |
|---|---|
| Purpose of Check | Diagnose if the condenser fan motor is functioning properly. |
| Tools Required | Multimeter, screwdriver, gloves, safety goggles. |
| Safety Precautions | Unplug refrigerator, wear protective gear, avoid contact with sharp edges. |
| Location of Condenser Fan Motor | Typically located near the compressor, often at the bottom rear of fridge. |
| Visual Inspection | Check for obstructions, dirt, or damage to fan blades or motor. |
| Manual Rotation Test | Spin the fan blade by hand to check for stiffness, noise, or resistance. |
| Electrical Continuity Test | Use a multimeter to test for continuity between motor terminals. |
| Voltage Test | Measure voltage at motor terminals with fridge running (typically 110-120V). |
| Amperage Test | Measure current draw using a multimeter (compare with manufacturer specs). |
| Capacitor Check | Test the start capacitor for proper functioning if applicable. |
| Noise Check | Listen for unusual noises (grinding, humming) during operation. |
| Airflow Check | Ensure proper airflow around the condenser coils and fan. |
| Replacement Criteria | Replace if motor fails continuity test, draws excessive current, or is noisy. |
| Common Issues | Dirty coils, faulty capacitor, worn bearings, electrical failure. |
| Maintenance Tips | Clean coils regularly, ensure proper ventilation around fridge. |
| Professional Assistance | Consult a technician if unsure or for complex repairs. |
Explore related products
What You'll Learn
- Identify motor location: Locate the condenser fan motor, typically near the compressor at the fridge's rear
- Inspect for obstructions: Check for debris or ice blocking the fan blades or motor
- Test motor continuity: Use a multimeter to verify if the motor windings are intact
- Check fan blade movement: Ensure the blades spin freely without resistance or noise
- Verify power supply: Confirm the motor is receiving power via voltage testing
Identify motor location: Locate the condenser fan motor, typically near the compressor at the fridge's rear
The condenser fan motor is a critical component in your refrigerator's cooling system, and its location is key to diagnosing issues. Typically, you'll find this motor near the compressor, which is situated at the rear of the fridge. This positioning is strategic, as it allows the motor to work in tandem with the compressor to dissipate heat efficiently. Understanding this layout is the first step in any troubleshooting process, as it ensures you're focusing on the right area.
To locate the condenser fan motor, start by unplugging the refrigerator for safety. Then, move the appliance away from the wall to access the rear panel. You'll notice a series of components, but the compressor is usually the most prominent, often a large, cylindrical or box-like structure. The condenser fan motor is generally adjacent to it, attached to the condenser coils. These coils are essential for heat exchange, and the fan motor helps to circulate air over them, enhancing cooling efficiency.
A practical tip is to familiarize yourself with the sound of a functioning condenser fan motor. When the fridge is running, listen for a gentle humming or whirring noise coming from the rear. This can help you pinpoint the motor's location even before you start disassembling the back panel. If the noise is absent, it could be a sign that the motor is malfunctioning, which would require further inspection.
Comparing the condenser fan motor to other components can also aid in identification. Unlike the compressor, which is typically larger and more stationary, the fan motor is smaller and has a visible fan blade attached. This blade is designed to move air across the condenser coils, and its movement is a clear indicator of the motor's operation. If the blade is stationary when the fridge is on, it’s a strong sign that the motor needs attention.
Instructively, once you’ve located the motor, visually inspect it for any signs of damage, such as frayed wires, burnt marks, or debris buildup. Dust and dirt can accumulate on the fan blades and motor, hindering performance. Gently clean the area with a soft brush or vacuum to ensure optimal airflow. If the motor appears damaged, it may need to be replaced, but always consult the refrigerator’s manual or a professional for specific guidance.
Refrigerated Tomato Seeds: Can They Still Sprout and Grow?
You may want to see also
Explore related products
Inspect for obstructions: Check for debris or ice blocking the fan blades or motor
A blocked condenser fan motor is a silent saboteur, quietly throttling your refrigerator’s efficiency. Debris like dust, pet hair, or spilled food particles can accumulate around the fan blades or motor, while ice buildup from moisture or defrosting issues can freeze components in place. Both scenarios force the motor to work harder, leading to overheating, premature wear, or complete failure. Before assuming the motor itself is faulty, always start by inspecting for obstructions—a simple fix that often resolves cooling problems without costly repairs.
Steps to Inspect for Obstructions:
- Unplug the refrigerator to ensure safety and prevent accidental motor activation.
- Locate the condenser fan, typically found behind a removable panel at the bottom rear of the unit. Use a screwdriver if necessary.
- Visually inspect the fan blades and motor for visible debris, ice, or foreign objects. Shine a flashlight to spot hidden obstructions.
- Gently remove debris using a soft brush or vacuum hose attachment. For ice buildup, allow the refrigerator to defrost naturally or use a hairdryer on low heat, avoiding direct contact with plastic components.
Cautions: Avoid using sharp tools or excessive force to remove obstructions, as this can damage the fan blades or motor housing. If ice is thick or recurrent, investigate underlying issues like a malfunctioning defrost system or improper door seals, which allow moisture to enter.
Takeaway: Regularly clearing obstructions from the condenser fan motor is a proactive measure that extends the life of your refrigerator and ensures optimal performance. Incorporate this check into your seasonal appliance maintenance routine, especially in dusty environments or homes with pets. A clean fan motor isn’t just a repair—it’s a safeguard against energy inefficiency and unexpected breakdowns.
Is Refrigerated Cookie Dough Safe? Risks, Benefits, and Best Practices
You may want to see also
Explore related products
Test motor continuity: Use a multimeter to verify if the motor windings are intact
A faulty condenser fan motor can lead to inadequate cooling in your refrigerator, causing food spoilage and higher energy bills. Before replacing the motor, testing its continuity is a critical diagnostic step. This process involves using a multimeter to check if the motor windings are intact, ensuring electrical current can flow through them. If the windings are broken or damaged, the motor won’t function, and replacement becomes necessary.
To test motor continuity, start by unplugging the refrigerator to ensure safety. Locate the condenser fan motor, typically found near the compressor at the bottom rear of the unit. Disconnect the motor’s wiring harness, exposing the terminals. Set your multimeter to the continuity or resistance mode (usually denoted by a symbol resembling a sound wave or the Greek letter omega). Touch the multimeter probes to the motor’s terminals. A reading of zero or near-zero resistance indicates intact windings, while an infinite reading suggests a break in the circuit.
While testing, be mindful of potential pitfalls. Ensure the multimeter probes make solid contact with the terminals to avoid false readings. If the motor has multiple windings (common in three-phase motors), test each pair of terminals individually. For single-phase motors, test between the start and run windings. If continuity is confirmed but the motor still doesn’t work, other issues like a faulty capacitor or seized bearings may be to blame.
This method is both cost-effective and straightforward, requiring only a multimeter and basic understanding of electrical principles. It’s a valuable skill for homeowners looking to troubleshoot refrigerator issues without immediately calling a repair technician. By verifying motor continuity, you can pinpoint the problem accurately, saving time and money on unnecessary parts replacements.
In conclusion, testing motor continuity with a multimeter is a precise and practical way to diagnose condenser fan motor issues. It’s a step that bridges the gap between guesswork and certainty, ensuring you address the root cause of your refrigerator’s cooling problems. With this knowledge, even those with limited technical expertise can tackle refrigerator repairs with confidence.
Easy Steps to Safely Turn Off Your RV Refrigerator
You may want to see also
Explore related products
$15.85 $17.5
Check fan blade movement: Ensure the blades spin freely without resistance or noise
A refrigerator's condenser fan motor is a critical component, responsible for dissipating heat and maintaining optimal performance. One of the most straightforward yet essential checks is assessing the fan blade movement. To begin, unplug the refrigerator or turn off the power at the circuit breaker to ensure safety. Locate the condenser fan, typically found near the compressor at the bottom rear of the unit. Gently try to rotate the fan blades by hand; they should spin freely and smoothly. Any resistance, grinding noise, or stiffness indicates a potential issue, such as dirt buildup, a failing motor, or obstructed blades.
Analyzing the movement of the fan blades provides insight into the motor's health. If the blades spin with ease and silence, the motor is likely functioning correctly. However, if you notice wobbling, uneven rotation, or unusual sounds, these are red flags. Wobbling may suggest a bent blade or misaligned motor shaft, while grinding noises often point to worn bearings or debris trapped in the mechanism. Addressing these issues promptly can prevent overheating and extend the lifespan of both the motor and the refrigerator.
From a practical standpoint, regular inspection of the fan blade movement is a simple yet effective maintenance task. Aim to check it every six months or whenever you notice reduced cooling efficiency. Use a soft brush or compressed air to remove dust and debris from the blades and surrounding area, ensuring they spin without obstruction. If the blades still resist movement after cleaning, consider testing the motor with a multimeter to check for continuity. A failed motor will require professional replacement to restore proper function.
Comparing the fan blade movement to that of a well-maintained unit can highlight subtle problems. For instance, a healthy fan should spin several times with a single flick, gradually slowing down without abrupt stops. If your fan stops abruptly or fails to spin at all, it’s a clear sign of trouble. Additionally, compare the noise level; a quiet operation is ideal, while rattling or screeching suggests immediate attention is needed. This comparative approach helps in diagnosing issues before they escalate.
In conclusion, ensuring the condenser fan blades spin freely without resistance or noise is a vital step in refrigerator maintenance. It not only prevents potential breakdowns but also optimizes energy efficiency and cooling performance. By incorporating this check into your routine, you can catch problems early, saving time and money in the long run. Remember, a smoothly spinning fan is a sign of a healthy refrigerator.
Refrigerating Loaf Bread: Best Practices for Freshness and Storage
You may want to see also
Explore related products
Verify power supply: Confirm the motor is receiving power via voltage testing
A non-functioning condenser fan motor can lead to inadequate cooling in your refrigerator, but before assuming the motor itself is faulty, it’s critical to verify if it’s receiving power. Voltage testing is a straightforward method to confirm this, ensuring you don't prematurely replace parts or overlook a simpler issue like a blown fuse or faulty wiring. This step is essential because a motor that isn’t receiving power will naturally fail to operate, regardless of its condition.
To begin, ensure the refrigerator is unplugged or the power is turned off at the circuit breaker to avoid electrical hazards. Locate the condenser fan motor, typically found near the compressor at the bottom rear of the refrigerator. Access may require removing a panel or cover, depending on your model. Once exposed, identify the motor’s wiring harness, usually consisting of two or three wires connected to the motor terminals. Use a multimeter set to the appropriate voltage range (typically AC volts, 120V for most household refrigerators) to test the voltage at these terminals. With the refrigerator plugged in or powered on, touch the multimeter probes to the terminals. If the reading shows the expected voltage (usually around 110-120V in the U.S.), the motor is receiving power, and the issue likely lies elsewhere.
However, if the multimeter reads zero voltage, the problem is upstream. Trace the wiring back to the control board or the power source, checking for loose connections, damaged wires, or blown fuses along the way. A common culprit is a faulty relay on the control board, which fails to send power to the motor. In such cases, replacing the control board or the relay may resolve the issue. Always consult your refrigerator’s manual or a wiring diagram for accurate identification of components and connections.
Practical tips include testing the power supply at multiple points along the circuit to pinpoint the exact location of the failure. For instance, if the control board is receiving power but the motor isn’t, the issue is likely between the board and the motor. Additionally, if you’re unsure about handling electrical components, consider using a non-contact voltage tester as a safer alternative to a multimeter. This tool can quickly confirm the presence of live voltage without direct contact with wires.
In conclusion, voltage testing is a precise and efficient way to determine if your condenser fan motor is receiving power. By systematically checking the circuit and identifying where power is lost, you can avoid unnecessary repairs and focus on the root cause of the problem. This method not only saves time but also ensures a more accurate diagnosis, leading to a quicker resolution of your refrigerator’s cooling issues.
Recycling Your Old Fridge in Williamson County, TN: A Guide
You may want to see also
Frequently asked questions
Look for signs like the refrigerator not cooling properly, excessive heat around the compressor, or unusual noises from the back of the fridge. You can also visually inspect the fan to see if it’s spinning when the compressor is running.
Yes, you can test the motor for continuity using a multimeter. Disconnect the motor from power, set the multimeter to the ohms setting, and check the terminals. A reading of infinity indicates a broken motor, while a low resistance reading suggests it’s functioning.
You’ll need a multimeter to test continuity, a screwdriver to access the motor, and possibly a brush or vacuum to clean debris around the fan.
Unplug the refrigerator for safety. Locate the access panel, usually at the back or bottom, and remove it using a screwdriver. The condenser fan motor is typically near the compressor.
First, check for obstructions or debris around the fan blades. If it’s clear, test the motor for continuity. If the motor is faulty, replace it with a compatible part. Always ensure the refrigerator is unplugged before working on it.
