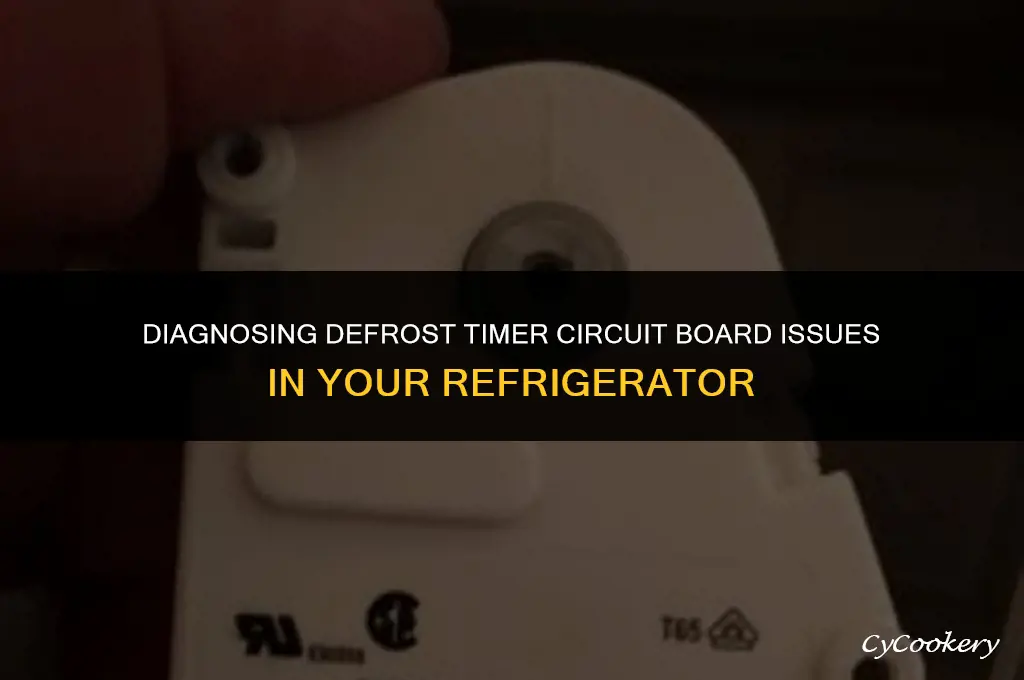

To check the defrost timer circuit board in a refrigerator, you'll need to follow a series of steps to ensure the component is functioning correctly. First, locate the defrost timer, which is typically found in the control panel or behind the refrigerator's front panel. Once located, disconnect the power supply to the refrigerator to avoid any electrical hazards. Then, remove the cover or panel protecting the circuit board. Inspect the board for any visible signs of damage, such as burnt components, broken traces, or loose connections. If the board appears intact, use a multimeter to test the continuity of the timer's windings and the resistance of its components. Compare your readings to the manufacturer's specifications to determine if the timer is operating within its expected parameters. If any discrepancies are found, the timer may need to be replaced. Finally, reassemble the refrigerator, reconnect the power supply, and test the defrost function to ensure it's working properly.
| Characteristics | Values |
|---|---|
| Component Type | Defrost Timer Circuit Board |
| Appliance | Refrigerator |
| Function | Controls the defrost cycle |
| Location | Typically found in the control panel or behind the freezer compartment |
| Connections | Wired to the defrost heater, temperature sensors, and main control board |
| Symptoms of Failure | Frost buildup, freezer not defrosting, water leakage |
| Testing Method | Continuity test with multimeter, checking for proper voltage and resistance |
| Replacement | Requires matching the specific model and part number |
| Safety Precautions | Unplug the refrigerator before testing or replacing the circuit board |
| Tools Needed | Multimeter, screwdriver, pliers |
Explore related products
What You'll Learn
- Identify the Defrost Timer: Locate the defrost timer on the refrigerator's circuit board
- Check Electrical Connections: Ensure all wires connected to the timer are secure and not damaged
- Test Continuity: Use a multimeter to test the continuity of the timer's circuit
- Inspect for Damage: Look for any signs of physical damage or corrosion on the timer and board
- Replace if Necessary: If the timer is faulty, replace it with a compatible part
Identify the Defrost Timer: Locate the defrost timer on the refrigerator's circuit board
To identify the defrost timer on a refrigerator's circuit board, begin by locating the circuit board itself. Typically, this will be found at the back of the refrigerator, often behind a protective panel or cover. Once the circuit board is visible, look for a component labeled "defrost timer" or a similar designation. This component is usually a small, rectangular box with wiring connections.
If the defrost timer is not immediately visible, consult the refrigerator's user manual or service manual for specific guidance on its location. These manuals often include diagrams or illustrations that can help pinpoint the exact position of the defrost timer on the circuit board.
When examining the circuit board, be cautious not to touch any of the components or wiring connections, as this could potentially cause damage or pose a safety risk. If you are unsure about the identity of the defrost timer or how to interact with it, it is recommended to seek assistance from a professional appliance technician.
In some cases, the defrost timer may be integrated into a larger control module, which could make it more challenging to identify. In such instances, a multimeter or other diagnostic tool may be necessary to test the timer's functionality and ensure it is operating correctly.
Remember, the defrost timer plays a crucial role in the proper functioning of your refrigerator, regulating the defrost cycle to prevent ice buildup and maintain optimal performance. Regularly checking and maintaining the defrost timer can help extend the life of your appliance and ensure it continues to operate efficiently.
Does Ketchup Spoil Unrefrigerated? Shelf Life After Opening Explained
You may want to see also
Explore related products
Check Electrical Connections: Ensure all wires connected to the timer are secure and not damaged
Begin by turning off the refrigerator and unplugging it from the power outlet to ensure safety during the inspection. Locate the defrost timer, typically found on the back or side of the refrigerator, and remove the protective cover to access the electrical connections. Inspect each wire connected to the timer, checking for signs of wear, fraying, or damage. Ensure that all wires are firmly seated in their respective terminals and that no connections are loose.
Use a multimeter to test the continuity of each wire, setting the meter to the appropriate resistance setting. Touch the multimeter probes to each end of the wire, and if the meter shows no reading or an open reading, the wire is likely damaged and needs to be replaced. Repeat this process for all wires connected to the defrost timer.
While inspecting the electrical connections, also check for any signs of corrosion or overheating on the timer itself. Look for discoloration, burnt marks, or melted plastic, which could indicate a faulty timer that needs to be replaced. If the timer appears to be in good condition, reattach the protective cover and plug the refrigerator back in.
Turn the refrigerator back on and observe its operation for a few hours to ensure that the defrost cycle is functioning correctly. If the refrigerator continues to experience issues, such as not defrosting properly or making unusual noises, further troubleshooting may be necessary.
Maintaining Your Car's AC: Optimal Refrigerant Check Frequency Guide
You may want to see also
Explore related products
Test Continuity: Use a multimeter to test the continuity of the timer's circuit
To test the continuity of the timer's circuit, you'll need a multimeter set to the continuity test symbol, which looks like a sound wave. First, ensure the refrigerator is unplugged to avoid any electrical shock. Locate the timer on the circuit board, which is usually a small, rectangular component with multiple legs. Touch the multimeter probes to each leg of the timer, one at a time, while observing the multimeter's display. A continuous reading indicates that the circuit is complete and the timer is functioning correctly. If the multimeter doesn't show continuity, it suggests a break in the circuit, which could mean the timer is faulty.
Next, check the connections between the timer and other components on the circuit board. Ensure that all wires and connectors are securely attached and not damaged. If you find any loose connections, reattach them firmly. If there are signs of damage, such as frayed wires or burnt connectors, you may need to replace the affected parts.
After inspecting the connections, test the continuity of the circuit again. If the multimeter still doesn't show continuity, the issue might be with the timer itself or another component on the circuit board. In this case, it's advisable to consult a professional technician for further diagnosis and repair.
Remember, safety is paramount when working with electrical components. Always double-check that the refrigerator is unplugged before starting any tests or repairs. If you're unsure about any part of the process, it's best to seek professional help to avoid any potential hazards.
Refrigerator Energy Waste: The Hidden Cost of Open Doors
You may want to see also
Explore related products
Inspect for Damage: Look for any signs of physical damage or corrosion on the timer and board
Begin by carefully examining the defrost timer and its circuit board for any visible signs of physical damage. This includes cracks, dents, or burns on the plastic casing of the timer, as well as any broken or loose components on the circuit board. Physical damage can often be the result of mishandling during installation or removal, or from external forces such as a power surge or physical impact.
Next, inspect the circuit board for signs of corrosion. This can appear as greenish or brownish discoloration on the metal contacts and traces. Corrosion can occur due to exposure to moisture or chemicals, and can lead to poor electrical conductivity and ultimately, failure of the timer.
When inspecting for damage, it's important to also check the wiring connections to the timer. Ensure that all wires are securely attached and that there are no signs of fraying or exposed wires. Loose or damaged wiring can cause intermittent or complete failure of the defrost system.
If you find any signs of damage or corrosion, it's crucial to replace the affected components immediately. Continuing to use a damaged timer or circuit board can lead to further complications, such as electrical shorts or even a fire hazard.
In addition to physical damage and corrosion, it's also important to check for any signs of overheating. This can be indicated by discoloration or warping of the plastic components, or by the presence of burnt or melted areas on the circuit board. Overheating can be caused by a malfunctioning component or by inadequate ventilation, and can also lead to failure of the defrost system.
Finally, always remember to unplug the refrigerator before performing any inspections or repairs. This will help to prevent any accidental electrical shocks or damage to the components.
Quick Fix: Silencing Your Whirlpool Fridge Alarm in Simple Steps
You may want to see also
Explore related products
Replace if Necessary: If the timer is faulty, replace it with a compatible part
If the defrost timer in your refrigerator is malfunctioning, it's crucial to replace it to ensure the appliance operates efficiently. A faulty timer can lead to issues such as improper defrosting, which may cause ice buildup and affect the refrigerator's cooling performance. To replace the timer, you'll need to identify a compatible part that matches the specifications of your refrigerator model.
Begin by consulting your refrigerator's user manual or searching online for the correct replacement part using the model number. Once you have the compatible timer, follow these steps:
- Safety First: Unplug the refrigerator from the power outlet to avoid any electrical hazards during the replacement process.
- Access the Timer: Locate the timer, which is typically found on the defrost timer circuit board. This board is usually situated in the back or bottom of the refrigerator, behind a panel or cover.
- Remove the Old Timer: Carefully disconnect the wires attached to the faulty timer. Take note of the wire connections to ensure you can properly connect the new timer.
- Install the New Timer: Attach the new timer to the circuit board, ensuring it is securely fastened. Reconnect the wires to the corresponding terminals on the new timer, double-checking that each connection is correct.
- Test the New Timer: Plug the refrigerator back into the power outlet and set the timer according to the manufacturer's instructions. Monitor the defrost cycle to ensure the new timer is functioning correctly.
Remember, if you're unsure about any part of this process, it's always best to consult a professional technician to avoid potential damage to your refrigerator or personal injury.
