Checking the refrigerant level in a split air conditioning (AC) system is a critical maintenance task to ensure optimal performance and efficiency. Proper refrigerant levels are essential for effective cooling, and imbalances can lead to issues such as reduced cooling capacity, increased energy consumption, or even system damage. To check the refrigerant level, you’ll typically need tools like a manifold gauge set, a vacuum pump, and knowledge of the AC system’s specifications. The process involves connecting the gauges to the system’s service ports, measuring the pressure, and comparing it to the manufacturer’s recommended levels based on the ambient temperature. It’s important to follow safety precautions and, if unsure, consult a professional technician to avoid mishandling refrigerants or damaging the system.
| Characteristics | Values |
|---|---|
| Method | Visual Inspection, Subcooling/Superheat Measurement, Pressure Gauge Reading |
| Tools Required | Manifold Gauge Set (for pressure reading), Thermometer (for subcooling/superheat), Refrigerant Scale (optional) |
| Safety Precautions | Wear safety goggles, gloves, and ensure proper ventilation. Turn off power to the AC unit before servicing. |
| Optimal Refrigerant Level | Varies by system; check manufacturer's specifications (typically listed on the unit or in the manual). |
| Visual Inspection Indicators | Frost on evaporator coils (low refrigerant), ice buildup (very low refrigerant), or oil stains (leak). |
| Subcooling/Superheat Measurement | Subcooling: 10-15°F (liquid line), Superheat: 8-12°F (suction line). Requires accurate temperature measurement. |
| Pressure Gauge Reading | Compare suction and liquid line pressures to manufacturer's specifications (varies by refrigerant type, e.g., R-410A, R-22). |
| Frequency of Check | Annually or if symptoms of low/high refrigerant (e.g., poor cooling, high energy bills, unusual noises). |
| Professional Assistance | Recommended for accurate diagnosis and refrigerant handling due to EPA regulations and safety risks. |
| Refrigerant Types | Common types: R-410A, R-22, R-32. Ensure compatibility with your AC system. |
| Environmental Impact | Refrigerants are greenhouse gases; proper handling and disposal are critical. |
| Symptoms of Low Refrigerant | Reduced cooling efficiency, longer run times, frost or ice on coils. |
| Symptoms of Overcharged Refrigerant | High head pressure, liquid slugging, reduced efficiency, potential compressor damage. |
Explore related products
What You'll Learn
Tools Needed for Checking Refrigerant Levels

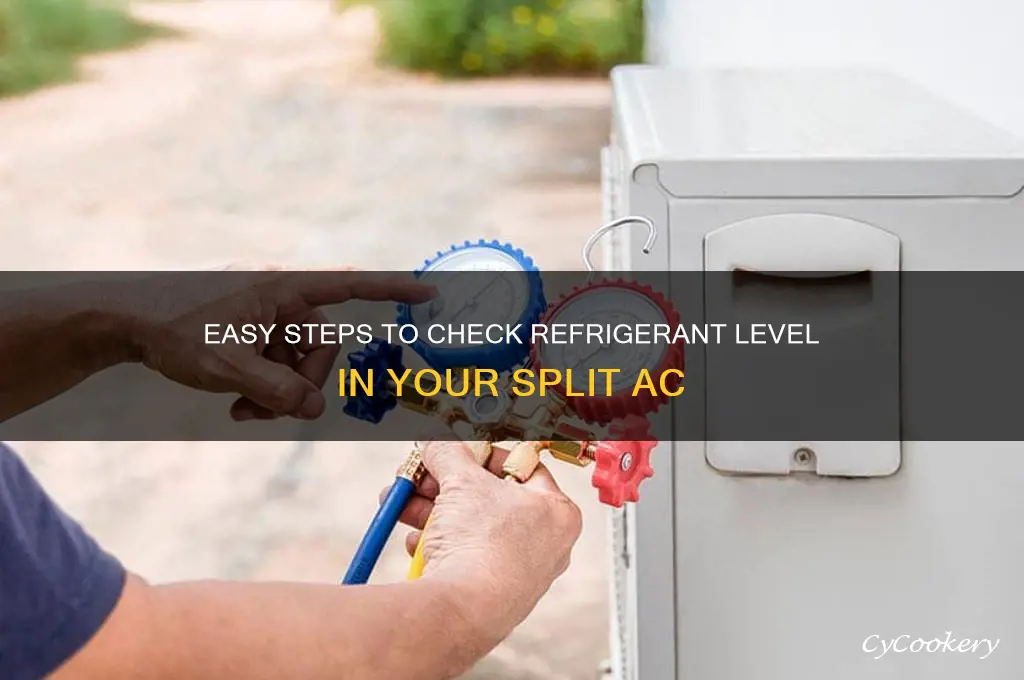

Checking the refrigerant level in a split AC system requires precision and the right tools. The first essential item is a manifold gauge set, which connects to the AC’s service valves and measures pressure in the system. This tool is critical for determining if the refrigerant charge is within the manufacturer’s specified range, typically displayed in PSI or bar. Without it, you’re essentially guessing, which can lead to overcharging or undercharging—both detrimental to the system’s efficiency and lifespan.
Equally important is a thermometer, specifically a digital one with dual probes. One probe measures the ambient temperature, while the other is placed on the suction line to gauge the evaporator’s temperature. By comparing these readings, you can calculate the superheat—a key metric for assessing refrigerant levels. For example, if the superheat value deviates from the recommended range (usually 8–12°F for R-410A systems), it indicates an imbalance in the refrigerant charge.
A refrigerant scale is another indispensable tool, especially when adding or removing refrigerant. It ensures accuracy to within a fraction of an ounce, which is crucial since even small deviations can affect performance. For instance, overcharging by just 10% can reduce efficiency by up to 15% and increase energy consumption. Always ensure the scale is calibrated and placed on a flat surface for reliable readings.
Lastly, a vacuum pump is necessary if the system requires evacuation before recharging. This tool removes moisture and air from the lines, preventing contamination that could damage the compressor. While not directly used for checking refrigerant levels, it’s a critical component of the process, particularly after repairs or if the system has been opened. Skipping this step can lead to long-term issues, such as acid formation or compressor failure.
In summary, the tools needed—manifold gauge set, thermometer, refrigerant scale, and vacuum pump—each serve a distinct purpose in ensuring accurate refrigerant level checks. Investing in quality tools and understanding their proper use not only safeguards your AC system but also maximizes its efficiency and longevity.
Refrigerated Pasta Meatballs: Shelf Life and Storage Tips
You may want to see also
Explore related products
Locating the Service Valves on Split AC Units
The service valves on a split AC unit are the gateway to its refrigerant system, and their location is critical for any maintenance or diagnostic work. Typically, these valves are found on the outdoor unit, often near the bottom or side, depending on the manufacturer’s design. They are usually covered by a protective cap or panel to prevent accidental tampering or debris ingress. Identifying these valves is the first step in checking refrigerant levels, as they provide access to the system’s pressure gauges and charging ports. Without locating them accurately, any attempt to assess or adjust refrigerant levels becomes futile.
Analyzing the design of split AC units reveals that service valves are often color-coded for clarity: the liquid valve is typically blue, and the suction valve is red. This standardization simplifies the process for technicians, ensuring they connect the correct hoses to the appropriate valves. However, not all units adhere to this convention, so consulting the user manual or manufacturer’s guidelines is essential. For instance, some older models may lack color coding, relying instead on labels or positioning cues. Understanding these variations ensures precision and prevents errors that could damage the system.
Locating the service valves involves a systematic approach. Start by turning off the AC unit to ensure safety and prevent system pressure fluctuations. Next, inspect the outdoor unit’s exterior for a removable panel or access door, often secured with screws or clips. Once opened, the valves should be visible, accompanied by pressure gauge ports. If the valves are not immediately apparent, trace the refrigerant lines from the compressor to identify their endpoints. In some cases, valves may be recessed or hidden behind insulation, requiring careful removal of additional components. Patience and attention to detail are key to avoiding oversight.
A practical tip for homeowners or DIY enthusiasts is to familiarize themselves with their unit’s layout before attempting any maintenance. Taking photos of the outdoor unit’s interior during initial inspection can serve as a reference for future tasks. Additionally, keeping a log of valve locations and system specifications can streamline troubleshooting. For those unsure about handling refrigerant systems, consulting a certified technician is advisable, as improper handling can lead to leaks, inefficiency, or even system failure. Proper valve location is not just a technical step—it’s a foundational skill for ensuring the longevity and performance of a split AC unit.
Where to Recycle or Donate Your Old Refrigerator in Boston
You may want to see also
Explore related products
$16.29 $17.19
Understanding Pressure Gauge Readings for Refrigerants
Pressure gauge readings are the backbone of diagnosing refrigerant levels in split AC systems, offering a window into the system's health. These gauges measure the pressure of the refrigerant in both the low-side (suction) and high-side (discharge) of the system, correlating directly to temperature and system performance. For instance, R-410A, a common refrigerant, operates optimally at a low-side pressure of 115–125 PSI and a high-side pressure of 250–275 PSI under typical 75°F ambient conditions. Deviations from these ranges often indicate undercharging, overcharging, or other issues like leaks or blockages.
Interpreting these readings requires cross-referencing them with temperature and ambient conditions. A handy tool for this is a PT chart (Pressure-Temperature chart), which maps refrigerant pressures to corresponding temperatures. For example, if the low-side gauge reads 70 PSI for R-410A, the evaporator coil temperature would be approximately 40°F, suggesting undercharging or restricted airflow. Conversely, a high-side reading of 400 PSI could indicate overcharging or a clogged condenser coil. Always ensure the AC is running in cooling mode and has stabilized for at least 15 minutes before taking readings for accuracy.
While gauges provide critical data, their misuse can lead to misdiagnosis. Common pitfalls include ignoring ambient temperature, failing to account for return air temperature, or using inaccurate gauges. For instance, a high-side pressure of 300 PSI might seem alarming, but if the outdoor temperature is 100°F, it could be within normal range for R-410A. Calibrated gauges and a systematic approach—checking both pressures simultaneously and comparing them to PT charts—are essential. Digital manifold gauges with temperature probes offer greater precision, especially for newer refrigerants with narrower operating windows.
The takeaway is that pressure gauge readings are not standalone metrics but part of a diagnostic puzzle. They must be contextualized with system conditions, refrigerant type, and environmental factors. For DIY enthusiasts, understanding these readings can prevent costly mistakes like overcharging, which reduces efficiency and risks compressor damage. Professionals use this data to fine-tune systems, ensuring optimal performance and longevity. Always prioritize safety: wear protective gear, avoid contact with refrigerants, and consult manufacturer guidelines for specific models. Mastery of pressure gauge readings transforms them from abstract numbers into actionable insights for maintaining split AC systems.
Easy Steps to Hook Up a Refrigerator Compressor Safely
You may want to see also
Explore related products
Safety Precautions When Handling Refrigerants
Handling refrigerants requires strict adherence to safety protocols to prevent injury and environmental harm. Refrigerants are chemicals that can cause frostbite, skin irritation, or respiratory issues if mishandled. Always wear protective gear, including gloves, safety goggles, and long-sleeved clothing, to minimize direct contact with these substances. Ensure the work area is well-ventilated to avoid inhaling refrigerant fumes, which can displace oxygen and lead to asphyxiation in confined spaces.
Before checking refrigerant levels in a split AC, verify the type of refrigerant used, as different refrigerants have varying toxicity levels and handling requirements. For instance, R-410A operates at higher pressures than R-22, necessitating specialized gauges and equipment. Using incompatible tools can result in equipment damage or personal injury. Always consult the manufacturer’s guidelines or the AC unit’s service manual to identify the correct refrigerant type and handling procedures.
Environmental responsibility is another critical aspect of refrigerant handling. Releasing refrigerants into the atmosphere contributes to ozone depletion and global warming. Use recovery machines to reclaim refrigerants from the system instead of venting them. Dispose of recovered refrigerants through certified recycling programs to comply with regulations like the Clean Air Act. Even small leaks can have significant environmental impacts, so inspect all connections and components for signs of damage or wear before proceeding.
Finally, prioritize electrical safety when working on split AC systems. Turn off the power supply at the circuit breaker before accessing the unit to avoid electric shock. Refrigerant handling often involves working near electrical components, and even a momentary lapse in caution can lead to severe consequences. Keep a fire extinguisher nearby, as some refrigerants are flammable or can ignite under specific conditions. By combining personal protective measures, environmental awareness, and electrical safety, you can safely check refrigerant levels while minimizing risks to yourself and the surroundings.
Storing Rice in the Fridge: Best Practices and Tips
You may want to see also
Explore related products
Interpreting Superheat and Subcooling Measurements
Superheat and subcooling are critical parameters for assessing the refrigerant charge in a split AC system. Superheat refers to the temperature difference between the refrigerant vapor leaving the evaporator and its saturation temperature at the same pressure. Subcooling, on the other hand, is the difference between the liquid refrigerant’s temperature and its saturation temperature at the same pressure. These measurements provide a precise way to determine if the system is undercharged, overcharged, or correctly charged. Without them, you’re essentially guessing, which can lead to inefficiency, component damage, or system failure.
To measure superheat, start by attaching a manifold gauge set to the system and recording the suction pressure. Convert this pressure to its corresponding saturation temperature using a refrigerant pressure-temperature chart. Next, measure the actual temperature of the suction line near the evaporator outlet using a thermocouple or digital thermometer. Subtract the saturation temperature from the actual temperature to calculate superheat. For example, if the suction pressure corresponds to a saturation temperature of 40°F and the suction line temperature is 55°F, the superheat is 15°F. Ideal superheat values vary by system but typically range between 8°F and 15°F for R-410A systems. Low superheat indicates an undercharge, while high superheat suggests an overcharge or restricted airflow.
Subcooling is equally important and measured at the condenser outlet. Attach the gauge set to the liquid line and record the high-side pressure, converting it to its saturation temperature. Measure the liquid line temperature near the condenser outlet and subtract the saturation temperature from the actual temperature. For instance, if the liquid line pressure corresponds to a saturation temperature of 100°F and the actual temperature is 108°F, the subcooling is 8°F. Proper subcooling for R-410A systems typically falls between 10°F and 15°F. Insufficient subcooling often indicates an undercharge or a failing condenser, while excessive subcooling can result from an overcharge or non-condensables in the system.
Interpreting these measurements requires context. For example, if superheat is high and subcooling is low, the system is likely undercharged. Conversely, low superheat and high subcooling suggest an overcharge. However, other factors like airflow restrictions, dirty coils, or metering device issues can skew readings. Always verify measurements under stable operating conditions and cross-reference with manufacturer specifications. For instance, a system running with a superheat of 20°F and subcooling of 5°F is clearly imbalanced, but diagnosing whether it’s due to charge, airflow, or another issue requires further investigation.
Practical tips include ensuring the system has been running for at least 15 minutes to stabilize temperatures, using accurate tools, and avoiding measurements during extreme outdoor temperatures. For DIY enthusiasts, investing in a digital manifold gauge with temperature probes simplifies the process. Professionals should document baseline readings during installation for future reference. Remember, superheat and subcooling are not standalone diagnostics but part of a holistic approach to refrigerant charge verification. Misinterpreting these values can lead to unnecessary adjustments, so always double-check calculations and consider the system’s overall performance before making changes.
Is a Floor Model Refrigerator Worth Buying? Pros and Cons Explained
You may want to see also
Frequently asked questions
To check the refrigerant level, use a manifold gauge set. Connect the gauges to the AC’s service valves, turn on the AC, and observe the pressure readings. Compare the suction and discharge pressures to the manufacturer’s specifications for the current ambient temperature.
Yes, you can perform a visual inspection by checking the sight glass on the outdoor unit (if available). If the refrigerant is flowing correctly, the sight glass should show a clear, bubble-free liquid. Bubbles or an empty sight glass may indicate low refrigerant.
Common signs include reduced cooling performance, ice buildup on the evaporator coil, hissing noises from the indoor unit, or higher-than-normal energy bills. If you suspect low refrigerant, it’s best to call a professional for a proper inspection and recharge.
