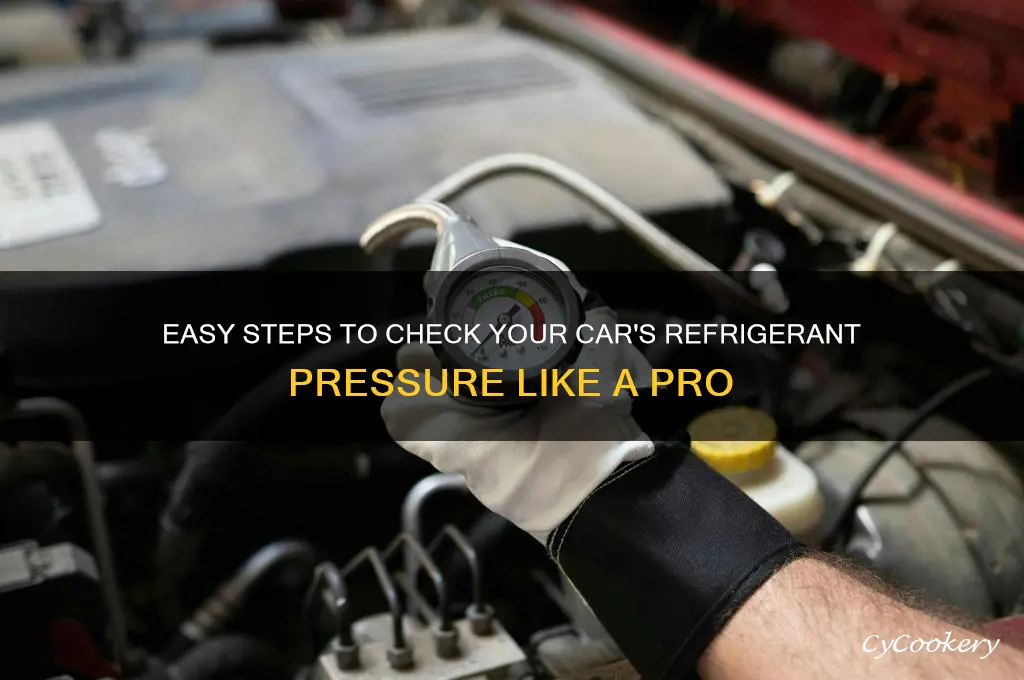

Checking the refrigerant pressure in your car is a crucial step in maintaining the efficiency and performance of your vehicle’s air conditioning system. Proper refrigerant levels ensure optimal cooling, prevent compressor damage, and extend the lifespan of the AC components. To check the pressure, you’ll need a set of manifold gauges compatible with your car’s refrigerant type (typically R-134a or R-1234yf). Start by locating the low-pressure and high-pressure service ports on your AC system, usually found near the compressor or on the accumulator/receiver-drier. Connect the gauges to these ports, turn on the car and the AC to its maximum settings, and observe the pressure readings. Compare the results to the manufacturer’s specifications, which can often be found on a label under the hood or in the owner’s manual. If the pressure is too high or too low, it may indicate a leak, overcharging, or undercharging, requiring further inspection or professional assistance. Regularly monitoring refrigerant pressure helps ensure your AC system operates smoothly and efficiently.
| Characteristics | Values |
|---|---|
| Tools Required | Pressure gauge, refrigerant manifold gauge set, safety gloves, goggles |
| Refrigerant Type | R-134a (most modern cars), R-12 (older cars, phased out) |
| Pressure Gauge Type | Low-side (suction) and high-side (discharge) gauges |
| Optimal Pressure Range (Low-Side) | 25-45 PSI (varies by ambient temperature and vehicle specifications) |
| Optimal Pressure Range (High-Side) | 150-250 PSI (varies by ambient temperature and vehicle specifications) |
| Ambient Temperature Consideration | Pressure increases with higher temperatures and decreases with lower temps |
| System State | Engine running, A/C set to maximum cooling, fan on high |
| Connection Point | Low-side service port (usually near the firewall or accumulator) |
| Safety Precautions | Avoid contact with refrigerant, wear protective gear, ensure proper venting |
| Frequency of Check | Annually or when A/C performance issues are noticed |
| Common Issues | Low pressure (leak), high pressure (clogged condenser or overcharge) |
| Professional Assistance | Recommended if unsure or if system needs repair/refilling |
Explore related products
What You'll Learn
- Gather Tools: Acquire pressure gauge, refrigerant type, safety gear, and gloves for accurate pressure measurement
- Locate Ports: Identify low and high-pressure service ports under the car’s hood
- Connect Gauge: Attach the pressure gauge to the appropriate port securely
- Read Pressure: Compare gauge readings to manufacturer’s specifications for correct refrigerant levels
- Adjust Levels: Add or remove refrigerant as needed based on pressure readings
Gather Tools: Acquire pressure gauge, refrigerant type, safety gear, and gloves for accurate pressure measurement
Before attempting to check your car's refrigerant pressure, it's essential to gather the necessary tools to ensure an accurate and safe measurement. A pressure gauge specifically designed for automotive air conditioning systems is the cornerstone of this process. These gauges typically feature a dual-scale display, allowing you to read both high-side and low-side pressures simultaneously. When selecting a pressure gauge, opt for one with a range that covers the typical operating pressures of your vehicle's A/C system, usually between 0-500 psi.
The type of refrigerant used in your car is another critical factor. Modern vehicles primarily use R-134a, while older models may still rely on R-12, which is being phased out due to environmental concerns. Using the wrong refrigerant can damage your A/C system and pose health risks. To identify the correct refrigerant, consult your vehicle's owner manual or look for a label under the hood. This information is crucial when purchasing a pressure gauge, as some models are designed for specific refrigerants.
Safety should always be a top priority when working with refrigerants. Acquire appropriate safety gear, including safety goggles to protect your eyes from potential chemical splashes and a respirator to prevent inhalation of refrigerant fumes. Additionally, wear gloves made from materials resistant to chemicals, such as nitrile or butyl rubber. These gloves not only protect your skin from direct contact with refrigerants but also provide a better grip when handling tools.
Now, let's break down the tool acquisition process into actionable steps. First, research and purchase a compatible pressure gauge, ensuring it matches your vehicle's refrigerant type and pressure range. Next, verify the refrigerant used in your car and acquire the corresponding type if you need to add or replace it. Simultaneously, gather safety gear, including goggles, a respirator, and chemical-resistant gloves. By following these steps, you'll be well-prepared to measure your car's refrigerant pressure accurately and safely.
In comparison to other automotive maintenance tasks, checking refrigerant pressure requires a more specialized set of tools and safety precautions. While changing oil or replacing air filters may only necessitate basic hand tools and minimal safety gear, working with refrigerants demands a higher level of caution and preparation. By investing in the right tools and safety equipment, you not only ensure an accurate measurement but also protect yourself and your vehicle from potential harm. Remember, a well-prepared approach is key to successful and safe automotive maintenance.
Optimal Temperature to Decompose Refrigerant Oil: A Comprehensive Guide
You may want to see also
Explore related products
Locate Ports: Identify low and high-pressure service ports under the car’s hood
Under the hood of most vehicles, a network of hoses and components work together to keep your air conditioning system functioning. Among these, the low and high-pressure service ports are critical for diagnosing and maintaining refrigerant levels. These ports are typically located near the firewall, often on the passenger side, and are color-coded for easy identification: the low-pressure port is usually blue, while the high-pressure port is red. Understanding their placement is the first step in accurately checking refrigerant pressure.
To locate these ports, start by consulting your vehicle’s manual, which often includes diagrams specific to your make and model. If the manual isn’t available, visually inspect the AC lines near the firewall. The low-pressure port is connected to the suction line, which is larger in diameter and carries refrigerant vapor from the evaporator to the compressor. The high-pressure port, on the other hand, is linked to the liquid line, which is smaller and transports high-pressure liquid refrigerant from the condenser to the expansion valve. A careful examination of these lines will lead you to the correct ports.
Once you’ve identified the ports, ensure they are clean and free of debris before connecting any gauges. Dirt or grime can interfere with the seal, leading to inaccurate readings or potential damage. If the ports are recessed or hard to reach, consider using extension hoses or adapters to make the process easier. Remember, the low-pressure port is used for adding refrigerant and checking suction pressure, while the high-pressure port is primarily for diagnostic purposes, as adding refrigerant here can be dangerous due to the system’s elevated pressures.
A practical tip for verification is to trace the lines from the compressor. The low-pressure side will be the larger line exiting the compressor, while the high-pressure side will be the smaller line leading to the condenser. This method can confirm your initial identification and reduce the risk of errors. Properly locating these ports not only ensures an accurate pressure check but also prevents accidental damage to the AC system, saving time and potential repair costs.
Maximizing Freshness: Optimal Refrigeration Times for Common Foods
You may want to see also
Explore related products
Connect Gauge: Attach the pressure gauge to the appropriate port securely
Attaching a pressure gauge to your car's refrigerant system is a critical step in diagnosing AC performance. The process begins with identifying the correct port—typically low-pressure for charging or diagnostics, located near the firewall or on the larger AC line. High-pressure ports, though less commonly used for this purpose, are on the smaller line closer to the compressor. Ensure the engine is off and the AC system is depressurized before proceeding, as mishandling can lead to refrigerant leaks or component damage.
The gauge itself must be compatible with your vehicle’s refrigerant type (e.g., R-134a or R-12, though the latter is rare in modern cars). Attach the gauge hose firmly to the port, tightening by hand first, then using an adjustable wrench to secure it without over-tightening. A loose connection risks refrigerant escape, while excessive force can strip the port threads. Always use Teflon tape or a sealing compound on the threads to ensure an airtight seal, particularly in older vehicles where corrosion may compromise integrity.
Once connected, observe the gauge for stability. Fluctuations may indicate a leak or improper connection. Compare the reading to manufacturer specifications, typically found in the vehicle’s manual or online resources. For instance, a running AC system with ambient temperatures around 80°F should show low-side pressures between 35–45 PSI and high-side pressures between 210–250 PSI. Deviations suggest issues like undercharging, overcharging, or component failure.
Finally, disconnect the gauge carefully by releasing the hose while the system is still off. Wipe the port clean and cap it to prevent debris ingress. This step, though simple, is often overlooked and can lead to long-term damage if neglected. Proper gauge connection not only ensures accurate diagnostics but also safeguards the AC system’s longevity, making it a cornerstone of effective refrigerant pressure checks.
Should You Refrigerate Bananas? The Surprising Truth Revealed
You may want to see also
Explore related products
Read Pressure: Compare gauge readings to manufacturer’s specifications for correct refrigerant levels
After turning on your vehicle and allowing the AC system to run for a few minutes, attach your manifold gauge set to the low and high-pressure service ports. These ports are typically located near the firewall, though their exact placement varies by make and model. Once connected, observe the gauges: the blue hose gauge displays low-side pressure, while the red hose gauge shows high-side pressure. These readings are critical because they directly reflect the refrigerant levels and system efficiency. For instance, a low-side reading of 35–45 PSI during ambient temperatures of 80°F indicates a properly charged system, but this range shifts with temperature—always consult your vehicle’s specifications for accuracy.
Manufacturers provide precise pressure specifications for optimal AC performance, often found in the owner’s manual or on a sticker under the hood. For example, a 2015 Toyota Camry with R-134a refrigerant may specify a low-side pressure of 25–35 PSI when the ambient temperature is 70°F. Deviations from these values signal potential issues: low pressure may indicate a leak or undercharge, while high pressure could suggest overcharging or a clogged expansion valve. Cross-referencing gauge readings with these specifications is not just a step—it’s the diagnostic core of refrigerant pressure checks.
Suppose your gauge reads 20 PSI on the low side for that 2015 Camry at 70°F. This falls below the manufacturer’s 25–35 PSI range, suggesting an undercharge or leak. Before jumping to conclusions, verify ambient temperature accuracy and ensure the AC is set to max cooling with the engine at 2000 RPM. If the reading persists, inspect visible components for oil residue (a leak indicator) or use an electronic leak detector. Conversely, a high-side reading of 250 PSI when the specification is 220–250 PSI might indicate an overcharge, requiring refrigerant removal to prevent compressor damage.
Practical tips enhance accuracy: always perform checks with the engine running and AC on max, as idle speeds affect pressure. If your vehicle has an orifice tube system, avoid overcharging—adding more than 2–3 ounces of refrigerant at a time can lead to high-pressure lockout. For newer vehicles with R-1234yf refrigerant, specialized gauges are required due to the refrigerant’s unique properties. Lastly, if pressures consistently deviate from specifications despite correct charging, consult a professional to diagnose deeper issues like compressor failure or system blockages.
Comparing gauge readings to manufacturer specifications isn’t just about numbers—it’s about understanding the system’s health. For example, a 2005 Honda Civic with R-134a may show a high-side pressure of 180 PSI at 90°F, within its 160–210 PSI range, but if the low side reads 0 PSI, the issue isn’t refrigerant level—it’s likely a failed compressor clutch. This analytical approach transforms raw data into actionable insights, ensuring you address the root cause rather than symptoms. Always prioritize safety: wear gloves, avoid contact with refrigerant, and never attempt repairs beyond your skill level.
Should Skinny Syrup Be Refrigerated After Opening? Storage Tips
You may want to see also
Explore related products
Adjust Levels: Add or remove refrigerant as needed based on pressure readings
Refrigerant pressure is a delicate balance, and even a slight deviation can impact your car's cooling performance. Once you've obtained accurate pressure readings using a manifold gauge set, the next step is to adjust the refrigerant levels accordingly. This process requires precision and a clear understanding of the target pressure ranges for your specific vehicle and ambient temperature.
Analyzing Pressure Readings: Before making any adjustments, consult your vehicle's manual or a reliable online resource to determine the recommended pressure range for your car's air conditioning system. Typically, the low-side pressure should be around 25-45 psi, while the high-side pressure can range from 150-250 psi, depending on the ambient temperature. If your readings fall outside these ranges, it's time to adjust the refrigerant levels.
Adding Refrigerant: If your pressure readings are low, you'll need to add refrigerant to the system. Start by attaching the refrigerant can to the low-side service port, ensuring the valve is closed. Gradually open the valve, allowing the refrigerant to flow into the system. Monitor the pressure gauge closely, as overfilling can cause damage. A general rule of thumb is to add refrigerant in small increments, approximately 0.5-1 oz at a time, allowing the system to stabilize before rechecking the pressure. For most passenger vehicles, the total refrigerant capacity ranges from 14 to 28 oz, but always refer to your vehicle's specifications.
Removing Refrigerant (if necessary): In some cases, you might need to remove refrigerant if the pressure readings are too high. This process is more complex and should be approached with caution. Use a refrigerant recovery machine to extract the excess refrigerant, ensuring compliance with environmental regulations. It's crucial to follow the manufacturer's guidelines and local laws when handling and disposing of refrigerants.
Practical Tips for Adjustment: When adjusting refrigerant levels, consider the ambient temperature, as it significantly affects the target pressure. On hotter days, the high-side pressure will naturally be higher. Always work with the engine running and the air conditioning set to its highest setting. Keep a record of the refrigerant added or removed, along with the corresponding pressure readings, to track the system's performance over time. Remember, precision is key; small adjustments can make a substantial difference in your car's cooling efficiency.
Refrigerating Pinot Grigio: Post-Opening Storage Tips for Optimal Flavor
You may want to see also
Frequently asked questions
You’ll need a refrigerant pressure gauge (manifold gauge set), safety gloves, safety goggles, and optionally, a can of refrigerant with a hose if you plan to recharge the system.
The low-pressure port is typically located on the larger AC line, often near the firewall or close to the evaporator. The high-pressure port is on the smaller line, usually near the AC compressor. Refer to your car’s manual for exact locations.
Normal pressures vary by ambient temperature, but generally, low-side pressure ranges from 25–45 PSI, and high-side pressure ranges from 150–250 PSI. Always consult your vehicle’s specifications for accurate readings.
No, the AC system must be running to accurately measure refrigerant pressure. Turn on the car, set the AC to maximum cooling, and let it run for a few minutes before checking the pressures.
