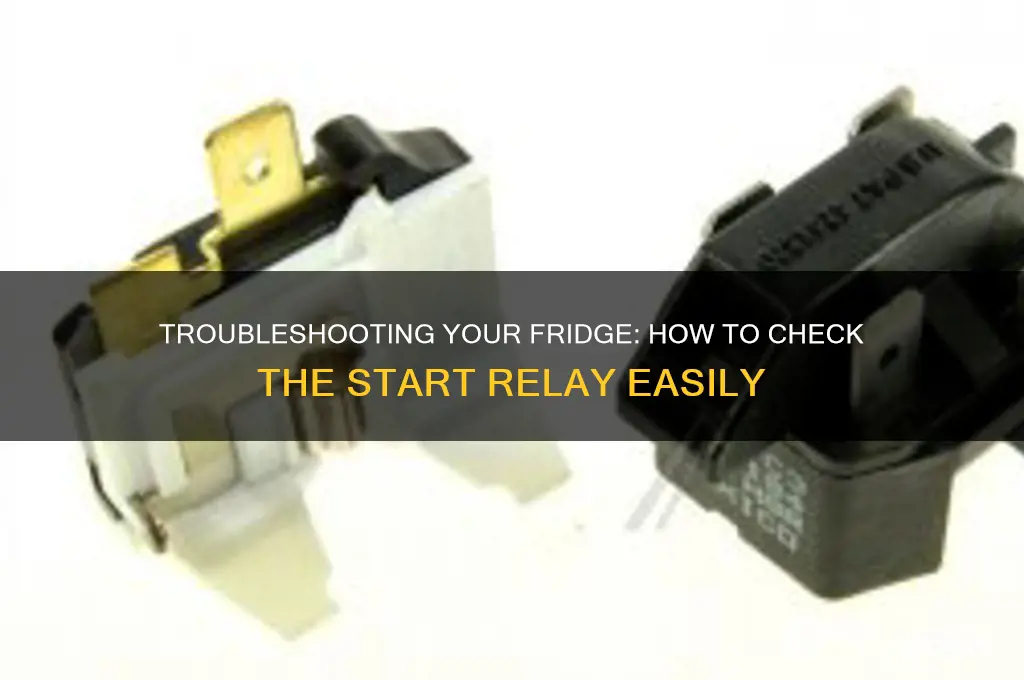

Checking the start relay of a refrigerator is a crucial step in diagnosing and resolving issues related to the compressor not starting or running intermittently. The start relay is a small electrical component that helps the compressor motor start by providing an initial boost of power. To inspect it, first unplug the refrigerator for safety. Locate the relay, typically found near the compressor, and remove the protective cover. Visually inspect the relay for signs of burning, melting, or damage. Use a multimeter to test for continuity across the start and run terminals; if there is no continuity, the relay is likely faulty and needs replacement. Additionally, listen for a clicking sound when the compressor tries to start, which could indicate a failing relay. Replacing a defective start relay can often restore proper function to the refrigerator’s cooling system.
| Characteristics | Values |
|---|---|
| Purpose | To diagnose if the start relay (also known as the overload relay or starter) is faulty. |
| Tools Required | Multimeter, screwdriver, gloves, safety goggles. |
| Safety Precautions | Unplug the refrigerator before testing to avoid electrical shock. |
| Location of Start Relay | Usually found near the compressor, often attached to the side of the compressor. |
| Visual Inspection | Check for burn marks, melting, or loose connections. |
| Continuity Test | Use a multimeter to test continuity across the start relay terminals. |
| Expected Continuity Result | Continuity should be present between the run and start terminals. |
| No Continuity Indicates | A faulty start relay that needs replacement. |
| Voltage Test (Optional) | Test voltage across the relay terminals to ensure proper power supply. |
| Replacement Procedure | Unplug the refrigerator, remove the old relay, and install the new one following the same wiring. |
| Common Symptoms of Faulty Relay | Refrigerator not cooling, compressor not starting, clicking noises from the compressor. |
| Cost of Replacement | Typically $10 to $30 for the part, depending on the brand and model. |
| Professional Assistance | If unsure, consult a professional technician to avoid further damage. |
Explore related products
What You'll Learn
Tools Needed for Testing
Testing a refrigerator's start relay requires a few essential tools to ensure accuracy and safety. A multimeter is the cornerstone of this process, allowing you to measure voltage, resistance, and continuity. Opt for a digital multimeter with a minimum range of 0–500 ohms for resistance testing and the ability to measure AC voltage up to 240V. Ensure the multimeter has test leads in good condition, as frayed or damaged wires can lead to inaccurate readings or electrical hazards.
Beyond the multimeter, insulated screwdrivers are indispensable for accessing the relay. Use a Phillips-head screwdriver to remove the relay cover, ensuring it’s insulated to prevent accidental short circuits. A nut driver or socket wrench may also be needed if the relay is secured with nuts or bolts. Always prioritize tools with rubberized grips to minimize the risk of electric shock, especially when working near live components.
For hands-on inspection, a magnifying glass or inspection mirror can help identify cracks, burns, or corrosion on the relay. Pair this with a flashlight to illuminate hard-to-see areas, as poor lighting can lead to overlooked defects. While not a tool, safety gloves are critical to protect against sharp edges and electrical contact, particularly when handling exposed wires or terminals.
Lastly, consider a replacement relay as part of your toolkit. If testing confirms a faulty relay, having a compatible replacement on hand saves time and prevents extended downtime. Verify the part number and specifications before purchasing to ensure compatibility with your refrigerator model. With these tools, you’re equipped to diagnose and address start relay issues efficiently and safely.
Running a Fridge on a Generator GFCI Outlet: What You Need to Know
You may want to see also
Explore related products
Safety Precautions Before Testing
Before testing a refrigerator's start relay, ensure the appliance is unplugged from the power source. This fundamental step eliminates the risk of electric shock, a hazard that can cause severe injury or even be fatal. Even if the refrigerator seems inactive, residual electricity may still be present in the system. By disconnecting the power, you create a safe environment to proceed with your diagnostics.
Consider the age and condition of your refrigerator when planning to test the start relay. Older models, particularly those over 15 years, may have worn components that increase the risk of electrical shorts or malfunctions during testing. If your refrigerator falls into this category, it’s advisable to wear insulated gloves and use tools with non-conductive handles. Additionally, inspect the power cord for fraying or damage, as compromised wiring can pose a significant safety risk even when unplugged.
Testing the start relay often involves accessing the compressor area, which may expose you to sharp edges or moving parts. Wear protective gear, such as safety goggles and closed-toe shoes, to guard against accidental cuts or injuries. Be mindful of your surroundings, especially if the refrigerator is in a tight space, as awkward positioning can lead to strain or accidents. Keep a flashlight handy to illuminate dark areas, ensuring you don’t miss critical components or hazards.
Finally, if you’re unsure about any step in the testing process, consult a professional technician. While DIY diagnostics can save money, the risks associated with electrical systems are not worth the potential harm. A qualified technician can assess the situation safely, ensuring both your well-being and the proper functioning of your refrigerator. Remember, safety precautions are not just recommendations—they are essential practices to protect yourself and your appliance.
Easy Steps to Replace Your Viking Refrigerator Air Filter
You may want to see also
Explore related products
Locating the Start Relay
The start relay in a refrigerator is a small but crucial component, often tucked away near the compressor. Its primary function is to assist the compressor in starting up by providing an initial boost of power. Locating it is the first step in diagnosing whether it’s the source of your fridge’s cooling issues. Typically, the relay is housed in a plastic or metal casing, attached directly to the compressor or nearby on the relay overload assembly. If you’re unsure where to look, consult your refrigerator’s manual or search for your model online, as designs vary across brands and models.
To locate the start relay, begin by unplugging the refrigerator to ensure safety. Next, remove the lower back panel or the panel covering the compressor area, depending on your model. The relay is usually found near the compressor, often connected by wires and secured with clips or screws. In some refrigerators, it’s part of a combined relay overload device, which simplifies identification. If you’re having trouble spotting it, look for a small, rectangular component with wires leading to the compressor and a capacitor. A flashlight can be invaluable in this step, as the area is often dimly lit.
Once you’ve identified the relay, take note of its condition. Signs of damage, such as burn marks, melting, or loose connections, can indicate a faulty relay. However, visual inspection alone isn’t always conclusive, which is why testing is necessary. Before proceeding, ensure you’ve correctly identified the relay, as mistaking it for another component could lead to incorrect diagnostics. If you’re uncertain, compare it to images or diagrams specific to your refrigerator model.
Rocklatan Storage: How Long Can It Stay Out of the Fridge?
You may want to see also
Explore related products
Using a Multimeter to Test
A multimeter is an indispensable tool for diagnosing refrigerator start relay issues, offering precise measurements to determine if the component is functioning correctly. By testing continuity and resistance, you can pinpoint whether the relay is faulty or if the problem lies elsewhere. This method is both cost-effective and efficient, saving you from unnecessary part replacements or service calls.
To begin testing, ensure the refrigerator is unplugged to avoid electrical hazards. Locate the start relay, typically found near the compressor, and remove it from its housing. Set your multimeter to the continuity or resistance (ohms) setting, depending on your device. Touch the multimeter probes to the relay’s terminals—one probe on the "start" terminal and the other on the "run" terminal. A functional relay should show continuity (a beep or low resistance reading), indicating the circuit is complete. If there’s no continuity, the relay is likely defective and needs replacement.
While testing, pay attention to the resistance values. A healthy start relay usually reads between 10 and 50 ohms, though this can vary by model. If the reading is significantly higher or lower, the relay may be failing. Additionally, test the relay’s overload protector, which is often integrated into the same unit. Place the probes on the overload terminals; a reading of infinity (OL) suggests the overload is open and needs replacement.
One common mistake is misinterpreting multimeter readings due to unfamiliarity with the tool. Always consult your multimeter’s manual for accurate settings and interpretations. For instance, some multimeters require specific ranges for resistance testing. If you’re unsure, test the multimeter on a known working component to ensure it’s functioning correctly.
In conclusion, using a multimeter to test a refrigerator start relay is a straightforward process that can save time and money. By understanding continuity, resistance, and proper multimeter usage, you can confidently diagnose relay issues. Always prioritize safety by unplugging the appliance and double-checking your multimeter settings. With practice, this method becomes second nature, empowering you to tackle refrigerator repairs with precision.
Transporting Refrigerators Upright: Essential Tips to Avoid Costly Mistakes
You may want to see also
Explore related products
Interpreting Test Results
A multimeter set to the ohms setting is your decoder ring for start relay diagnostics. You're essentially measuring resistance across the relay's contacts. A reading of 0 ohms (or very close to it) indicates a closed circuit, meaning the relay is functioning and allowing current to flow to the compressor. Conversely, an infinite reading (or "OL" on your multimeter) signifies an open circuit, pointing to a faulty relay that needs replacement.
Remember, these readings are snapshots in time. A relay can sometimes exhibit intermittent faults, so if you suspect a problem but get a good reading, repeat the test several times under different conditions (e.g., after the compressor has been running for a while).
Let's say your multimeter reads 5 ohms. This falls into a gray area. While not an open circuit, it's higher than the ideal 0 ohms. This could indicate corrosion on the contacts or a weakened spring mechanism within the relay. In such cases, further investigation is warranted. Carefully inspect the relay for visible signs of damage or wear. If everything appears clean and intact, consider replacing the relay as a precautionary measure.
A helpful tip: Compare your readings to the specifications provided in your refrigerator's service manual. These manuals often include acceptable resistance ranges for the start relay, giving you a more precise benchmark for interpretation.
Don't be tempted to diagnose solely based on visual inspection. A relay may look pristine but still be malfunctioning internally. The multimeter provides objective data, cutting through the guesswork. Conversely, a relay with slight discoloration or minor surface rust might still test within acceptable limits. Always prioritize the multimeter readings over visual cues.
While interpreting test results is crucial, safety should never be compromised. Ensure the refrigerator is unplugged before performing any tests. Even a seemingly minor electrical fault can pose a hazard. If you're unsure about any aspect of the testing process, consult a qualified appliance repair technician. Remember, a misdiagnosis can lead to unnecessary part replacements or, worse, further damage to your refrigerator.
Refrigerating Avocados: Effective Method to Slow Ripening or Not?
You may want to see also
Frequently asked questions
A start relay is a component in a refrigerator's compressor that helps start the motor by providing an initial boost of power. It is crucial because it ensures the compressor runs efficiently, keeping the refrigerator cool. If the start relay fails, the compressor may not start, leading to cooling issues.
To test a start relay, first unplug the refrigerator. Locate the relay (usually near the compressor) and remove it. Use a multimeter to check for continuity between the pins. If there is no continuity or the relay clicks excessively when shaken, it’s likely faulty and needs replacement.
Common signs include the refrigerator not cooling properly, the compressor not starting, or the compressor humming but not running. You may also hear a clicking sound from the relay when the compressor tries to start. If these symptoms occur, the start relay may need inspection or replacement.
