Tillie Doyle

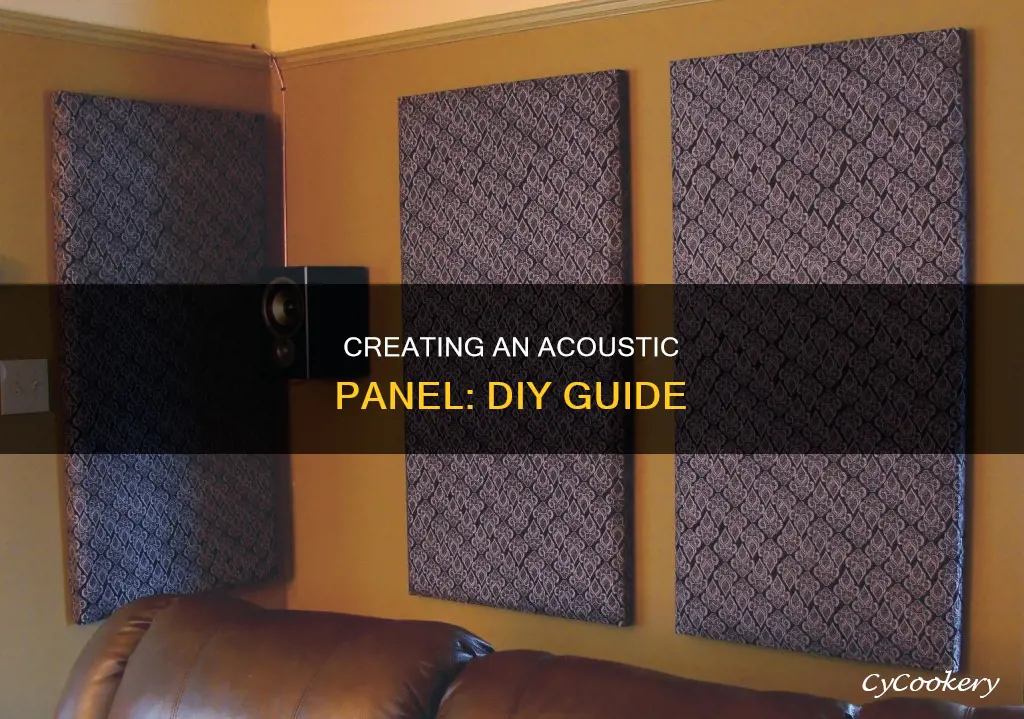

Acoustic panels are used to reduce reverb and optimise sound in a room. They are commonly used in recording studios to treat the first reflection points of a room and absorb problematic reflections. Acoustic panels can be purchased online, but they can also be built at home with relative ease and for a fraction of the cost. This introduction will cover the process of creating DIY acoustic panels, the materials required, and the benefits of customising your own acoustic panels.
| Characteristics | Values |
|---|---|
| Purpose | To cut down on reverb in a room when recording audio |
| Cost | $200-500 for DIY panels to treat a whole room |
| Difficulty | Easy, suitable for beginners |
| Tools | Drill, countersink drill bit set, speed square, wood screws, wood glue, duct tape, brad nailer or small screws, screen door material, insulation, picture wire, picture hooks, fabric |
| Dimensions | 2 feet wide, 4 feet long, 2-4 inches deep; 24-1/2" x 48-1/2"; 47" x 23" |
| Fabric | Guilford of Maine, felt, or other fabric that allows sound to pass through |
Explore related products
$119.54 $199.99
What You'll Learn
Planning your acoustic panel project
Space Assessment
Firstly, it is important to assess the space where you plan to install the acoustic panels. Identify the areas that require the most acoustic treatment. Common areas include rooms with high ceilings, reflective floors, or open floor plans, as these tend to create more echo. Consider the placement of your TV or sound system, as the multi-directional sound can produce more bounce-back noise.
Materials and Tools
Acoustic panels can be made using readily available materials from any home centre or hardware store. The most common materials include wood for framing, acoustic fabric or insulation for sound absorption, and tools for assembly.
For framing, you will need 8-foot 1x4" boards, which will be cut to size. Acoustic fabrics are available in various colours and can be purchased pre-cut to fit your frame. Common brands of acoustic insulation include "Thermafiber" and "Rockwool" (mineral wool), which come in standard sizes.
Basic tools required include a saw, screwdriver, scissors, and construction stapler, and a staple gun. Additional tools such as a brad nailer or small screws may be needed for joining the frame.
Cost and Time
The cost of DIY acoustic panels varies depending on the number of panels and the materials used. On average, a 2'x4' panel costs between $20 and $30 to make, compared to $60 to $150 or more for a similar store-bought panel. Shipping costs for pre-made panels can also add up, making DIY a more cost-effective option.
Consider the time investment required for this project. Building the panels can be done in a few hours, but if you plan to work alone, the entire project may take a few days.
Installation
Finally, plan the installation process. Acoustic panels can be hung on walls or ceilings using hooks, eyelets, or Z clips. Ensure that you evenly distribute the weight of the panels to avoid any damage to your walls or ceilings.
By following these planning steps, you can effectively create and install your own acoustic panels to improve the sound quality of your space.
Chocolate Croissant Calories: A Sweet Indulgence
You may want to see also
Explore related products
Choosing the right materials
Wood:
For the frame of your acoustic panels, choose a sturdy type of wood that can withstand some pressure. Plywood is a good option and is commonly used for this purpose. You will need to decide on the width of your panels, with 3/4 to 1 inch being a good range to aim for. Avoid going too narrow, as this will compromise sturdiness. However, don't go too thick, or your panels will become bulky and unwieldy.
Insulation:
The type of insulation you choose will significantly impact the acoustic performance of your panels. Rockwool Acoustic Mineral Wool Insulation is a popular choice but is also one of the more expensive options. A more affordable alternative is fiberglass, which can cause mild irritation but is generally manageable when wrapped in fabric. Ultratouch, made from denim, is another option if you want to avoid fiberglass. Owen's Corning 703 is often recommended for its firmness and ease of handling. If you're on a budget, consider buying insulation in bulk to save costs.
Fabric:
The fabric you use will influence the absorption coefficient of your panels. While Guilford of Maine fabric is a preferred choice for many, felt is a much more cost-effective option that works well. Ensure that the fabric you choose allows sound to pass through so that it can be absorbed by the insulation. Lighter colours will make your space feel more open and spacious. When selecting fabric, ensure it is wide enough to span the width and sides of your panel, with some excess for a tight wrap.
Adhesives and Tapes:
Wood glue or another type of wood adhesive is essential for joining the pieces of wood together. Additionally, duct tape, such as Gorilla Tape, can be useful for reinforcing joints and covering the back of the panel to hold the insulation in place.
Tools:
To assemble your acoustic panels, you will need some basic tools. These include a drill, a countersink drill bit set, a speed square, and a measuring tape. A brad nailer or small screws can be used to join the wood pieces, depending on your preference.
Easy Ways to Clean Marshmallow Mess Off Your Pan
You may want to see also
Explore related products
Building the panel frame
Building an acoustic panel frame requires some tools and materials, including a circular saw, a power drill, plywood, and fabric.
To begin constructing the frame, you'll need to measure and cut the plywood boards to the desired size. Using an 8-foot board, mark 24-inch sections across the entire length, resulting in four equal 24-inch boards. Cut these boards using a circular saw to ensure straight and precise cuts.
Next, you'll need to measure the side boards, adding an extra inch or two to account for the thickness of the top and bottom boards. Cut these side boards to size as well. It's recommended to have your hardware store cut them for you, or you can invest in a circular saw to do it yourself.
Now, it's time to assemble the frame. Align two pieces of plywood to form a corner and pre-drill holes to prevent the wood from splitting when you screw them together. Screw the corner together, and repeat this process until you have all four corners secured. You should now have a stable rectangular frame.
At this point, you can add fabric to the frame. First, pilot shallow holes at each end of the long planks, leaving a small gap from the edge. Place nails in these holes and drill them through, connecting the short plank as well. You can use wood glue for added strength. Work on one corner at a time, pulling the fabric taut as you staple it to the frame. This will help create a smooth finish without creases.
Once the fabric is stapled in place, you can trim any excess fabric. Your acoustic panel frame is now ready for the next steps of adding insulation and mounting it to the wall.
Oil Pan Gasket Failure: Causes, Symptoms, and Solutions
You may want to see also
Explore related products
Adding insulation and fabric
When working with fiberglass, ensure you take the necessary precautions, such as wrapping it in fabric to mitigate any respiratory issues. The fabric you choose for your acoustic panels will influence the absorption coefficient. While Guilford of Maine is a preferred fabric for acoustic panels, felt is a more cost-effective alternative. The critical factor is ensuring that sound can pass through the fabric and be absorbed by the insulation.
The colour and design of the fabric can also impact the overall ambiance of your space. Lighter colours tend to make a room feel more spacious. You can get creative and choose fun fabric designs to match your personal style or the theme of your studio. When selecting fabric, ensure it is wide enough to span the width and sides of your panel, with some excess material to pull the fabric tight and facilitate easy wrapping.
The depth of your acoustic panels will determine the range of frequencies they can absorb. For example, deeper panels will absorb more bass, while panels that are 2"-4" deep are ideal for treating mid-range frequencies. If you're aiming for bass absorption, consider doubling up on insulation to create 6" thick panels, which will significantly reduce low-end standing waves.
Overall, by carefully selecting the insulation and fabric for your acoustic panels, you can create an effective and aesthetically pleasing acoustic treatment solution for your space.
Sanitizing Pans: Yes or No?
You may want to see also
Explore related products
Installing the panels in your room
Installing acoustic panels in your room is a great way to cut down on reverb, especially if you're setting up a home studio. The DIY route is relatively inexpensive and easy to execute, even if you don't have much experience with carpentry or handiwork. Here's a step-by-step guide to installing acoustic panels in your room:
Planning and Preparation:
Before you begin, it's important to plan the layout of your panels and gather the necessary materials. Decide on the number and placement of panels, considering the size and shape of your room, as well as the areas you want to treat acoustically. Take measurements of your walls and determine the desired dimensions of your panels. You can make them 2" to 4" deep for effective sound absorption, especially if you're using them for bass traps.
Materials Required:
For the frame, you'll need wood of the desired dimensions, duct tape (like Gorilla Tape), wood adhesive, screws, and a screwdriver. For the panel covering, you can use insulation material such as fiberglass or Ultratouch (made of denim). You'll also need fabric to wrap the insulation and a screen door material or staples to hold it in place.
Construction:
Start by cutting your wood to the desired length and width. Sand the wood to smoothen it out and remove any imperfections. Use duct tape on the corners to reinforce the joints and help the adhesive dry. Screw the pieces of wood together, ensuring they are straight and secure. Cover the back of the panel with duct tape in a # pattern to hold the insulation in place.
Installation:
Decide on the placement of your panels, considering the areas that need acoustic treatment. Mark the spots on the wall where you'll be installing the panels. You can use adhesives like Liquid Nails, PL 400, or SC175 acoustic caulk to attach the panels to the wall. Alternatively, you can use a more permanent method by drilling holes and screwing the panels directly into the wall. Ensure you have the necessary permissions, especially if you're renting, and take pictures of the surfaces before and after installation.
Adjustments:
Once your panels are installed, you can adjust their positions to optimize sound absorption. Try staggering the panels or sliding them horizontally to control the ratio of absorption and reflection. Play around with different configurations to find the optimal setup for your audio needs.
By following these steps, you can effectively install acoustic panels in your room, creating a space with improved sound quality and aesthetics.
Sur La Table: Organize Your Pots and Pans
You may want to see also
Frequently asked questions
Acoustic panels can help to reduce reverb and improve the sound quality of a room. They are also a relatively inexpensive DIY project, costing around $200-500 for an entire room.
The materials you will need include wood, wood glue, screws, a drill, duct tape, insulation, and fabric.
The depth of your wood will depend on the frequency range you want to absorb. A minimum depth of 2 inches is recommended, with 3-4 inches being ideal for absorbing a wider range of frequencies.
The fabric you use should allow sound to pass through so it can be absorbed by the insulation. Popular choices include Guilford of Maine fabric or felt. Lighter colours will also make your space feel more spacious.
You can install acoustic panels by stapling picture wire to the back of the frame and hanging them with picture hooks.
