Designing a vapor absorption refrigeration system involves a detailed understanding of thermodynamics and the principles of heat transfer. At its core, the system operates on the concept of a refrigerant absorbing heat from a low-temperature reservoir and releasing it to a high-temperature reservoir, thereby creating a cooling effect. Key components include the evaporator, absorber, regenerator, and condenser, each playing a crucial role in the cycle. The choice of refrigerant and absorbent pair is critical, with common combinations including ammonia-water and lithium bromide-water. Considerations such as the coefficient of performance, system efficiency, and environmental impact are paramount in the design process. Additionally, the system must be optimized for specific applications, whether it be for industrial, commercial, or residential use, taking into account factors like load requirements, ambient conditions, and available space. By carefully balancing these elements, engineers can create effective and sustainable vapor absorption refrigeration systems that meet the demands of various cooling needs.
Explore related products
What You'll Learn
- System Components: Overview of essential parts including absorber, condenser, expansion valve, and evaporator
- Thermodynamic Cycle: Explanation of the vapor absorption cycle, covering absorption, desorption, and heat transfer processes
- Material Selection: Guidance on choosing appropriate materials for system components based on properties like corrosion resistance and thermal conductivity
- Heat Source Options: Evaluation of different heat sources such as solar thermal, geothermal, and waste heat recovery systems
- System Sizing and Optimization: Methods for calculating system capacity, determining optimal component sizes, and ensuring energy efficiency
System Components: Overview of essential parts including absorber, condenser, expansion valve, and evaporator
The absorber is the heart of a vapor absorption refrigeration system, where the refrigerant vapor is absorbed into a liquid, typically a brine solution. This process is crucial as it allows the system to continuously circulate the refrigerant without the need for a compressor. The absorber must be designed to maximize the surface area for efficient absorption and to handle the corrosive nature of the brine solution.
Next, the condenser plays a vital role in dissipating the heat absorbed by the refrigerant. It is typically a series of coils or tubes where the hot refrigerant vapor condenses into a liquid, releasing heat to the surrounding air or water. The design of the condenser must consider factors such as heat transfer efficiency, pressure drop, and the ability to withstand high temperatures and pressures.
The expansion valve is a critical component that controls the flow of refrigerant from the condenser to the evaporator. It must be designed to accurately regulate the pressure and temperature of the refrigerant, ensuring optimal performance of the system. The valve should also be able to handle the corrosive nature of the refrigerant and brine solution.
Finally, the evaporator is where the refrigerant absorbs heat from the space being cooled, causing it to evaporate. The design of the evaporator must maximize heat transfer efficiency while minimizing pressure drop. It should also be able to handle the low temperatures and pressures associated with the evaporation process.
In designing a vapor absorption refrigeration system, it is essential to carefully consider the specific requirements of each component and how they will interact with each other. Factors such as the type of refrigerant and brine solution, the operating conditions, and the desired cooling capacity will all influence the design of the system. By understanding the unique characteristics and challenges of each component, engineers can design a system that is efficient, reliable, and cost-effective.
Refrigeration Duration: How Long Can a Body Be Preserved?
You may want to see also
Explore related products

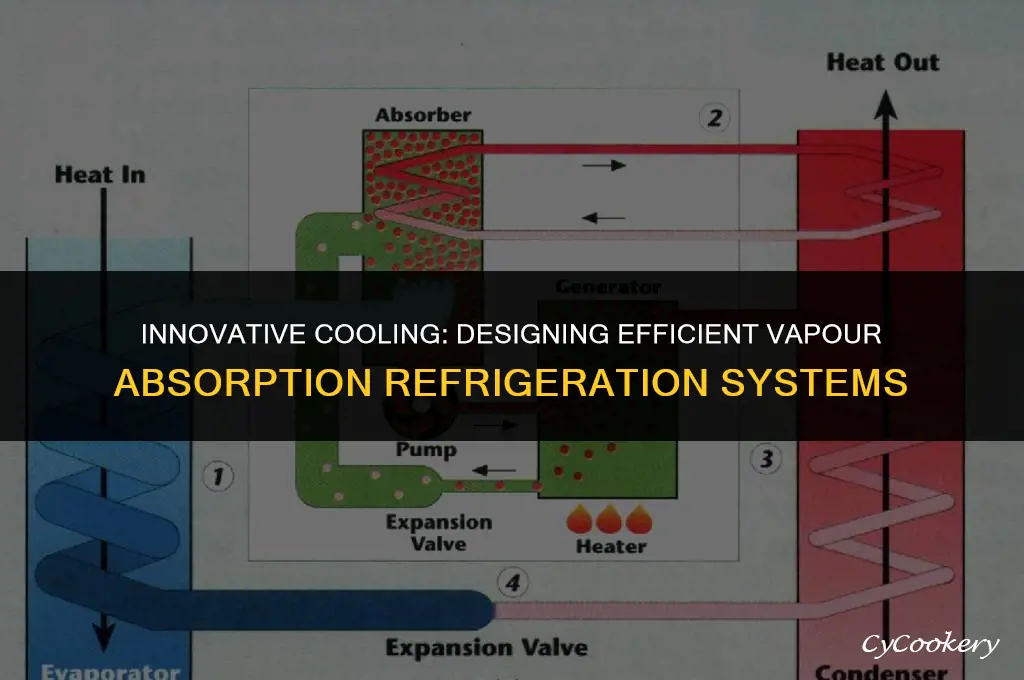

Thermodynamic Cycle: Explanation of the vapor absorption cycle, covering absorption, desorption, and heat transfer processes
The vapor absorption cycle is a critical component in the design of a vapor absorption refrigeration system. This thermodynamic cycle involves several key processes: absorption, desorption, and heat transfer. Understanding these processes is essential for designing an efficient and effective refrigeration system.
Absorption is the process where the refrigerant vapor is absorbed into the absorbent liquid. This occurs in the absorber, where the low-pressure, high-temperature refrigerant vapor comes into contact with the absorbent liquid. The absorbent liquid, typically a solution of lithium bromide or lithium chloride, has a high affinity for the refrigerant vapor and readily absorbs it, forming a saturated solution.
Desorption is the process where the refrigerant vapor is released from the absorbent liquid. This occurs in the desorber, where the saturated absorbent solution is heated to a high temperature, causing the refrigerant vapor to be released. The desorber operates at a higher pressure than the absorber, which allows the refrigerant vapor to be condensed into a liquid for subsequent expansion and evaporation in the evaporator.
Heat transfer is a crucial aspect of the vapor absorption cycle. Heat is transferred from the refrigerant vapor to the absorbent liquid during absorption, and from the absorbent liquid to the refrigerant vapor during desorption. Efficient heat transfer is essential for maintaining the proper temperatures and pressures required for the cycle to operate effectively.
In designing a vapor absorption refrigeration system, it is important to consider the specific properties of the refrigerant and absorbent materials used, as well as the operating conditions of the system. Factors such as the temperature and pressure ranges, the flow rates of the refrigerant and absorbent, and the size and configuration of the absorber and desorber must all be carefully considered to ensure optimal performance of the system.
Overall, the vapor absorption cycle is a complex and intricate process that requires careful design and optimization to achieve efficient and effective refrigeration. By understanding the key processes involved in the cycle and considering the specific properties and operating conditions of the system, engineers can design vapor absorption refrigeration systems that meet the needs of a wide range of applications.
Whirlpool Fridge Hack: Bypassing the Thermostat for Cool Savings
You may want to see also
Explore related products
Material Selection: Guidance on choosing appropriate materials for system components based on properties like corrosion resistance and thermal conductivity
Selecting the right materials for a vapor absorption refrigeration system is crucial for its efficiency, longevity, and safety. The system components are exposed to corrosive substances and high temperatures, making material selection a critical aspect of the design process. This guide focuses on the key properties to consider when choosing materials, such as corrosion resistance and thermal conductivity.
Corrosion resistance is a vital property for materials used in vapor absorption refrigeration systems. The system operates with ammonia, which is highly corrosive, and water, which can also contribute to corrosion. Materials that are resistant to corrosion, such as stainless steel, titanium, and certain alloys, are ideal for use in the system. For example, stainless steel 304 is a popular choice for the absorber and condenser due to its excellent corrosion resistance and durability.
Thermal conductivity is another important property to consider. The efficiency of the system depends on the ability of the materials to transfer heat effectively. Copper and aluminum are excellent conductors of heat and are commonly used in the evaporator and condenser. However, copper is more susceptible to corrosion than aluminum, so it is often used in combination with other materials to improve its durability.
In addition to corrosion resistance and thermal conductivity, other properties to consider include strength, durability, and compatibility with the refrigerants used in the system. For example, some materials may be strong and durable but may not be compatible with ammonia, which can lead to degradation over time.
When selecting materials, it is also important to consider the cost and availability. Some materials may be more expensive than others, but they may also offer better performance and durability. It is essential to balance the cost with the performance requirements of the system.
In conclusion, selecting the right materials for a vapor absorption refrigeration system is a critical aspect of the design process. By considering properties such as corrosion resistance, thermal conductivity, strength, durability, and compatibility, designers can ensure that the system operates efficiently, safely, and for an extended period.
Does Frosting Go Bad Unrefrigerated? Shelf Life Explained
You may want to see also
Explore related products
Heat Source Options: Evaluation of different heat sources such as solar thermal, geothermal, and waste heat recovery systems
Solar thermal systems harness the sun's energy to generate heat, which can then be used to power a vapor absorption refrigeration system. These systems are particularly effective in regions with high solar irradiance and can provide a sustainable and renewable source of energy. However, they require a significant initial investment and may not be suitable for areas with limited sunlight.
Geothermal systems, on the other hand, utilize the earth's natural heat to generate power. This heat can be accessed through underground reservoirs or by using ground-source heat pumps. Geothermal systems are highly efficient and can provide a consistent source of heat, making them ideal for vapor absorption refrigeration systems. However, they are limited by geographical location and may require extensive drilling or excavation.
Waste heat recovery systems are another viable option for providing heat to a vapor absorption refrigeration system. These systems capture and utilize waste heat from industrial processes, such as manufacturing or power generation. Waste heat recovery systems can be highly cost-effective and can help to reduce the environmental impact of industrial activities. However, they may not be suitable for all applications and require careful consideration of the waste heat source and its compatibility with the refrigeration system.
When evaluating different heat sources for a vapor absorption refrigeration system, it is essential to consider factors such as cost, efficiency, sustainability, and geographical location. Each heat source has its own unique advantages and disadvantages, and the optimal choice will depend on the specific requirements of the application. By carefully considering these factors, it is possible to design a vapor absorption refrigeration system that is both effective and environmentally friendly.
How Refrigerated Railroad Cars Revolutionize Perishable Goods Transportation
You may want to see also
Explore related products
System Sizing and Optimization: Methods for calculating system capacity, determining optimal component sizes, and ensuring energy efficiency
To design a vapor absorption refrigeration system, one must carefully consider system sizing and optimization. This involves calculating the system's capacity, determining the optimal sizes of its components, and ensuring energy efficiency. The process begins with a thorough understanding of the system's requirements, including the desired cooling capacity, the ambient temperature, and the available energy sources.
The first step in system sizing is to calculate the cooling load. This can be done using various methods, such as the Manual J method or the ASHRAE Handbook. The cooling load is determined by factors such as the size of the space to be cooled, the insulation properties of the building, and the expected occupancy. Once the cooling load is known, the system's capacity can be determined.
The next step is to select the appropriate components for the system. This includes the absorber, the condenser, the expansion valve, and the evaporator. The size of each component must be carefully chosen to ensure that the system operates efficiently and effectively. For example, the absorber must be large enough to handle the cooling load, but not so large that it becomes inefficient. Similarly, the condenser must be sized to dissipate the heat generated by the system.
Energy efficiency is a critical consideration in the design of a vapor absorption refrigeration system. One way to improve energy efficiency is to use a high-efficiency absorber. Another way is to use a variable-speed drive on the condenser fan. This allows the system to adjust its operation to match the changing cooling load, reducing energy consumption.
In addition to these considerations, it is important to ensure that the system is properly installed and maintained. This includes ensuring that the components are properly connected and that the system is charged with the correct amount of refrigerant. Regular maintenance, such as cleaning the condenser and checking the expansion valve, can help to ensure that the system operates efficiently and effectively over its lifetime.
In conclusion, system sizing and optimization are critical considerations in the design of a vapor absorption refrigeration system. By carefully calculating the system's capacity, selecting the appropriate components, and ensuring energy efficiency, one can design a system that meets the specific needs of the application while minimizing energy consumption and operating costs.
Medium Refrigerator Wattage: Understanding Energy Consumption and Costs
You may want to see also
Frequently asked questions
The main components of a vapor absorption refrigeration system include the evaporator, absorber, regenerator, condenser, expansion valve, and pump.
The absorber in a vapor absorption refrigeration system functions by absorbing the vapor refrigerant from the evaporator into a liquid absorbent, thereby cooling the space.
The regenerator in a vapor absorption refrigeration system is responsible for heating the absorbent to release the vapor refrigerant, which is then condensed and reused in the system.
Ammonia is the most commonly used refrigerant in vapor absorption refrigeration systems due to its high efficiency and low cost.
Vapor absorption refrigeration systems have several advantages over conventional vapor compression systems, including higher efficiency, lower noise levels, and the ability to use waste heat as a heat source.
