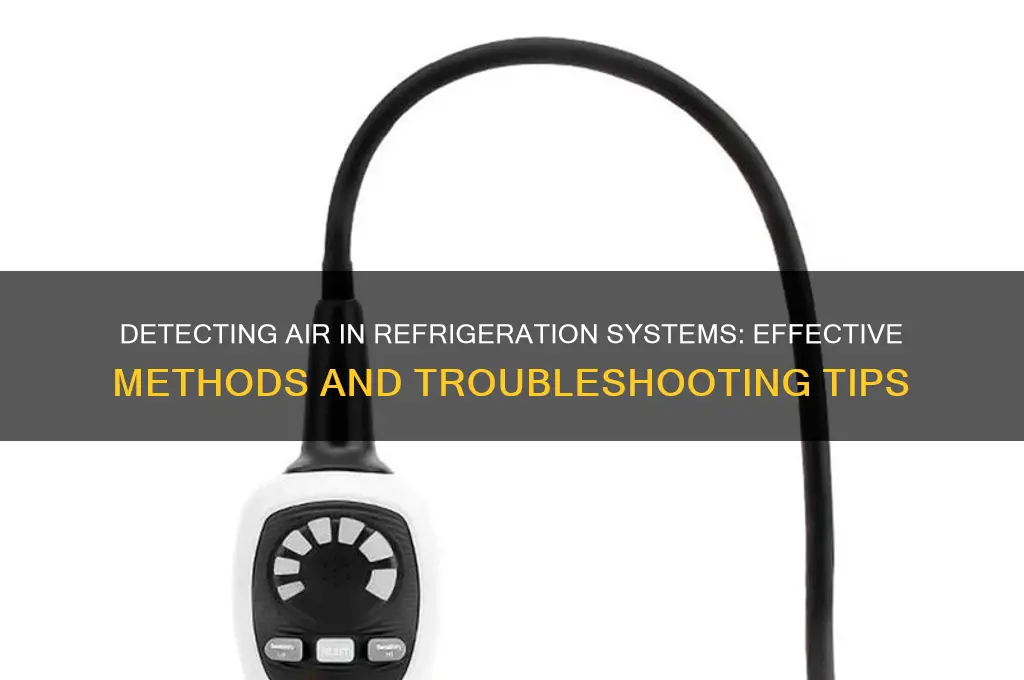

Detecting air in a refrigeration system is crucial for maintaining efficiency and preventing potential damage to the equipment. Air, being a non-condensable gas, can accumulate in the system, leading to issues such as reduced cooling capacity, increased energy consumption, and potential compressor overheating. Common signs of air in the system include high discharge temperatures, fluctuating suction pressures, and unusual noises. To detect air, technicians often use methods like observing the sight glass for bubbles, monitoring system pressures and temperatures, and employing electronic leak detectors or vacuum gauges during the evacuation process. Addressing air contamination promptly ensures optimal performance and prolongs the lifespan of the refrigeration system.
| Characteristics | Values |
|---|---|
| Visual Inspection | Look for bubbles in the sight glass or liquid line. Air appears as small, rapidly moving bubbles. |
| System Performance | Reduced cooling capacity, longer run times, and higher discharge temperatures indicate potential air presence. |
| Sound | A "chattering" or "knocking" noise from the compressor can suggest air in the system. |
| Pressure Readings | High suction and discharge pressures compared to normal operating ranges may indicate air. |
| Temperature Readings | Higher than normal evaporator and condenser temperatures can be a sign of air. |
| Oil Analysis | Foaming or aerated oil in the compressor crankcase suggests air contamination. |
| Vibration | Increased compressor vibration can be caused by air in the system. |
| Electronic Leak Detection | Some advanced systems use electronic sensors to detect air by measuring changes in electrical properties. |
| Evacuation and Charging | Proper evacuation and charging procedures can help remove air during system servicing. |
| Refrigerant Superheat | Higher than normal superheat values may indicate air in the system. |
| Subcooling | Lower than normal subcooling values can be a sign of air. |
| System Efficiency | Decreased Coefficient of Performance (COP) and increased energy consumption point to air presence. |
| Oil Return | Poor oil return to the compressor can be caused by air in the system. |
| System Controls | Malfunctioning controls or sensors may be affected by air in the refrigerant. |
| Chemical Analysis | Advanced chemical analysis of refrigerant samples can detect air contamination. |
Explore related products
What You'll Learn
- Visual Inspection: Check for bubbles in sight glass or unusual frost patterns on suction lines
- Pressure Gauge Analysis: Monitor for fluctuating or abnormal suction/discharge pressures indicating air presence
- Sound Detection: Listen for hissing or knocking noises caused by air in the system
- Temperature Checks: Identify uneven cooling or hot spots due to air restricting refrigerant flow
- Vacuum Testing: Use a vacuum pump to detect air by observing pressure stabilization issues
Visual Inspection: Check for bubbles in sight glass or unusual frost patterns on suction lines
A sight glass is a simple yet powerful tool for detecting air in a refrigeration system. When the system is operating, observe the sight glass closely. If you notice bubbles or a frothy appearance, it’s a clear indication of air or non-condensable gases in the refrigerant. These bubbles disrupt the smooth flow of liquid refrigerant, reducing efficiency and potentially causing damage. For optimal inspection, ensure the system is running at a steady state, typically after 15–20 minutes of operation, to allow the refrigerant to stabilize. If bubbles persist, further investigation is necessary.
Unusual frost patterns on suction lines can also signal the presence of air. Normally, frost forms evenly along the suction line, gradually thinning as it approaches the compressor. However, if you observe uneven frost buildup, particularly heavy frosting near the evaporator outlet, or frost extending too far toward the compressor, air may be the culprit. Air acts as an insulator, disrupting heat transfer and causing inconsistent cooling. To address this, compare the frost pattern to a well-functioning system or consult manufacturer guidelines for typical frost distribution.
Performing a visual inspection requires attention to detail and context. For instance, a few small bubbles in the sight glass during startup may be normal as the system equalizes, but persistent or large bubbles are problematic. Similarly, ambient conditions like high humidity or low temperatures can affect frost patterns, so consider these factors before concluding there’s an issue. Use a thermometer to measure suction line temperatures; if the frost line doesn’t align with the temperature gradient, air is likely interfering.
To maximize the effectiveness of visual inspections, combine them with other diagnostic methods. For example, if bubbles are present in the sight glass, check the system’s superheat and subcooling values to confirm the presence of non-condensable gases. For frost patterns, inspect the evaporator coil for dirt or blockages, as these can mimic symptoms of air in the system. Regular maintenance, such as cleaning coils and ensuring proper refrigerant charge, reduces false positives during visual checks.
In conclusion, visual inspection is a cost-effective and immediate way to detect air in a refrigeration system. By closely monitoring the sight glass for bubbles and suction lines for unusual frost patterns, technicians can quickly identify issues before they escalate. However, rely on visual cues as part of a broader diagnostic approach, not as the sole method. With practice and attention to detail, this technique becomes an invaluable skill for maintaining system efficiency and longevity.
