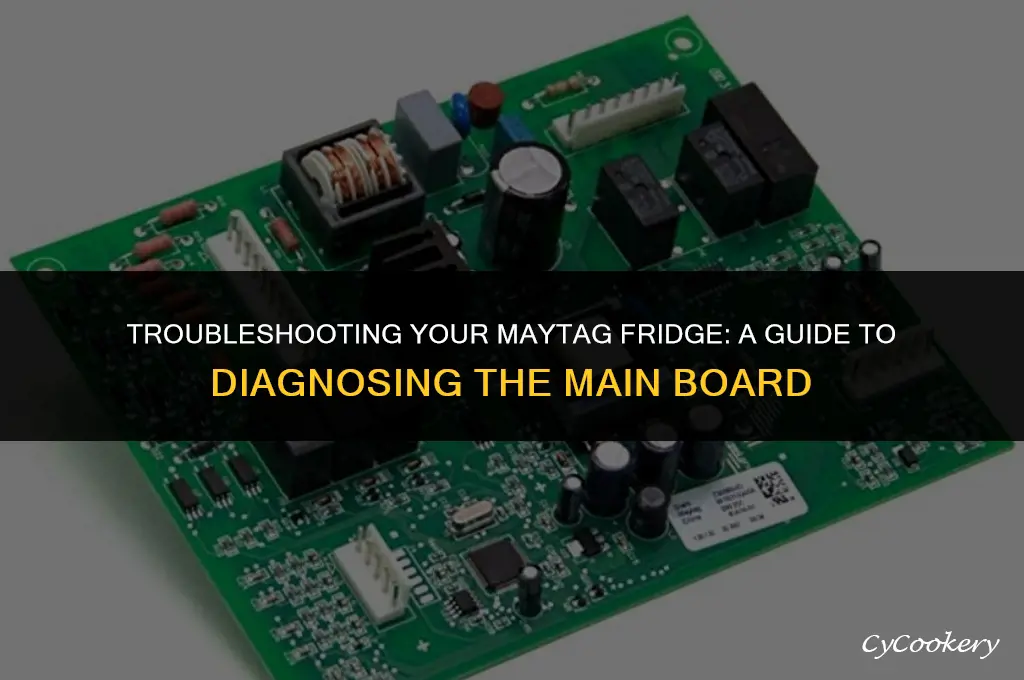

Diagnosing a Maytag refrigerator main board involves a systematic approach to identify any issues. First, ensure the refrigerator is unplugged for safety. Then, locate the main board, typically found at the back of the fridge or inside the freezer compartment. Check for any visible signs of damage, such as burnt components or loose connections. Use a multimeter to test for continuity and voltage levels across the board's connectors. If you suspect a faulty component, consult the refrigerator's service manual for guidance on replacement procedures. It's crucial to follow proper troubleshooting steps to avoid further damage to the appliance.
Explore related products
What You'll Learn
- Identify Symptoms: Recognize common issues like inconsistent cooling, unusual noises, or electrical problems
- Access the Board: Locate and safely remove the refrigerator's main board for inspection
- Visual Inspection: Check for visible damage, burnt components, or loose connections on the board
- Test Components: Use a multimeter to test resistors, capacitors, and other elements for continuity and functionality
- Troubleshoot Connections: Ensure all wires and connectors are secure and properly aligned with the board
Identify Symptoms: Recognize common issues like inconsistent cooling, unusual noises, or electrical problems
Inconsistent cooling is a common symptom of a malfunctioning Maytag refrigerator main board. This issue can manifest as fluctuating temperatures within the fridge and freezer compartments, leading to spoiled food and inefficient energy usage. To identify this problem, monitor the temperature settings and observe if they remain stable throughout the day. If you notice significant deviations, it may be indicative of a faulty main board.
Unusual noises are another telltale sign of potential main board issues. These sounds can range from buzzing and clicking to more severe grinding noises. Typically, a healthy refrigerator should operate quietly, with only occasional sounds when the compressor or fans engage. If you hear persistent or loud noises, it's essential to inspect the main board for any signs of damage or wear.
Electrical problems can also point to a malfunctioning main board. These issues might include flickering lights, a lack of power to certain components, or even complete failure to turn on. Before assuming the main board is at fault, check the power supply and ensure that all connections are secure. If the electrical issues persist, it's likely that the main board is the culprit and requires further investigation or replacement.
When diagnosing a Maytag refrigerator main board, it's crucial to approach the task systematically. Begin by noting any visible symptoms, such as those mentioned above. Next, consult the user manual for troubleshooting guidance specific to your model. If the manual doesn't provide a solution, you may need to contact a professional technician or consider replacing the main board yourself, following proper safety precautions and installation guidelines.
Remember, accurate diagnosis is key to resolving refrigerator issues efficiently. By recognizing the symptoms of a faulty main board and taking appropriate action, you can restore your Maytag refrigerator to optimal performance and prevent further complications.
