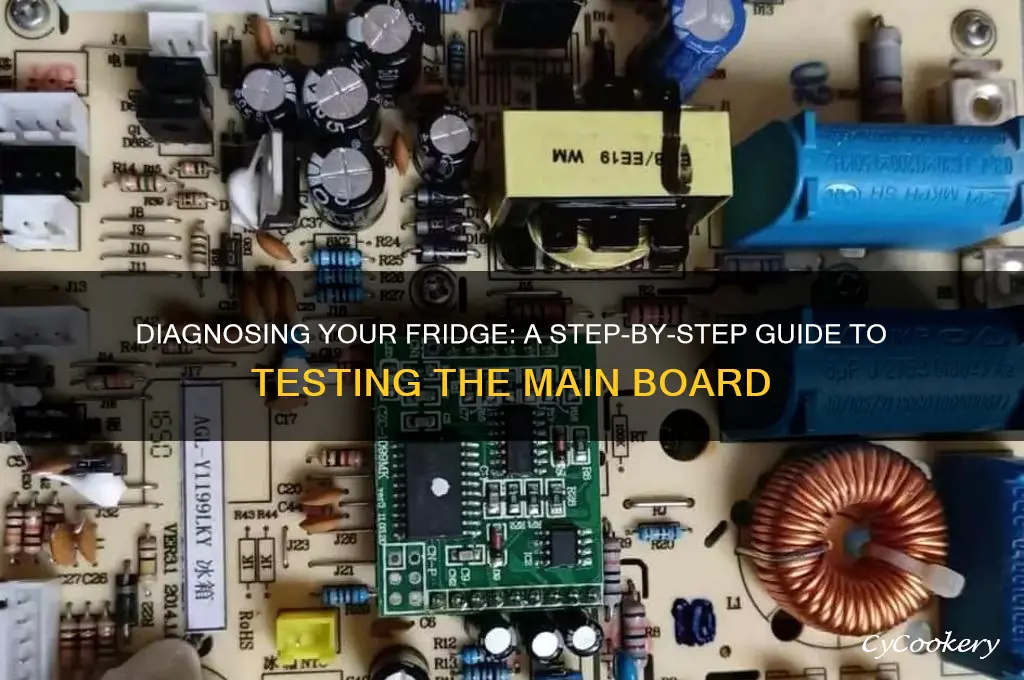

Diagnosing a refrigerator main board, also known as the control board or PCB, requires a systematic approach to identify potential issues. Start by unplugging the refrigerator and locating the main board, typically found behind the control panel or at the back of the unit. Visually inspect the board for signs of damage, such as burnt components, loose connections, or corrosion. Use a multimeter to test for continuity and voltage across key components, ensuring the board is receiving power and functioning correctly. If the refrigerator displays error codes or erratic behavior, consult the user manual or manufacturer’s guide to interpret these signals. In some cases, resetting the board by unplugging the refrigerator for a few minutes may resolve minor glitches. If the issue persists, consider replacing the main board, as it may be faulty. Always prioritize safety and consult a professional technician if unsure about handling electrical components.
| Characteristics | Values |
|---|---|
| Visual Inspection | Check for burnt marks, bulging capacitors, or damaged components on the main board. |
| Power Supply Test | Ensure the board receives correct voltage (typically 120V AC or as per refrigerator specs). |
| Continuity Test | Use a multimeter to test for continuity in circuits and connectors. |
| Relay Functionality | Listen for clicking sounds from relays; test relays for proper switching. |
| Error Codes | Refer to the refrigerator manual for error codes displayed on the control panel. |
| Component Testing | Test individual components like capacitors, resistors, and diodes for proper functioning. |
| Firmware Check | Ensure the main board firmware is up-to-date (if applicable). |
| Communication Test | Verify communication between the main board and other refrigerator components. |
| Temperature Sensor Test | Check if the main board correctly reads inputs from temperature sensors. |
| Replacement Test | Swap the main board with a known working one to confirm if the issue is board-related. |
| Multimeter Usage | Use a multimeter to measure voltage, resistance, and current across the board. |
| Safety Precautions | Disconnect power before testing and avoid touching live components. |
| Professional Diagnosis | Consult a technician if unsure about diagnosing or repairing the main board. |
| Common Symptoms | Refrigerator not cooling, erratic temperature control, or unresponsive control panel. |
| Cost of Replacement | Main board replacement typically costs between $100 to $300, depending on the model. |
| Warranty Check | Verify if the main board is still under warranty before proceeding with repairs. |
Explore related products
What You'll Learn
- Identify Common Symptoms: Unusual noises, display errors, or inconsistent cooling indicate potential main board issues
- Visual Inspection: Check for burnt components, loose connections, or physical damage on the board
- Multimeter Testing: Use a multimeter to test voltage, continuity, and resistance across key points
- Power Supply Check: Verify if the board receives proper power from the refrigerator’s main supply
- Component Replacement: Replace faulty capacitors, relays, or transistors if testing confirms defects
Identify Common Symptoms: Unusual noises, display errors, or inconsistent cooling indicate potential main board issues
Unusual noises emanating from your refrigerator can be more than just an annoyance; they may signal a malfunctioning main board. The main board, often referred to as the control board, is the brain of your refrigerator, regulating temperature, defrost cycles, and other critical functions. When it fails, the compressor or fans might operate erratically, producing clicking, buzzing, or humming sounds. For instance, a persistent clicking noise could indicate that the main board is failing to properly engage the compressor. If you notice these sounds, especially when accompanied by other symptoms, it’s time to investigate further. A multimeter can help test the board’s voltage outputs to confirm if it’s the culprit.
Display errors are another telltale sign of main board issues. Modern refrigerators often feature digital displays that show temperature settings, error codes, or alerts. If the display flickers, shows random characters, or remains blank despite the refrigerator being powered on, the main board may be at fault. Error codes like "Er" or "CF" often point directly to communication failures between the display and the main board. Keep a user manual handy to decode these errors, as they can provide specific insights into the problem. Ignoring these warnings could lead to more severe malfunctions, such as complete cooling failure.
Inconsistent cooling is perhaps the most functional symptom of a failing main board. If your refrigerator alternates between freezing food and failing to keep items cold, the board may not be regulating the compressor or defrost cycle correctly. For example, if the freezer compartment is working fine but the refrigerator section is warm, the main board might be misdirecting power or failing to activate the evaporator fan. Check the temperature settings first to rule out user error, then inspect the evaporator coils for frost buildup, which could indicate a defrost cycle issue tied to the main board. A temperature log over 24 hours can help pinpoint inconsistencies.
When diagnosing these symptoms, start with visual and auditory inspections before proceeding to technical tests. Look for burnt marks or a strange odor near the main board, which could indicate overheating or electrical damage. If the board appears intact, unplug the refrigerator and use a multimeter to test the continuity of its components. Compare your findings to the manufacturer’s specifications, as voltage outputs outside the acceptable range confirm a faulty board. Replacement boards are often model-specific, so have your refrigerator’s make and model number ready when sourcing a new one. Always prioritize safety by disconnecting power before handling electrical components.
