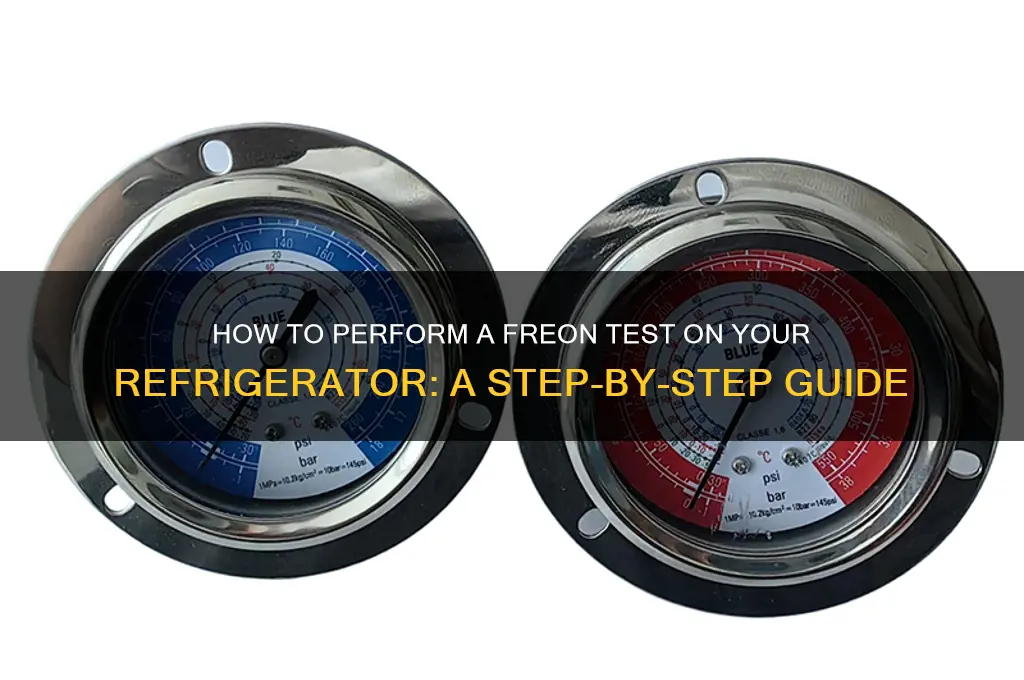

A freon test is essential for diagnosing cooling issues in a refrigerator, as low refrigerant levels can significantly impact its performance. To conduct this test, you’ll need a refrigerant pressure gauge and a basic understanding of your refrigerator’s components. Start by locating the service valves, typically found near the compressor or on the back of the unit. Attach the pressure gauge to the low-pressure side valve and observe the reading; it should match the manufacturer’s specifications for the ambient temperature. If the pressure is too low, it indicates a freon leak, while high pressure may suggest a blockage or other issue. Always prioritize safety by wearing protective gear and ensuring proper ventilation, and consider consulting a professional if you’re unsure about handling refrigerants.
| Characteristics | Values |
|---|---|
| Purpose | To check if a refrigerator has a refrigerant (Freon) leak or insufficient charge |
| Tools Required | Refrigerant gauges (manifold gauge set), thermometer, refrigerant identifier (optional) |
| Safety Precautions | Wear safety goggles, gloves, and ensure proper ventilation. Follow manufacturer's guidelines and local regulations for handling refrigerants. |
| Steps | 1. Turn off the refrigerator and let it sit for 10-15 minutes. 2. Connect the manifold gauge set to the refrigerator's service ports (low and high side). 3. Record the ambient temperature and the temperature inside the refrigerator. 4. Start the refrigerator and allow it to run for 15-20 minutes. 5. Record the high-side and low-side pressures using the gauges. 6. Compare the recorded pressures with the manufacturer's specifications or PT chart for the specific refrigerant type. 7. If pressures are low, it may indicate a leak or undercharge. If pressures are high, it may indicate an overcharge or restriction. |
| Normal Pressure Ranges (R-134a) | Low side: 1-5 psi (gauge pressure), High side: 100-150 psi (gauge pressure) |
| Normal Pressure Ranges (R-600a) | Low side: 0-2 psi (gauge pressure), High side: 150-250 psi (gauge pressure) |
| Temperature Differential | Normal: 20-25°F (11-14°C) between the ambient temperature and the refrigerator's internal temperature |
| Refrigerant Types | Common types: R-134a, R-600a, R-410a (check the refrigerator's specifications) |
| Environmental Impact | Refrigerants can harm the environment; proper handling, recovery, and disposal are crucial. |
| Professional Assistance | If a leak or issue is suspected, consult a certified HVAC technician for proper diagnosis and repair. |
| Frequency | Perform the test annually or if the refrigerator is not cooling properly. |
| Note | This test is a basic diagnostic tool and may not identify all issues. Always refer to the manufacturer's guidelines and consult a professional if unsure. |
Explore related products
What You'll Learn
- Gather Tools and Safety Gear: Thermometer, gloves, goggles, and freon detector for accurate testing
- Locate Refrigerant Lines: Identify suction and liquid lines near the compressor
- Measure Temperatures: Check suction line temperature and ambient air for pressure calculations
- Calculate Superheat: Use temperature readings to determine superheat levels for freon check
- Interpret Results: Compare superheat to manufacturer specs to assess freon levels
Gather Tools and Safety Gear: Thermometer, gloves, goggles, and freon detector for accurate testing
Before attempting a freon test on your refrigerator, it's crucial to assemble the right tools and safety gear. A digital thermometer with a range of -20°C to 60°C is essential for measuring the temperature differential across the evaporator coils, which helps diagnose refrigerant leaks. Ensure the thermometer has a fast response time and is calibrated for accuracy. Additionally, invest in a reliable freon detector, specifically designed to identify R-134a or R-410A refrigerants, depending on your appliance’s specifications. These detectors often come with adjustable sensitivity levels, allowing you to pinpoint even minor leaks.
Safety should never be an afterthought. Refrigerant exposure can cause skin irritation, frostbite, or respiratory issues, so wear nitrile or butyl rubber gloves to protect your hands from direct contact with chemicals. Safety goggles are equally critical, as refrigerants can cause eye damage if accidentally released. For added protection, consider a face shield, especially if you’re working in a confined space. Proper ventilation is also key—ensure the area is well-aired or use a respirator if necessary.
The process of testing freon levels requires precision, and having the right tools in place ensures both accuracy and safety. For instance, a freon detector with a flexible probe can help you access hard-to-reach areas, such as the evaporator or compressor lines. Similarly, a thermometer with a long probe allows you to measure temperatures without disassembling the unit. Always check the compatibility of your tools with the refrigerant type in your refrigerator to avoid damage or inaccurate readings.
While gathering your tools, take a moment to inspect them for wear or damage. Cracked goggles, torn gloves, or malfunctioning detectors compromise your safety and the test’s reliability. Replace any faulty equipment before proceeding. Additionally, familiarize yourself with the manufacturer’s guidelines for your refrigerator model, as some units may require specific testing procedures or tools. By preparing meticulously, you not only safeguard yourself but also ensure a thorough and effective freon test.
Where's the Light? Solving the Mystery of the Missing Fridge Switch
You may want to see also
Explore related products
Locate Refrigerant Lines: Identify suction and liquid lines near the compressor
The refrigerant lines are the lifeblood of your refrigerator's cooling system, and identifying them is crucial for any freon test. Near the compressor, you'll find two distinct lines: the suction line and the liquid line. The suction line carries low-pressure, low-temperature refrigerant vapor from the evaporator to the compressor, while the liquid line transports high-pressure, high-temperature refrigerant liquid from the condenser to the expansion valve. Understanding their roles and locations is essential for accurate diagnostics and maintenance.
Visual Identification and Characteristics
The suction line is typically larger in diameter and feels cool to the touch, often covered in insulation to prevent condensation. In contrast, the liquid line is smaller, warmer, and usually uninsulated. A practical tip: if your refrigerator has a single-stage compressor, the suction line will be the one connected to the compressor’s inlet, while the liquid line connects to the outlet. For a more precise identification, trace the lines from the compressor to their respective components—the suction line leads to the evaporator, and the liquid line originates from the condenser.
Steps to Locate the Lines
Start by unplugging the refrigerator for safety. Remove the lower back panel to access the compressor area. Use a flashlight to inspect the lines carefully. If unsure, follow the lines: the one leading from the compressor to the evaporator coil (usually inside the freezer) is the suction line, while the line coming from the condenser coil (often near the back or bottom) is the liquid line. Label them with tape or markers to avoid confusion during the freon test.
Cautions and Practical Tips
Avoid touching bare metal lines without gloves, as they can be extremely cold or hot. Be cautious not to damage insulation or bend the lines, as this can affect system efficiency. If your refrigerator is older than 10 years, inspect the lines for signs of corrosion or leaks, as these can compromise the freon test results. Always refer to the manufacturer’s manual for model-specific guidance, especially for newer units with advanced cooling systems.
Takeaway
Mastering the identification of suction and liquid lines near the compressor is a foundational skill for any freon test. It ensures accurate pressure readings and helps diagnose issues like undercharging or blockages. By combining visual inspection, tracing techniques, and safety precautions, you’ll approach the test with confidence and precision, ultimately extending the lifespan of your refrigerator.
Refrigerating Espresso: Pros, Cons, and Best Storage Practices Explained
You may want to see also
Explore related products
Measure Temperatures: Check suction line temperature and ambient air for pressure calculations
The suction line temperature is a critical indicator of your refrigerator’s refrigerant flow and system efficiency. To measure it accurately, use a digital thermometer or thermocouple probe. Wrap the probe with a cloth or tape to secure it to the suction line, ensuring direct contact for an accurate reading. Simultaneously, measure the ambient air temperature around the refrigerator using a separate thermometer. These two values are essential for calculating superheat, a key metric in determining if your system is undercharged, overcharged, or functioning optimally.
Superheat calculations rely on the relationship between suction line temperature, ambient temperature, and refrigerant pressure. For R-134a, a common refrigerant in modern refrigerators, the target superheat typically ranges between 8°F to 12°F. To calculate it, subtract the suction line temperature from the saturation temperature (derived from the refrigerant pressure-temperature chart). For example, if the suction line reads 50°F and the saturation temperature is 60°F, the superheat is 10°F—within the ideal range. Deviations indicate potential issues: low superheat suggests overcharging, while high superheat points to undercharging or restricted refrigerant flow.
Measuring temperatures isn’t just about numbers—it’s about context. Ambient air temperature significantly influences system performance. In hotter climates, the condenser works harder, potentially raising suction line temperatures and skewing superheat readings. Conversely, in cooler environments, the system may operate more efficiently but still require precise measurements. Always account for ambient conditions when interpreting results. For instance, a superheat of 12°F in a 90°F room is normal, but the same reading in a 60°F room could indicate an issue.
Practical tips can streamline the process. Ensure the refrigerator has been running for at least 15 minutes to stabilize temperatures before taking measurements. Avoid touching the suction line directly, as it can be cold enough to cause frostbite. If using a pressure gauge with a temperature probe, double-check calibration to avoid errors. Lastly, document readings for future reference—trends over time can reveal gradual system degradation or recurring issues. Accurate temperature measurements are the foundation of a reliable freon test, transforming raw data into actionable insights.
Can You Safely Store Warm Food in the Refrigerator?
You may want to see also
Explore related products
Calculate Superheat: Use temperature readings to determine superheat levels for freon check
Superheat calculation is a critical step in diagnosing a refrigerator's freon levels, ensuring the system operates efficiently without causing damage. By measuring the temperature of the suction line and comparing it to the saturation temperature of the refrigerant, you can determine if the system is undercharged, overcharged, or functioning optimally. This process requires precision and an understanding of the refrigerant’s properties, as superheat levels vary depending on the type of freon used. For instance, R-134a, a common refrigerant in modern refrigerators, typically operates with a superheat range of 10°F to 15°F under normal conditions.
To calculate superheat, first measure the suction line temperature using a thermocouple or digital thermometer at the evaporator outlet. Simultaneously, determine the saturation temperature of the refrigerant by measuring the suction pressure with a gauge and referencing the refrigerant’s pressure-temperature chart. Subtract the suction line temperature from the saturation temperature to find the superheat value. For example, if the suction line temperature is 45°F and the saturation temperature is 50°F, the superheat is 5°F. This value indicates how much the refrigerant has been heated beyond its boiling point, providing insight into the system’s charge level.
Low superheat readings (below 10°F for R-134a) suggest an overcharged system, which can lead to liquid refrigerant returning to the compressor, causing damage. Conversely, high superheat readings (above 15°F) indicate an undercharged system, resulting in reduced cooling capacity and potential compressor overheating. Accurate superheat calculation requires stable operating conditions—wait at least 15 minutes after the refrigerator has reached equilibrium before taking measurements. Additionally, ensure the suction line is clean and free of frost or debris, as these factors can skew readings.
Practical tips include using a reliable, calibrated thermometer and pressure gauge to minimize errors. For older refrigerators using R-22, the superheat range is typically 12°F to 18°F, so adjust calculations accordingly. If you’re unsure about the refrigerant type, consult the appliance’s manual or look for the refrigerant label on the unit. Always wear protective gloves when handling refrigerant lines, as they can become extremely cold. By mastering superheat calculation, you can diagnose freon issues accurately and ensure your refrigerator operates at peak efficiency.
Should Medjool Dates Be Refrigerated After Opening? Storage Tips
You may want to see also
Explore related products
Interpret Results: Compare superheat to manufacturer specs to assess freon levels
Superheat is a critical measurement when assessing freon levels in a refrigerator, serving as a direct indicator of how efficiently the refrigerant is absorbing heat in the evaporator. To interpret results accurately, you must compare the measured superheat to the manufacturer’s specifications, which typically range between 8°F to 18°F (4°C to 10°C) for most residential refrigerators. Deviations from this range signal either undercharging or overcharging of refrigerant, both of which impair performance and energy efficiency. For instance, a superheat reading of 5°F suggests an overcharge, leading to liquid refrigerant returning to the compressor, while a reading of 20°F indicates an undercharge, causing the evaporator to operate inefficiently.
To perform this comparison, first measure the suction pressure using a manifold gauge set and convert it to temperature using a PT chart. Simultaneously, measure the temperature of the suction line near the compressor and subtract the evaporator temperature from the suction line temperature to calculate superheat. For example, if the suction pressure corresponds to 40°F and the suction line temperature is 55°F, the superheat is 15°F (55°F - 40°F). Cross-reference this value with the manufacturer’s specifications to determine if adjustments are needed. Always ensure the refrigerator has been running for at least 15 minutes to stabilize temperatures before taking measurements.
While comparing superheat to specs is straightforward, misinterpretation can occur if external factors are overlooked. Ambient temperature, evaporator coil cleanliness, and airflow restrictions can skew results. For instance, a dirty evaporator coil reduces heat absorption, artificially lowering superheat readings. Similarly, restricted airflow due to a clogged filter or obstructed vents can lead to higher superheat values. Before concluding that refrigerant levels are off, inspect these components and address any issues. If the system is clean and airflow is optimal, a superheat discrepancy likely indicates a refrigerant imbalance.
Adjusting refrigerant levels based on superheat requires precision and caution. Overcharging by as little as 0.5 oz can lead to liquid slugging, damaging the compressor, while undercharging reduces cooling capacity. If superheat is too high, add refrigerant in small increments (0.2 oz at a time) and recheck until the desired range is achieved. Conversely, if superheat is too low, recover excess refrigerant using a recovery machine. Always follow EPA guidelines and local regulations when handling refrigerants. For older refrigerators (over 10 years), consider consulting a professional, as aging components may complicate diagnostics and repairs.
In summary, interpreting superheat results by comparing them to manufacturer specifications is a precise method to assess freon levels in a refrigerator. Accurate measurements, attention to external factors, and careful adjustments ensure optimal performance and longevity of the appliance. By mastering this technique, you can diagnose and resolve refrigerant issues effectively, avoiding unnecessary costs and extending the life of your refrigerator.
Selling Refrigerant: Legal Requirements and Who Can Purchase It
You may want to see also
Frequently asked questions
A freon test, also known as a refrigerant leak test, is a process to check if your refrigerator is leaking freon (refrigerant). It helps diagnose cooling issues and ensures your appliance is functioning efficiently.
Look for signs like insufficient cooling, frost buildup, or unusual hissing noises. If your refrigerator is older or hasn’t been serviced in a while, a freon test is recommended to ensure optimal performance.
While some basic leak detection methods (like soap bubble tests) can be done at home, accurately testing and handling freon requires professional tools and expertise. It’s best to hire a certified technician for precise results.
If a leak is detected, a technician will locate and repair the issue, then recharge the refrigerant. Ignoring a leak can lead to poor cooling, higher energy bills, and potential damage to the compressor.
