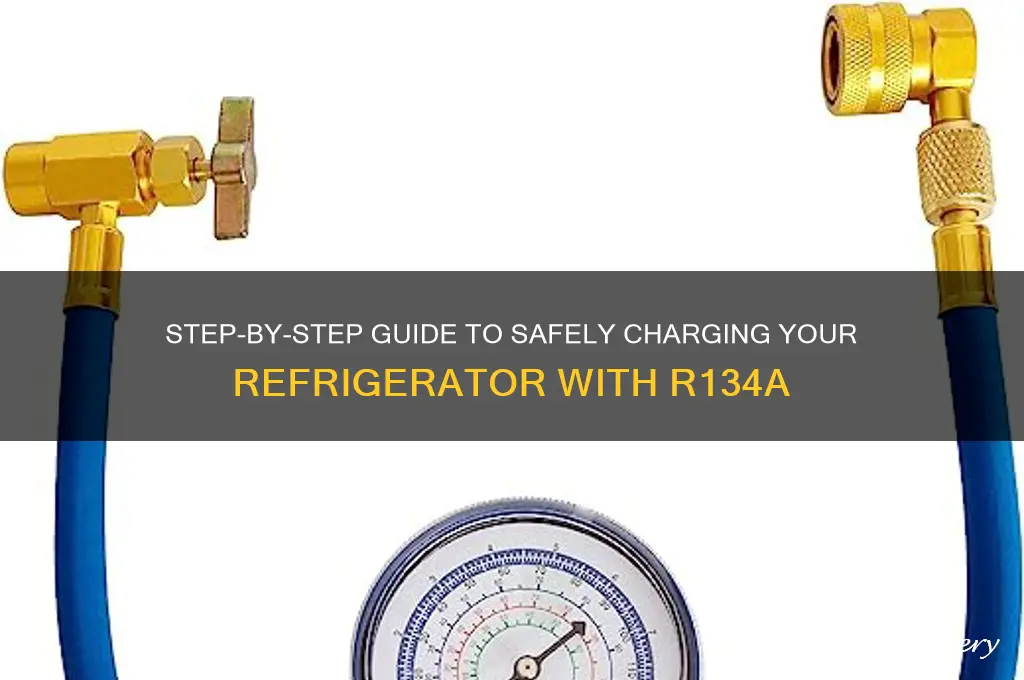

Filling a refrigerator with R134a, a common refrigerant used in modern refrigeration systems, requires careful attention to safety and precision. Before starting, ensure you have the necessary tools, including a vacuum pump, manifold gauge set, and refrigerant cylinders, and that you are certified to handle refrigerants. Begin by evacuating the system to remove any air and moisture, which can cause damage. Once the system is under a deep vacuum, slowly add the R134a refrigerant, monitoring the pressure and temperature to avoid overcharging. Always follow the manufacturer’s specifications for the correct amount of refrigerant and adhere to local regulations regarding refrigerant handling and disposal. Proper execution ensures optimal performance and longevity of the refrigerator while minimizing environmental impact.
| Characteristics | Values |
|---|---|
| Refrigerant Type | R134a (Tetrafluoroethane) |
| Required Tools | Refrigerant manifold gauge set, vacuum pump, refrigerant cans, wrenches |
| Safety Precautions | Wear safety goggles, gloves, and ensure proper ventilation |
| System Pressure (Low Side) | Typically 25-45 PSI (check manufacturer specifications) |
| System Pressure (High Side) | Typically 150-250 PSI (check manufacturer specifications) |
| Vacuum Level | Minimum 500 microns for proper evacuation |
| Evacuation Time | At least 30 minutes (longer for larger systems) |
| Refrigerant Charge Amount | Varies by system; refer to manufacturer's specifications or service manual |
| Charging Method | Liquid or vapor charging (follow manufacturer guidelines) |
| Temperature Conditions | Ambient temperature should be above 50°F (10°C) for accurate charging |
| Leak Testing | Use electronic leak detector or soap solution after charging |
| Disposal of Old Refrigerant | Follow local regulations for proper disposal of R12 or other refrigerants |
| Certification Requirement | EPA Section 608 certification for handling refrigerants in the U.S. |
| Post-Charging Check | Verify system pressures, temperatures, and operation for 24 hours |
| Environmental Impact | R134a has a Global Warming Potential (GWP) of 1,430 |
| Alternatives | Consider R600a or R290 for new systems (lower GWP) |
Explore related products
What You'll Learn
- Safety Precautions: Wear protective gear, ensure proper ventilation, and follow refrigerant handling guidelines strictly
- Evacuating the System: Use a vacuum pump to remove air and moisture before charging
- Charging Process: Connect gauges, add R134a refrigerant, and monitor pressure levels carefully
- Leak Testing: Perform a soap bubble test or use electronic detectors to check for leaks
- System Verification: Run the refrigerator, check temperatures, and ensure optimal performance post-charging
Safety Precautions: Wear protective gear, ensure proper ventilation, and follow refrigerant handling guidelines strictly
Handling R134a refrigerant demands meticulous attention to safety, as exposure can lead to frostbite, chemical burns, or respiratory issues. Before beginning, equip yourself with nitrile gloves resistant to refrigerant oils, safety goggles to shield against splashes, and a face shield for added protection. These items form your first line of defense against accidental contact with the refrigerant, which can cause skin and eye irritation. Ensure the gloves are free from tears and fit snugly to prevent any exposure.
Proper ventilation is non-negotiable when working with R134a, as inhaling the gas can displace oxygen and lead to asphyxiation. Always perform the procedure in an open or well-ventilated area, such as a garage with open doors or a workspace with exhaust fans. If working indoors, use a fume hood or portable ventilation system to maintain air circulation. Avoid confined spaces like basements or small rooms, where refrigerant vapors can accumulate quickly. A carbon monoxide detector or oxygen monitor can serve as an additional safeguard, alerting you to dangerous levels of gas buildup.
Strict adherence to refrigerant handling guidelines is critical to prevent environmental harm and ensure personal safety. R134a is a potent greenhouse gas, and improper handling can contribute to ozone depletion. Follow EPA regulations, such as recovering and recycling refrigerant using certified equipment, and avoid releasing it into the atmosphere. Use a manifold gauge set with accurate pressure readings to monitor the charging process, ensuring you do not overfill the system. Always refer to the refrigerator’s service manual for specific charging instructions, including the correct amount of refrigerant (typically measured in ounces or grams) and the optimal pressure levels.
Combining these precautions—protective gear, ventilation, and guideline compliance—creates a comprehensive safety framework for filling a refrigerator with R134a. Skipping any step increases the risk of injury or system damage. For instance, without gloves, direct contact with the refrigerant can cause frostbite within seconds. Similarly, ignoring ventilation guidelines can lead to unconsciousness in minutes. By treating each precaution as essential, you not only protect yourself but also ensure the longevity and efficiency of the refrigeration system. Always prioritize safety over speed, as a methodical approach minimizes errors and maximizes success.
