The AC drip pan, also known as the condensate drain pan, is an essential component of your air conditioning unit, collecting water droplets that form when warm air passes over the evaporator coils. This process prevents water from dripping onto the mechanical parts of the HVAC system, which could cause significant issues. The drip pan is located beneath the evaporator coils, usually on the same side as the air intake, and can be identified by turning off the power supply to the AC unit and locating the source of any moisture or water pooling. Regular inspection and maintenance of the AC drip pan are crucial to prevent clogs, leaks, and potential water damage to your property. While some maintenance tasks can be performed by homeowners, it is always recommended to consult a professional technician for more complex issues.
| Characteristics | Values |
|---|---|
| Location of AC drip pan | Underneath the evaporator coils |
| Reason for location | To collect water droplets that form on the coils |
| Problems | Clogging, leaks, damage, overflow |
| Inspection | Regular inspections are recommended; turn off the power supply, remove the access panel, use a flashlight to check for cracks, leaks, debris, clogs, etc. |
| Cleaning | Unclog the drainpipe, use epoxy glue for small leaks, replace the pan for large leaks, flush with vinegar or bleach |
Explore related products
What You'll Learn
Where is the AC drip pan located?

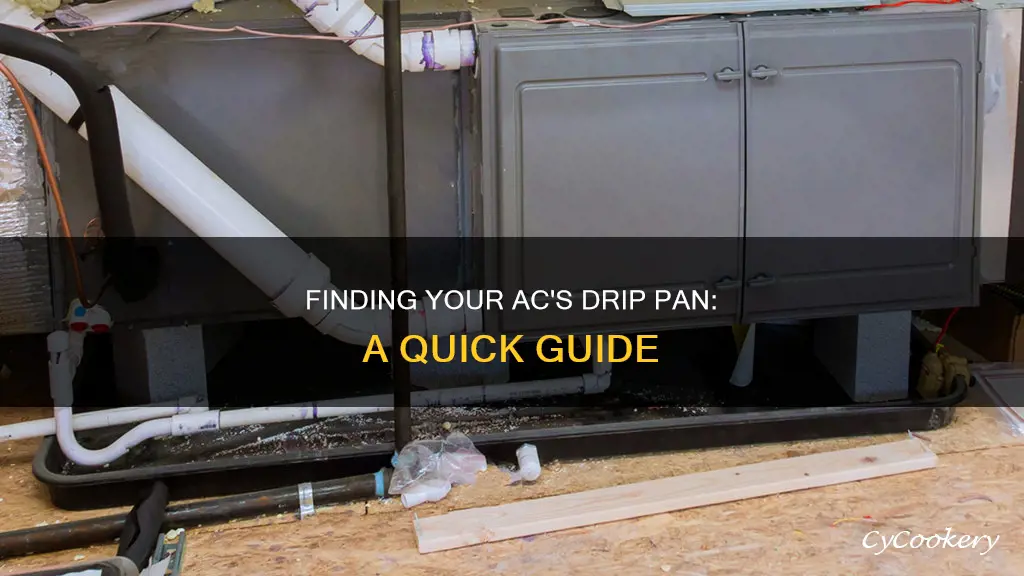

The AC drip pan is located in the indoor unit, underneath the evaporator coils, usually on the same side as the air intake. The evaporator coils are normally located directly behind the room air conditioner's front grille. The water collects in the pan underneath those coils, and then drains through a tube toward the back of the unit into the condenser pan. From there, the water drains out the back of the air conditioner through a hole or a tube.
There is a fixed drain pan under the coils and an overflow drain pan below that. Air conditioners usually have two drain pans. One is permanently affixed to the air handler, and it is located higher up from the auxiliary one that is easy to remove. The auxiliary drain pan is the one that is easy to remove and can be cleaned by the user. The permanent drain pan is affixed to the air handler and is located higher up. It is recommended that you let an experienced professional remove and replace the permanent drain pan since you may make a mistake that could cause bigger problems in your AC.
The AC drip pan is an important part of your cooling system. Air conditioners dehumidify the moisture-filled air inside a room in addition to cooling it. Because of this, condensation collects inside the air conditioning unit and has to drain out. Both central air conditioners and room units have drain pans that catch this condensation and allow it to flow outside. The drain pan and condensate drain line in an AC unit move residual water from the system to outside your home. When your AC unit is operating optimally, your drain pan and line should have no problem moving the water out of the system.
If your air conditioner won't turn on, one of the first things you should check is the drainage system. To prevent system shutdowns and condensation leaks around your air conditioner, you should learn how to inspect the drain pan and condensate line.
Gluten-Free Moo Goo Gai Pan: Safe and Savory?
You may want to see also
Explore related products
How to inspect the AC drip pan
To inspect your AC drip pan, start by turning on your AC for about 20 to 30 minutes. Then, turn off the power to the air conditioner and remove the access panel to inspect the drip pan, which is located inside the air handler, underneath the evaporator coils. Note that air conditioners usually have two drip pans: a fixed one that is permanently affixed to the air handler, and an overflow drip pan below it. Use a flashlight to inspect the pans for any cracks, holes, debris, clogs, or water accumulation. If you notice standing water, this could indicate a clog in the drain line.
If you spot any issues, you can try to address them yourself or call a professional. To clear a clog, remove the access panel and pour water into the overflow pan. If the water does not drain freely into the drain line, you may need to clear the clog by unscrewing the cap of the cleanout tee (a small vertical section of the pipe) and pouring water directly into the line using a funnel. You can also try using a wet/dry vacuum to clean the drip pan and evaporator coils. If the problem persists or you are unsure about any part of the process, it is best to contact a professional for assistance.
Pots and Pans: Dutch Shopping Guide
You may want to see also
Explore related products
What to do if the AC drip pan is leaking
If your AC drip pan is leaking, you must act to prevent water damage and mould or bacteria buildup. Firstly, turn off your AC unit and unplug it from the power source. You should then remove the access panel to expose the drip pan. Check the drip pan for any signs of damage, such as cracks, holes, or rust. If the drip pan is damaged, it will need to be replaced by a professional.
If the drip pan is not damaged, the leak may be caused by a blockage in the drain line. Clear any debris or blockages from the drain line and check for any signs of damage. If the drain line is damaged, it will also need to be replaced. Once the drip pan and drain line have been inspected and cleared of any blockages, pour a continuous stream of water into the drip pan to check that the water is draining properly. If the water is draining slowly or not at all, there may be a clog in the drain line that will need to be cleared.
If you are unsure about how to inspect or repair your AC drip pan, it is recommended that you contact a professional HVAC technician for assistance. Regular maintenance and servicing of your AC unit can help to prevent leaks and other issues.
Gothan Steel vs Red Copper Pans: Differences?
You may want to see also
Explore related products
How to clean the AC drip pan
To clean your AC drip pan, you will need to gather a few tools and materials. These include a flashlight, a wet/dry vacuum with a hose attachment, a jug of water, a towel or rag, a funnel, and distilled vinegar.
First, turn off your air conditioner at the thermostat and breaker. Next, locate the AC unit's access panel and remove it. Use a flashlight to inspect the drain pan and the overflow drain pan for any cracks, dents, holes, rust, and mould or algae buildup. Clean out the drain pan using a rag or vacuum to remove any visible debris or sludge.
Then, find the PVC cleanout tee (a small vertical section of the drain pipe) and unscrew the cap. Insert a funnel and slowly pour a mixture of half a cup of distilled water and half a cup of distilled vinegar down the drain. Wait for a few minutes, and then rotate the pipe so that it drains out. If there is still gurgling and it is not draining properly, repeat the process with two cups of vinegar and one cup of water, and wait twice as long before draining.
Finally, observe the drain line to ensure that water is flowing freely without backing up. Once the drain line is clear, restore power to the AC unit by turning on the breaker switch.
To prevent future clogs and maintain optimal AC performance, it is recommended to clean your AC drip pan and drain line at least once or twice a year, depending on the climate and usage. You can also pour a 1/4 cup of vinegar down the drain line every month to kill any mould, algae, mildew, and bacteria, preventing buildup and clogs.
Tramontina Pan Stain Removal: Quick and Easy Guide
You may want to see also
Explore related products
When to call a professional
While it is possible to inspect and clean your AC drip pan yourself, there are times when it is best to call in a professional.
Firstly, if your AC unit was installed or worked on by someone who was poorly trained, unlicensed, or not a trusted professional, you may encounter issues that require a professional to fix. Getting the refrigerant levels right on your AC unit is crucial to your unit running properly, and low refrigerant levels can be caused by poor maintenance or a bad maintenance job. If you suspect that your AC unit has been improperly installed or maintained, call a professional to handle any repairs.
Secondly, if you are unsure how to properly clean your AC drip pan and drain line, it is better to call a professional to do the job. A clogged drain line needs to be flushed and cleaned with a long, thin brush to poke out the dirt that is clogging the pipes. If this does not solve the problem, a wet-dry vacuum may be needed to suck up the clogging debris. If you are unsure how to do this, do not attempt it, as you may cause bigger problems in your AC unit.
Thirdly, if you notice that your AC drip pan is leaking, you can use epoxy glue to plug a small crack. However, if the leak is large, it is better to call a professional to replace the damaged drain pan.
Finally, to prevent issues from occurring, it is recommended that you have your unit regularly maintained and serviced by a professional. They can troubleshoot for issues, find the source of any leaks, and look after repairs before they become a bigger problem.
Replacing Oil Pan in 2006 Pathfinder: Step-by-Step Guide
You may want to see also
Frequently asked questions
The AC drip pan is located in the indoor unit, underneath the evaporator coils, usually on the same side as the air intake.
First, turn off the power supply to the AC. Then, remove the access panel and use a flashlight to inspect the drip pan and the overflow pan. Look out for any cracks, holes, leaks, debris, or signs of clogging. If there is standing water in the drip pan, it is likely that the condensate line is clogged.
If there is water in your AC drip pan, it is likely that the condensate line is clogged. You can try to unclog the line yourself by removing any water and debris from the drip pan and flushing the condensate line with distilled vinegar or bleach. If the clog persists, contact a professional.
