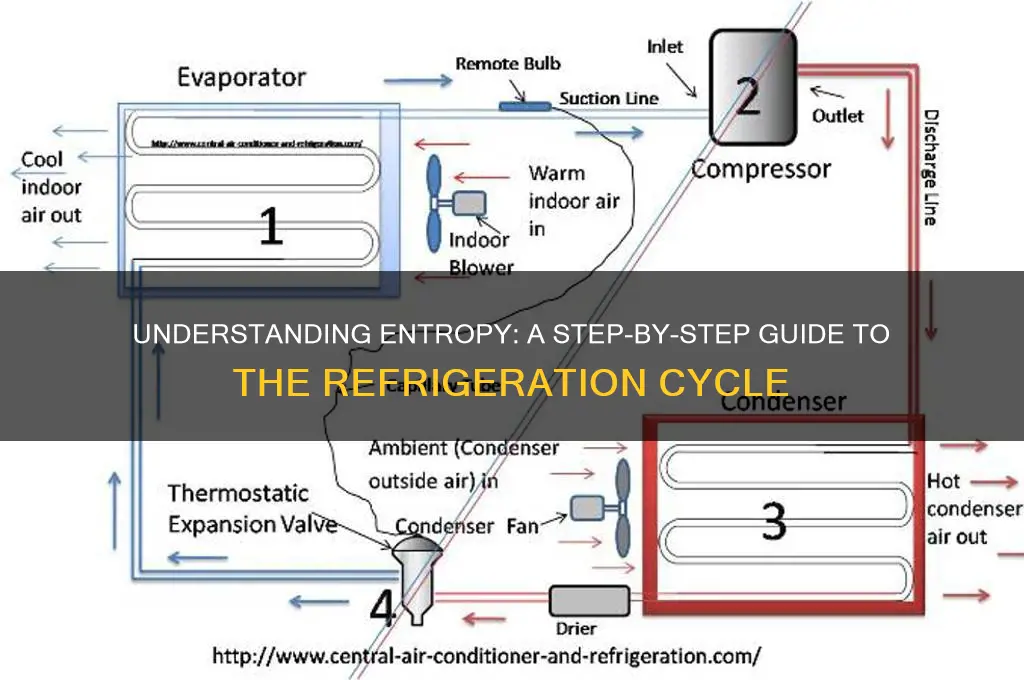

The entropy refrigeration cycle is a fundamental concept in thermodynamics, crucial for understanding the efficiency and performance of refrigeration systems. To find the entropy changes within this cycle, one must analyze the processes involved, such as compression, condensation, expansion, and evaporation, using the principles of the second law of thermodynamics. By calculating the entropy at each state and examining the entropy generation during irreversible processes, engineers and scientists can optimize the cycle's performance, minimize energy losses, and ensure the system operates as efficiently as possible. This involves integrating thermodynamic equations, considering the properties of refrigerants, and applying the concept of entropy as a measure of energy dispersal. Understanding how to find the entropy in a refrigeration cycle is essential for designing and improving cooling systems in various applications, from household refrigerators to industrial-scale cooling processes.
| Characteristics | Values |
|---|---|
| Definition | Entropy in a refrigeration cycle is a measure of the system's disorder or the unavailability of energy to do work. It quantifies the heat transfer and energy distribution within the cycle. |
| Entropy Change (ΔS) | Calculated using the formula: ΔS = Q / T, where Q is the heat transfer (in Joules) and T is the absolute temperature (in Kelvin) at which the heat transfer occurs. |
| Isentropic Process | An idealized process where entropy remains constant (ΔS = 0). In a refrigeration cycle, this is approximated in the compression and expansion processes when ignoring real-world inefficiencies. |
| Entropy Generation | Occurs due to friction, heat transfer across finite temperature differences, and other irreversible processes. It is always positive (ΔS_gen > 0) in real cycles. |
| Second Law of Thermodynamics | States that the total entropy of an isolated system always increases over time. In a refrigeration cycle, this means the entropy generated within the system plus the entropy transferred to the surroundings must be positive. |
| Carnot Cycle (Ideal) | The most efficient refrigeration cycle, where entropy changes only occur during isothermal processes (constant temperature). The efficiency is limited by the temperature difference between the hot and cold reservoirs. |
| Coefficient of Performance (COP) | A measure of the efficiency of a refrigeration cycle. For a Carnot cycle, COP = T_cold / (T_hot - T_cold), where T_cold and T_hot are the absolute temperatures of the cold and hot reservoirs, respectively. |
| Real-World Considerations | In actual refrigeration systems, entropy generation due to irreversibilities reduces the COP below the Carnot limit. Factors like compressor efficiency, heat exchanger design, and refrigerant properties play significant roles. |
| Entropy Analysis Tools | Thermodynamic tables, property diagrams (e.g., T-s diagrams), and software like EES (Engineering Equation Solver) or REFPROP are used to calculate and analyze entropy changes in refrigeration cycles. |
| Applications | Entropy analysis is crucial for optimizing refrigeration systems, identifying inefficiencies, and improving overall performance in applications like HVAC, industrial cooling, and cryogenics. |
Explore related products
What You'll Learn
Understanding Entropy Definition
Entropy, a fundamental concept in thermodynamics, is often misunderstood as merely a measure of disorder. However, in the context of refrigeration cycles, it is more accurately defined as a measure of energy dispersal or the system’s ability to do useful work. In a refrigeration cycle, entropy quantifies the irreversible energy losses that occur during heat transfer processes. For instance, when a refrigerant absorbs heat from a cold reservoir, its entropy increases because the energy becomes more spread out at the molecular level. Conversely, during compression, the refrigerant’s entropy decreases as energy is concentrated. Understanding this definition is crucial for analyzing the efficiency and performance of refrigeration systems, as it highlights where and how energy is lost or conserved.
To find the entropy changes in a refrigeration cycle, one must apply the first and second laws of thermodynamics. The entropy change (ΔS) for a process can be calculated using the formula ΔS = Q / T, where Q is the heat transferred and T is the absolute temperature at which the transfer occurs. For example, in the evaporation stage of a vapor-compression cycle, the refrigerant absorbs heat (Q) from the cold reservoir at a constant temperature (T), leading to a positive ΔS. In contrast, during condensation, heat is rejected to the surroundings, resulting in a negative ΔS. By summing these changes over the entire cycle, engineers can determine the total entropy generation, which is a key indicator of the cycle’s irreversibility and inefficiency.
A practical tip for calculating entropy in refrigeration cycles is to use thermodynamic tables or software tools that provide entropy values for refrigerants at specific temperatures and pressures. For instance, if a refrigerant undergoes isentropic compression (a reversible adiabatic process), its entropy remains constant, and tables can confirm this. However, real-world processes are never isentropic due to friction and heat losses, so the actual entropy will increase. Engineers must account for these deviations by comparing ideal and actual entropy values to optimize system design. For example, minimizing pressure drops in heat exchangers can reduce entropy generation and improve cycle efficiency.
Comparing entropy changes in different refrigeration cycles reveals their relative efficiencies. For instance, the vapor-compression cycle, commonly used in household refrigerators, typically has lower entropy generation compared to absorption cycles, which rely on heat-driven processes. This is because vapor-compression cycles use mechanical work to drive the refrigeration process, which is generally more efficient than heat-driven methods. However, absorption cycles are advantageous in applications where waste heat is available, as they can utilize this energy to reduce overall entropy generation. By understanding entropy definitions and calculations, engineers can select the most appropriate cycle for specific applications, balancing efficiency, cost, and environmental impact.
In conclusion, mastering the definition of entropy and its application in refrigeration cycles is essential for optimizing system performance. By focusing on energy dispersal and irreversibility, engineers can identify inefficiencies and implement design improvements. Practical tools like thermodynamic tables and software streamline calculations, while comparative analyses of different cycles highlight trade-offs between efficiency and resource utilization. Whether designing a household refrigerator or an industrial cooling system, a clear understanding of entropy ensures that refrigeration cycles operate as effectively as possible, minimizing energy waste and maximizing output.
Where to Buy a Refrigerator Gasket: Top Retailers and Online Options
You may want to see also
Explore related products
$86.78 $99
Carnot Cycle Entropy Analysis
The Carnot cycle, an idealized thermodynamic cycle, serves as the benchmark for understanding entropy changes in refrigeration systems. Its reversible nature allows for a clear analysis of entropy generation and transfer, providing insights into the theoretical limits of efficiency. By examining the Carnot cycle, engineers can identify areas where real-world refrigeration systems deviate from ideal performance, often due to irreversibilities like friction or heat transfer across finite temperature differences.
Consider the four processes of the Carnot cycle: isothermal expansion, adiabatic expansion, isothermal compression, and adiabatic compression. During the isothermal processes (1-2 and 3-4), the system exchanges heat with thermal reservoirs at constant temperatures, and the change in entropy (ΔS) is given by ΔS = Q/T, where Q is the heat transferred and T is the reservoir temperature. For example, if 1000 J of heat is absorbed at 300 K during isothermal expansion, the entropy increase is ΔS = 1000 J / 300 K = 3.33 J/K. This calculation highlights the direct relationship between heat transfer and entropy change in reversible processes.
In contrast, the adiabatic processes (2-3 and 4-1) involve no heat exchange (Q = 0), resulting in zero change in entropy. However, this assumes ideal conditions without friction or other dissipative effects. In real systems, adiabatic processes often generate entropy due to irreversibilities, reducing the overall efficiency. For instance, a compressor with mechanical losses might produce 50 J/K of entropy per cycle, significantly impacting the system's performance.
A key takeaway from Carnot cycle entropy analysis is the identification of the maximum possible efficiency for a refrigeration system operating between two temperature reservoirs. The coefficient of performance (COP) for an ideal Carnot refrigerator is given by COP = T_L / (T_H - T_L), where T_L and T_H are the temperatures of the cold and hot reservoirs, respectively. For a refrigerator operating between -20°C (253 K) and 30°C (303 K), the ideal COP is 253 / (303 - 253) = 9.125. This value sets the upper limit for real systems, emphasizing the importance of minimizing entropy generation to approach this theoretical maximum.
To apply Carnot cycle entropy analysis in practice, engineers should focus on reducing irreversibilities in real refrigeration systems. This includes optimizing heat exchanger designs to minimize temperature differences during heat transfer, selecting low-friction components, and ensuring proper insulation to minimize unwanted heat exchange. For example, replacing a standard compressor with a high-efficiency model can reduce entropy generation by up to 30%, significantly improving system performance. By benchmarking against the Carnot cycle, engineers can systematically identify and address inefficiencies, moving closer to the ideal entropy behavior of reversible processes.
Step-by-Step Guide to Safely Removing a Refrigerator Motor
You may want to see also
Explore related products
Calculating Entropy Change Steps
Entropy change is a critical parameter in analyzing refrigeration cycles, as it quantifies the system's energy dispersal and efficiency. To calculate it, start by identifying the cycle's processes: isentropic compression, constant-pressure cooling, isentropic expansion, and constant-pressure heating. Each process has distinct thermodynamic properties, and entropy change (ΔS) is determined by integrating dQ/T along the process path. For reversible processes, use the formula ΔS = Q/T, where Q is heat transfer and T is absolute temperature. For irreversible processes, entropy generation must be considered, though refrigeration cycles typically assume ideal, reversible behavior for simplicity.
In practical calculations, leverage tables or software for fluid properties. For example, in the compression stage, use the specific entropy values (s) from steam tables for the working fluid (e.g., R-134a) at initial and final states. The entropy change is Δs = s₂ - s₁, where s₁ and s₂ are specific entropies at the inlet and outlet. Repeat this for each process, ensuring units (kJ/kg·K) are consistent. For heat exchange processes, integrate the heat transfer rate (Q) over temperature (T) using the logarithmic formula ΔS = Q_in/T_in - Q_out/T_out, applicable to constant-pressure processes like condensation and evaporation.
A common pitfall is neglecting state changes. For instance, during evaporation, the working fluid absorbs heat at a constant temperature, but entropy increases significantly due to phase transition. Use the latent heat of vaporization (e.g., 180 kJ/kg for R-134a at 0°C) and the evaporation temperature to calculate ΔS = Q_latent/T_evap. Conversely, condensation releases heat at a constant temperature, reducing entropy by the same magnitude. Always verify the sign of ΔS: positive for heat absorption, negative for heat rejection.
For a complete cycle, sum the entropy changes of all processes. In an ideal refrigeration cycle, the net entropy change is zero, as the system returns to its initial state. However, real cycles exhibit non-zero entropy due to irreversibilities like friction and heat loss. To improve accuracy, account for these by adding a term for entropy generation (ΔS_gen ≥ 0). For example, if the calculated ΔS_cycle = -0.1 kJ/kg·K, add ΔS_gen = 0.1 kJ/kg·K to achieve a realistic, non-negative total entropy change, aligning with the second law of thermodynamics.
Finally, validate results by comparing them to cycle efficiency metrics like COP (Coefficient of Performance). A higher entropy change in heat rejection processes indicates greater inefficiency, as more energy is wasted. For instance, a cycle with ΔS_condenser = -0.8 kJ/kg·K and ΔS_evaporator = 0.6 kJ/kg·K suggests better heat absorption than rejection, typical for well-designed systems. Use these insights to optimize cycle parameters, such as reducing compression work or improving heat exchanger effectiveness, ensuring both thermodynamic consistency and practical performance.
Does Nesquik Bottle Need Refrigeration? Storage Tips Revealed
You may want to see also
Explore related products
T-s Diagram Interpretation
The T-s (Temperature-entropy) diagram is a powerful tool for visualizing and analyzing refrigeration cycles, offering a unique perspective on the thermodynamic processes at play. Unlike the commonly used P-V (Pressure-Volume) diagram, the T-s diagram provides a direct representation of entropy changes, which are crucial in understanding the efficiency and performance of refrigeration systems. This diagrammatic approach allows engineers and technicians to identify inefficiencies, optimize cycle parameters, and make informed decisions during the design and troubleshooting phases.
Understanding the T-s Diagram Layout:
Imagine a graph with temperature (T) on the y-axis and entropy (s) on the x-axis. The diagram typically illustrates a closed loop, representing the cyclic process of a refrigeration system. Each point on the loop corresponds to a specific state of the refrigerant, and the area enclosed by the loop is proportional to the heat transfer in the cycle. For instance, in a vapor compression cycle, the T-s diagram will show four distinct processes: compression, condensation, expansion, and evaporation, each with its own characteristic curve.
Interpreting the Diagram:
- Isentropic Processes: These are represented by vertical lines on the T-s diagram, indicating constant entropy. In an ideal scenario, the compression and expansion processes would be isentropic, but in reality, they are often accompanied by some entropy increase due to friction and heat transfer.
- Heat Transfer: The slope of the curve during condensation and evaporation processes indicates the rate of heat transfer. A steeper slope suggests a higher heat transfer rate, which is desirable for efficient refrigeration.
- Efficiency Indicators: The area enclosed by the loop is a key performance indicator. A larger area represents a more efficient cycle, as it implies a higher coefficient of performance (COP). By comparing the areas of different cycles, engineers can assess and optimize system performance.
Practical Application:
When analyzing a refrigeration system, start by plotting the T-s diagram based on measured data or design specifications. Look for deviations from the ideal cycle, such as non-vertical compression and expansion lines, which indicate energy losses. For instance, if the compression process shows a significant entropy increase, it may suggest the need for improved compressor efficiency or reduced friction. Additionally, the diagram can help identify the optimal operating conditions, such as the ideal evaporation temperature for a given condenser temperature, to maximize the system's COP.
In summary, the T-s diagram interpretation is a critical skill for anyone working with refrigeration systems. It provides a visual and quantitative method to assess cycle efficiency, identify areas of improvement, and make informed design choices. By mastering this tool, professionals can ensure optimal performance, reduce energy consumption, and contribute to more sustainable refrigeration practices. This analytical approach bridges the gap between theoretical thermodynamics and real-world applications, making it an indispensable asset in the field.
Touch Screen Fridges: Worth the Investment or Overpriced Gimmick?
You may want to see also
Explore related products
Entropy Generation in Refrigeration
Entropy generation within refrigeration cycles is a critical aspect of understanding system efficiency and energy losses. Unlike idealized Carnot cycles, real refrigeration systems experience irreversible processes that lead to entropy production. This entropy generation manifests as waste heat, reducing the coefficient of performance (COP) and increasing energy consumption. Key sources include friction in moving parts, pressure drops across valves and piping, heat transfer across finite temperature differences, and fluid mixing. Quantifying these losses is essential for optimizing system design and operation.
To analyze entropy generation in a refrigeration cycle, start by identifying the system boundaries and processes. Break the cycle into distinct components: compression, condensation, expansion, and evaporation. For each process, calculate the entropy change using thermodynamic properties of the refrigerant. For instance, during compression, the entropy increase is given by ΔS = ∫(δQ/T), where δQ is the heat transfer and T is the absolute temperature. Compare these changes to the idealized isentropic process to identify deviations and quantify entropy generation.
A practical example illustrates the process. Consider a vapor compression cycle with R-134a as the refrigerant. During compression from 100 kPa to 800 kPa, the actual entropy increase might be 0.25 kJ/kg·K, while the isentropic process yields 0.20 kJ/kg·K. The difference, 0.05 kJ/kg·K, represents entropy generation due to irreversibilities like friction and heat transfer to the surroundings. Similar calculations for other processes—condensation, expansion, and evaporation—provide a comprehensive view of entropy production across the cycle.
Minimizing entropy generation requires targeted strategies. Optimize component design to reduce pressure drops; for example, use larger diameter pipes or efficient valve geometries. Improve heat exchanger effectiveness by selecting materials with high thermal conductivity and ensuring proper flow distribution. Implement variable speed drives for compressors to match capacity with load, reducing unnecessary work. Regular maintenance, such as cleaning coils and lubricating moving parts, also mitigates entropy generation by maintaining optimal operating conditions.
In conclusion, entropy generation in refrigeration cycles is a measurable and manageable factor influencing system performance. By systematically analyzing each process, quantifying losses, and implementing design and operational improvements, engineers can enhance efficiency and reduce energy consumption. This approach not only aligns with sustainability goals but also translates into tangible cost savings for end-users.
