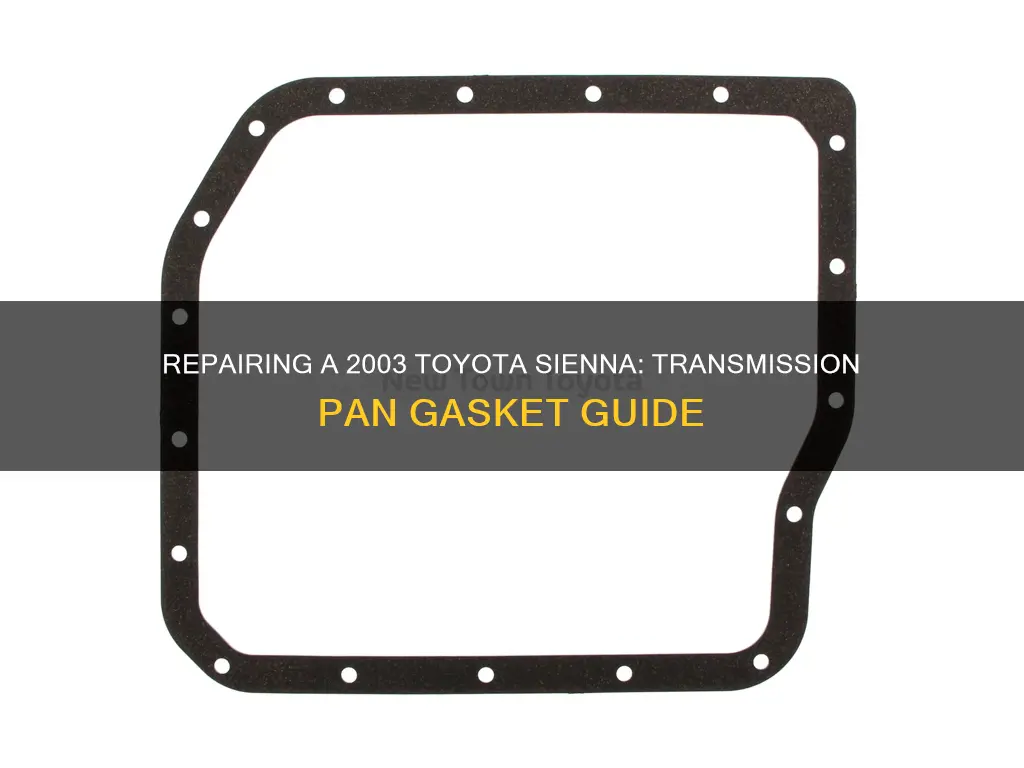

If you own a 2003 Toyota Sienna and are experiencing issues with your automatic transmission pan gasket, there are a few things you can do to fix it. Firstly, it is important to understand the function of the transmission pan gasket. This gasket is made of synthetic rubber and is located between the transmission pan and the transmission, preventing transmission fluid from leaking out. A leaking transmission pan gasket can cause transmission fluid to drip onto the ground or even onto the transmission wiring harness, leading to electrical issues. To fix a leaking gasket, you will need to drain the ATF, remove the pan bolts, and replace the gasket. This process requires finesse and attention to detail, especially when tightening the bolts, as over-tightening can cause issues. The cost of replacing a Toyota Sienna transmission pan gasket typically ranges from $1,182 to $1,678, but you may be able to find the gasket itself for around $20.
| Characteristics | Values |
|---|---|
| Cost of replacement | Between $1,182 and $1,678 on average, but can vary from car to car |
| Cost of parts | Oil pan gasket: $21.04; Oil strainer: $50; Oil strainer gasket: $2-$3; Transmission cooler return hose: $17; Drain plug gasket: $2.48 |
| Tools required | Torque wrench, socket set (10mm socket and offset spanner), vice grip, wrench |
| Steps | 1. Drain ATF; 2. Remove pan bolts; 3. Install new filter; 4. Lube o-ring with transmission oil; 5. Bolt up filter; 6. Torque bolts for pan to 69 in lbs; 7. Fill transmission with ATF |
Explore related products
What You'll Learn
Drain the ATF and remove the pan bolts
To drain the ATF and remove the pan bolts on a 2003 Toyota Sienna, follow these steps:
First, drive the vehicle around to heat up the fluid. This will make it easier to drain. Next, raise and support the vehicle. You can use a jack to raise the vehicle, such as a bottle jack or floor jack. Be careful when working underneath the vehicle to ensure your safety. Place a drain pan under the transmission plug, specifically underneath the tranny plug, and remove the 10mm Allen drain plug. There may also be a drain bolt for the differential, which is rear-facing, in addition to the one in the pan.
If you open the differential first and let it drain, most of the fluid will run out through it, with about a quarter remaining in the transmission pan. You can also remove the return line from the radiator or transmission and attach a piece of PCV clear tubing to it, placing it in a gallon jug. Start the engine and shut it off when about 3 quarts are in the jug, then reconnect the line, refill, and check the fluid level.
To remove the pan bolts, you may need to loosen the engine mount and jack up the engine to access the bolts. Use a 10mm ratchet or socket to remove the bolts. If the 10mm socket does not work, try a 9mm socket. You can also try tightening the bolts slightly first and then loosening them. For difficult-to-access bolts, a 10mm offset spanner can help by loosening the engine mount and slightly raising the engine.
Be sure to knock off as much corrosion on the bolts as possible, especially if they are rusty. It is recommended to get a new set of bolts. Additionally, be cautious when removing the "hidden" bolts behind the frame, as they can be challenging to reach.
