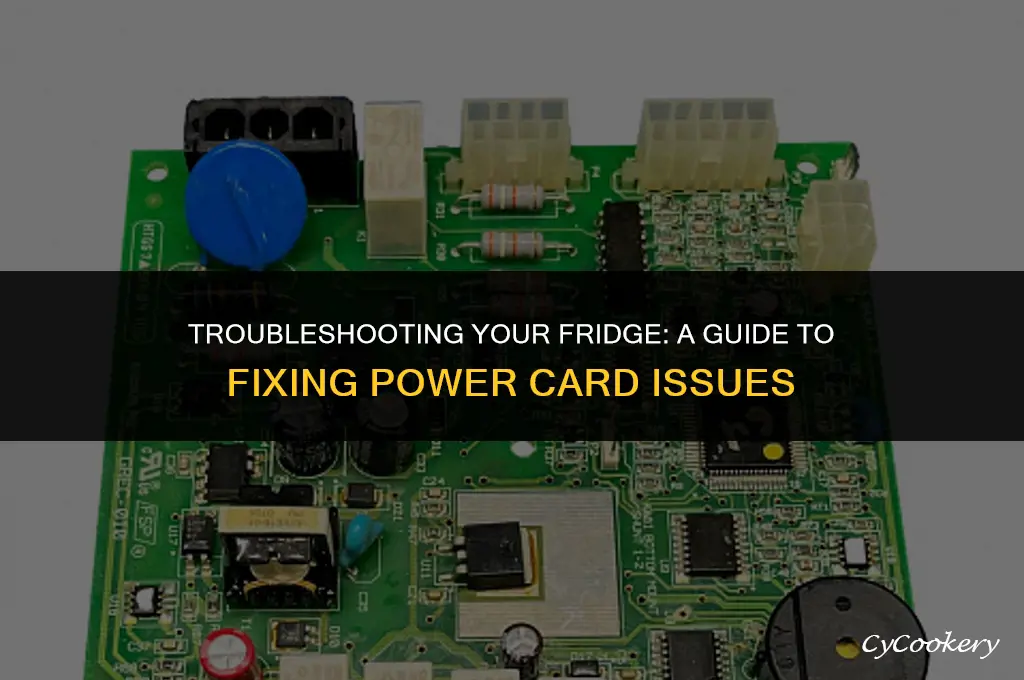

Troubleshooting Your Fridge: A Guide To Fixing Power Card Issues

Before diving into the specifics of fixing a power card on a refrigerator, it's essential to understand the role this component plays in your appliance's functionality. The power card, also known as the control board or electronic control module, is the brain of your refrigerator. It manages various functions such as temperature regulation, defrost cycles, and lighting. When the power card malfunctions, it can lead to issues like inconsistent cooling, excessive energy consumption, or even complete failure of the unit. In this guide, we'll walk you through the steps to diagnose and repair common problems with refrigerator power cards, helping you restore your appliance to optimal working condition.

Explore related products

Cheap And Easy Refrigerator Repair: 2000 Edition (Cheap and Easy)

$60.1

Fridge A/C Repair: Business

$9.99 $25

Identify the Issue: Determine if the power card is faulty or if there's another problem with the refrigerator

To identify whether the power card is faulty or if there's another issue with the refrigerator, begin by checking the power supply. Ensure that the refrigerator is properly plugged into a working outlet. Sometimes, a loose connection can cause the refrigerator to malfunction. If the power supply is stable, the next step is to inspect the power card itself. Look for any visible signs of damage, such as burnt components, broken traces, or swollen capacitors. These signs indicate a faulty power card that needs replacement.

If the power card appears intact, the issue might be with the refrigerator's internal components. Check the temperature settings and ensure they are correctly configured. Sometimes, a misadjusted thermostat can cause the refrigerator to behave erratically. Additionally, inspect the door seals for any signs of wear or damage. Poor sealing can lead to temperature fluctuations, which might be mistaken for a power card issue.

Another potential problem area is the refrigerator's compressor. If the compressor is not functioning correctly, it can affect the overall performance of the refrigerator. Listen for any unusual noises coming from the compressor area, such as rattling or hissing sounds. These noises could indicate a compressor issue rather than a problem with the power card.

In some cases, the issue might be related to the refrigerator's defrost system. If the defrost cycle is not working properly, it can cause the refrigerator to malfunction. Check the defrost timer and ensure it is set correctly. If the timer is faulty, it might need to be replaced.

Finally, if all other components seem to be functioning correctly, the problem could indeed be with the power card. In this case, it's best to consult a professional technician to diagnose and replace the faulty power card. Remember, when dealing with electrical components, it's always better to err on the side of caution and seek expert help if you're unsure.

Safety Precautions: Unplug the refrigerator and ensure it's safe to work on the power card

Before attempting to fix a power card on a refrigerator, it is crucial to prioritize safety. Unplugging the refrigerator is the first and most important step in ensuring that you can safely work on the power card. This precaution prevents any electrical shocks or short circuits that could occur if the refrigerator were still connected to the power source.

Once the refrigerator is unplugged, you should verify that it is safe to proceed. This involves checking that there are no signs of electrical arcing, such as sparks or smoke, coming from the power card or the refrigerator's electrical connections. If you notice any of these warning signs, do not attempt to fix the power card yourself; instead, consult a professional electrician.

In addition to unplugging the refrigerator, you should also ensure that the work area is well-lit and free from any obstructions. This will help you to see clearly and avoid any accidents while working on the power card. It is also advisable to wear protective gear, such as insulated gloves and safety glasses, to further minimize the risk of injury.

Before beginning the repair process, it is essential to familiarize yourself with the specific model of your refrigerator and its power card. This will help you to identify the correct replacement parts and follow the appropriate repair procedures. You can find this information in the refrigerator's user manual or by searching online for the model number.

Finally, if you are unsure about any aspect of the repair process, it is always best to err on the side of caution and seek professional assistance. Fixing a power card on a refrigerator can be a complex task, and it is important to ensure that it is done correctly to avoid any potential hazards.

Access the Power Card: Locate and remove the power card from its housing in the refrigerator

To access the power card in your refrigerator, you'll need to follow a few specific steps. First, ensure that the refrigerator is unplugged from the power outlet to avoid any electrical hazards. Next, locate the power card housing, which is typically found on the back or side of the refrigerator, depending on the model. It's usually a small, rectangular compartment with a cover that can be removed with a screwdriver or by hand, depending on the design.

Once you've located the power card housing, carefully remove the cover. Inside, you should see the power card itself, which is a small, rectangular circuit board with various connectors and components. Before removing the power card, take note of the orientation and positioning of the connectors to ensure that you can reinsert it correctly later on.

Gently disconnect the power card from the refrigerator's wiring harness by releasing the connectors. Be careful not to force them, as this can cause damage to the card or the connectors. Once the power card is disconnected, you can remove it from the housing.

Before proceeding with any repairs or replacements, it's important to inspect the power card for any visible signs of damage, such as burnt components, broken connectors, or corrosion. If you notice any damage, it's likely that the power card will need to be replaced. However, if the card appears to be in good condition, you may be able to troubleshoot and repair the issue yourself.

Remember to always handle electronic components with care, and avoid touching any exposed circuitry with your bare hands, as this can cause static discharge that may damage the components. By following these steps, you can safely access and remove the power card from your refrigerator, allowing you to diagnose and potentially fix any issues that may be present.

Test the Power Card: Use a multimeter to check for continuity and proper voltage output

To test the power card on your refrigerator, you'll need a multimeter, which is a versatile tool for measuring electrical properties. First, ensure the refrigerator is unplugged to avoid any electrical hazards. Locate the power card, typically found at the back or bottom of the fridge. It's a small circuit board that manages the power supply to the refrigerator's components.

Using the multimeter, set it to measure continuity. Touch the probes to the power card's input and output terminals. If the multimeter beeps or shows a reading, it indicates that there's a continuous electrical path, which is a good sign. If there's no beep or reading, it suggests a break in the circuit, and you may need to replace the power card.

Next, check the voltage output. Set the multimeter to measure DC voltage and connect the probes to the output terminals of the power card. The expected voltage reading will depend on your refrigerator's specifications, but it's typically around 12 volts. If the reading is significantly lower or higher, it could indicate a faulty power card.

When testing the power card, it's crucial to be methodical and patient. Take your time to ensure each connection is secure and that you're measuring the correct terminals. If you're unsure about any part of the process, consult your refrigerator's user manual or seek assistance from a professional appliance repair technician.

Remember, safety should always be your top priority when working with electrical components. Double-check that the refrigerator is unplugged before starting the test, and never touch the power card or any electrical parts with wet hands. By following these precautions and the steps outlined above, you can effectively test your refrigerator's power card and identify any potential issues.

Replace or Repair: If the power card is faulty, replace it with a new one or repair it if possible

If the power card in your refrigerator is faulty, it may be necessary to replace or repair it to restore proper function. Before taking any action, it's essential to diagnose the issue correctly. A faulty power card can manifest in several ways, such as the refrigerator not turning on, inconsistent cooling, or unusual noises. To confirm the problem, you can use a multimeter to test the power card for continuity and voltage output. If the readings are inconsistent or absent, it's likely that the power card is the culprit.

When it comes to replacing the power card, it's crucial to find a compatible replacement that matches the specifications of your refrigerator model. You can consult the user manual or contact the manufacturer to obtain the correct part number. Alternatively, you can seek assistance from a professional appliance repair technician who can provide guidance on selecting the right replacement part.

If you're considering repairing the power card instead of replacing it, you'll need to have a good understanding of electrical components and soldering techniques. Common issues that can be repaired include loose connections, blown capacitors, or damaged resistors. However, if the power card has suffered significant damage or is outdated, it may be more cost-effective and safer to replace it with a new one.

In some cases, the power card may not be the only component at fault. It's essential to inspect other parts of the refrigerator, such as the compressor, condenser coils, and evaporator coils, to ensure that they are functioning correctly. If multiple components are faulty, it may be necessary to replace the entire refrigerator or seek professional repair services.

When working with electrical components, it's crucial to prioritize safety. Always unplug the refrigerator before attempting any repairs or replacements, and use appropriate protective gear, such as gloves and safety glasses. If you're unsure about any aspect of the repair process, it's best to consult a professional technician to avoid potential hazards or further damage to your appliance.
