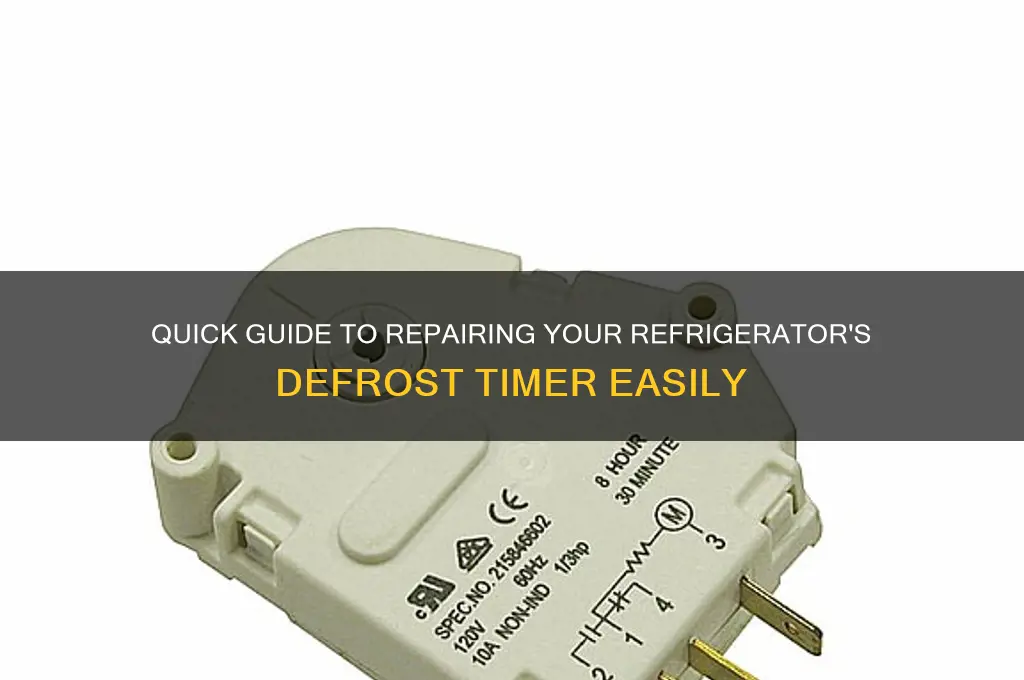

Fixing a refrigerator defrost timer is a common DIY task that can save you from costly repairs or premature appliance replacement. The defrost timer is a critical component that controls the defrost cycle, preventing ice buildup on the evaporator coils. If your refrigerator is not cooling properly, has excessive frost, or is running continuously, a malfunctioning defrost timer could be the culprit. To fix it, start by unplugging the refrigerator for safety. Locate the timer, typically found behind the control panel or near the compressor, and test it for continuity using a multimeter. If the timer is faulty, replace it with a compatible model, ensuring the wiring matches the original configuration. Always refer to your refrigerator’s manual or consult a professional if you’re unsure about the process.
Explore related products
![[2025 Upgrade] 5304526183 Defrost Timer – Compatible with Frigidaire & White‑Westinghouse Refrigerators – Replaces 4960382, AP7014390, PS16227343, EAP16227343, FIX16227343](https://m.media-amazon.com/images/I/71LkgmK9vJL._AC_UY218_.jpg)
What You'll Learn
- Identify Timer Location: Locate the defrost timer, usually near the compressor or behind the fridge
- Test for Functionality: Use a multimeter to check if the timer is working properly
- Replace Faulty Timer: Purchase a compatible replacement and install it following the manufacturer’s instructions
- Adjust Timer Settings: Ensure the timer is set correctly for your refrigerator model
- Inspect Wiring Connections: Check for loose or damaged wires connected to the defrost timer
Identify Timer Location: Locate the defrost timer, usually near the compressor or behind the fridge
The defrost timer in a refrigerator is a small but critical component that regulates the defrost cycle, preventing ice buildup on the evaporator coils. To troubleshoot or replace it, you must first locate it. Start by unplugging the refrigerator to ensure safety. The timer is typically housed in a compact, rectangular or cylindrical casing, often labeled for easy identification. Its placement varies by model, but it’s commonly found near the compressor, the fridge’s "engine," located at the bottom rear of the unit. If not there, check behind the fridge’s interior or exterior panels, where manufacturers often conceal it to maintain a sleek design.
Analyzing the timer’s location reveals strategic design choices. Placing it near the compressor reduces wiring complexity and keeps it close to the defrost system it controls. However, this proximity to heat-generating components can accelerate wear, making it a prime candidate for inspection during troubleshooting. If the timer is behind the fridge, access may require removing a lower kickplate or back panel, a task simplified with basic tools like a screwdriver. Understanding these placement patterns streamlines the search, saving time and frustration.
For a practical approach, begin by consulting your refrigerator’s manual, which often includes a diagram pinpointing the timer’s location. If the manual is unavailable, follow these steps: slide the fridge away from the wall, inspect the lower rear area for a small box with wires connected to it, and trace those wires to confirm they lead to the defrost system. If the timer is hidden, remove the kickplate or back panel carefully, avoiding damage to insulation or tubing. A flashlight is essential for visibility in tight spaces.
Comparing older and newer models highlights evolving trends. Older refrigerators often place the timer in accessible locations, like behind the control panel or near the compressor, while newer models prioritize aesthetics, tucking it behind panels or under the unit. This shift underscores the importance of model-specific knowledge. For instance, side-by-side fridges may hide the timer behind the grille at the bottom front, while top-freezer models often locate it near the compressor.
In conclusion, identifying the defrost timer’s location is a blend of pattern recognition and model-specific insight. By understanding common placements and using systematic inspection, you can locate it efficiently. This foundational step not only simplifies repairs but also empowers you to address defrost issues confidently, ensuring your refrigerator operates optimally. Always prioritize safety and precision, as misidentification can lead to unnecessary disassembly or damage.
