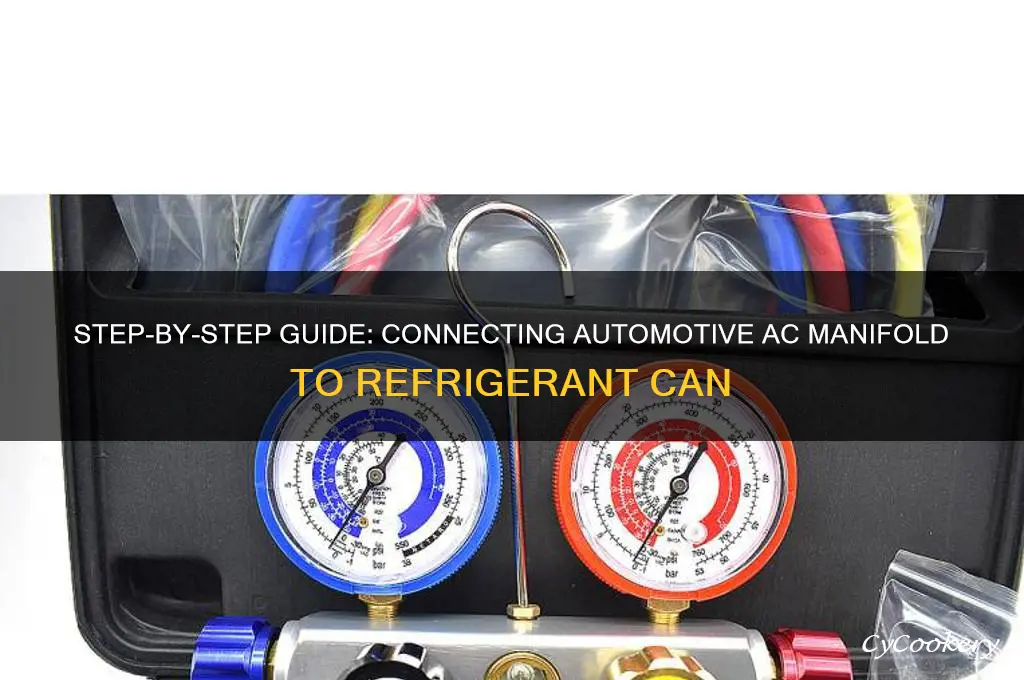

Hooking an automotive A/C manifold gauge set to a refrigerant can is a critical step in diagnosing, charging, or servicing a vehicle’s air conditioning system. This process involves connecting the manifold’s low-side hose to the refrigerant can, ensuring all components are securely attached and the system is properly evacuated of air and moisture. Before beginning, it’s essential to wear protective gear, work in a well-ventilated area, and follow safety guidelines to avoid refrigerant leaks or injury. The manifold gauges allow you to monitor system pressure while adding refrigerant, ensuring the correct amount is introduced without overcharging. Proper technique and attention to detail are key to maintaining the efficiency and longevity of the A/C system.
| Characteristics | Values |
|---|---|
| Tools Required | A/C manifold gauge set, refrigerant can with adapter, safety gloves, safety goggles, wrench or pliers |
| Refrigerant Type | R-134a (most modern vehicles), R-12 (older vehicles, requires different equipment) |
| System Pressure | Check vehicle specifications; typically 25-45 PSI (low side), 200-300 PSI (high side) |
| Connection Points | Low-side service port (usually near the firewall or on the accumulator/drier) |
| Manifold Gauge Setup | Connect blue hose to low-side port, red hose to refrigerant can, yellow hose to vacuum pump (if evacuating) |
| Refrigerant Can Adapter | Ensure proper adapter is used to connect refrigerant can to manifold gauge set |
| Safety Precautions | Wear safety gloves and goggles; avoid contact with skin and eyes; work in well-ventilated area |
| System Evacuation | Recommended before adding refrigerant; use vacuum pump to remove moisture and air |
| Refrigerant Charging | Add refrigerant slowly while monitoring gauges; do not overfill (refer to vehicle specifications) |
| Leak Detection | Inspect all connections for leaks using leak detector or soapy water solution |
| Environmental Considerations | Recover and recycle refrigerant properly; avoid releasing into the atmosphere |
| Legal Compliance | Follow local regulations regarding refrigerant handling and disposal |
| Vehicle Preparation | Turn on the A/C to the lowest temperature and highest fan setting; let the engine run |
| Post-Charging Check | Verify proper system operation, temperature, and pressure after charging |
| Professional Assistance | Consult a certified technician if unsure or encountering complex issues |
Explore related products
What You'll Learn
Identify Correct Refrigerant Type
Using the wrong refrigerant in your vehicle’s A/C system can cause irreversible damage, from compressor failure to chemical corrosion. Modern vehicles primarily use R-134a, but newer models are transitioning to R-1234yf, a more environmentally friendly option. Older systems may still rely on R-12, though its production has been banned due to ozone depletion. Before connecting any refrigerant can, verify the correct type by checking the vehicle’s underhood label, owner’s manual, or the A/C service port cap, which often indicates the refrigerant specification.
Misidentification of refrigerant type often stems from overlooking vehicle-specific details. For instance, R-1234yf is not interchangeable with R-134a, despite their similar names. Using the wrong refrigerant can lead to system inefficiency, leaks, or complete failure. To avoid this, cross-reference the vehicle’s year, make, and model with a refrigerant compatibility chart. Online databases or automotive forums can provide additional clarity if the label is missing or illegible.
Once the correct refrigerant is identified, ensure the can’s fittings match your manifold gauge set. R-134a uses a quick-connect fitting, while R-1234yf requires a specialized service port due to its unique properties. Adapters are available for older systems, but using them without proper knowledge can introduce contaminants. Always wear protective gloves and goggles, as refrigerants can cause skin and eye irritation. Work in a well-ventilated area to avoid inhaling fumes.
A practical tip for DIYers: if unsure about the refrigerant type, consult a professional technician. They can perform a system flush and recharge, ensuring compatibility and preventing costly mistakes. For those determined to proceed, invest in a refrigerant identifier kit, which detects the chemical composition of the existing refrigerant. This tool eliminates guesswork and ensures you’re adding the correct type.
In summary, identifying the correct refrigerant type is a critical step in safely hooking up an A/C manifold to a refrigerant can. It requires attention to vehicle-specific details, proper tools, and safety precautions. Skipping this step risks damaging the A/C system and voiding warranties. By taking the time to verify compatibility, you’ll maintain system efficiency and avoid unnecessary repairs.
Using R12a Refrigerant in R12 Systems: Compatibility and Risks Explained
You may want to see also
Explore related products
Prepare A/C System for Charging
Before charging your automotive A/C system, proper preparation ensures safety, efficiency, and longevity. Begin by evacuating the system to remove moisture and contaminants. Use a vacuum pump rated for automotive A/C systems, and maintain a vacuum for at least 30 minutes to ensure thorough drying. This step is critical because moisture reacts with refrigerant to form acids, leading to corrosion and system damage. Always follow the manufacturer’s guidelines for your specific vacuum pump and system.
Next, inspect all components for leaks or wear. Pay close attention to hoses, seals, and connections, as even minor leaks can compromise performance. A simple soap bubble test can identify leaks—apply soapy water to suspected areas and watch for bubbles. Replace any damaged parts before proceeding. Additionally, ensure the system is free of debris by cleaning the service ports with a lint-free cloth and compressed air. Neglecting this step risks introducing contaminants that could clog the system.
Once the system is evacuated and inspected, attach the manifold gauge set to the service ports. The blue hose connects to the low-pressure side, and the red hose to the high-pressure side. Leave the yellow hose (center) open for charging. Ensure all connections are tight to prevent refrigerant leaks. If your manifold has a sight glass, observe it for bubbles during operation, which indicate air or moisture in the system. Proper gauge placement not only ensures accurate readings but also safeguards against overcharging or undercharging.
Finally, prepare the refrigerant can by shaking it vigorously to ensure the liquid is well-mixed. Attach the can to the charging hose, typically the yellow hose on the manifold. Open the valve slowly to allow refrigerant to flow into the system. Monitor the gauges closely, maintaining the manufacturer’s recommended pressure levels. Overcharging can cause high-pressure cutoff switches to activate, while undercharging reduces cooling efficiency. Always wear protective gloves and goggles during this process, as refrigerant exposure can cause frostbite or eye injury.
By following these steps—evacuating, inspecting, connecting, and charging carefully—you ensure a smooth and effective A/C system recharge. Each stage addresses a specific risk, from moisture-induced corrosion to improper refrigerant flow. Taking the time to prepare not only enhances performance but also extends the life of your A/C system, saving you from costly repairs down the line.
Can Stoneware Go in the Fridge? Safe Refrigeration Tips
You may want to see also
Explore related products
Attach Manifold Gauges Properly
Attaching manifold gauges properly is a critical step in safely and effectively servicing an automotive air conditioning system. Improper connections can lead to refrigerant leaks, system damage, or even personal injury. Begin by ensuring the A/C system is off and the engine is cool to prevent pressure spikes or burns. Select a manifold gauge set compatible with your vehicle’s refrigerant type (e.g., R-134a or R-12, though R-12 is largely obsolete). Inspect the hoses and gauges for cracks, leaks, or damage before proceeding, as compromised components can fail under pressure.
The manifold gauge set consists of three hoses: one for low-side (blue), one for high-side (red), and one for the refrigerant can (yellow). Start by connecting the yellow hose to the refrigerant can’s valve, ensuring a tight seal. Next, attach the blue hose to the low-side service port, typically located on the suction line near the firewall or compressor. The red hose connects to the high-side service port, usually found on the liquid line near the condenser. Always thread the hoses clockwise to avoid cross-threading, which can damage the ports. Use Teflon tape or thread sealant on the connections if they are prone to leaks, but avoid over-tightening, as this can strip the threads.
Once the hoses are securely attached, open the manifold valves slowly to equalize pressure between the system and the gauges. Observe the readings to ensure they align with expected values for your vehicle’s A/C system. For example, a properly functioning R-134a system should read between 25–45 PSI on the low side and 200–300 PSI on the high side when the compressor is running. If the readings are abnormal, recheck the connections and inspect for leaks using a refrigerant leak detector or soapy water solution.
A common mistake is neglecting to purge air from the manifold before use. To do this, open the manifold valves and slowly release any trapped air until only refrigerant flows through the lines. This ensures accurate pressure readings and prevents contamination of the A/C system. Additionally, always wear safety goggles and gloves when working with refrigerants, as they can cause frostbite or chemical burns upon contact with skin.
In conclusion, attaching manifold gauges properly requires attention to detail, compatibility, and safety. By following these steps and precautions, you can confidently service your vehicle’s A/C system without risking damage or injury. Remember, if you’re unsure about any step, consult a professional or refer to your vehicle’s service manual for specific instructions. Proper technique not only ensures a successful repair but also extends the life of your A/C system.
Can Two Fridges Share One Circuit? Safety and Power Tips
You may want to see also
Explore related products
Connect Refrigerant Can to Gauge
Connecting a refrigerant can to an automotive AC manifold gauge set is a critical step in diagnosing, charging, or recovering a vehicle’s air conditioning system. The process requires precision to avoid contamination, pressure imbalances, or damage to the system. Begin by ensuring the refrigerant can is upright and securely attached to the gauge set’s low-side hose, typically the blue hose, via the pierce-style valve tap. This connection allows for controlled refrigerant flow into the system. Always verify compatibility between the refrigerant type (e.g., R-134a) and the can’s valve to prevent leaks or inefficiencies.
The gauge set acts as the intermediary between the refrigerant can and the vehicle’s AC system, providing pressure readings and regulating flow. When attaching the can, use a firm but controlled motion to pierce the seal, as excessive force can damage the valve or cause refrigerant to escape. Once connected, open the low-side valve on the gauge set slowly to allow refrigerant to enter the system. Monitor the gauge readings closely, ensuring the pressure aligns with the manufacturer’s specifications for the vehicle’s AC system. Overcharging or undercharging can lead to poor performance or system failure.
A common mistake is neglecting to purge air from the hoses before connecting the refrigerant can. Air contamination can compromise the system’s efficiency and longevity. To avoid this, attach the gauge set to the vehicle’s service ports first, open the valves briefly to evacuate air, and then connect the refrigerant can. This preparatory step ensures only pure refrigerant enters the system. Additionally, always wear protective gloves and eyewear, as refrigerant exposure can cause skin and eye irritation.
For optimal results, follow a systematic approach: connect the gauge set to the vehicle, purge the hoses, attach the refrigerant can, and monitor the process continuously. If the system requires evacuation, use the gauge set’s high-side hose (red) to connect to a vacuum pump before introducing refrigerant. This ensures the system is free of moisture and contaminants. Finally, after completing the task, close all valves, detach the can carefully, and store it upright to prevent leaks. Proper technique not only ensures a successful charge but also extends the life of the AC system.
Refrigerating Chicken and Steak Together: Safe or Risky Practice?
You may want to see also
Explore related products
Monitor Pressure During Charging
Monitoring pressure during the charging process is critical to ensuring your automotive A/C system operates efficiently and safely. The manifold gauge set acts as your window into the system, displaying both low-side (suction) and high-side (discharge) pressures. These readings provide real-time feedback, allowing you to identify potential issues like overcharging, undercharging, or system blockages. Ignoring pressure readings can lead to compressor damage, component failure, or even system freeze-up.
For instance, if the high-side pressure exceeds the recommended range (typically 200-250 psi for R-134a systems), it indicates excessive refrigerant or a restriction in the system. Conversely, low high-side pressure might suggest undercharging or a leak.
To effectively monitor pressure, follow these steps: Connect the manifold gauge set to the A/C system, ensuring proper hose connections to the low-side and high-side service ports. Start the engine and turn the A/C to maximum settings. Observe the gauges as you slowly open the refrigerant can valve. Aim for a steady pressure increase, avoiding sudden spikes. Refer to your vehicle's specifications for target pressure ranges, as these vary depending on ambient temperature and system design.
While charging, be mindful of environmental factors. High ambient temperatures will naturally elevate pressures, while cooler conditions will lower them. Adjust your charging rate accordingly, aiming for a balanced system that performs optimally across a range of conditions. Remember, precision is key – overcharging by even a small amount can significantly impact performance and longevity.
Regularly monitoring pressure during charging isn't just about avoiding damage; it's about achieving peak A/C performance. By understanding the relationship between pressure, temperature, and refrigerant flow, you can ensure your system delivers consistent cooling comfort, even on the hottest days.
Refrigerating and Reheating Baked Potatoes: Tips for Perfect Results
You may want to see also
Frequently asked questions
You will need an A/C manifold gauge set, a refrigerant can with a tap valve, a set of refrigerant hoses, and a wrench or pliers to tighten connections securely.
Attach the yellow hose (high-side) or blue hose (low-side) from the manifold gauge set to the refrigerant can’s tap valve. Ensure all connections are tight to prevent leaks.
Yes, it’s recommended to evacuate the A/C system to remove moisture and air before adding refrigerant to ensure proper system performance and longevity.
Ensure the refrigerant can is compatible with your vehicle’s A/C system (e.g., R-134a or R-12) and that the can has a tap valve or adapter that fits the manifold gauge set hoses.
