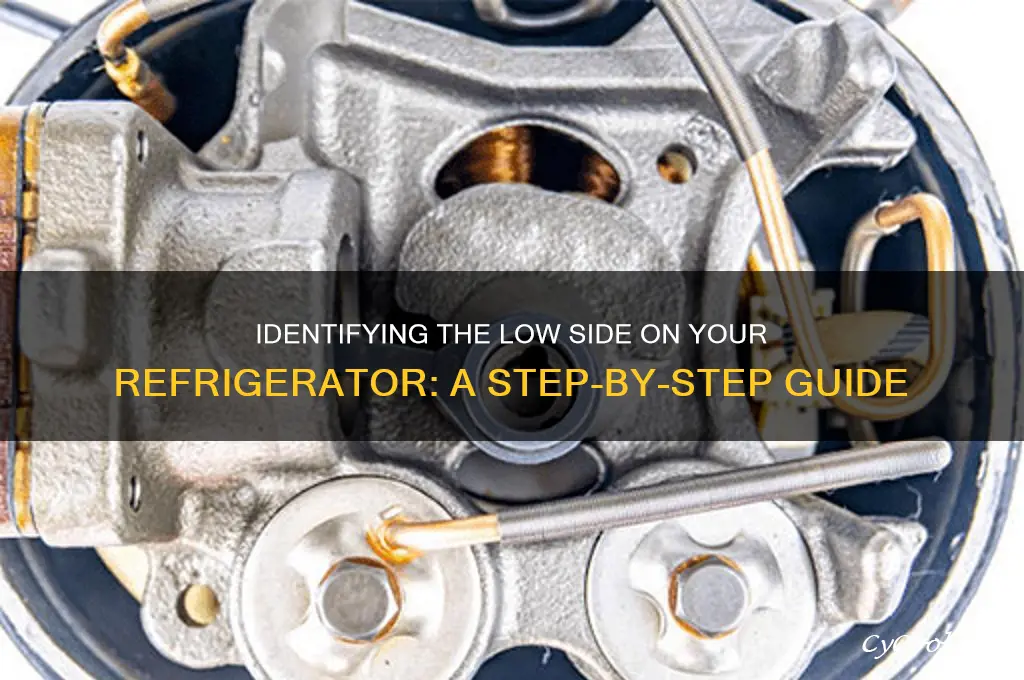

Identifying the low side on a refrigerator is crucial for troubleshooting and maintenance, as it helps diagnose issues related to the refrigeration cycle. The low side refers to the part of the system where the refrigerant is in a low-pressure, low-temperature state, typically found between the evaporator and the compressor. To locate it, start by examining the refrigeration unit’s piping: the low side is usually the larger diameter line that feels cool to the touch, as it carries cold refrigerant from the evaporator to the compressor. Additionally, the low side often has a service port or valve labeled L or Low, which is used for adding refrigerant or measuring pressure. Understanding and correctly identifying the low side ensures safe and effective repairs, preventing potential damage to the system.
| Characteristics | Values |
|---|---|
| Location of Service Valves | The low side service valve is typically located on the larger diameter line, usually near the compressor. |
| Line Diameter | The low side line is generally larger in diameter compared to the high side line. |
| Temperature | The low side line feels cooler to the touch compared to the high side line, especially when the refrigerator is running. |
| Pressure | The low side pressure is significantly lower than the high side pressure. Use a manifold gauge set to measure pressures accurately. |
| Labeling | Some refrigerators have labels or markings near the service valves indicating "L" for low side and "H" for high side. |
| Accumulator/Drier | The low side line is often connected to the accumulator or drier, which is a cylindrical component near the compressor. |
| Sight Glass | If present, the sight glass (moisture indicator) is usually located on the low side line. |
| Flow Direction | Refrigerant flows from the evaporator (inside the refrigerator) to the compressor through the low side line. |
| Color Coding | In some systems, the low side line may be color-coded differently (e.g., blue or silver) compared to the high side line. |
| Noise | The low side may produce less noise compared to the high side, as it operates at lower pressures. |
Explore related products
What You'll Learn
- Check for Frost Buildup: Inspect evaporator coils for excessive frost, indicating low refrigerant or airflow issues
- Measure Suction Pressure: Use a gauge to verify if suction pressure is abnormally low during operation
- Listen for Compressor Noise: Unusual compressor sounds may signal low refrigerant or system inefficiency
- Inspect Sight Glass: Look for bubbles in the sight glass, which indicate low refrigerant levels
- Monitor Cooling Performance: Poor cooling or long run times suggest low refrigerant or system problems
Check for Frost Buildup: Inspect evaporator coils for excessive frost, indicating low refrigerant or airflow issues
Frost on your evaporator coils isn't always a cause for panic, but excessive buildup warrants investigation. Think of it like a fever – a symptom pointing to an underlying issue. In this case, the culprit is often low refrigerant levels or restricted airflow, both of which can cripple your refrigerator's cooling efficiency.
While a light dusting of frost is normal during defrost cycles, anything more substantial indicates a problem. Imagine a thick, icy blanket smothering your coils – this hinders heat exchange, preventing your fridge from reaching its desired temperature.
Diagnosing the Frosty Culprit:
To pinpoint the cause, a systematic approach is key. First, unplug your refrigerator for safety. Locate the evaporator coils, typically found behind a removable panel in the freezer compartment. Use a flashlight to inspect them closely. If you see a thick layer of frost extending beyond the coils themselves, or if the frost is accompanied by ice buildup on the freezer walls, you've likely identified the low side issue.
Remember, excessive frost doesn't always mean a complete refrigerant leak. Even a partial loss can lead to this symptom.
Beyond the Frost: Airflow Matters
Don't jump to conclusions about refrigerant just yet. Restricted airflow can also lead to frost buildup. Dust, debris, or even a blocked vent can prevent warm air from circulating properly, causing moisture to condense and freeze on the coils. Before assuming a refrigerant leak, ensure your coils are clean and free of obstructions. Vacuum them regularly and check for any blockages in the vents.
Pro Tip: If you suspect airflow issues, try moving items away from the vents inside your fridge and freezer to allow for better circulation.
When to Call the Pros:
While identifying frost buildup is a crucial step, diagnosing the root cause – whether it's low refrigerant or airflow problems – often requires professional expertise. Refrigerant handling is regulated and requires specialized tools and knowledge. If you suspect a refrigerant leak, it's best to contact a qualified technician to safely address the issue and recharge your system.
